◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11591 - FVR LHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#152121) — 26 parça

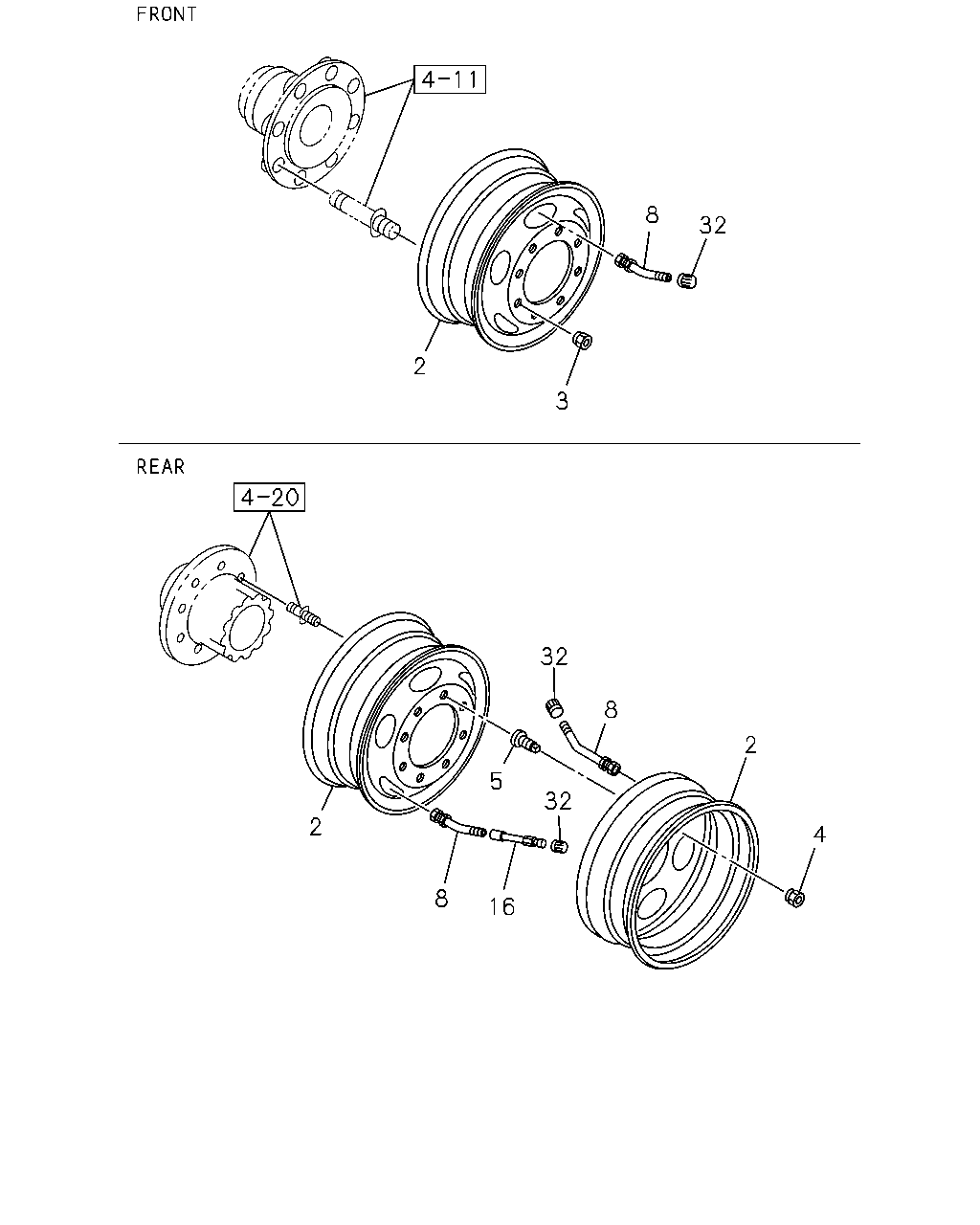

çizim 455273
8 32 3 2 2 8 5 32 8 32 16 2 4
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		8-98232-031-0 01 1 1411-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. DISC WHEEL SPARE<N79> SPARE 		8-98232-031-0 01 1 1411-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42350-667-0 01 1 1411-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. DISC WHEEL SPARE<N79> SPARE 		1-42350-667-0 01 1 1411-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT 		8-98232-031-0 02 1 1411-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) REAR 		8-98232-031-0 04 1 1411-
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) FRONT 		1-42350-667-0 02 1 1411-
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) REAR 		1-42350-667-0 04 1 1411-
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 08 1 1411-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 08 1 1411-
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 08 1 1411-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 08 1 1411-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 08 1 1411-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 08 1 1411-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-048-0 01 1 1411-
8 VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-048-0 01 1 1411-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-020-3 01 1 1411-
8 VALVE; TIRE
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-020-3 01 1 1411-
8 VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT 		1-42370-048-0 02 1 1411-
8 VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) REAR 		1-42370-048-0 04 1 1411-
8 VALVE; TIRE
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) FRONT 		1-42370-020-3 02 1 1411-
8 VALVE; TIRE
WHEEL 8STUD 8.25X22.5 165-13TC(SKV) REAR 		1-42370-020-3 04 1 1411-
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) L=170 		8-98167-052-0 02 1 1411-
32 CAP; VALVE
DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 1411-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 1411-
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 06 1 1411-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
