Isuzu WW
▶
TRUCKS
▶
FVR
▶
11591 - FVR LHD EURO5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-31 - STEERING COLUMN AND SHAFT
▶

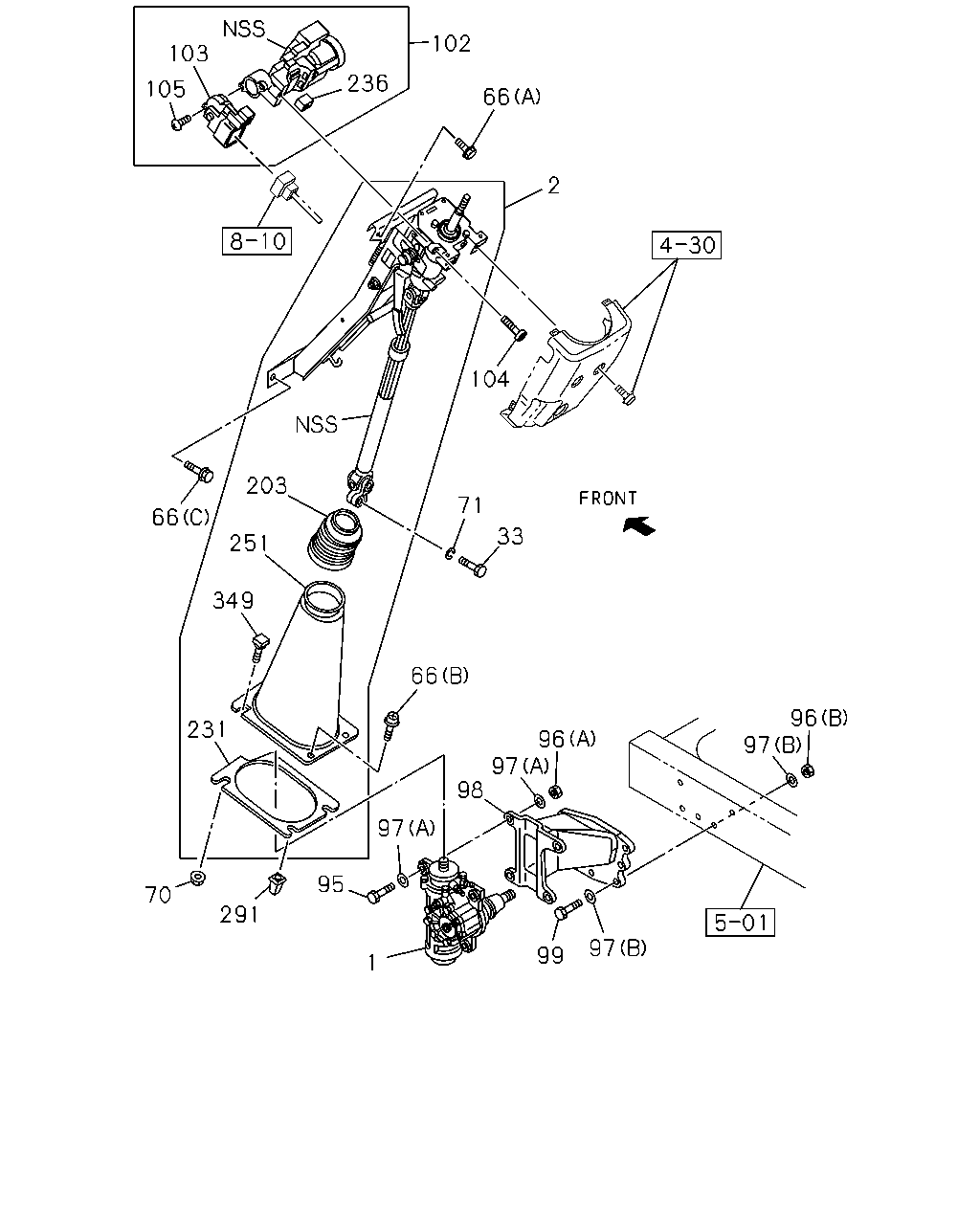

4-31 — STEERING COLUMN AND SHAFT
(#152111) — 25 parça
2
66
102
236
103
105
203
66
251
349
231
70
291
97
95
97
66
98
96
97
96
97
99
71
33
1
104
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-930-2
01
1
1411-
2
SHAFT ASM; STRG
BLACK
8-97415-618-2
01
1
1411-
33
BOLT; STRG SHAFT TO UNIT
M10X35
1-09009-126-1
01
1
1411-
66
BOLT; STRG COLUMN
(A) M8X20 FLANGE
0-28650-820-0
02
1
1411-
66
BOLT; STRG COLUMN
(B) M5X18 TAPPING
0-72180-518-0
02
1
1411-
66
BOLT; STRG COLUMN
(C) M8X25 W/LK&PL WASHER
8-98018-439-0
02
1
1411-
70
NUT; STRG COLUMN
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
1411-
71
WASHER; LK,SHAFT TO UNIT
ID=10.2
0-91510-810-0
01
1
1411-
95
BOLT; STRG UNIT
M16X66
1-09000-305-0
04
1
1411-
96
NUT; STRG UNIT
(A) M16
0-91110-516-0
02
1
1411-
96
NUT; STRG UNIT
(B) M14
1-09440-097-0
06
1
1411-
97
WASHER; PL,STRG UNIT
(A) ID=16.2
1-09503-316-0
06
1
1411-
97
WASHER; PL,STRG UNIT
(B) ID=15
8-98010-627-1
12
1
1411-
98
BRACKET; STRG GEAR BOX
1-44226-180-0
01
1
1411-
99
BOLT; BRKT TO FRAME
M14X50
1-09000-787-1
06
1
1411-
102
LOCK ASM; STRG
8-97387-036-0
01
1
1411-
103
SWITCH; IGNITION
8-98045-349-0
01
1
1411-
104
BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT
8-97321-385-0
02
1
1411-
105
SCREW; IGN SW
8-98045-346-0
02
1
1411-
203
BOOT; STRG COLUMN LWR
8-98137-333-0
01
1
1411-
231
SEAL; RUBBER,STRG COLUMN
8-98137-330-0
01
1
1411-
236
SWITCH; DOOR WARNING,STRG LOCK
8-98045-350-0
01
1
1411-
251
COVER; LWR
BLACK
8-97417-050-0
01
1
1411-
291
GROMMET; STRG SHAFT COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
1411-
349
BOLT; COVER
8-98137-334-0
02
1
1411-
