◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11591 - FVR LHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#152105) — 1316 parça

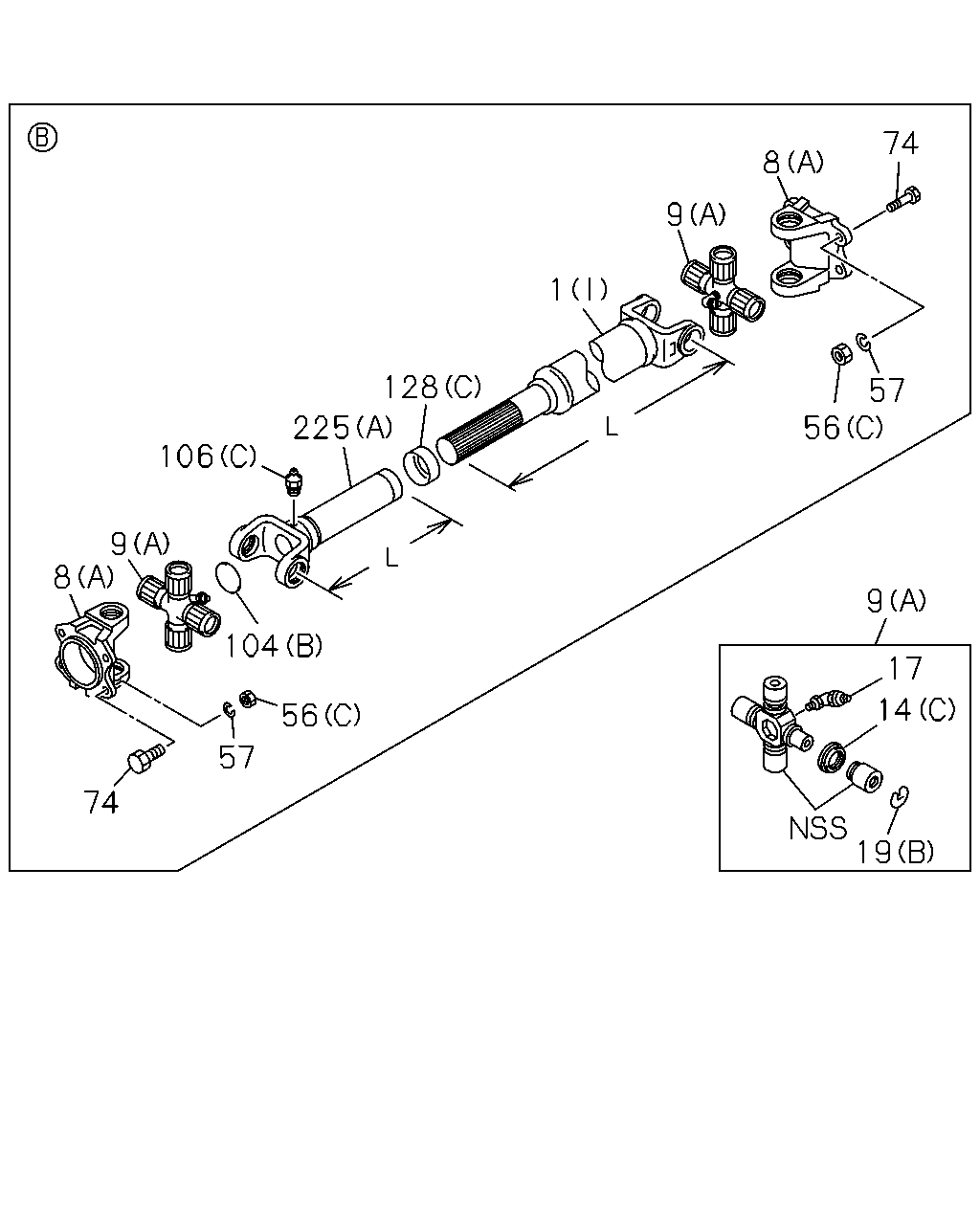

çizim 455339
1 57 56 9 17 14 19 74 8 9 128 225 106 9 8 104 56 57 74
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> P46 PROP SHAFT(C4Z) (A) L=1081 		1-37153-254-0 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=1129 		8-98091-090-0 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (I) L=1331 		8-98091-127-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1489 		8-98173-568-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1279 		8-98173-566-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1074 		1-37151-832-0 02 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1214 		8-98091-324-0 01 1 1411- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1164 		8-98091-322-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1559 		8-98091-294-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-297-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1274 		8-98091-301-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) 3RD L=1074 		1-37151-832-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) 2ND L=1074 		8-98091-302-0 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1385 		8-98091-467-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1259 		8-98092-530-1 01 1 1411- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1225 		8-98092-405-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1095 		8-98092-524-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98092-400-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1070 		8-98092-406-1 02 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1184 		8-98092-529-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 05 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST 		1-37300-102-1 AR 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		8-98048-925-1 02 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) END 		1-37300-110-0 02 1 1411-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST,2ND,3RD 		1-37300-111-0 03 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 05 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-111-0 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 2ND 		1-37300-111-0 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 01 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 3RD 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) END 		1-37300-094-1 02 1 1411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-095-1 01 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-095-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 3RD 		1-37300-095-1 01 1 1411- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (C) 1ST 		1-37319-012-0 04 1 1411-1505 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (C) END 		8-98020-800-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 1411- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 20 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 05 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 08 1 1411- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 08 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 20 1 1411- ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) (C) M14 		0-91110-514-0 08 1 1411- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1411- ● ● ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 1411- ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 08 1 1411- ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 1411- ●
57 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 08 1 1411- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 08 1 1411- ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) (B) 		1-09600-064-0 01 1 1411- ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		1-09600-067-0 01 1 1411- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) M6 STRAIGHT 		0-90301-406-0 01 1 1411- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1411- ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) (C) 		1-37247-024-0 01 1 1411- ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 1411- ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 1411- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) L=254 		8-98020-885-0 01 1 1411- ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 1411- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) L=330 		1-37241-124-0 01 1 1411- ● ● ●

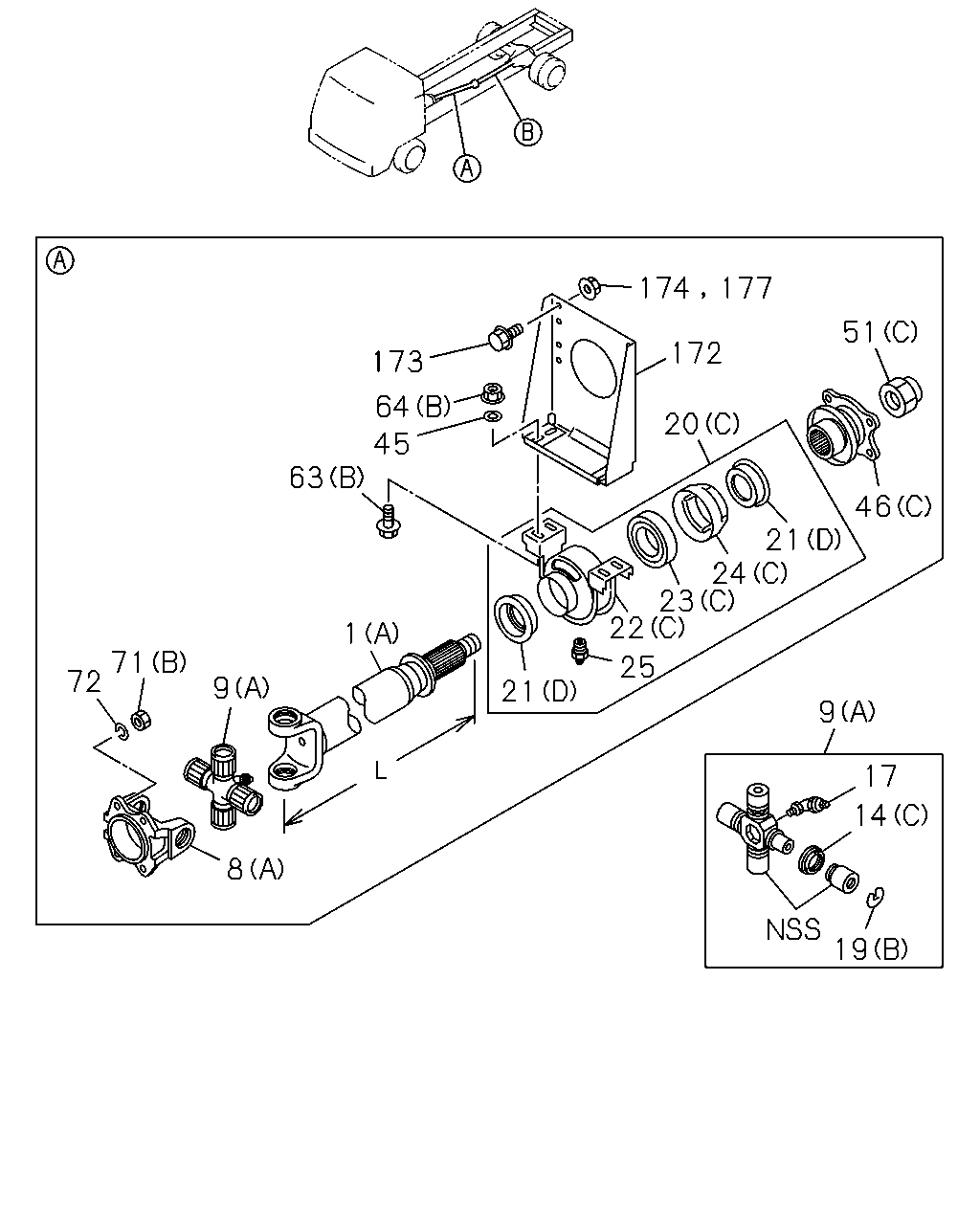

çizim 455341
174 177 172 20 51 46 21 24 23 22 25 21 9 17 14 19 1 9 8 71 72 63 45 64 173
BalonParca AdiParca NoAdetTipApplied Date A B C D

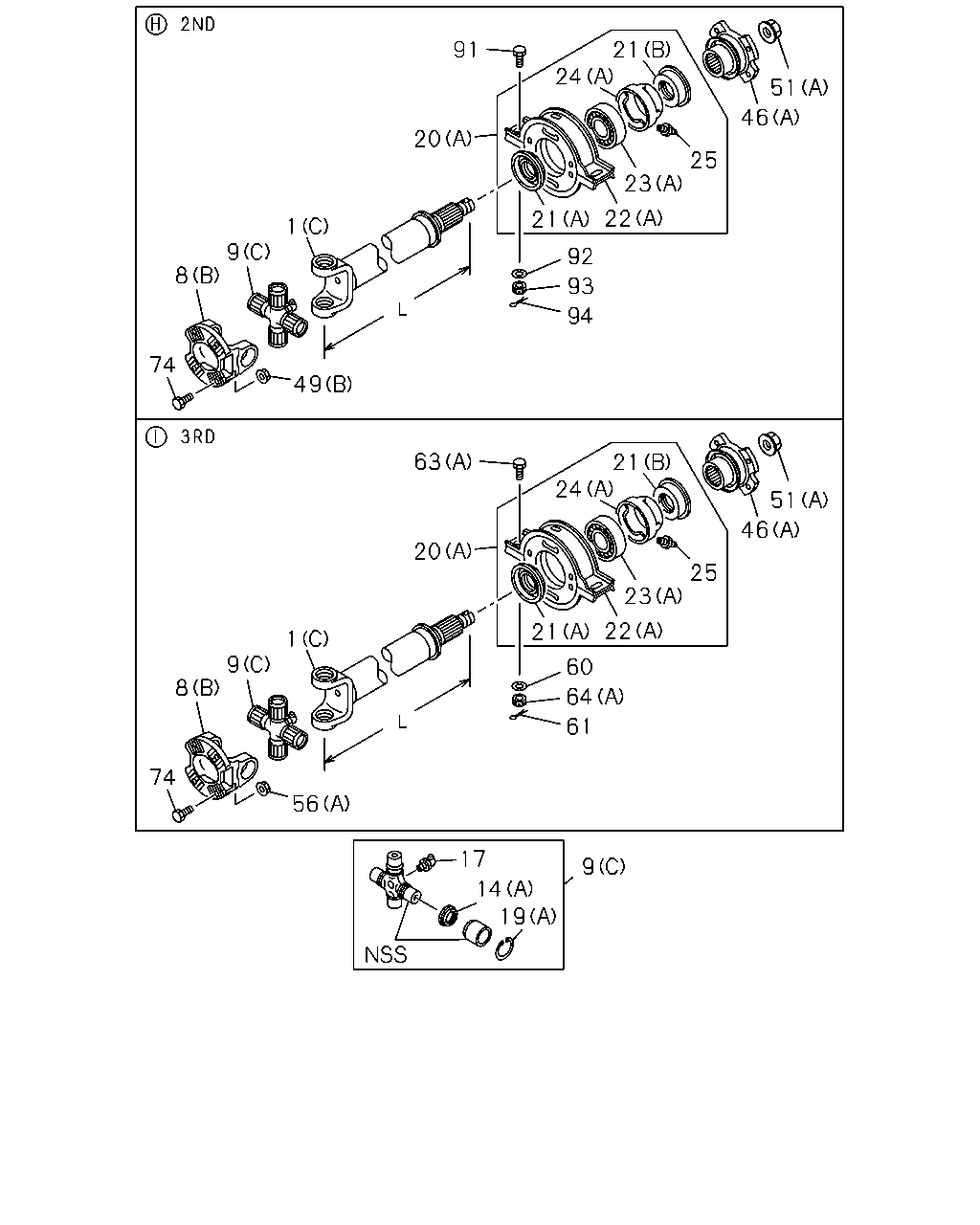

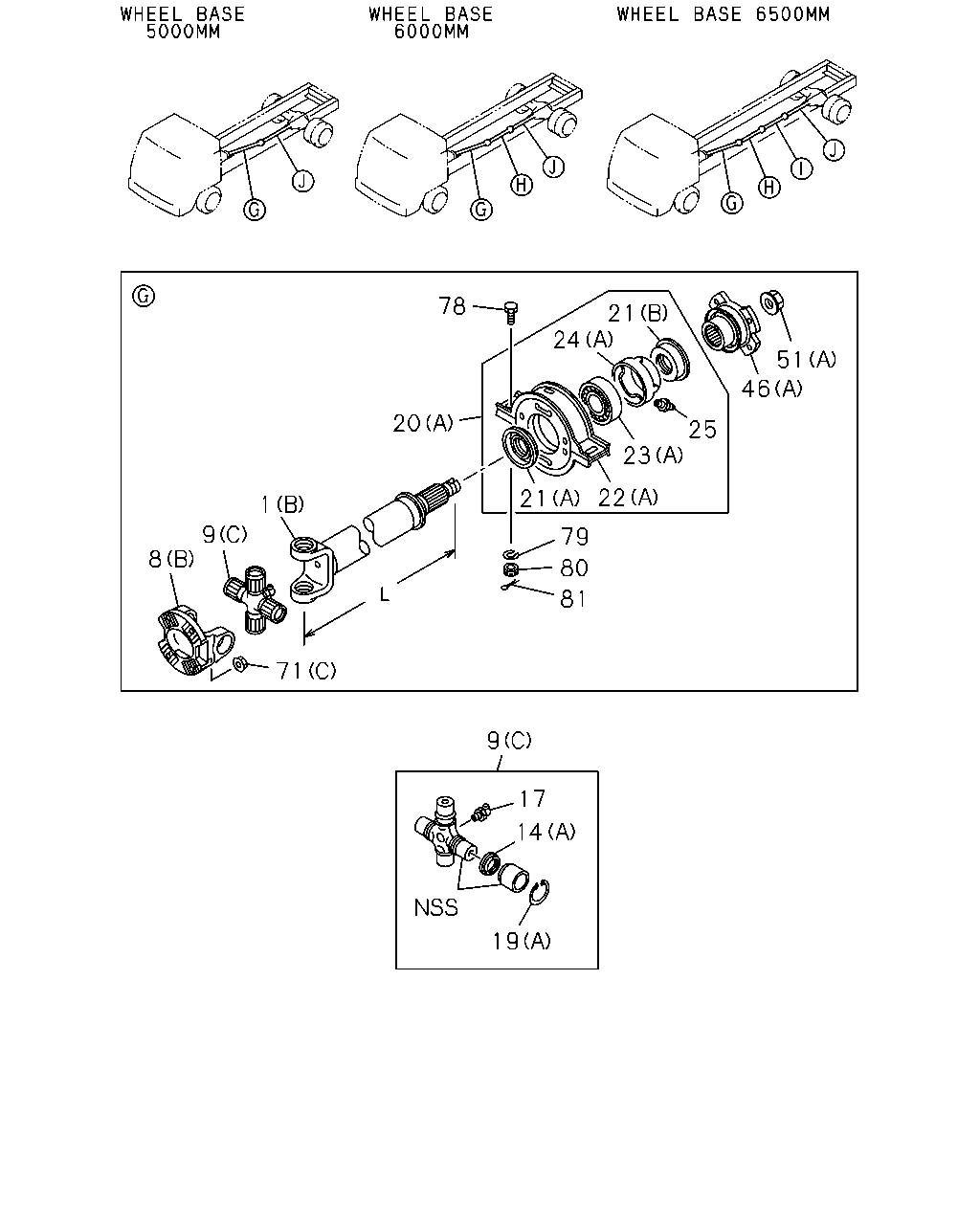

1 SHAFT; PROP
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> P46 PROP SHAFT(C4Z) (A) L=1081 		1-37153-254-0 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=1129 		8-98091-090-0 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (I) L=1331 		8-98091-127-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1489 		8-98173-568-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1279 		8-98173-566-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1074 		1-37151-832-0 02 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1214 		8-98091-324-0 01 1 1411- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1164 		8-98091-322-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1559 		8-98091-294-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-297-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1274 		8-98091-301-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) 3RD L=1074 		1-37151-832-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) 2ND L=1074 		8-98091-302-0 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1385 		8-98091-467-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1259 		8-98092-530-1 01 1 1411- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1225 		8-98092-405-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1095 		8-98092-524-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98092-400-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1070 		8-98092-406-1 02 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1184 		8-98092-529-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 05 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST 		1-37300-102-1 AR 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		8-98048-925-1 02 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) END 		1-37300-110-0 02 1 1411-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST,2ND,3RD 		1-37300-111-0 03 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 05 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-111-0 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 2ND 		1-37300-111-0 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 01 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 3RD 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) END 		1-37300-094-1 02 1 1411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-095-1 01 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-095-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 3RD 		1-37300-095-1 01 1 1411- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (C) 1ST 		1-37319-012-0 04 1 1411-1505 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (C) END 		8-98020-800-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 1411- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 20 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 05 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 08 1 1411- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 08 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 20 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		1-37510-105-0 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 02 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 02 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 03 1 1411- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (D) ID=54 		1-09625-161-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1411- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 04 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 03 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 03 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (C) 		1-37516-059-0 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 03 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		9-00090-071-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 02 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 02 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 03 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (C) 		1-37529-068-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 02 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 02 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 03 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 02 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 02 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 03 1 1411- ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		0-91614-610-0 04 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (C) 		1-37245-071-0 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 02 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 02 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 03 1 1411- ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (C) M30 		8-97160-857-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 02 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 02 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 03 1 1411- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) M10X35 FLANGE 		0-28651-035-0 04 1 1411- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) M16X45 		1-09042-030-0 02 1 1411- ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) (B) M10 FLANGE 		0-91180-210-0 04 1 1411- ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) M16 SLOTTED 		8-98049-689-0 02 1 1411- ●
71 NUT; YOKE
P46 PROP SHAFT(C4Z) (B) M14 		0-91110-514-0 04 1 1411- ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1411- ● ● ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (C) M14 FLANGE 		8-97365-444-0 04 1 1411- ● ● ●
72 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 04 1 1411- ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) 		1-37515-074-1 01 1 1411- ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1411- ● ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1411- ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1411- ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1411- ● ● ● ●
177 NUT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1411- ● ●
177 NUT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1411- ●
çizim 455342
51 46 21 24 25 23 22 80 81 79 21 78 20 1 9 71 8 74 9 83 10 84 14 17 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> P46 PROP SHAFT(C4Z) (A) L=1081 		1-37153-254-0 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=1129 		8-98091-090-0 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (I) L=1331 		8-98091-127-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1489 		8-98173-568-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1279 		8-98173-566-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1074 		1-37151-832-0 02 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1214 		8-98091-324-0 01 1 1411- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1164 		8-98091-322-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1559 		8-98091-294-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-297-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1274 		8-98091-301-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) 3RD L=1074 		1-37151-832-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) 2ND L=1074 		8-98091-302-0 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1385 		8-98091-467-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1259 		8-98092-530-1 01 1 1411- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1225 		8-98092-405-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1095 		8-98092-524-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98092-400-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1070 		8-98092-406-1 02 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1184 		8-98092-529-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 05 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST 		1-37300-102-1 AR 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		8-98048-925-1 02 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) END 		1-37300-110-0 02 1 1411-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST,2ND,3RD 		1-37300-111-0 03 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 05 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-111-0 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 2ND 		1-37300-111-0 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 01 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 3RD 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) END 		1-37300-094-1 02 1 1411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-095-1 01 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-095-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 3RD 		1-37300-095-1 01 1 1411- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1411- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1411- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1411- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1411- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 08 1 1411- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (C) 1ST 		1-37319-012-0 04 1 1411-1505 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (C) END 		8-98020-800-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 1411- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 20 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 05 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		1-37510-105-0 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 02 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 02 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 03 1 1411- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (D) ID=54 		1-09625-161-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1411- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 04 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 03 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 03 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (C) 		1-37516-059-0 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 03 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		9-00090-071-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 02 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 02 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 03 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (C) 		1-37529-068-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 02 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 02 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 03 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 02 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 02 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 03 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (C) 		1-37245-071-0 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 02 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 02 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 03 1 1411- ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (C) M30 		8-97160-857-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 02 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 02 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 03 1 1411- ●
71 NUT; YOKE
P46 PROP SHAFT(C4Z) (B) M14 		0-91110-514-0 04 1 1411- ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1411- ● ● ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (C) M14 FLANGE 		8-97365-444-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 08 1 1411- ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 1411- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 1411- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1411- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 1411- ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ● ● ●
çizim 455343
9 17 13 84 10 83 12 14 74 49 8 9 1 20 21 22 92 91 21 24 23 93 94 25 56 51 46
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> P46 PROP SHAFT(C4Z) (A) L=1081 		1-37153-254-0 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=1129 		8-98091-090-0 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (I) L=1331 		8-98091-127-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1489 		8-98173-568-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1279 		8-98173-566-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1074 		1-37151-832-0 02 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1214 		8-98091-324-0 01 1 1411- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1164 		8-98091-322-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1559 		8-98091-294-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-297-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1274 		8-98091-301-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) 3RD L=1074 		1-37151-832-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) 2ND L=1074 		8-98091-302-0 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1385 		8-98091-467-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1259 		8-98092-530-1 01 1 1411- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1225 		8-98092-405-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1095 		8-98092-524-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98092-400-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1070 		8-98092-406-1 02 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1184 		8-98092-529-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 05 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST 		1-37300-102-1 AR 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		8-98048-925-1 02 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) END 		1-37300-110-0 02 1 1411-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST,2ND,3RD 		1-37300-111-0 03 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 05 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-111-0 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 2ND 		1-37300-111-0 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 01 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 3RD 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) END 		1-37300-094-1 02 1 1411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-095-1 01 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-095-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 3RD 		1-37300-095-1 01 1 1411- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1411- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1411- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1411- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1411- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 08 1 1411- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (C) 1ST 		1-37319-012-0 04 1 1411-1505 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (C) END 		8-98020-800-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 1411- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 20 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 05 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		1-37510-105-0 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 02 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 02 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 03 1 1411- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (D) ID=54 		1-09625-161-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1411- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 04 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 03 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 03 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (C) 		1-37516-059-0 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 03 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		9-00090-071-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 02 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 02 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 03 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (C) 		1-37529-068-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 02 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 02 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 03 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 02 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 02 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 03 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (C) 		1-37245-071-0 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 02 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 02 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 03 1 1411- ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1411- ● ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1411- ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (C) M30 		8-97160-857-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 02 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 02 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 03 1 1411- ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) (C) M14 		0-91110-514-0 08 1 1411- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1411- ● ● ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 1411- ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 08 1 1411- ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 1411- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 08 1 1411- ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ● ● ●
91 BOLT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 1411- ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 1411- ● ●
93 NUT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1411- ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 1411- ● ●
çizim 455344
19 14 17 9 71 1 9 8 20 78 24 21 80 81 79 23 22 25 46 51 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> P46 PROP SHAFT(C4Z) (A) L=1081 		1-37153-254-0 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=1129 		8-98091-090-0 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (I) L=1331 		8-98091-127-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1489 		8-98173-568-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1279 		8-98173-566-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1074 		1-37151-832-0 02 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1214 		8-98091-324-0 01 1 1411- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1164 		8-98091-322-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1559 		8-98091-294-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-297-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1274 		8-98091-301-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) 3RD L=1074 		1-37151-832-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) 2ND L=1074 		8-98091-302-0 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1385 		8-98091-467-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1259 		8-98092-530-1 01 1 1411- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1225 		8-98092-405-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1095 		8-98092-524-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98092-400-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1070 		8-98092-406-1 02 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1184 		8-98092-529-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 05 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST 		1-37300-102-1 AR 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		8-98048-925-1 02 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) END 		1-37300-110-0 02 1 1411-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST,2ND,3RD 		1-37300-111-0 03 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 05 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-111-0 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 2ND 		1-37300-111-0 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 01 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 3RD 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) END 		1-37300-094-1 02 1 1411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-095-1 01 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-095-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 3RD 		1-37300-095-1 01 1 1411- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (C) 1ST 		1-37319-012-0 04 1 1411-1505 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (C) END 		8-98020-800-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 1411- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 20 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 05 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 08 1 1411- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 08 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 20 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		1-37510-105-0 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 02 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 02 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 03 1 1411- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (D) ID=54 		1-09625-161-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1411- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 04 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 03 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 03 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (C) 		1-37516-059-0 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 03 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		9-00090-071-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 02 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 02 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 03 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (C) 		1-37529-068-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 02 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 02 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 03 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 02 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 02 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 03 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (C) 		1-37245-071-0 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 02 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 02 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 03 1 1411- ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (C) M30 		8-97160-857-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 02 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 02 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 03 1 1411- ●
71 NUT; YOKE
P46 PROP SHAFT(C4Z) (B) M14 		0-91110-514-0 04 1 1411- ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1411- ● ● ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (C) M14 FLANGE 		8-97365-444-0 04 1 1411- ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 1411- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 1411- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1411- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 1411- ● ● ●
çizim 455346
74 8 56 9 1 128 225 104 9 8 74 56 106 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> P46 PROP SHAFT(C4Z) (A) L=1081 		1-37153-254-0 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=1129 		8-98091-090-0 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (I) L=1331 		8-98091-127-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1489 		8-98173-568-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1279 		8-98173-566-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1074 		1-37151-832-0 02 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1214 		8-98091-324-0 01 1 1411- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1164 		8-98091-322-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1559 		8-98091-294-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-297-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1274 		8-98091-301-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) 3RD L=1074 		1-37151-832-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) 2ND L=1074 		8-98091-302-0 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1385 		8-98091-467-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1259 		8-98092-530-1 01 1 1411- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1225 		8-98092-405-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1095 		8-98092-524-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98092-400-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1070 		8-98092-406-1 02 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1184 		8-98092-529-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 05 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST 		1-37300-102-1 AR 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		8-98048-925-1 02 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) END 		1-37300-110-0 02 1 1411-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST,2ND,3RD 		1-37300-111-0 03 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 05 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-111-0 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 2ND 		1-37300-111-0 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 01 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 3RD 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) END 		1-37300-094-1 02 1 1411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-095-1 01 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-095-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 3RD 		1-37300-095-1 01 1 1411- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (C) 1ST 		1-37319-012-0 04 1 1411-1505 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (C) END 		8-98020-800-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 1411- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 20 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 05 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 08 1 1411- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 08 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 20 1 1411- ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) (C) M14 		0-91110-514-0 08 1 1411- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1411- ● ● ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 1411- ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 08 1 1411- ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 1411- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 08 1 1411- ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) (B) 		1-09600-064-0 01 1 1411- ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		1-09600-067-0 01 1 1411- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) M6 STRAIGHT 		0-90301-406-0 01 1 1411- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1411- ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) (C) 		1-37247-024-0 01 1 1411- ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 1411- ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 1411- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) L=254 		8-98020-885-0 01 1 1411- ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 1411- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) L=330 		1-37241-124-0 01 1 1411- ● ● ●
çizim 455389
1 9 8 74 49 20 91 24 21 25 46 51 23 22 21 94 93 92 63 20 1 9 8 74 56 17 14 19 9 61 60 64 21 22 24 23 21 25 51 46
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> P46 PROP SHAFT(C4Z) (A) L=1081 		1-37153-254-0 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=1129 		8-98091-090-0 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (I) L=1331 		8-98091-127-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1489 		8-98173-568-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1279 		8-98173-566-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1074 		1-37151-832-0 02 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1214 		8-98091-324-0 01 1 1411- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1164 		8-98091-322-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1559 		8-98091-294-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-297-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1274 		8-98091-301-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) 3RD L=1074 		1-37151-832-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) 2ND L=1074 		8-98091-302-0 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1385 		8-98091-467-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1259 		8-98092-530-1 01 1 1411- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1225 		8-98092-405-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1095 		8-98092-524-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98092-400-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1070 		8-98092-406-1 02 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1184 		8-98092-529-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 05 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST 		1-37300-102-1 AR 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		8-98048-925-1 02 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) END 		1-37300-110-0 02 1 1411-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST,2ND,3RD 		1-37300-111-0 03 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 05 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-111-0 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 2ND 		1-37300-111-0 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 01 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 3RD 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) END 		1-37300-094-1 02 1 1411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-095-1 01 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-095-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 3RD 		1-37300-095-1 01 1 1411- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (C) 1ST 		1-37319-012-0 04 1 1411-1505 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (C) END 		8-98020-800-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 1411- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 20 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 05 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 04 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 08 1 1411- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 08 1 1411- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) T=2.2 		1-09587-102-1 20 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		1-37510-105-0 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 02 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 02 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 03 1 1411- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (D) ID=54 		1-09625-161-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1411- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 04 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 03 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 03 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (C) 		1-37516-059-0 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 03 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		9-00090-071-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 02 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 02 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 03 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (C) 		1-37529-068-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 02 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 02 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 03 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 02 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 02 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 03 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (C) 		1-37245-071-0 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 02 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 02 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 03 1 1411- ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1411- ● ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1411- ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (C) M30 		8-97160-857-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 02 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 02 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 03 1 1411- ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) (C) M14 		0-91110-514-0 08 1 1411- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1411- ● ● ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 1411- ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 08 1 1411- ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 1411- ●
60 WASHER; PL,RET TO BRKT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 1411- ●
61 PIN; SPLIT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 1411- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) M10X35 FLANGE 		0-28651-035-0 04 1 1411- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) M16X45 		1-09042-030-0 02 1 1411- ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) (B) M10 FLANGE 		0-91180-210-0 04 1 1411- ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) M16 SLOTTED 		8-98049-689-0 02 1 1411- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 08 1 1411- ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ●
91 BOLT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 1411- ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 1411- ● ●
93 NUT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1411- ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 1411- ● ●
çizim 455580
63 21 60 46 51 56 24 22 21 20 1 9 56 8 74 8 9 106 225 104 74 17 13 84 10 83 12 14 9 106 107 128 1 9 8 74 56 64 61 23 25
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> P46 PROP SHAFT(C4Z) (A) L=1081 		1-37153-254-0 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=1129 		8-98091-090-0 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (I) L=1331 		8-98091-127-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1489 		8-98173-568-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1279 		8-98173-566-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (F) L=1074 		1-37151-832-0 02 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1214 		8-98091-324-0 01 1 1411- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1164 		8-98091-322-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1559 		8-98091-294-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-297-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1274 		8-98091-301-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) 3RD L=1074 		1-37151-832-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1411- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) 2ND L=1074 		8-98091-302-0 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1385 		8-98091-467-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1259 		8-98092-530-1 01 1 1411- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1225 		8-98092-405-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=1095 		8-98092-524-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98092-400-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1070 		8-98092-406-1 02 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1184 		8-98092-529-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 05 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST 		1-37300-102-1 AR 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) 		8-98048-925-1 AR 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		8-98048-925-1 02 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) END 		1-37300-110-0 02 1 1411-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST,2ND,3RD 		1-37300-111-0 03 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 05 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-111-0 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 2ND 		1-37300-111-0 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 01 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 3RD 		1-37300-094-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) END 		1-37300-094-1 02 1 1411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-095-1 01 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-095-1 01 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 3RD 		1-37300-095-1 01 1 1411- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1411- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1411- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1411- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1411- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 08 1 1411- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (C) 1ST 		1-37319-012-0 04 1 1411-1505 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) 		8-98020-800-0 04 1 1506- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (C) END 		8-98020-800-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 1411- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 20 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 05 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		1-37510-105-0 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 02 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 02 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 03 1 1411- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (D) ID=54 		1-09625-161-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1411- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 04 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 03 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 03 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (C) 		1-37516-059-0 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 03 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) 		9-00090-071-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 02 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 02 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 03 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (C) 		1-37529-068-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 02 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 02 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 03 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 02 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 02 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 03 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (C) 		1-37245-071-0 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 02 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 02 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 03 1 1411- ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (C) M30 		8-97160-857-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 02 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 02 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 03 1 1411- ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) (C) M14 		0-91110-514-0 08 1 1411- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1411- ● ● ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 1411- ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 08 1 1411- ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 1411- ●
60 WASHER; PL,RET TO BRKT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 1411- ●
61 PIN; SPLIT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 1411- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (B) M10X35 FLANGE 		0-28651-035-0 04 1 1411- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) M16X45 		1-09042-030-0 02 1 1411- ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) (B) M10 FLANGE 		0-91180-210-0 04 1 1411- ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) M16 SLOTTED 		8-98049-689-0 02 1 1411- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 08 1 1411- ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1411- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 1411- ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) (B) 		1-09600-064-0 01 1 1411- ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) 		1-09600-067-0 01 1 1411- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) M6 STRAIGHT 		0-90301-406-0 01 1 1411- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1411- ● ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 1411- ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) (C) 		1-37247-024-0 01 1 1411- ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 1411- ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 1411- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) L=254 		8-98020-885-0 01 1 1411- ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 1411- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) L=330 		1-37241-124-0 01 1 1411- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
