Isuzu WW
▶
TRUCKS
▶
FVR
▶
11591 - FVR LHD EURO5
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#152098) — 47 parça
◀

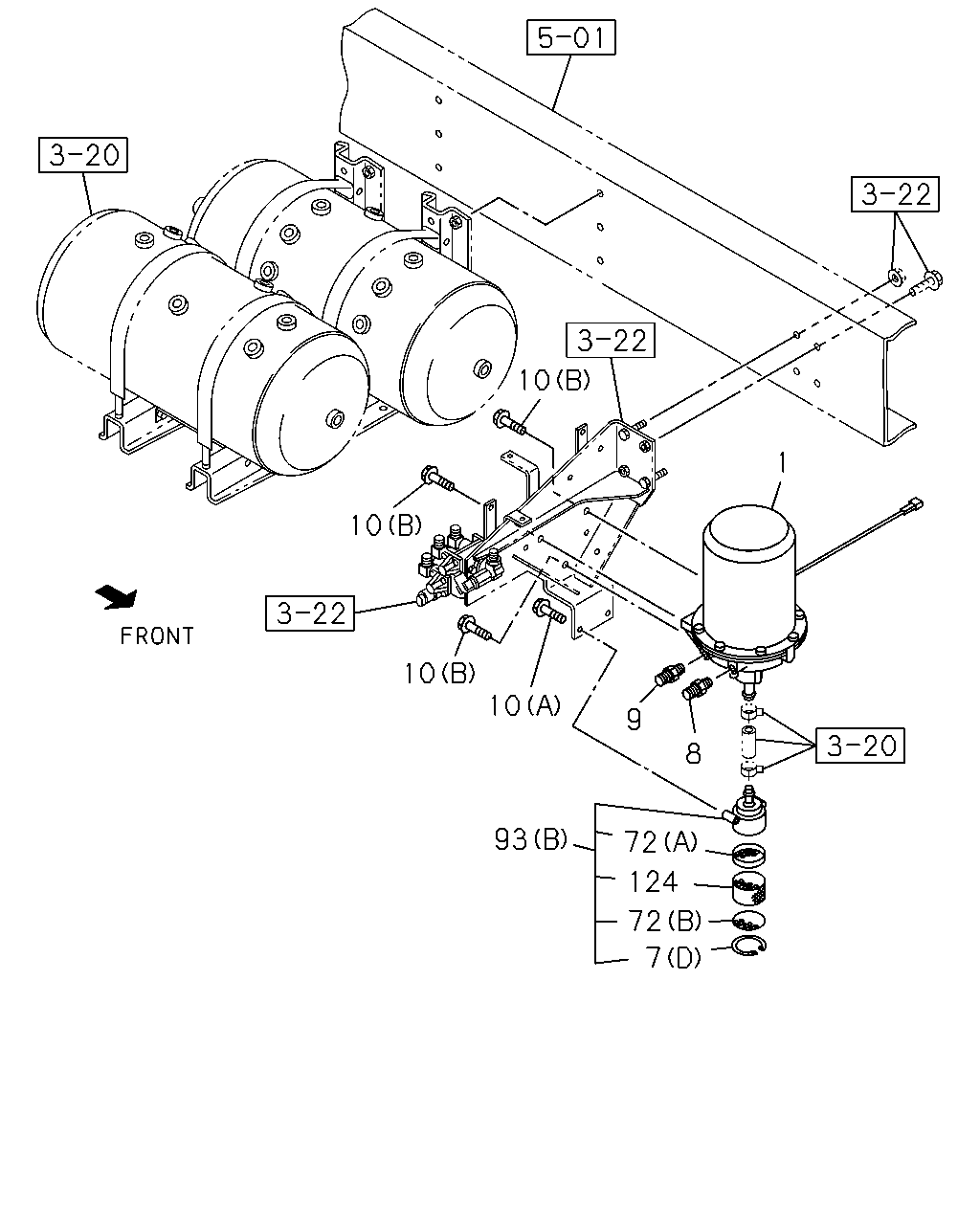

[346A] FIXING (14 parça)
[346A] REPAIR AND PISTON,THERMOSTAT KIT (8 parça)

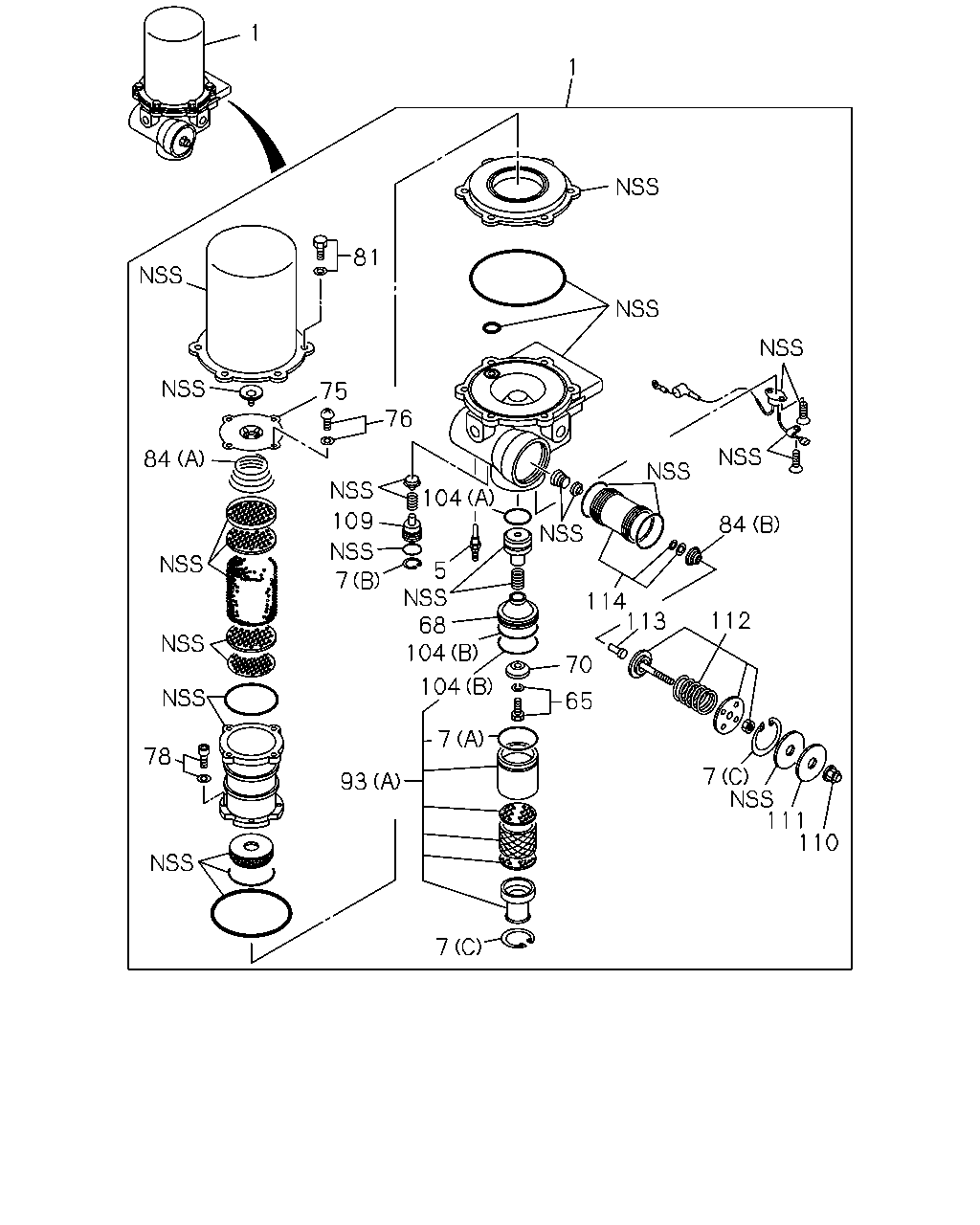

[346A] COMPONENT (25 parça)
▶
10
10
10
10
9
8
1
93
72
124
72
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
8-98225-292-0
01
1
1411-
7
RING; SNAP,AIR DRYER
(D)
1-47769-017-0
01
1
1411-
7
RING; SNAP,AIR DRYER
(C)
1-48199-520-0
02
1
1411-
7
RING; SNAP,AIR DRYER
(B)
1-48199-529-0
01
1
1411-
7
RING; SNAP,AIR DRYER
(A)
1-48199-579-0
01
1
1411-
8
CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 STRAIGHT
1-09660-966-0
01
1
1411-
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 FLARE
0-92121-815-0
01
1
1411-
10
BOLT; AIR DRYER
(B) M12X25 FLANGE
0-28051-225-0
03
1
1411-
10
BOLT; AIR DRYER
(A) M8X20 FLANGE
0-28650-820-0
02
1
1411-
72
PLATE; FILTER,AIR DRYER
(A)
1-48199-585-0
01
1
1411-
72
PLATE; FILTER,AIR DRYER
(B)
1-48199-602-0
01
1
1411-
93
SILENCER; AIR DRYER
(B)
1-48199-581-0
01
1
1411-
93
SILENCER; AIR DRYER
(A)
1-48199-619-0
01
1
1411-
124
FILTER; SILENCER
1-48199-465-0
01
1
1411-
2
3
104
104
104
65
70
68
4
70
104
104
104
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
8-98226-328-0
01
1
1411-
3
PISTON KIT; AIR DRYER
8-98226-322-0
01
1
1411-
4
THERMOSTAT KIT; AIR DRYER
1-85576-444-0
01
1
1411-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1411-
68
BODY; VALVE
1-48199-515-0
01
1
1411-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1411-
104
GASKET
(B)
1-48199-496-0
02
1
1411-
104
GASKET
(A)
8-98226-321-0
01
1
1411-
84
78
75
76
1
1
81
109
7
104
5
68
104
104
7
93
7
70
65
114
113
84
112
7
111
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
8-98225-292-0
01
1
1411-
5
HEATER ASM; AIR DRYER
1-48199-530-0
01
1
1411-
7
RING; SNAP,AIR DRYER
(D)
1-47769-017-0
01
1
1411-
7
RING; SNAP,AIR DRYER
(C)
1-48199-520-0
02
1
1411-
7
RING; SNAP,AIR DRYER
(B)
1-48199-529-0
01
1
1411-
7
RING; SNAP,AIR DRYER
(A)
1-48199-579-0
01
1
1411-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1411-
68
BODY; VALVE
1-48199-515-0
01
1
1411-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1411-
75
COVER; CASE,AIR DRYER
1-48199-562-0
01
1
1411-
76
BOLT; COVER,AIR DRYER
1-48199-561-0
06
1
1411-
78
BOLT; OIL FILTER,AIR DRYER
1-48199-557-0
04
1
1411-
81
BOLT; CASE,AIR DRYER
1-48199-436-0
08
1
1411-
84
SPRING; AIR DRYER
(B)
1-48199-523-0
01
1
1411-
84
SPRING; AIR DRYER
(A)
1-48199-564-0
01
1
1411-
93
SILENCER; AIR DRYER
(B)
1-48199-581-0
01
1
1411-
93
SILENCER; AIR DRYER
(A)
1-48199-619-0
01
1
1411-
104
GASKET
(B)
1-48199-496-0
02
1
1411-
104
GASKET
(A)
8-98226-321-0
01
1
1411-
109
STOPPER; CHECK VALVE
1-48199-539-0
01
1
1411-
110
NUT; CAP
1-48199-527-0
01
1
1411-
111
PLATE; GOVERNOR
1-48199-526-0
01
1
1411-
112
SCREW & SPRING ASM; AIR DRYER
1-48199-524-0
01
1
1411-
113
STEM; EXHAUST
1-48199-522-0
01
1
1411-
114
PISTON ASM; GOVERNOR
1-48199-521-0
01
1
1411-
