Isuzu WW
▶
TRUCKS
▶
FVR
▶
11591 - FVR LHD EURO5
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#152094) — 33 parça
◀

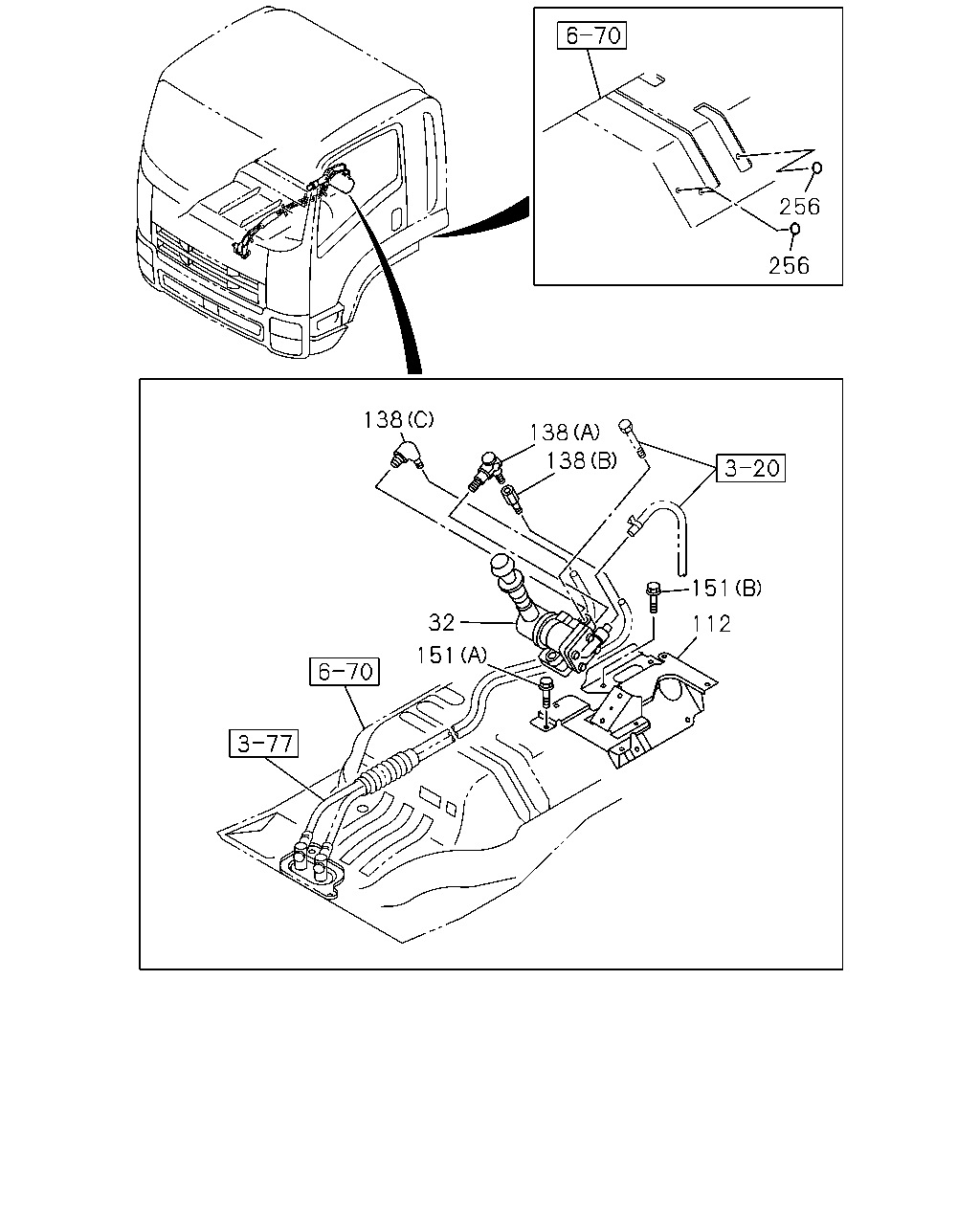

[326A] FIXING (8 parça)

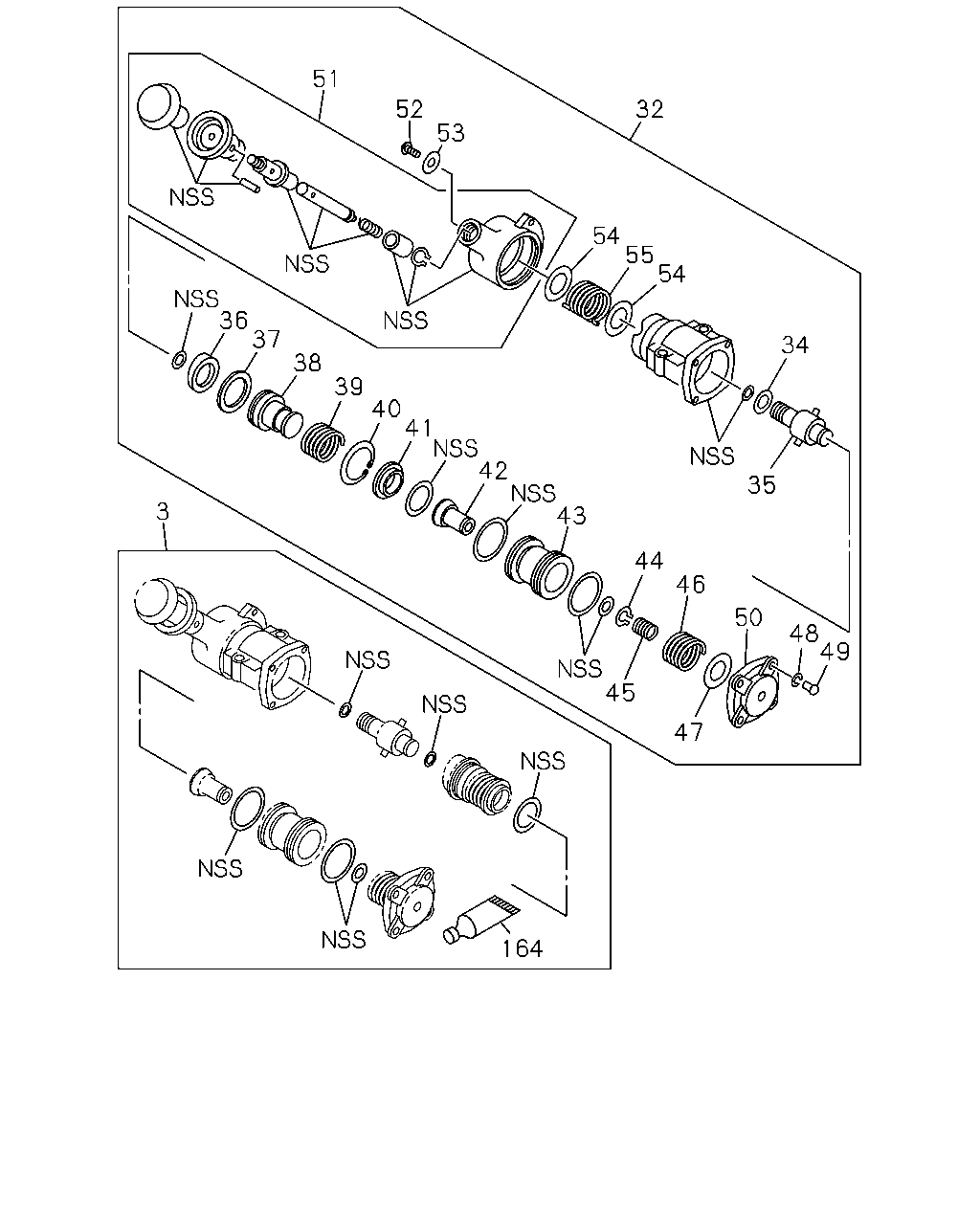

[326A] COMPONENT AND REPAIR KIT (25 parça)
▶
256
256
138
138
138
32
151
151
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
1411-
112
BRACKET; CONT VLV
8-97616-923-1
01
1
1411-
138
CONNECTOR; DELIVERY
(A) DIN6 & PT1/4 ELBOW
1-09650-240-1
01
1
1411-
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1411-
138
CONNECTOR; DELIVERY
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1411-
151
BOLT; VLV BRKT
(A) M6X16
0-52000-616-0
03
1
1411-
151
BOLT; VLV BRKT
(B) M8X20 W/LK&PL WASHER
0-52000-820-0
02
1
1411-
256
SEAL
OD=25 BLACK
1-76798-019-0
09
1
1411-
32
54
55
54
34
35
53
52
51
36
37
38
39
40
41
42
43
44
46
50
48
49
45
47
3
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
W/GREASE
1-48469-096-0
01
1
1411-
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
1411-
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
1411-
35
HOLDER; CAM
1-48469-054-0
01
1
1411-
36
RING; CAM
1-48469-056-0
01
1
1411-
37
GUIDE; CAM RING
1-48469-058-0
01
1
1411-
38
SEAT; EXH VLV
1-48469-057-0
01
1
1411-
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
1411-
40
RING; SNAP
1-48469-067-0
01
1
1411-
41
SEAT; FEED VLV
1-48469-066-0
01
1
1411-
42
VALVE; FEED
1-48469-065-0
01
1
1411-
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
1411-
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
1411-
45
SPRING; FEED VLV
1-48469-070-0
01
1
1411-
46
SPRING; MAIN,PISTON
1-48469-089-0
01
1
1411-
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
1411-
48
WASHER; COVER
1-48469-091-0
04
1
1411-
49
SCREW; COVER
1-48469-092-0
04
1
1411-
50
COVER; HAND BRK VLV
1-48469-090-0
01
1
1411-
51
HANDLE ASM; HAND BRK VLV
1-48469-122-0
01
1
1411-
52
SCREW; HANDLE
1-48469-062-0
01
1
1411-
53
WASHER; HANDLE
1-48469-061-0
01
1
1411-
54
SEAT; SPRING
1-48469-082-0
02
1
1411-
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
1411-
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
1411-
