◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11591 - FVR LHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#152092) — 96 parça
çizim 455223
223 223 223 223 223 223 223 223
BalonParca AdiParca NoAdetTipApplied Date
223 UNION
H.S.A SYSTEM<6EP> (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 1411-
223 UNION
H.S.A SYSTEM<6EP> (F) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1411-
223 UNION
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1411-
223 UNION
H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1411-
223 UNION
H.S.A SYSTEM<6EP> (C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1411-
223 UNION
H.S.A SYSTEM<6EP> (D) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 1411-

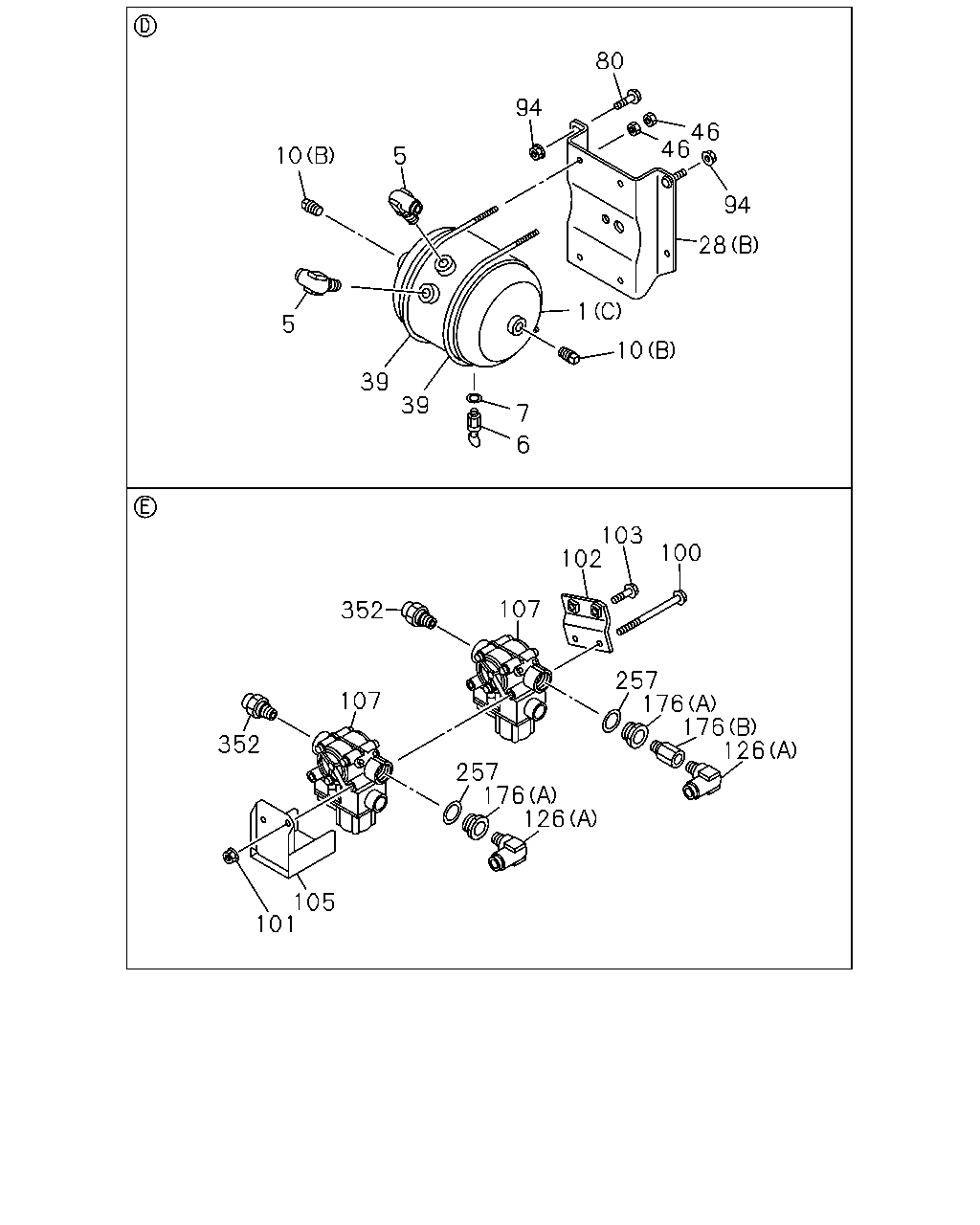

çizim 455305
10 1 28 94 46 46 80 94 5 10 5 39 7 6 39 103 100 102 107 352 107 257 176 126 257 176 176 126 352 105 101
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98081-870-1 01 1 1411-
1 TANK ASM; AIR
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98081-870-1 01 1 1411-
1 TANK ASM; AIR
(A) 		1-48370-181-1 01 1 1411-
1 TANK ASM; AIR
(B) 		8-98184-783-0 01 1 1411-
5 UNION; AIR TANK
WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1411-
5 UNION; AIR TANK
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1411-
6 COCK; DRAIN,AIR TANK
WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48312-015-0 01 1 1411-
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48312-015-0 01 1 1411-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 1411-
7 GASKET; DRAIN COCK
WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14 		1-09630-145-0 01 1 1411-
7 GASKET; DRAIN COCK
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14 		1-09630-145-0 01 1 1411-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1411-
10 PLUG; AIR TANK
WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT3/8 		9-09204-517-0 02 1 1411-
10 PLUG; AIR TANK
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT3/8 		9-09204-517-0 02 1 1411-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 03 1 1411-
10 PLUG; AIR TANK
(A) PT3/4 		9-09204-526-0 03 1 1411-
28 BRACKET; AIR TANK
WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98100-165-3 01 1 1411-
28 BRACKET; AIR TANK
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98100-165-3 01 1 1411-
28 BRACKET; AIR TANK
(A) 		1-48317-601-5 02 1 1411-
39 U-BOLT; AIR TANK
WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=210 		1-48317-458-1 02 1 1411-
39 U-BOLT; AIR TANK
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=210 		1-48317-458-1 02 1 1411-
46 NUT; U-BOLT
WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 		0-91110-508-0 08 1 1411-
46 NUT; U-BOLT
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 		0-91110-508-0 08 1 1411-
80 BOLT; BRKT
WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE 		0-28651-030-0 03 1 1411-
80 BOLT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE 		0-28651-030-0 03 1 1411-
94 NUT; BRKT FIX
WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE 		0-91180-210-0 04 1 1411-
94 NUT; BRKT FIX
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE 		0-91180-210-0 04 1 1411-
100 BOLT; MODULATOR
M8X140 FLANGE 		0-28055-814-0 02 1 1411-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 1411-
102 BRACKET; MODULATOR 8-98272-718-0 01 1 1411-
103 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1411-
105 COVER; MODULATOR 8-98272-749-0 01 1 1411-
107 MODULATOR; RR 8-98215-454-0 02 1 1411-
126 CONNECTOR; ELBOW
(C) M22 & PT3/4 STRAIGHT 		1-09650-275-1 01 1 1411-
126 CONNECTOR; ELBOW
(B) PT1/4 & PT1/4 2WAY 		1-09660-693-0 04 1 1411-
126 CONNECTOR; ELBOW
(H) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1411-
126 CONNECTOR; ELBOW
(G) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1411-
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1411-
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1411-
126 CONNECTOR; ELBOW
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 1411-
126 CONNECTOR; ELBOW
(E) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 1411-
126 CONNECTOR; ELBOW
(F) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 04 1 1411-
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1411-
176 ADAPTER
(C) DIN12 & M12 STRAIGHT 		1-09660-878-0 01 1 1411-
176 ADAPTER
(B) PT3/8 		1-09664-210-0 01 1 1411-
257 GASKET; PLUG
ID=22.5 		9-09571-422-0 02 1 1411-
352 CONNECTOR; STRAIGHT
DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 1411-

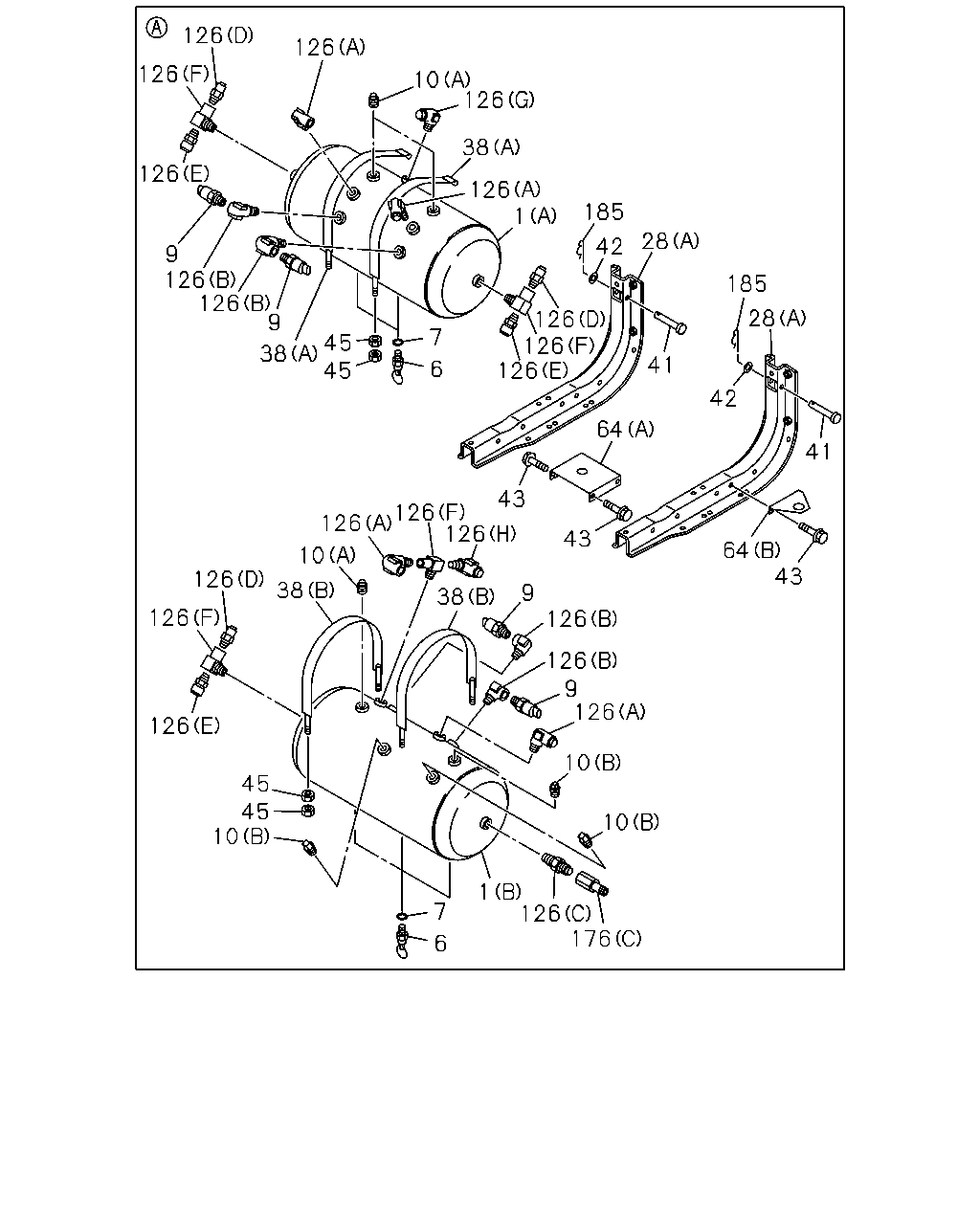

çizim 455410
126 126 126 9 126 126 38 9 6 7 45 45 1 126 38 126 10 126 185 42 28 185 28 42 41 64 43 43 64 43 41 126 126 126 10 38 38 9 126 126 9 126 10 10 176 126 1 7 6 10 45 45 126 126 126 126 126 126
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98081-870-1 01 1 1411-
1 TANK ASM; AIR
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98081-870-1 01 1 1411-
1 TANK ASM; AIR
(A) 		1-48370-181-1 01 1 1411-
1 TANK ASM; AIR
(B) 		8-98184-783-0 01 1 1411-
6 COCK; DRAIN,AIR TANK
WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48312-015-0 01 1 1411-
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48312-015-0 01 1 1411-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 1411-
7 GASKET; DRAIN COCK
WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14 		1-09630-145-0 01 1 1411-
7 GASKET; DRAIN COCK
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14 		1-09630-145-0 01 1 1411-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1411-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 		8-97609-249-0 04 1 1411-
10 PLUG; AIR TANK
WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT3/8 		9-09204-517-0 02 1 1411-
10 PLUG; AIR TANK
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT3/8 		9-09204-517-0 02 1 1411-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 03 1 1411-
10 PLUG; AIR TANK
(A) PT3/4 		9-09204-526-0 03 1 1411-
28 BRACKET; AIR TANK
WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98100-165-3 01 1 1411-
28 BRACKET; AIR TANK
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98100-165-3 01 1 1411-
28 BRACKET; AIR TANK
(A) 		1-48317-601-5 02 1 1411-
38 BAND; AIR TANK
(A) 		1-48317-108-2 02 1 1411-
38 BAND; AIR TANK
(B) 		1-48317-109-2 02 1 1411-
41 PIN; BAND FIX
OD=10 L=60 		0-82254-060-0 02 1 1411-
42 WASHER; PL
ID=10.5 		0-91614-510-0 02 1 1411-
43 BOLT; STAY,AIR TANK,MAIN
M8X25 FLANGE 		0-28650-825-0 06 1 1411-
45 NUT; AIR TANK,MAIN
M8 		0-91110-508-0 12 1 1411-
64 STAY; AIR TANK,MAIN
(A) 		1-48317-607-0 01 1 1411-
64 STAY; AIR TANK,MAIN
(B) 		1-48317-691-0 01 1 1411-
126 CONNECTOR; ELBOW
(C) M22 & PT3/4 STRAIGHT 		1-09650-275-1 01 1 1411-
126 CONNECTOR; ELBOW
(B) PT1/4 & PT1/4 2WAY 		1-09660-693-0 04 1 1411-
126 CONNECTOR; ELBOW
(H) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1411-
126 CONNECTOR; ELBOW
(G) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1411-
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1411-
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1411-
126 CONNECTOR; ELBOW
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 1411-
126 CONNECTOR; ELBOW
(E) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 1411-
126 CONNECTOR; ELBOW
(F) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 04 1 1411-
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1411-
176 ADAPTER
(C) DIN12 & M12 STRAIGHT 		1-09660-878-0 01 1 1411-
176 ADAPTER
(B) PT3/8 		1-09664-210-0 01 1 1411-
185 PIN; SNAP
L=32.6 		8-98062-280-0 02 1 1411-

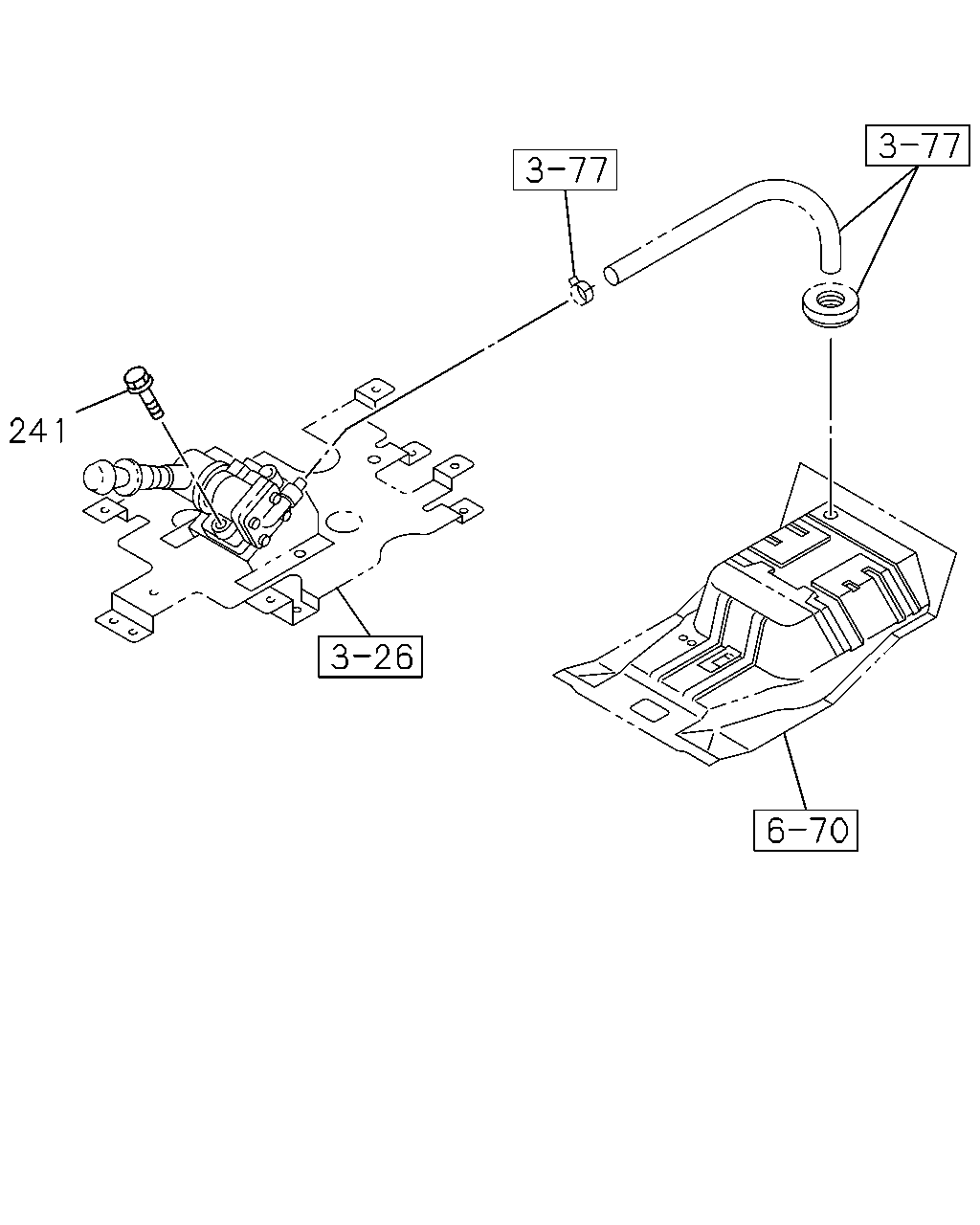

çizim 455416
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1411-

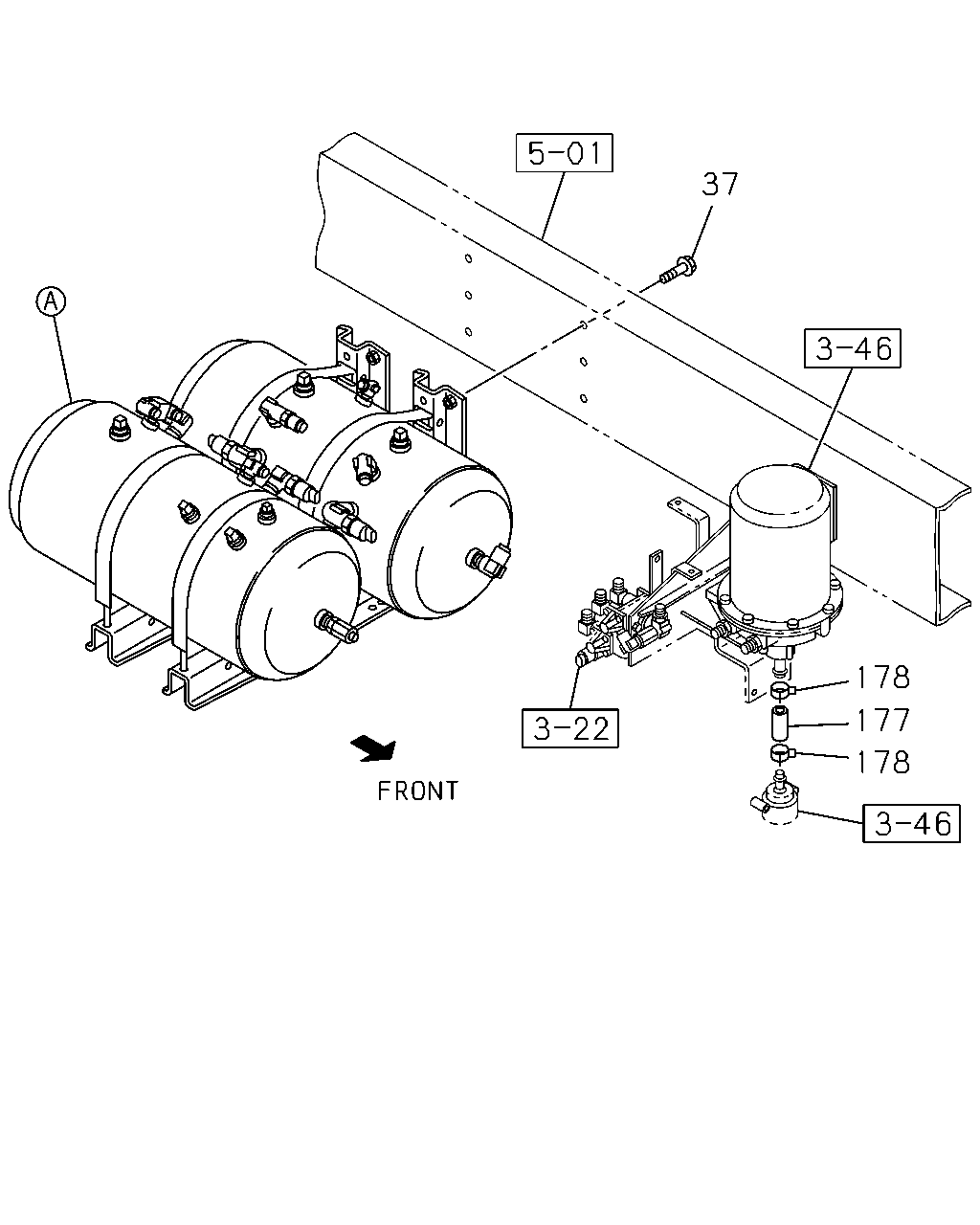

çizim 455524
37 178 177 178
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 08 1 1411-
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 1411-
178 CLIP; HOSE
ID=21 		8-94242-034-0 02 1 1411-
