4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#15208) — 73 parça

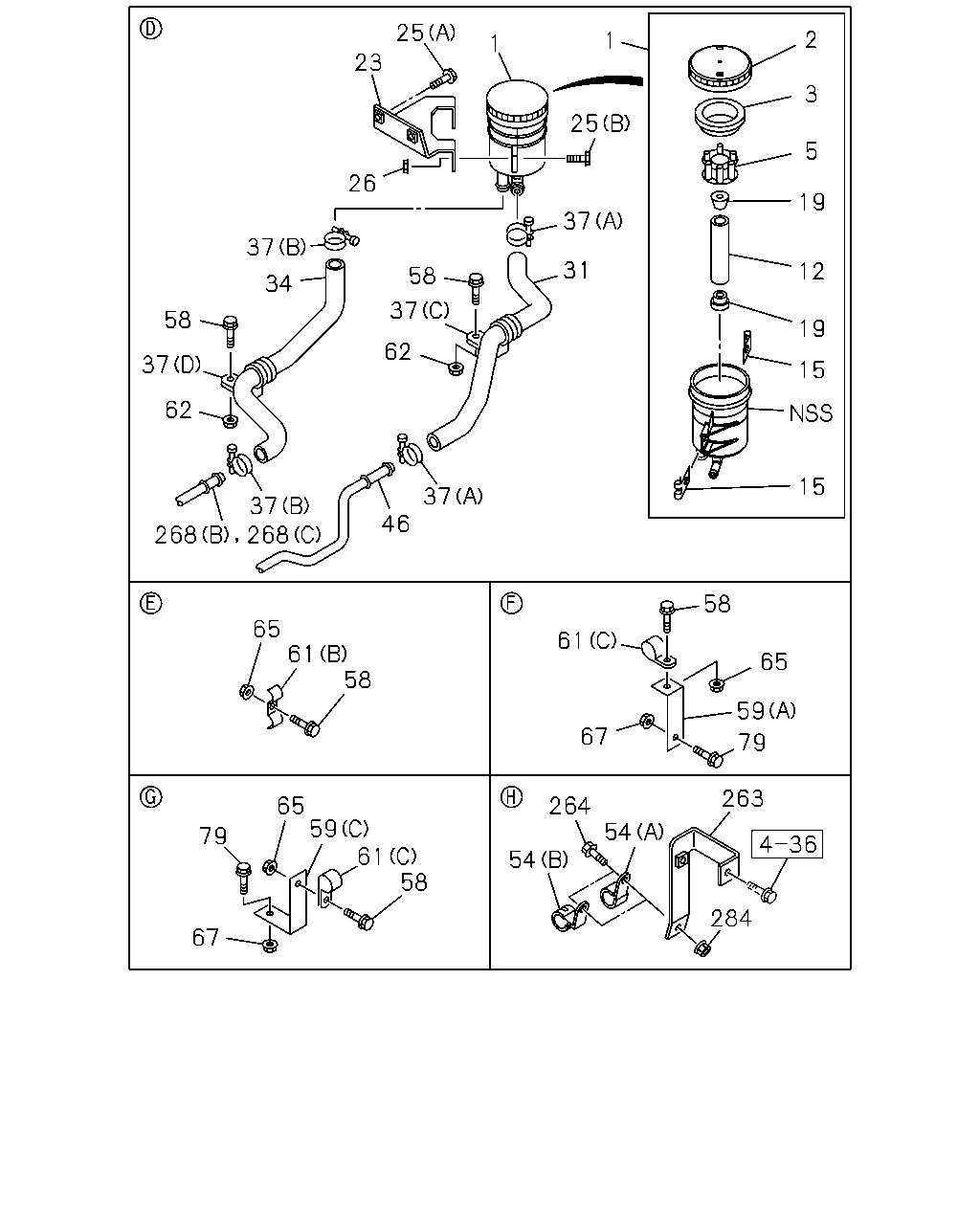

25 2 1 1 23 3 25 5 26 19 37 37 31 12 58 34 37 58 19 62 37 15 62 15 37 37 46 58 65 61 58 61 65 59 67 79 263 65 59 61 58 264 54 79 54 284 67 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0803-1006
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0803-1006
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0803-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0803-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0803-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0803-
19	SEAT; OIL TANK	1-21249-004-0	02	1	0803-
23	BRACKET; OIL TANK,P/S	8-98101-813-0	01	1	0803-0808
23	BRACKET; OIL TANK,P/S	8-98125-268-0	01	1	0809-
25	BOLT; OIL TANK BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0803-
31	HOSE; P/S OIL TANK,INL	8-98101-814-0	01	1	0803-
34	HOSE; P/S OIL TANK,OUTLET	8-98101-815-0	01	1	0803-
37	CLIP; HOSE,P/S (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0803-
37	CLIP; HOSE,P/S (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0803-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0803-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0803-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2804	8-98114-408-0	01	1	0803-
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0803-
54	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	0803-0808
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0803-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0803-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0803-
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	0803-
59	BRACKET; CLIP,OIL PIPE (B)	1-47471-051-0	01	1	0803-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0803-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0803-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0803-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0803-0808
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0803-0808
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0809-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0803-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0803-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0803-0906
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0907-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	0803-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0803-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	0803-1006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98101-858-0	01	1	0803-1006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98154-046-0	01	1	1007-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0803-

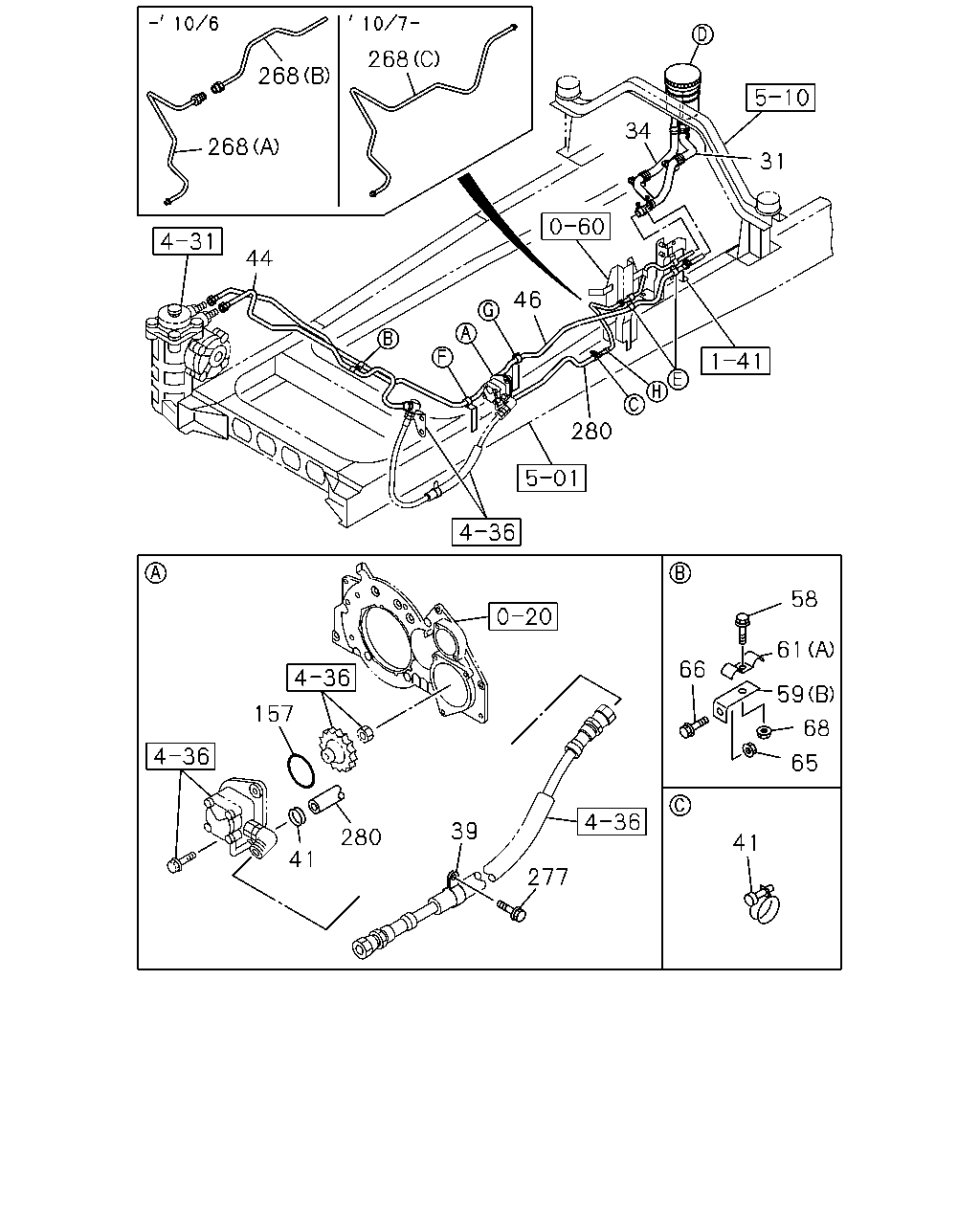

268 268 34 268 31 44 46 280 58 61 66 59 157 68 65 39 280 41 41 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98101-814-0	01	1	0803-
34	HOSE; P/S OIL TANK,OUTLET	8-98101-815-0	01	1	0803-
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	0803-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0803-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98114-409-0	01	1	0803-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2804	8-98114-408-0	01	1	0803-
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0803-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0803-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0803-
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	0803-
59	BRACKET; CLIP,OIL PIPE (B)	1-47471-051-0	01	1	0803-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0803-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	0803-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0803-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0803-0808
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0803-0808
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0809-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0803-
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	01	1	0803-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0803-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0803-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-962-0	01	1	0803-1006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98101-858-0	01	1	0803-1006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98154-046-0	01	1	1007-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0803-
280	HOSE; P/S OIL PUMP,INL	8-98094-167-0	01	1	0803-
