2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#152079) — 83 parça

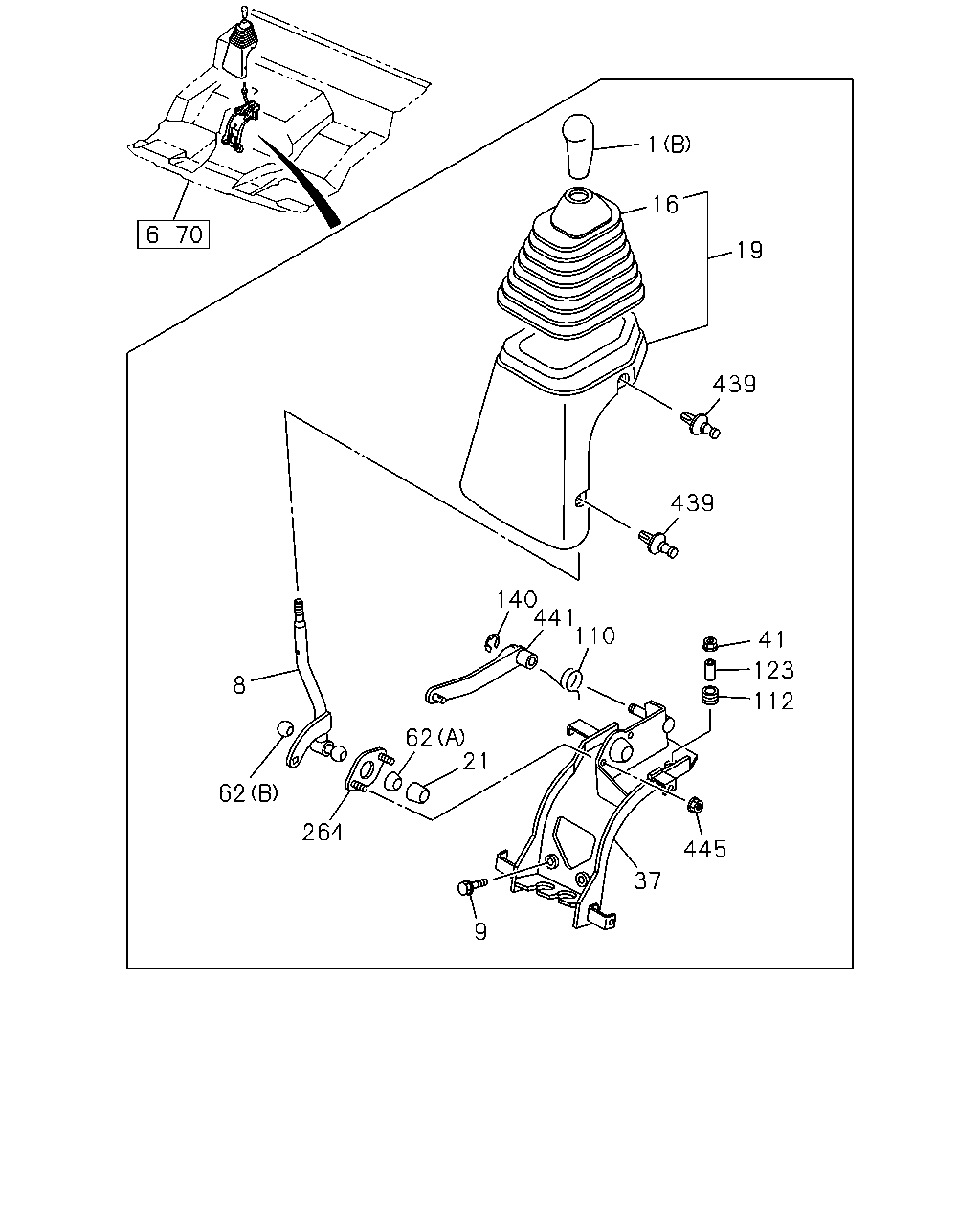

1 16 19 439 439 110 441 140 62 21 264 62 8 41 123 112 445 37 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B)	1-33611-070-1	01	1	1411-
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) (A)	1-33611-038-0	01	1	1411-
8	LEVER; CHANGE MZW6P M/T(RSZ)	8-98093-453-0	01	1	1411-
8	LEVER; CHANGE MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98093-459-0	01	1	1411-
8	LEVER; CHANGE ZF9S1110 M/T(Y5E)	8-98093-454-0	01	1	1411-
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1411-
16	BOOT; CHANGE LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-79998-913-1	01	1	1411-
16	BOOT; CHANGE LEVER MZW6P M/T(RSZ)	1-79998-913-1	01	1	1411-
16	BOOT; CHANGE LEVER ZF9S1110 M/T(Y5E)	8-97893-962-1	01	1	1411-
19	COVER; CHANGE LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> GRAY	8-97409-847-0	01	1	1411-
19	COVER; CHANGE LEVER MZW6P M/T(RSZ) GRAY	8-97409-847-0	01	1	1411-
19	COVER; CHANGE LEVER ZF9S1110 M/T(Y5E) GRAY	8-97411-671-1	01	1	1411-
21	SEAT; CHANGE LEVER MZW6P M/T(RSZ)	1-33619-429-0	01	1	1411-
21	SEAT; CHANGE LEVER FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	1-33619-429-0	01	1	1411-
37	BRACKET; CHANGE LEVER SUPPORT MZW6P M/T(RSZ)	8-98093-442-0	01	1	1411-
37	BRACKET; CHANGE LEVER SUPPORT MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98093-447-0	01	1	1411-
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E)	8-98093-451-0	01	1	1411-
41	NUT; CHANGE LEVER M8 W/DISHED WASHER	8-97329-625-0	02	1	1411-
62	SEAT; BALL,CHANGE LEVER MZW6P M/T(RSZ) (A)	1-33619-427-0	01	1	1411-
62	SEAT; BALL,CHANGE LEVER FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	1-33619-427-0	01	1	1411-
62	SEAT; BALL,CHANGE LEVER MZW6P M/T(RSZ) (B)	8-97049-147-0	01	1	1411-
62	SEAT; BALL,CHANGE LEVER FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97049-147-0	01	1	1411-
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	1-33619-586-0	01	1	1411-
110	SPRING; RETURN,CHANGE LEVER MZW6P M/T(RSZ)	1-33619-586-0	01	1	1411-
110	SPRING; RETURN,CHANGE LEVER MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	1-33619-435-0	01	1	1411-
112	RUBBER; CUSHION MZW6P M/T(RSZ)	1-33619-442-0	04	1	1411-
112	RUBBER; CUSHION FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	1-33619-442-0	04	1	1411-
123	COLLAR; DIST,CHANGE LEVER MZW6P M/T(RSZ)	1-33619-443-0	04	1	1411-
123	COLLAR; DIST,CHANGE LEVER FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	1-33619-443-0	04	1	1411-
140	RING; SNAP MZW6P M/T(RSZ) ID=10	0-91805-510-0	01	1	1411-
140	RING; SNAP FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=10	0-91805-510-0	01	1	1411-
264	PLATE; COVER MZW6P M/T(RSZ)	1-33619-430-0	01	1	1411-
264	PLATE; COVER FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	1-33619-430-0	01	1	1411-
439	FASTENER; COVER MANUAL TRANSMISSION<X9C> GRAY	8-97407-955-0	04	1	1411-
441	LEVER; SELECT ZF9S1110 M/T(Y5E) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98071-283-0	01	1	1411-
441	LEVER; SELECT MZW6P M/T(RSZ)	8-98071-283-0	01	1	1411-
441	LEVER; SELECT MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98093-449-0	01	1	1411-
445	NUT; PLATE MZW6P M/T(RSZ) M6 FLANGE	0-91180-106-0	02	1	1411-
445	NUT; PLATE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M6 FLANGE	0-91180-106-0	02	1	1411-

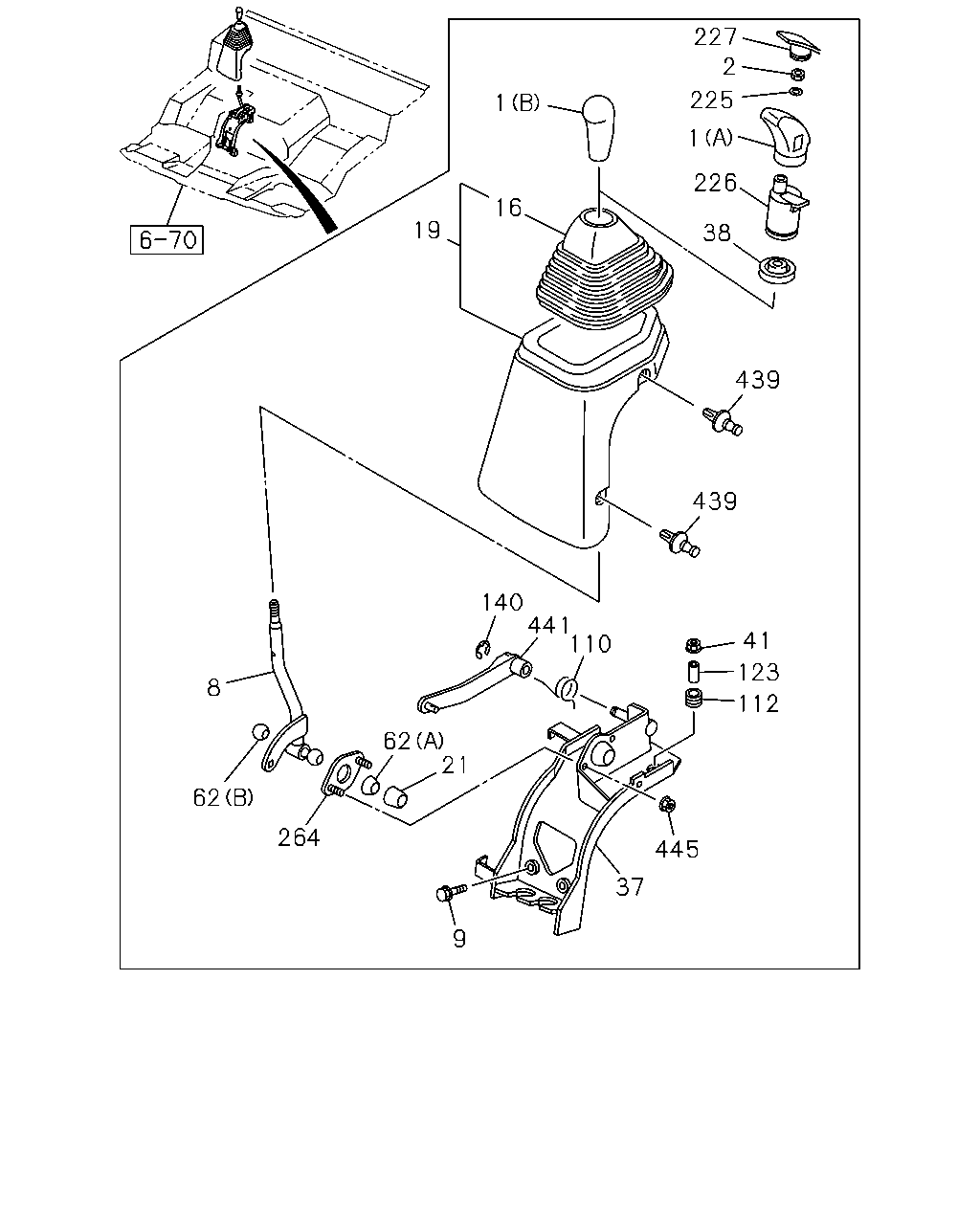

1 16 19 227 225 2 1 226 38 439 439 110 441 140 62 21 264 62 8 9 37 112 445 123 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B)	1-33611-070-1	01	1	1411-
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) (A)	1-33611-038-0	01	1	1411-
2	NUT; KNOB ZF9S1110 M/T(Y5E) M10 FLANGE	0-91180-210-0	01	1	1411-
8	LEVER; CHANGE MZW6P M/T(RSZ)	8-98093-453-0	01	1	1411-
8	LEVER; CHANGE MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98093-459-0	01	1	1411-
8	LEVER; CHANGE ZF9S1110 M/T(Y5E)	8-98093-454-0	01	1	1411-
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1411-
16	BOOT; CHANGE LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-79998-913-1	01	1	1411-
16	BOOT; CHANGE LEVER MZW6P M/T(RSZ)	1-79998-913-1	01	1	1411-
16	BOOT; CHANGE LEVER ZF9S1110 M/T(Y5E)	8-97893-962-1	01	1	1411-
19	COVER; CHANGE LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> GRAY	8-97409-847-0	01	1	1411-
19	COVER; CHANGE LEVER MZW6P M/T(RSZ) GRAY	8-97409-847-0	01	1	1411-
19	COVER; CHANGE LEVER ZF9S1110 M/T(Y5E) GRAY	8-97411-671-1	01	1	1411-
21	SEAT; CHANGE LEVER MZW6P M/T(RSZ)	1-33619-429-0	01	1	1411-
21	SEAT; CHANGE LEVER FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	1-33619-429-0	01	1	1411-
37	BRACKET; CHANGE LEVER SUPPORT MZW6P M/T(RSZ)	8-98093-442-0	01	1	1411-
37	BRACKET; CHANGE LEVER SUPPORT MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98093-447-0	01	1	1411-
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E)	8-98093-451-0	01	1	1411-
38	HOLDER; BOOT CHANGE LEVER ZF9S1110 M/T(Y5E)	8-98070-460-1	01	1	1411-
41	NUT; CHANGE LEVER M8 W/DISHED WASHER	8-97329-625-0	02	1	1411-
62	SEAT; BALL,CHANGE LEVER MZW6P M/T(RSZ) (A)	1-33619-427-0	01	1	1411-
62	SEAT; BALL,CHANGE LEVER FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	1-33619-427-0	01	1	1411-
62	SEAT; BALL,CHANGE LEVER MZW6P M/T(RSZ) (B)	8-97049-147-0	01	1	1411-
62	SEAT; BALL,CHANGE LEVER FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97049-147-0	01	1	1411-
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	1-33619-586-0	01	1	1411-
110	SPRING; RETURN,CHANGE LEVER MZW6P M/T(RSZ)	1-33619-586-0	01	1	1411-
110	SPRING; RETURN,CHANGE LEVER MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	1-33619-435-0	01	1	1411-
112	RUBBER; CUSHION MZW6P M/T(RSZ)	1-33619-442-0	04	1	1411-
112	RUBBER; CUSHION FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	1-33619-442-0	04	1	1411-
123	COLLAR; DIST,CHANGE LEVER MZW6P M/T(RSZ)	1-33619-443-0	04	1	1411-
123	COLLAR; DIST,CHANGE LEVER FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	1-33619-443-0	04	1	1411-
140	RING; SNAP MZW6P M/T(RSZ) ID=10	0-91805-510-0	01	1	1411-
140	RING; SNAP FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=10	0-91805-510-0	01	1	1411-
225	WASHER; PL,KNOB ZF9S1110 M/T(Y5E) ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1411-
226	VALVE; SELECTOR ZF9S1110 M/T(Y5E)	1-33710-008-0	01	1	1411-
227	COVER; KNOB ZF9S1110 M/T(Y5E)	8-98013-168-0	01	1	1411-
264	PLATE; COVER MZW6P M/T(RSZ)	1-33619-430-0	01	1	1411-
264	PLATE; COVER FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	1-33619-430-0	01	1	1411-
439	FASTENER; COVER MANUAL TRANSMISSION<X9C> GRAY	8-97407-955-0	04	1	1411-
441	LEVER; SELECT ZF9S1110 M/T(Y5E) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98071-283-0	01	1	1411-
441	LEVER; SELECT MZW6P M/T(RSZ)	8-98071-283-0	01	1	1411-
441	LEVER; SELECT MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98093-449-0	01	1	1411-
445	NUT; PLATE MZW6P M/T(RSZ) M6 FLANGE	0-91180-106-0	02	1	1411-
445	NUT; PLATE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M6 FLANGE	0-91180-106-0	02	1	1411-
