Sayfa 2-30C - Isuzu EPC

2-30C — GEAR SHIFTER AND QUADRANT BOX (#152078) — 395 parça

303 19 277 19 303 277 234 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	1411-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1411-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-027-0	01	1	1411-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-030-0	02	1	1411-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-104-0	01	1	1411-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33549-221-0	01	1	1411-
234	RING; SNAP	1-44519-224-0	01	1	1411-
277	PLATE; SPRING SEAT	1-33539-107-0	02	1	1411-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	1411-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	1411-
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	1411-

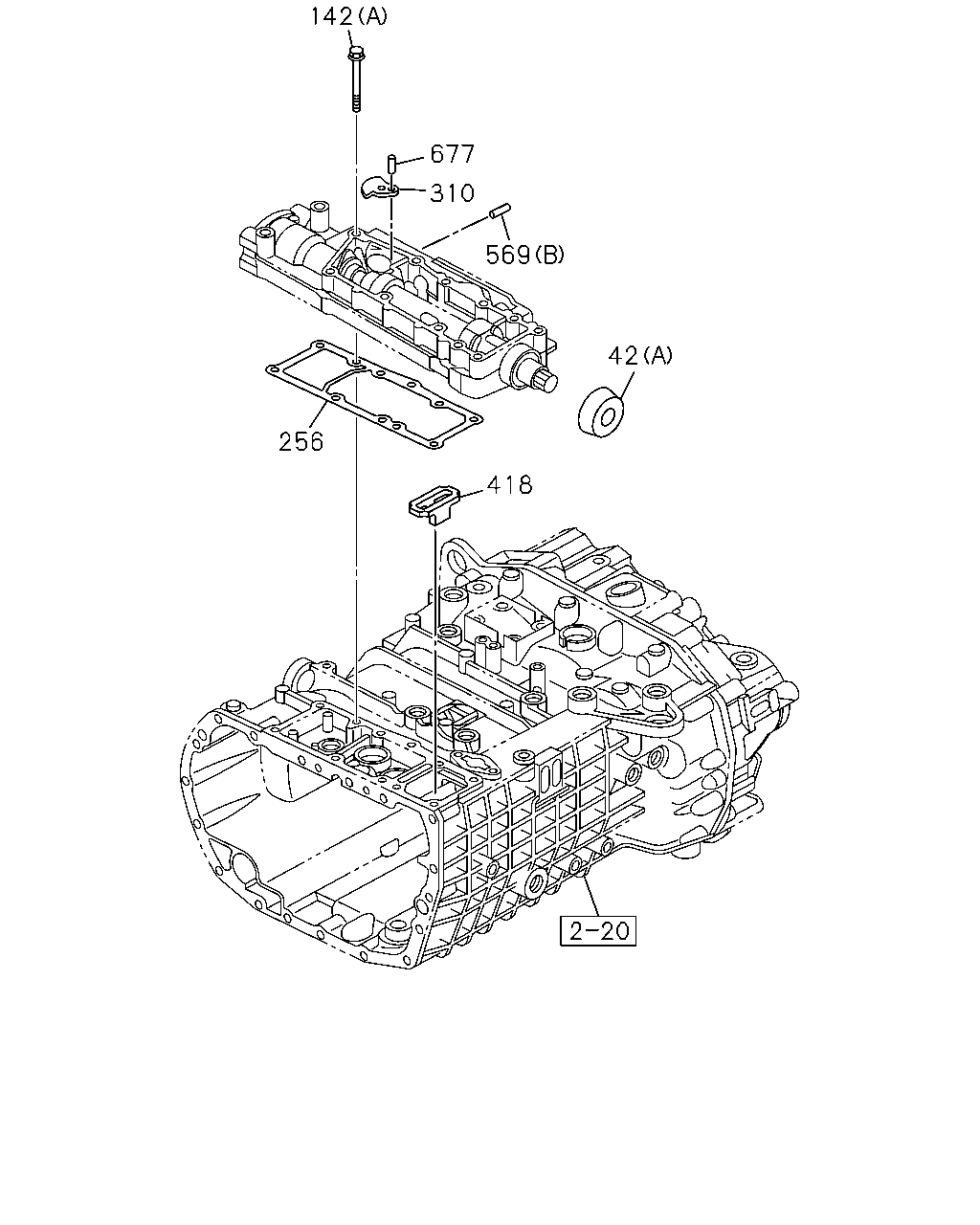

677 310 569 42 418 256 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-548-0	01	1	1411-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-619-0	01	1	1411-
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-589-0	01	1	1411-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1411-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1411-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X100	1-33549-582-0	06	1	1411-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-33549-584-0	02	1	1411-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X40	1-33549-587-0	04	1	1411-
256	GASKET; QUAD BOX TO TRANS CASE ASSISTOR SHIFT CONTROL<WX8>	1-33542-062-0	01	1	1411-
256	GASKET; QUAD BOX TO TRANS CASE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-065-0	01	1	1411-
310	PLATE; LOCK,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-453-0	01	1	1411-
418	PIECE; DIST,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-454-0	01	1	1411-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1411-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1411-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1411-
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	1411-
677	PIN; PLATE ASSISTOR SHIFT CONTROL<WX8>	1-33549-452-0	01	1	1411-

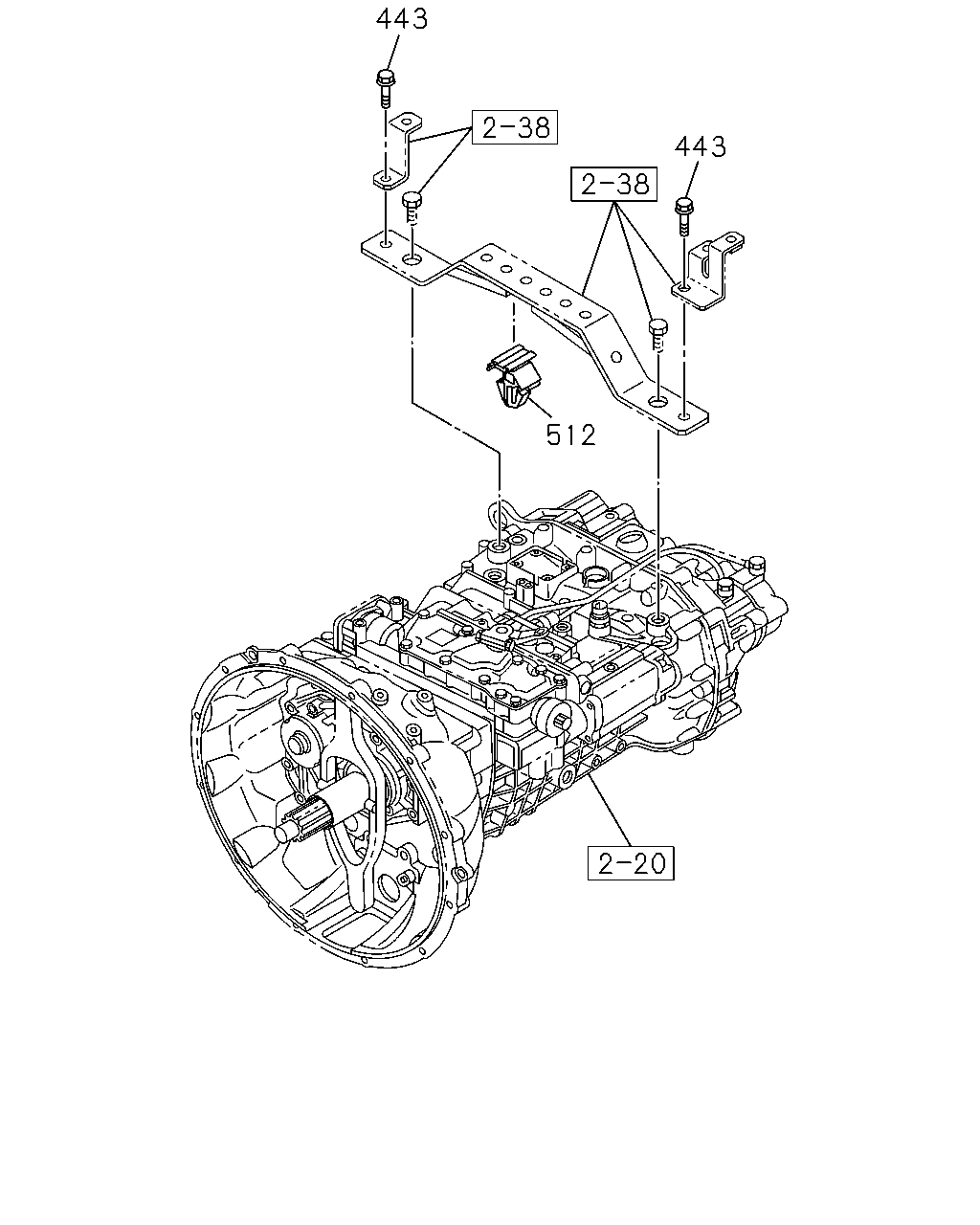

443 443 512

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
443	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	1411-
512	CLIP; PIPE ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	05	1	1411-
512	CLIP; PIPE EXC. ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	04	1	1411-

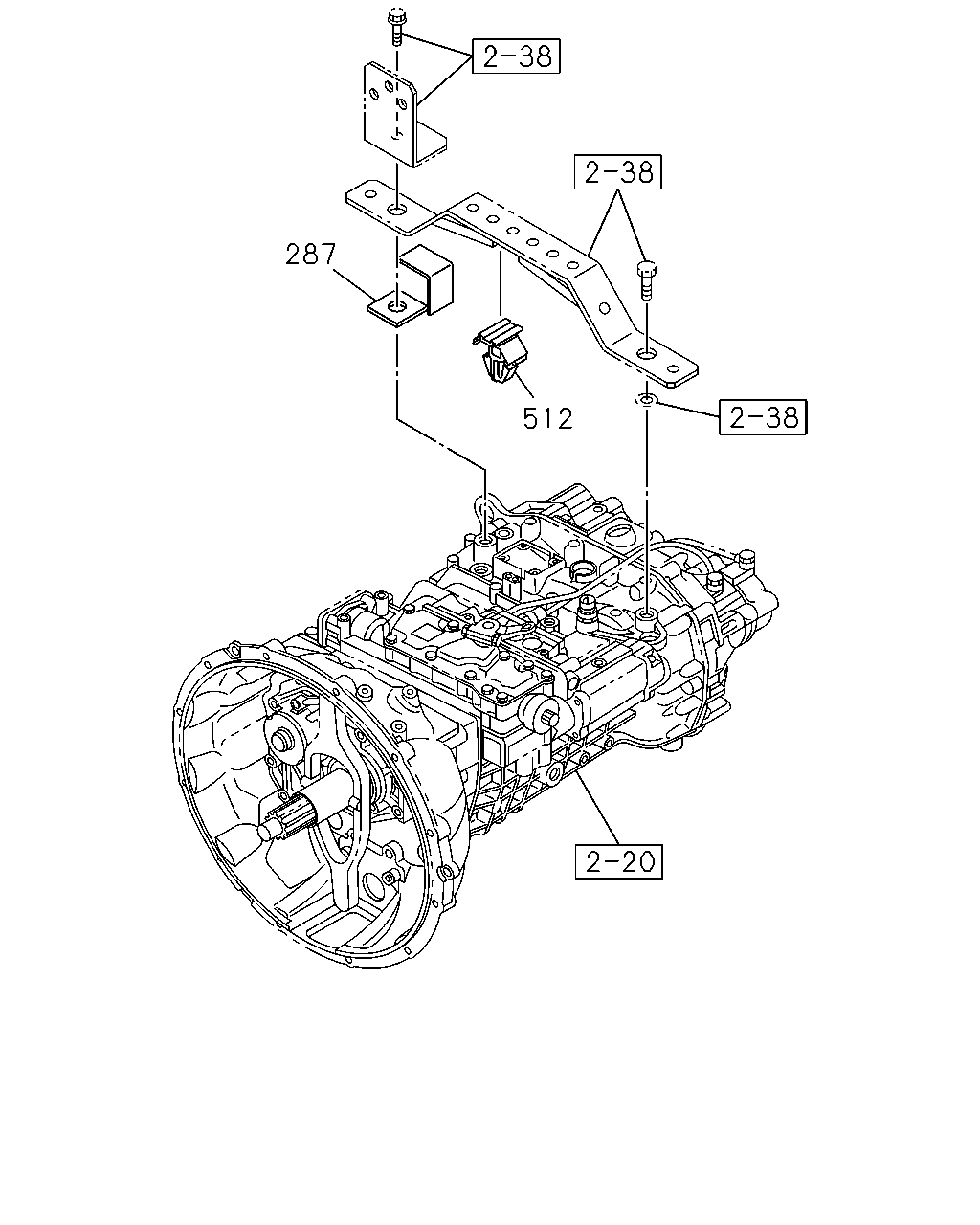

287 512

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
287	COVER; AIR BREATHER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-34141-026-0	01	1	1411-
512	CLIP; PIPE ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	05	1	1411-
512	CLIP; PIPE EXC. ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	04	1	1411-

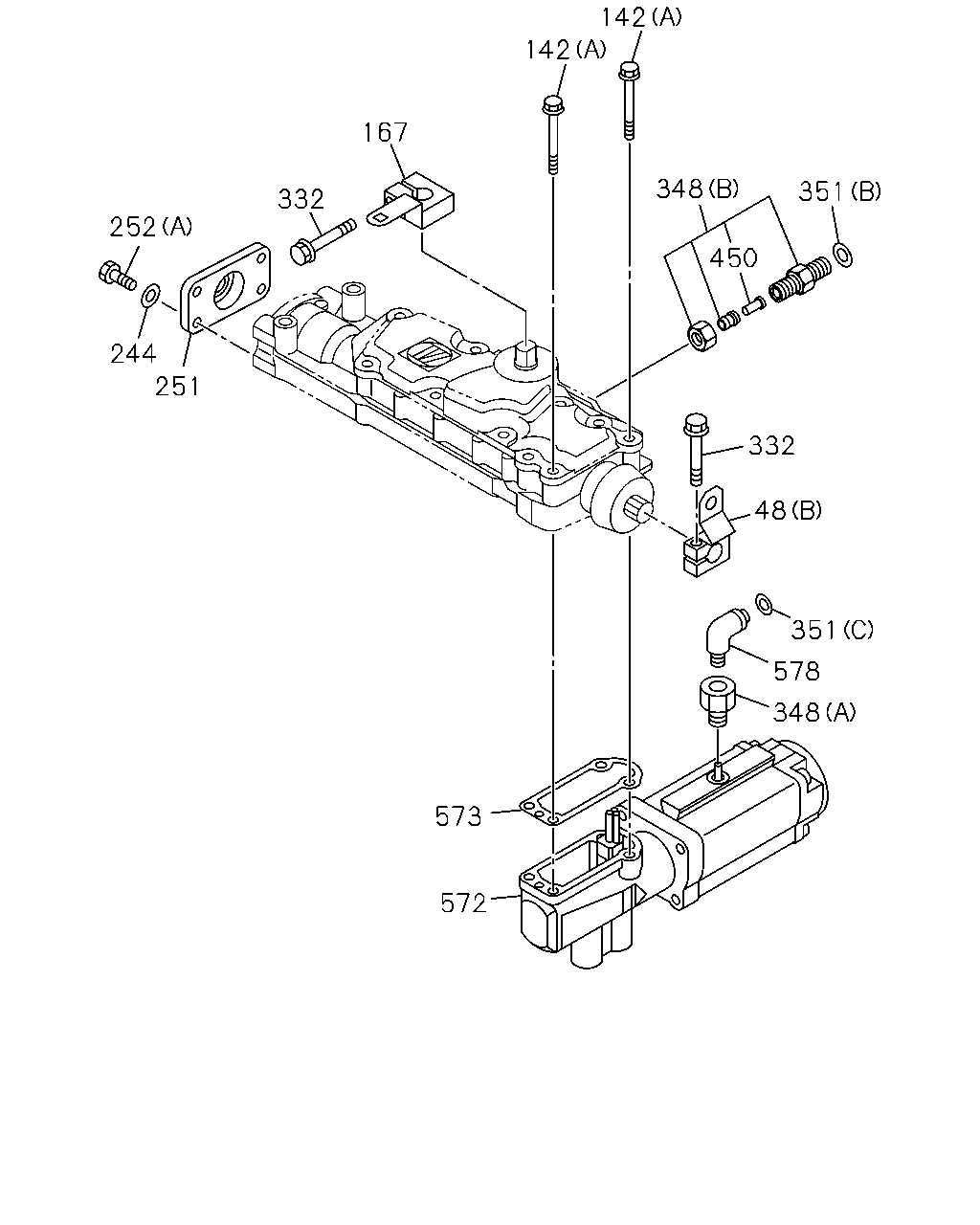

251 244 252 332 167 142 142 348 351 450 332 48 351 578 348 573 572

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	LEVER; 4TH,SHIFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33651-827-1	01	1	1411-
48	LEVER; 4TH,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98085-725-0	01	1	1411-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1411-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1411-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X100	1-33549-582-0	06	1	1411-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-33549-584-0	02	1	1411-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X40	1-33549-587-0	04	1	1411-
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33651-831-1	01	1	1411-
244	WASHER; LK,COVER	1-33549-583-0	04	1	1411-
251	COVER; SIDE	1-33549-590-0	01	1	1411-
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1411-
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-581-0	02	1	1411-
332	BOLT; 4TH,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	02	1	1411-
332	BOLT; 4TH,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	01	1	1411-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4	1-09654-396-0	01	1	1411-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	1411-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	1411-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	1411-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	1411-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	1411-
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT	1-09654-246-0	01	1	1411-
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-593-0	04	1	1411-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1411-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	04	1	1411-
351	GASKET; CONNECTOR (C) ID=12.2	8-98251-344-0	01	1	1411-
351	GASKET; CONNECTOR (C) ID=12.2	8-98251-344-0	01	1	1411-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	1411-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	08	1	1411-
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1411-
572	SERVO UNIT; GEAR SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-331-0	01	1	1411-
573	GASKET; SERVO UNIT ASSISTOR SHIFT CONTROL<WX8>	1-33549-332-0	01	1	1411-
578	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	1411-
578	CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-553-0	01	1	1411-

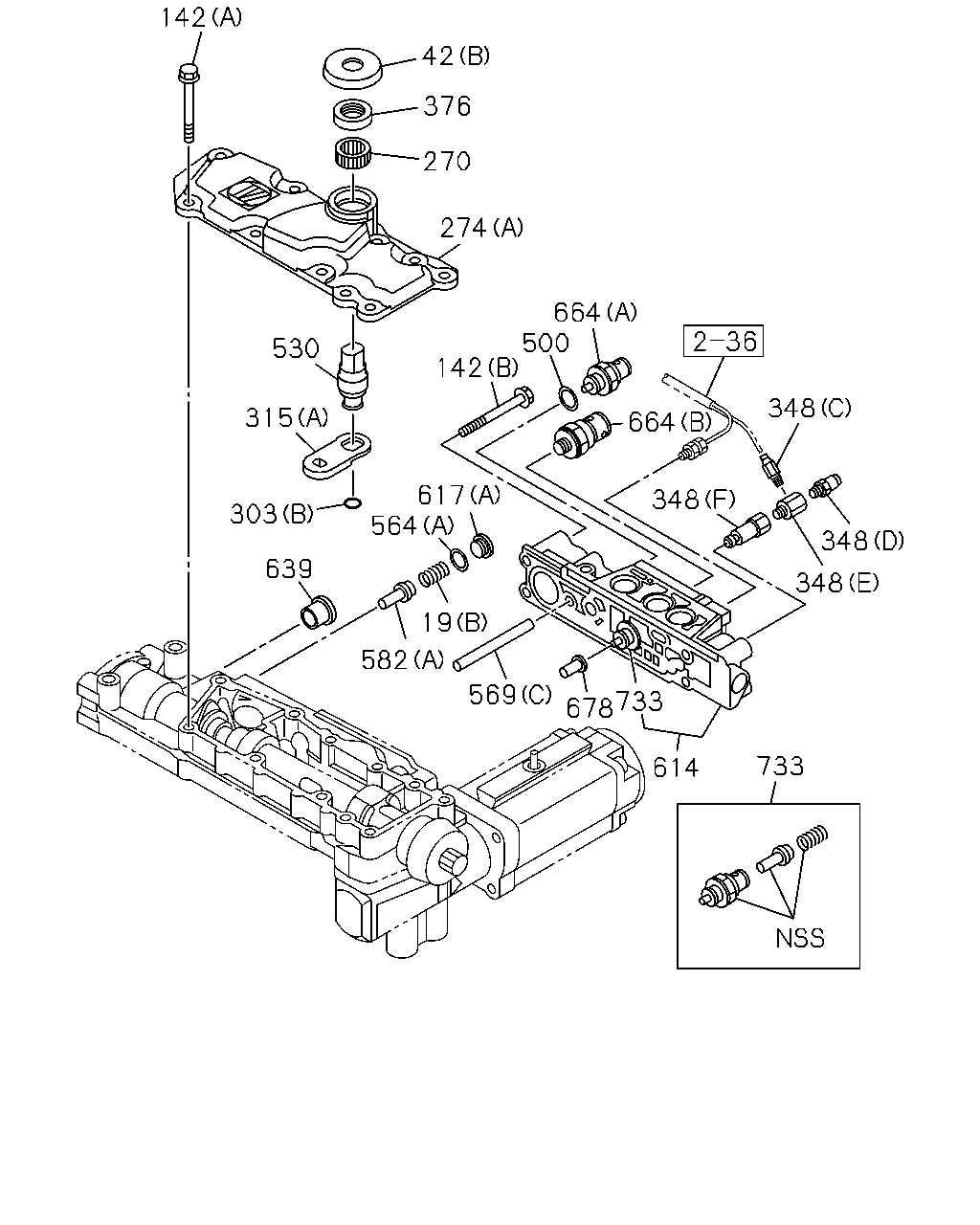

348 348 733 614 678 569 582 639 303 315 530 142 500 664 664 617 564 19 348 348 274 270 376 42 142 733

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	1411-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1411-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-027-0	01	1	1411-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-030-0	02	1	1411-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-104-0	01	1	1411-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33549-221-0	01	1	1411-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-548-0	01	1	1411-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-619-0	01	1	1411-
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-589-0	01	1	1411-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1411-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1411-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X100	1-33549-582-0	06	1	1411-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-33549-584-0	02	1	1411-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X40	1-33549-587-0	04	1	1411-
270	BEARING; NEEDLE,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-459-0	01	1	1411-
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-477-0	01	1	1411-
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-579-0	01	1	1411-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	1411-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	1411-
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	1411-
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-458-0	01	1	1411-
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98085-738-0	01	1	1411-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4	1-09654-396-0	01	1	1411-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	1411-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	1411-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	1411-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	1411-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	1411-
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT	1-09654-246-0	01	1	1411-
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-593-0	04	1	1411-
376	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33549-462-0	01	1	1411-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	1411-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-299-0	01	1	1411-
530	SHAFT; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33549-460-0	01	1	1411-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	1411-
564	SEAL; RING (B)	1-33549-578-0	01	1	1411-
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	1411-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1411-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1411-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1411-
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	1411-
582	BOLT; SPRING GUIDE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-471-0	01	1	1411-
582	BOLT; SPRING GUIDE EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-487-0	02	1	1411-
614	VALVE ASM ASSISTOR SHIFT CONTROL<WX8>	1-33549-549-0	01	1	1411-
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	01	1	1411-
617	PLUG (B)	1-33539-109-0	01	1	1411-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	02	1	1411-
639	CAP ASSISTOR SHIFT CONTROL<WX8>	1-33549-576-0	01	1	1411-
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-627-0	01	1	1411-
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-470-0	01	1	1411-
678	TAPPET ASSISTOR SHIFT CONTROL<WX8>	1-33549-466-0	01	1	1411-
733	REPAIR KIT ASSISTOR SHIFT CONTROL<WX8>	1-33549-617-0	01	1	1411-

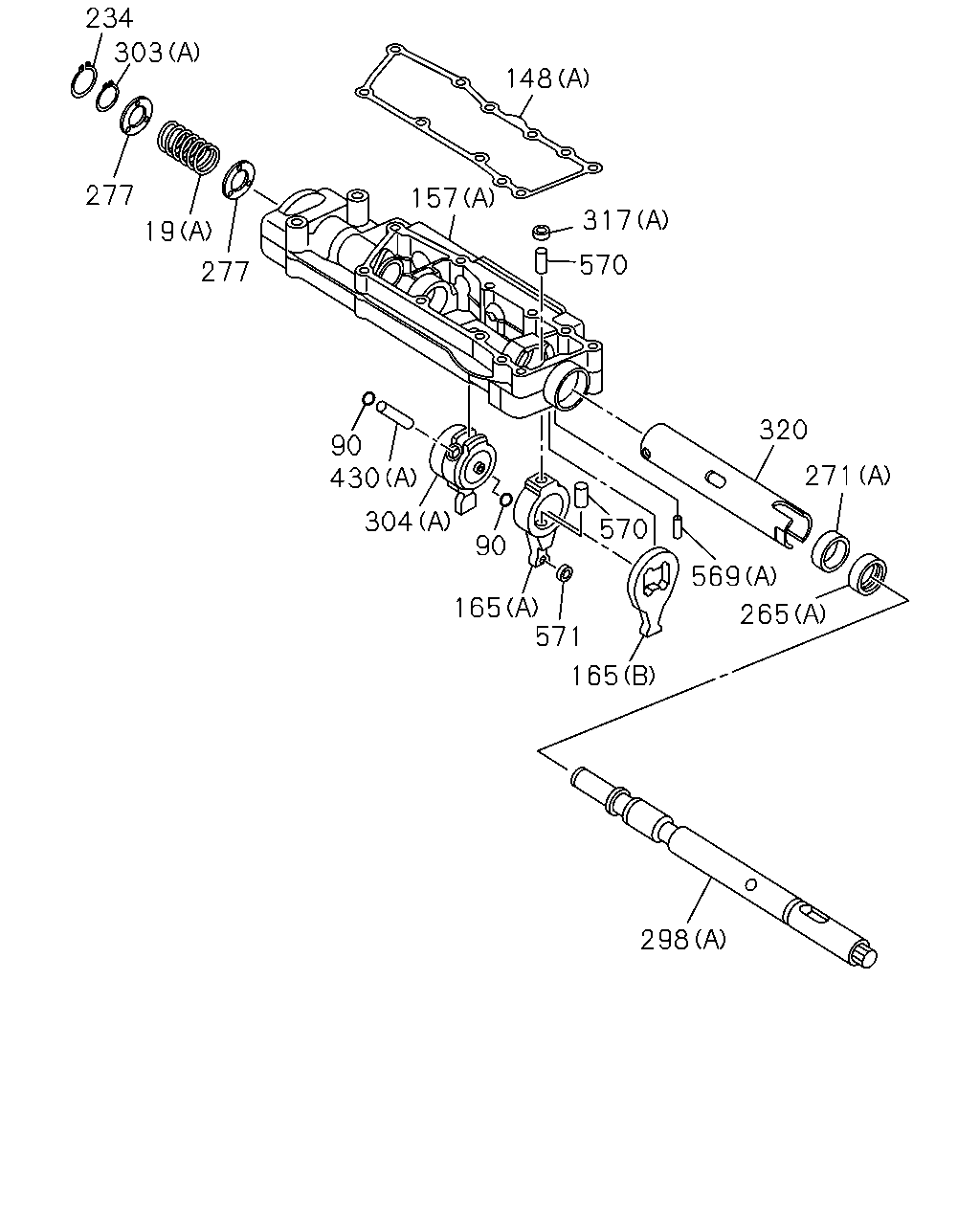

317 570 157 148 320 271 569 265 165 165 571 298 304 430 90 570 277 19 277 303 234 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	1411-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1411-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-027-0	01	1	1411-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-030-0	02	1	1411-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-104-0	01	1	1411-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33549-221-0	01	1	1411-
90	RING; SNAP,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33529-109-0	01	1	1411-
90	RING; SNAP,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-494-0	02	1	1411-
148	GASKET; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33544-056-0	01	1	1411-
148	GASKET; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33542-064-0	01	1	1411-
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-445-0	01	1	1411-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-570-0	01	1	1411-
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-325-0	01	1	1411-
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-450-0	01	1	1411-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-488-0	01	1	1411-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-489-0	01	1	1411-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-603-0	01	1	1411-
234	RING; SNAP	1-44519-224-0	01	1	1411-
265	SEAL; OIL,SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-544-0	01	1	1411-
265	SEAL; OIL,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-118-0	01	1	1411-
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-318-0	01	1	1411-
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-124-0	01	1	1411-
277	PLATE; SPRING SEAT	1-33539-107-0	02	1	1411-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33522-204-0	01	1	1411-
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33522-205-0	01	1	1411-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	1411-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	1411-
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	1411-
304	BLOCK; SHIFT SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-448-0	01	1	1411-
304	BLOCK; SHIFT SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-492-0	01	1	1411-
317	BUSHING; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-09330-119-0	02	1	1411-
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-322-0	01	1	1411-
320	SHAFT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-447-0	01	1	1411-
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-739-0	01	1	1411-
430	PIN; SPR,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-449-0	01	1	1411-
430	PIN; SPR,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-493-0	01	1	1411-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1411-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1411-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1411-
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	1411-
570	PIN; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33529-117-0	02	1	1411-
571	ROLLER; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-324-0	01	1	1411-

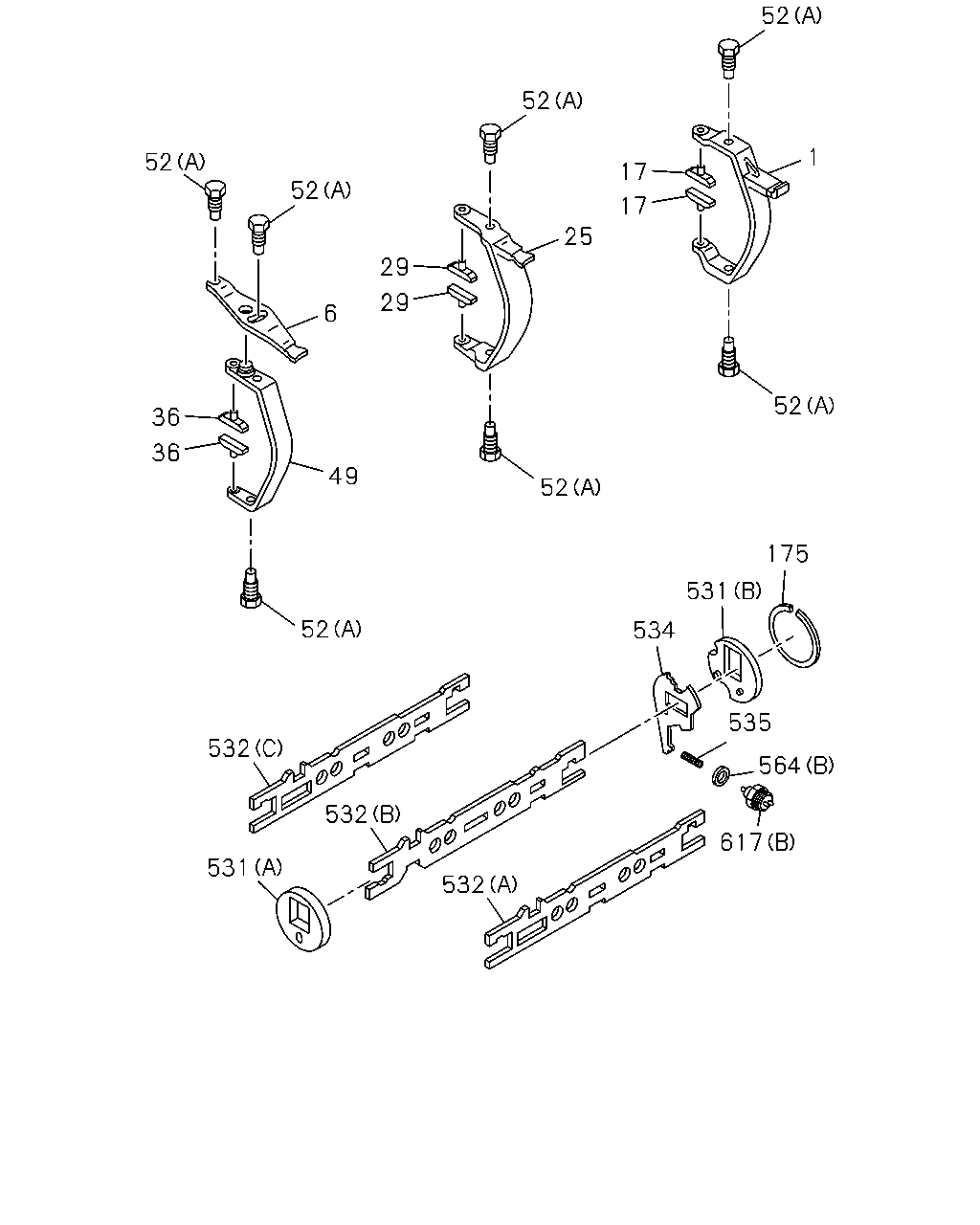

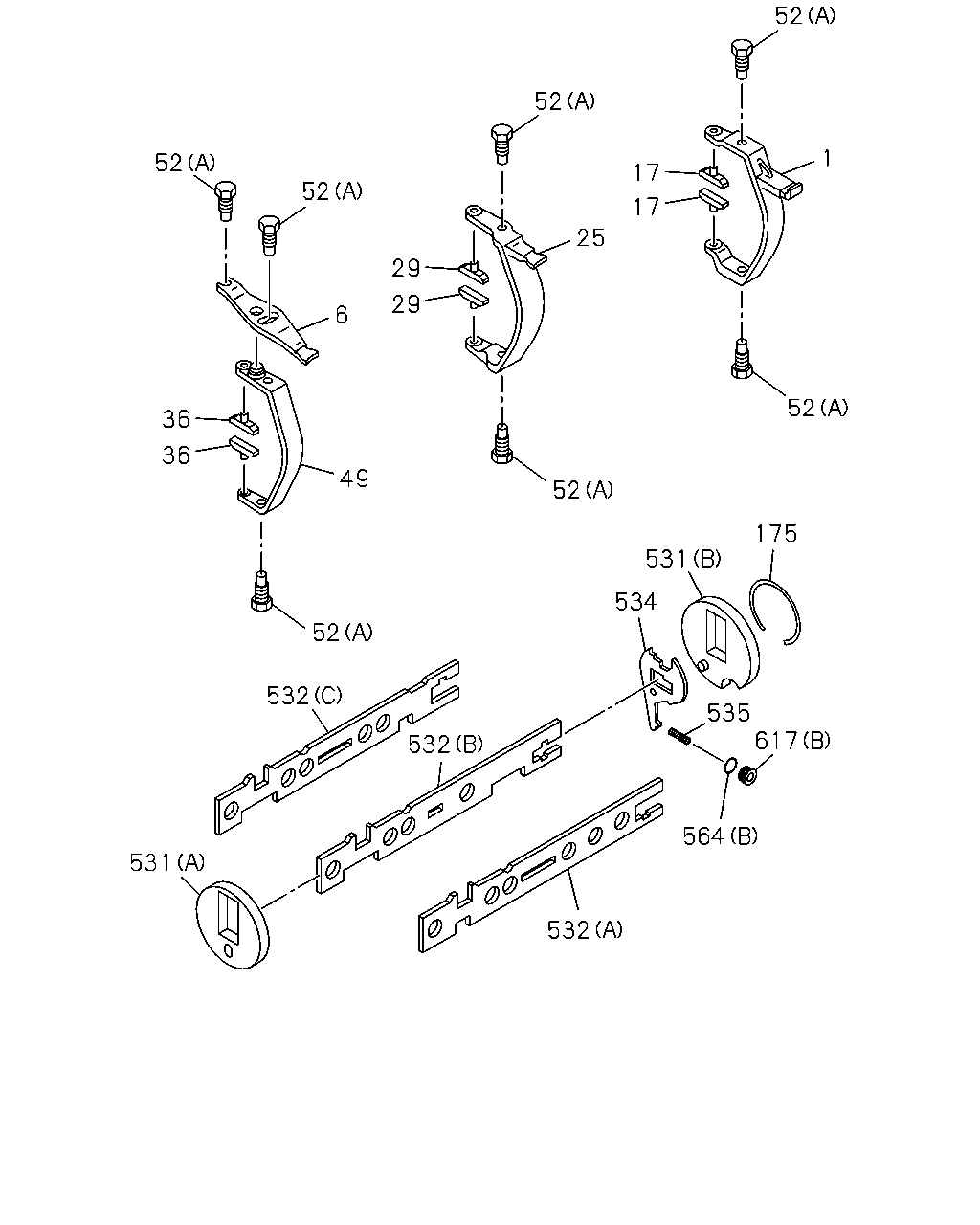

52 52 29 6 29 36 36 49 52 52 25 52 17 17 1 52 52 175 531 534 535 564 617 532 532 531 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; SHIFT,1ST & REV	1-33511-657-0	01	1	1411-
6	LEVER; RELAY	1-33511-658-0	01	1	1411-
17	BLOCK; SHIFT,1ST & REV	1-33519-172-0	02	1	1411-
25	ARM; SHIFT,2ND & 3RD	1-33511-642-0	01	1	1411-
29	BLOCK; SHIFT,2ND & 3RD	1-33519-081-0	02	1	1411-
36	BLOCK; SHIFT,4TH & 5TH	1-33519-170-0	02	1	1411-
49	ARM; SHIFT,4TH & 5TH	1-33511-640-0	01	1	1411-
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1411-
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1411-
175	RING; STOPPER,SHIFT LEVER	1-33539-103-0	01	1	1411-
531	PLATE; BEARING (A)	1-33539-044-0	01	1	1411-
531	PLATE; BEARING (B)	1-33539-047-0	01	1	1411-
532	PLATE; SHIFT FORK (A)	1-33531-492-0	01	1	1411-
532	PLATE; SHIFT FORK (B)	1-33531-493-0	01	1	1411-
532	PLATE; SHIFT FORK (C)	1-33531-494-0	01	1	1411-
534	LEVER; LOCK,SHIFT PLATE	1-33539-087-0	01	1	1411-
535	SPRING; LEVER	1-33539-049-0	01	1	1411-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	1411-
564	SEAL; RING (B)	1-33549-578-0	01	1	1411-
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	1411-
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	01	1	1411-
617	PLUG (B)	1-33539-109-0	01	1	1411-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	02	1	1411-

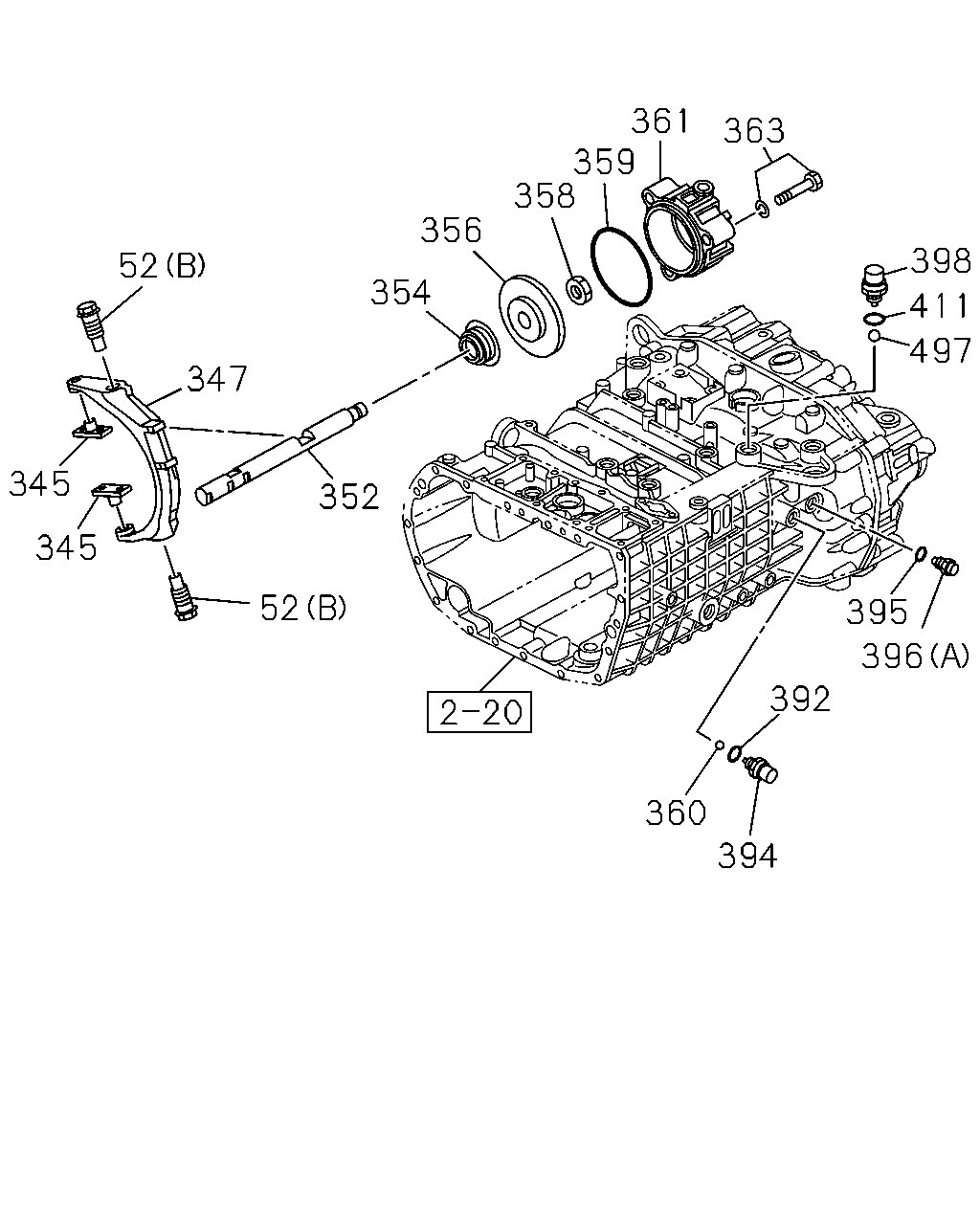

361 363 359 358 356 354 347 352 52 360 394 392 395 396 497 411 398 52 345 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1411-
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1411-
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-095-0	02	1	1411-
347	ARM; SHIFT,RANGE CHANGE	1-33511-529-0	01	1	1411-
352	ROD; SHIFT,RANGE CHANGE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33531-495-0	01	1	1411-
352	ROD; SHIFT,RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33531-497-0	01	1	1411-
352	ROD; SHIFT,RANGE CHANGE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33531-047-0	01	1	1411-
354	SEAL; AIR CYL	1-33519-045-0	01	1	1411-
356	PISTON; AIR CYL	1-33519-197-0	01	1	1411-
358	NUT; SHIFT ROD	1-33519-188-0	01	1	1411-
359	GASKET; AIR CYL	1-33519-093-0	01	1	1411-
360	BALL; AIR CYL	1-33119-252-0	01	1	1411-
361	CYLINDER; AIR,SHIFT	1-33519-092-0	01	1	1411-
363	BOLT; AIR CYL M10X70	1-33119-616-0	03	1	1411-
392	GASKET; PLUG & SW	1-33119-249-0	01	1	1411-
394	SWITCH; RANGE CHANGE	1-33119-627-0	01	1	1411-
395	GASKET; PLUNGER ASSISTOR SHIFT CONTROL<WX8>	1-33549-497-0	01	1	1411-
395	GASKET; PLUNGER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33519-171-0	01	1	1411-
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1411-
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	1411-
398	SWITCH; REV LAMP	1-38119-062-0	01	1	1411-
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1411-
497	BALL; SWITCH	1-33119-252-0	01	1	1411-

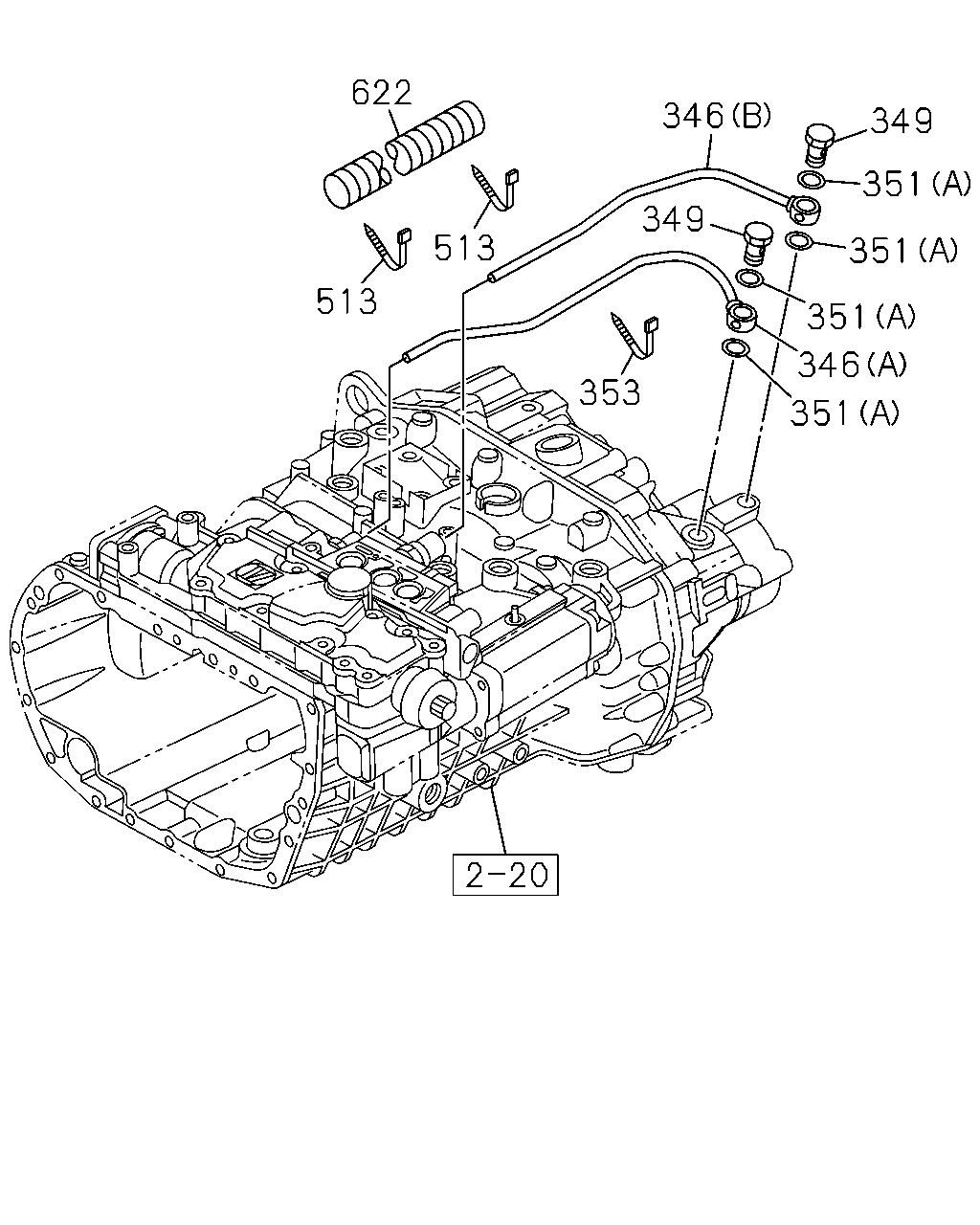

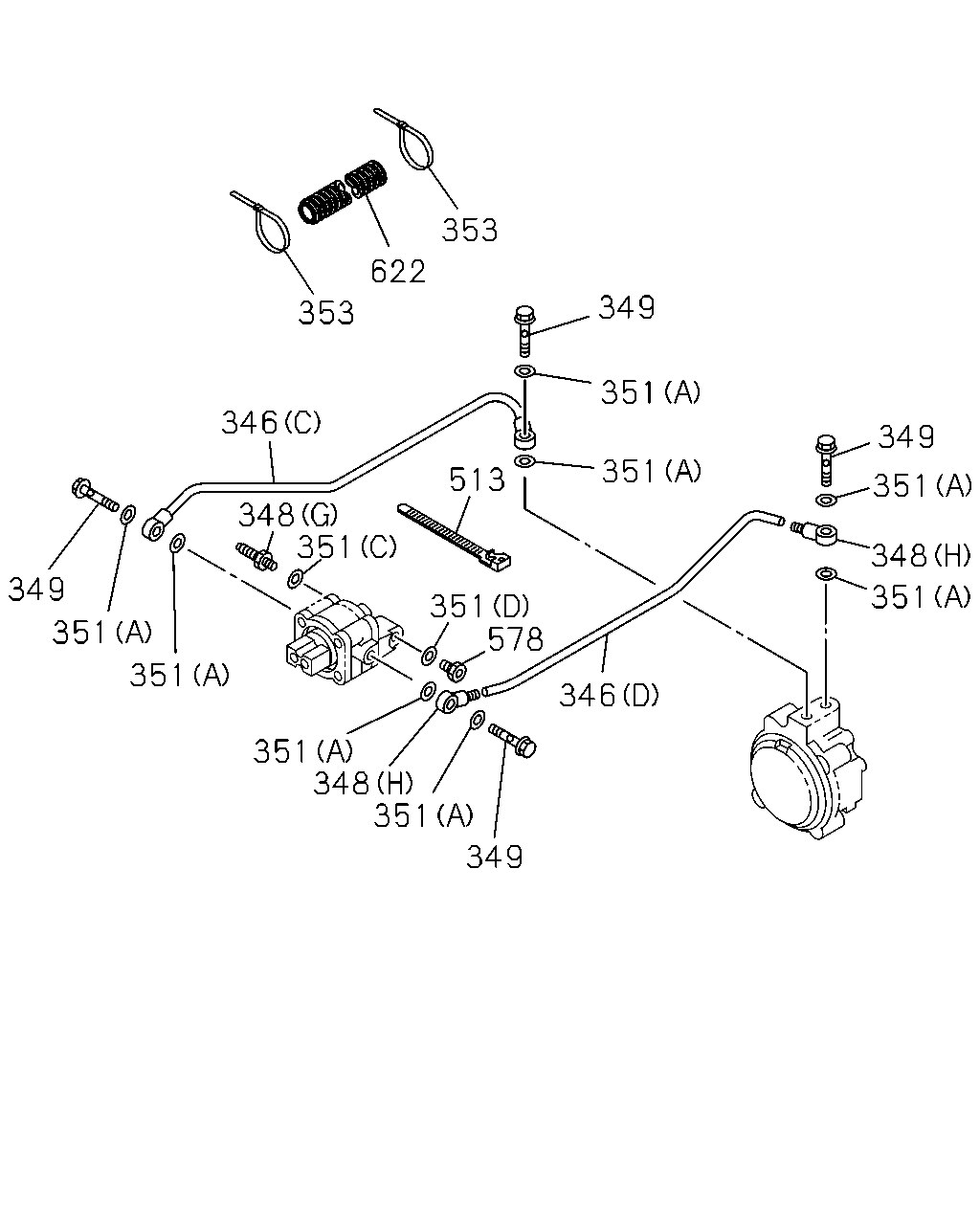

622 513 513 346 349 353 349 351 351 351 346 351

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-473-0	01	1	1411-
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-474-0	01	1	1411-
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-598-0	01	1	1411-
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-618-0	01	1	1411-
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8> M14	1-33549-592-0	02	1	1411-
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> M14	1-33549-592-0	04	1	1411-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1411-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	04	1	1411-
351	GASKET; CONNECTOR (C) ID=12.2	8-98251-344-0	01	1	1411-
351	GASKET; CONNECTOR (C) ID=12.2	8-98251-344-0	01	1	1411-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	1411-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	08	1	1411-
353	CLIP; AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-530-0	02	1	1411-
353	CLIP; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-475-0	02	1	1411-
513	CLIP; BAND ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	05	1	1411-
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	06	1	1411-
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=140	5-09707-031-1	01	1	1411-
622	TUBE; CORRUGATE L=100 ID=22 L=350	1-83129-017-0	01	1	1411-

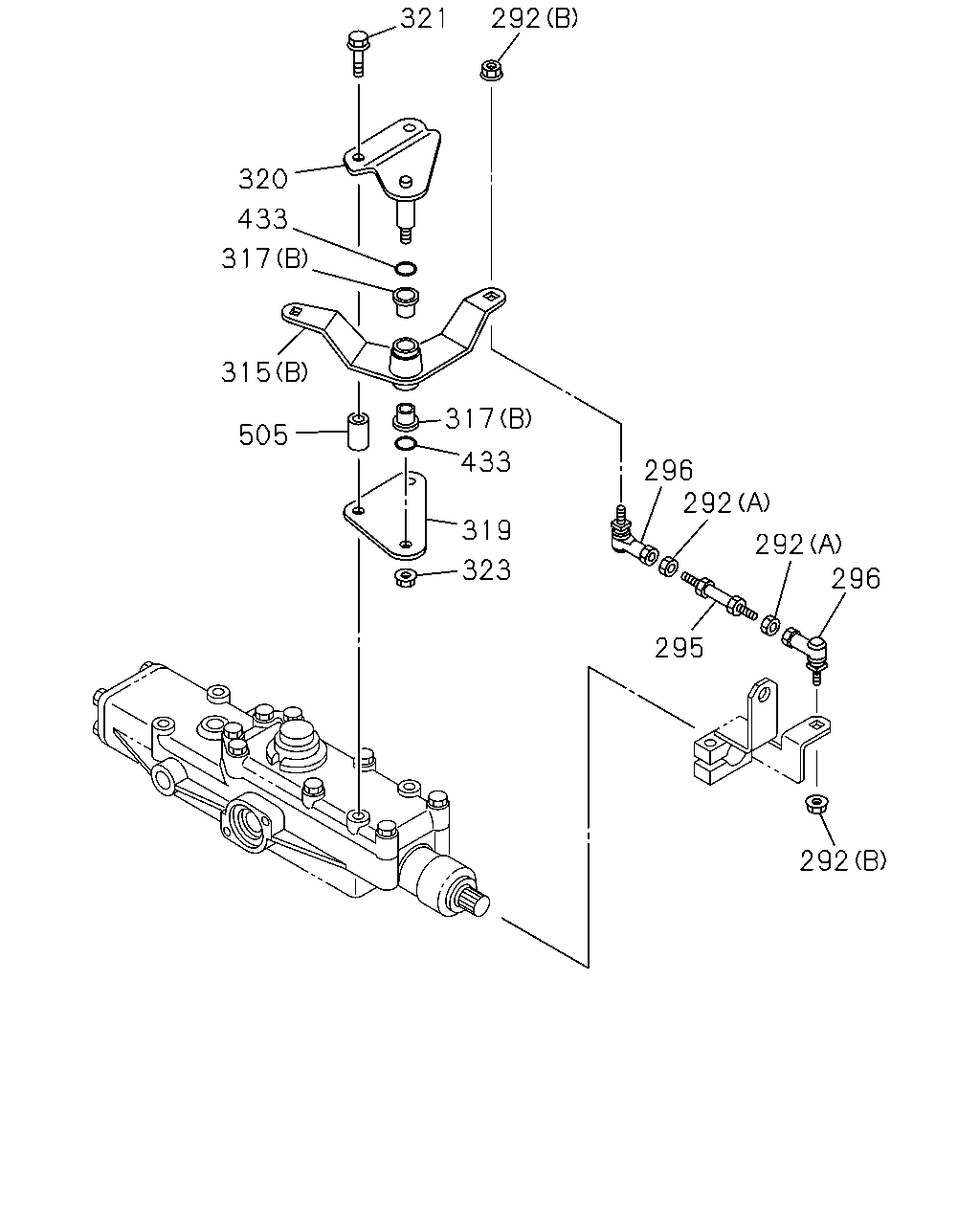

321 292 320 433 317 315 505 317 319 433 323 296 292 292 296 295 292

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	1-09440-062-1	02	1	1411-
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8	0-91111-508-0	02	1	1411-
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 L=50	9-08400-805-0	01	1	1411-
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09760-108-0	02	1	1411-
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-458-0	01	1	1411-
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98085-738-0	01	1	1411-
317	BUSHING; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-09330-119-0	02	1	1411-
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-322-0	01	1	1411-
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-740-0	01	1	1411-
320	SHAFT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-447-0	01	1	1411-
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-739-0	01	1	1411-
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X130 FLANGE	0-28065-813-0	02	1	1411-
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	1411-
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	1411-
505	SPACER; BRKT EXC. ASSISTOR SHIFT CONTROL<WX8> L=24.5	1-33659-186-1	02	1	1411-

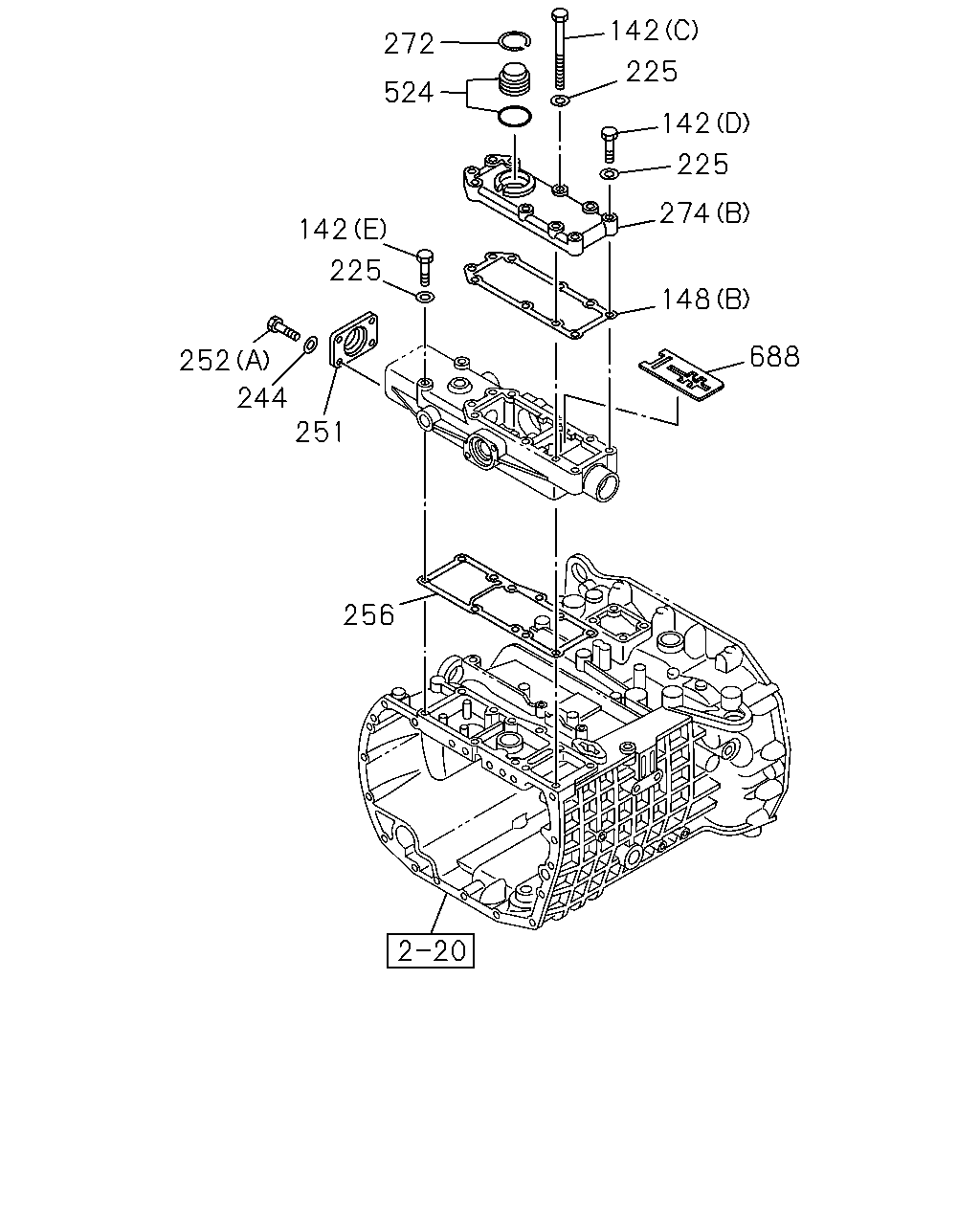

272 524 142 225 252 251 244 256 688 148 274 225 142 225 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1411-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1411-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X100	1-33549-582-0	06	1	1411-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-33549-584-0	02	1	1411-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X40	1-33549-587-0	04	1	1411-
148	GASKET; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33544-056-0	01	1	1411-
148	GASKET; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33542-064-0	01	1	1411-
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	14	1	1411-
244	WASHER; LK,COVER	1-33549-583-0	04	1	1411-
251	COVER; SIDE	1-33549-590-0	01	1	1411-
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1411-
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-581-0	02	1	1411-
256	GASKET; QUAD BOX TO TRANS CASE ASSISTOR SHIFT CONTROL<WX8>	1-33542-062-0	01	1	1411-
256	GASKET; QUAD BOX TO TRANS CASE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-065-0	01	1	1411-
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-44519-217-0	01	1	1411-
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-477-0	01	1	1411-
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-579-0	01	1	1411-
524	DETENT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-501-0	01	1	1411-
688	SHIFT; INTERLOCK EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-572-0	01	1	1411-

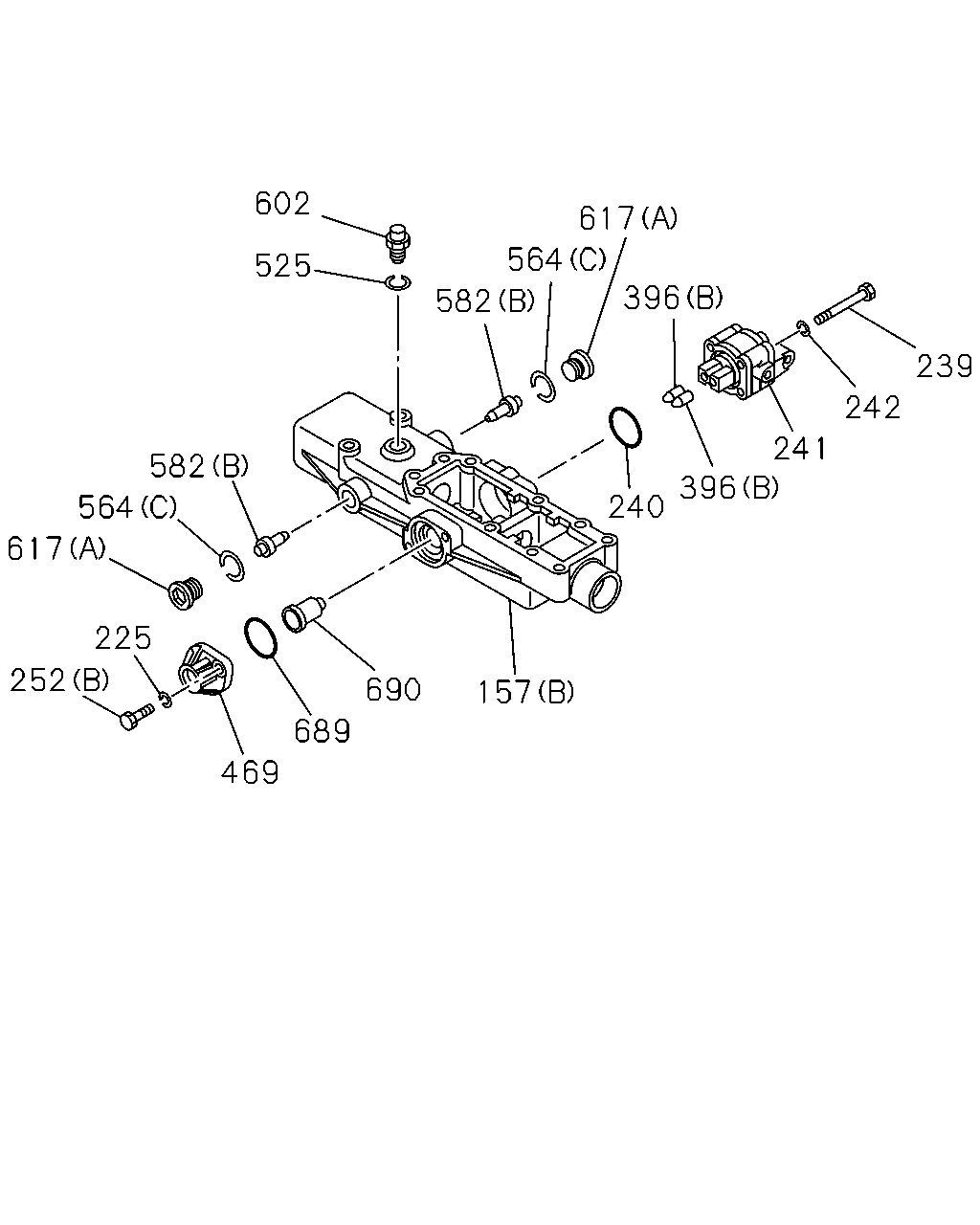

602 525 582 564 617 396 239 242 241 396 240 157 690 689 469 225 252 617 564 582

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-445-0	01	1	1411-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-570-0	01	1	1411-
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	14	1	1411-
239	BOLT; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-585-0	04	1	1411-
240	GASKET; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-198-0	01	1	1411-
241	VALVE; CUT OFF EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-495-0	01	1	1411-
242	WASHER; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	04	1	1411-
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1411-
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-581-0	02	1	1411-
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1411-
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	1411-
469	COVER; SPRING,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-216-0	01	1	1411-
525	RING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-286-0	01	1	1411-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	1411-
564	SEAL; RING (B)	1-33549-578-0	01	1	1411-
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	1411-
582	BOLT; SPRING GUIDE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-471-0	01	1	1411-
582	BOLT; SPRING GUIDE EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-487-0	02	1	1411-
602	PLUNGER; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-618-0	01	1	1411-
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	01	1	1411-
617	PLUG (B)	1-33539-109-0	01	1	1411-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	02	1	1411-
689	GASKET; COVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-063-0	01	1	1411-
690	PIN; STOP EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-496-0	01	1	1411-

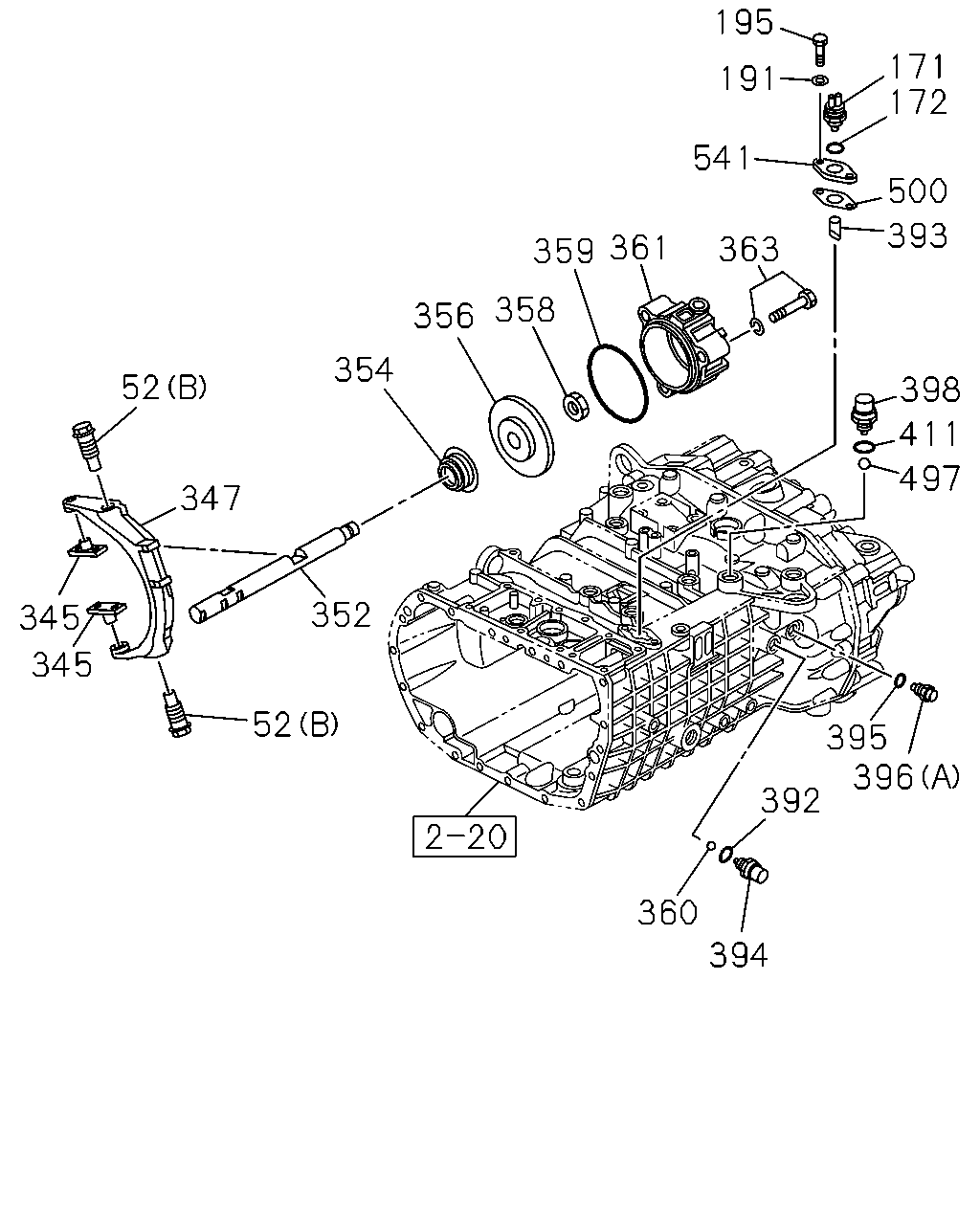

195 171 500 172 393 398 497 411 395 396 392 360 394 52 352 345 345 347 52 354 356 358 359 361 363 541 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1411-
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1411-
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-627-0	01	1	1411-
172	GASKET; NEUTRAL SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	1411-
191	WASHER; LK EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	02	1	1411-
195	BOLT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-593-0	02	1	1411-
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-095-0	02	1	1411-
347	ARM; SHIFT,RANGE CHANGE	1-33511-529-0	01	1	1411-
352	ROD; SHIFT,RANGE CHANGE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33531-495-0	01	1	1411-
352	ROD; SHIFT,RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33531-497-0	01	1	1411-
352	ROD; SHIFT,RANGE CHANGE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33531-047-0	01	1	1411-
354	SEAL; AIR CYL	1-33519-045-0	01	1	1411-
356	PISTON; AIR CYL	1-33519-197-0	01	1	1411-
358	NUT; SHIFT ROD	1-33519-188-0	01	1	1411-
359	GASKET; AIR CYL	1-33519-093-0	01	1	1411-
360	BALL; AIR CYL	1-33119-252-0	01	1	1411-
361	CYLINDER; AIR,SHIFT	1-33519-092-0	01	1	1411-
363	BOLT; AIR CYL M10X70	1-33119-616-0	03	1	1411-
392	GASKET; PLUG & SW	1-33119-249-0	01	1	1411-
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1411-
394	SWITCH; RANGE CHANGE	1-33119-627-0	01	1	1411-
395	GASKET; PLUNGER ASSISTOR SHIFT CONTROL<WX8>	1-33549-497-0	01	1	1411-
395	GASKET; PLUNGER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33519-171-0	01	1	1411-
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1411-
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	1411-
398	SWITCH; REV LAMP	1-38119-062-0	01	1	1411-
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1411-
497	BALL; SWITCH	1-33119-252-0	01	1	1411-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	1411-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-299-0	01	1	1411-
541	PLATE; SWITCH EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-300-0	01	1	1411-

165 165 289 165 271 90 430 304 90 298 569 332 265 264 42 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-548-0	01	1	1411-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-619-0	01	1	1411-
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-589-0	01	1	1411-
48	LEVER; 4TH,SHIFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33651-827-1	01	1	1411-
48	LEVER; 4TH,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98085-725-0	01	1	1411-
90	RING; SNAP,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33529-109-0	01	1	1411-
90	RING; SNAP,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-494-0	02	1	1411-
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-325-0	01	1	1411-
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-450-0	01	1	1411-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-488-0	01	1	1411-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-489-0	01	1	1411-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-603-0	01	1	1411-
264	SEAL; DUST,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-119-0	01	1	1411-
265	SEAL; OIL,SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-544-0	01	1	1411-
265	SEAL; OIL,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-118-0	01	1	1411-
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-318-0	01	1	1411-
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-124-0	01	1	1411-
289	SEAL; OIL,CONT SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-491-0	01	1	1411-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33522-204-0	01	1	1411-
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33522-205-0	01	1	1411-
304	BLOCK; SHIFT SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-448-0	01	1	1411-
304	BLOCK; SHIFT SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-492-0	01	1	1411-
332	BOLT; 4TH,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	02	1	1411-
332	BOLT; 4TH,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	01	1	1411-
430	PIN; SPR,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-449-0	01	1	1411-
430	PIN; SPR,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-493-0	01	1	1411-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1411-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1411-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1411-
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	1411-

52 1 17 17 52 175 531 534 535 617 564 532 532 531 532 52 49 52 25 52 29 29 6 36 36 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; SHIFT,1ST & REV	1-33511-657-0	01	1	1411-
6	LEVER; RELAY	1-33511-658-0	01	1	1411-
17	BLOCK; SHIFT,1ST & REV	1-33519-172-0	02	1	1411-
25	ARM; SHIFT,2ND & 3RD	1-33511-642-0	01	1	1411-
29	BLOCK; SHIFT,2ND & 3RD	1-33519-081-0	02	1	1411-
36	BLOCK; SHIFT,4TH & 5TH	1-33519-170-0	02	1	1411-
49	ARM; SHIFT,4TH & 5TH	1-33511-640-0	01	1	1411-
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1411-
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1411-
175	RING; STOPPER,SHIFT LEVER	1-33539-103-0	01	1	1411-
531	PLATE; BEARING (A)	1-33539-044-0	01	1	1411-
531	PLATE; BEARING (B)	1-33539-047-0	01	1	1411-
532	PLATE; SHIFT FORK (A)	1-33531-492-0	01	1	1411-
532	PLATE; SHIFT FORK (B)	1-33531-493-0	01	1	1411-
532	PLATE; SHIFT FORK (C)	1-33531-494-0	01	1	1411-
534	LEVER; LOCK,SHIFT PLATE	1-33539-087-0	01	1	1411-
535	SPRING; LEVER	1-33539-049-0	01	1	1411-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	1411-
564	SEAL; RING (B)	1-33549-578-0	01	1	1411-
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	1411-
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	01	1	1411-
617	PLUG (B)	1-33539-109-0	01	1	1411-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	02	1	1411-

353 622 353 346 349 351 351 348 513 351 351 351 348 351 349 346 578 351 351 349 349 351 348 351

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-473-0	01	1	1411-
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-474-0	01	1	1411-
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-598-0	01	1	1411-
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-618-0	01	1	1411-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4	1-09654-396-0	01	1	1411-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	1411-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	1411-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	1411-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	1411-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	1411-
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT	1-09654-246-0	01	1	1411-
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-593-0	04	1	1411-
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8> M14	1-33549-592-0	02	1	1411-
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> M14	1-33549-592-0	04	1	1411-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1411-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	04	1	1411-
351	GASKET; CONNECTOR (C) ID=12.2	8-98251-344-0	01	1	1411-
351	GASKET; CONNECTOR (C) ID=12.2	8-98251-344-0	01	1	1411-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	1411-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	08	1	1411-
353	CLIP; AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-530-0	02	1	1411-
353	CLIP; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-475-0	02	1	1411-
513	CLIP; BAND ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	05	1	1411-
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	06	1	1411-
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=140	5-09707-031-1	01	1	1411-
578	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	1411-
578	CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-553-0	01	1	1411-
622	TUBE; CORRUGATE L=100 ID=22 L=350	1-83129-017-0	01	1	1411-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
