◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11591 - FVR LHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30B - GEAR SHIFTER AND QUADRANT BOX ▶
2-30B — GEAR SHIFTER AND QUADRANT BOX (#152077) — 69 parça

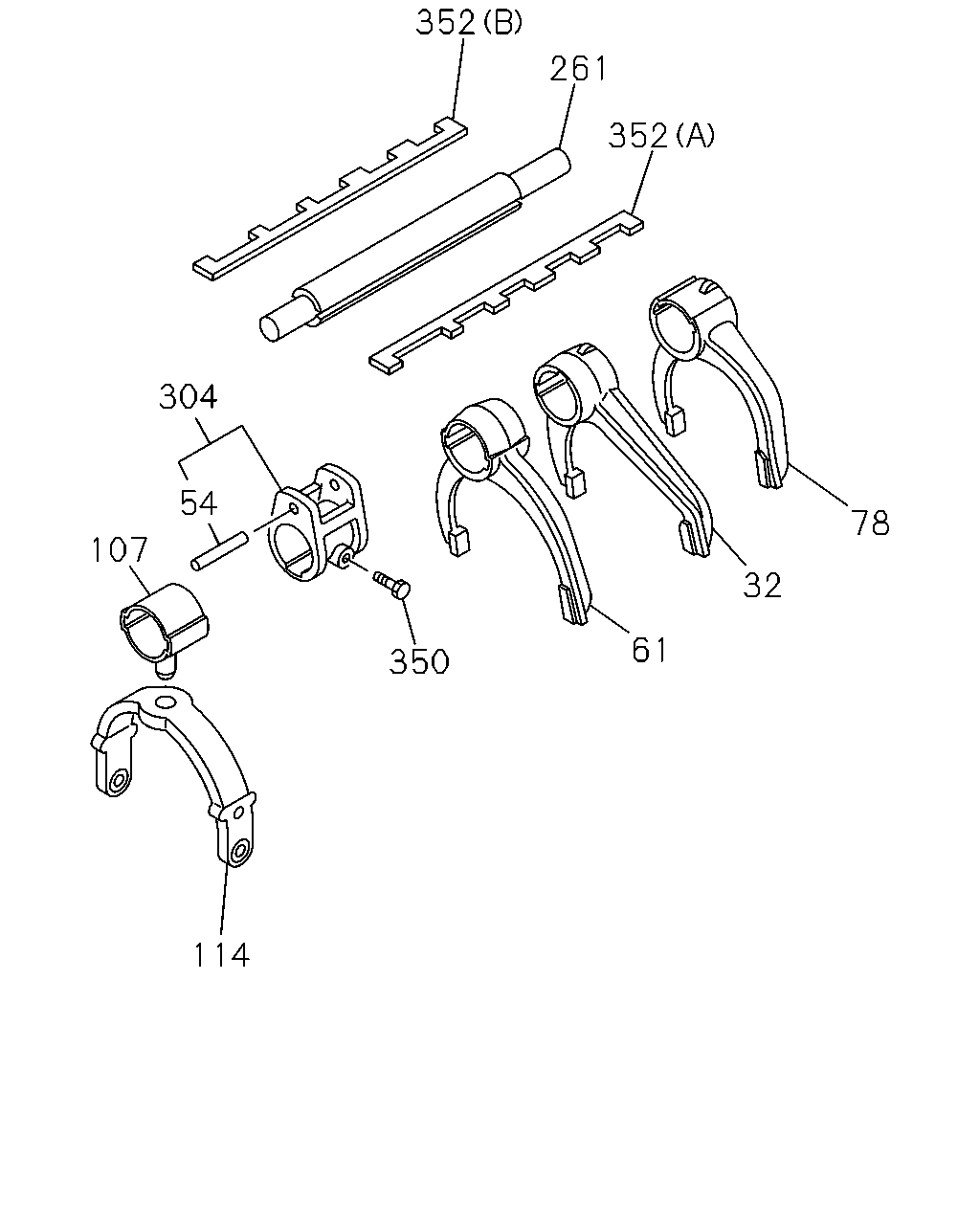

çizim 455167
352 261 352 78 32 61 350 54 304 107 114
BalonParca AdiParca NoAdetTipApplied Date
32 ARM; SHIFT,1ST & 2ND 1-33511-634-0 01 1 1411-
54 PIN; SPR,SHIFT BLOCK 1-33519-101-0 01 1 1411-
61 ARM; SHIFT,3RD & 4TH 1-33511-635-0 01 1 1411-
78 ARM; SHIFT,REV 1-33511-633-0 01 1 1411-
107 BLOCK; SHIFT,OD TO TOP 1-33511-636-0 01 1 1411-
114 ARM; SHIFT,OD TO TOP 1-33511-637-0 01 1 1411-
261 ROD; GEAR CONT 1-33531-480-0 01 1 1411-
304 BLOCK; SHIFT SHAFT
. 		1-33511-534-0 01 1 1411-
350 SCREW; SHIFT ARM 1-33519-163-0 01 1 1411-
352 ROD; SHIFT,RANGE CHANGE
(B) 		1-33539-082-0 01 1 1411-
352 ROD; SHIFT,RANGE CHANGE
(A) 		1-33539-083-0 01 1 1411-

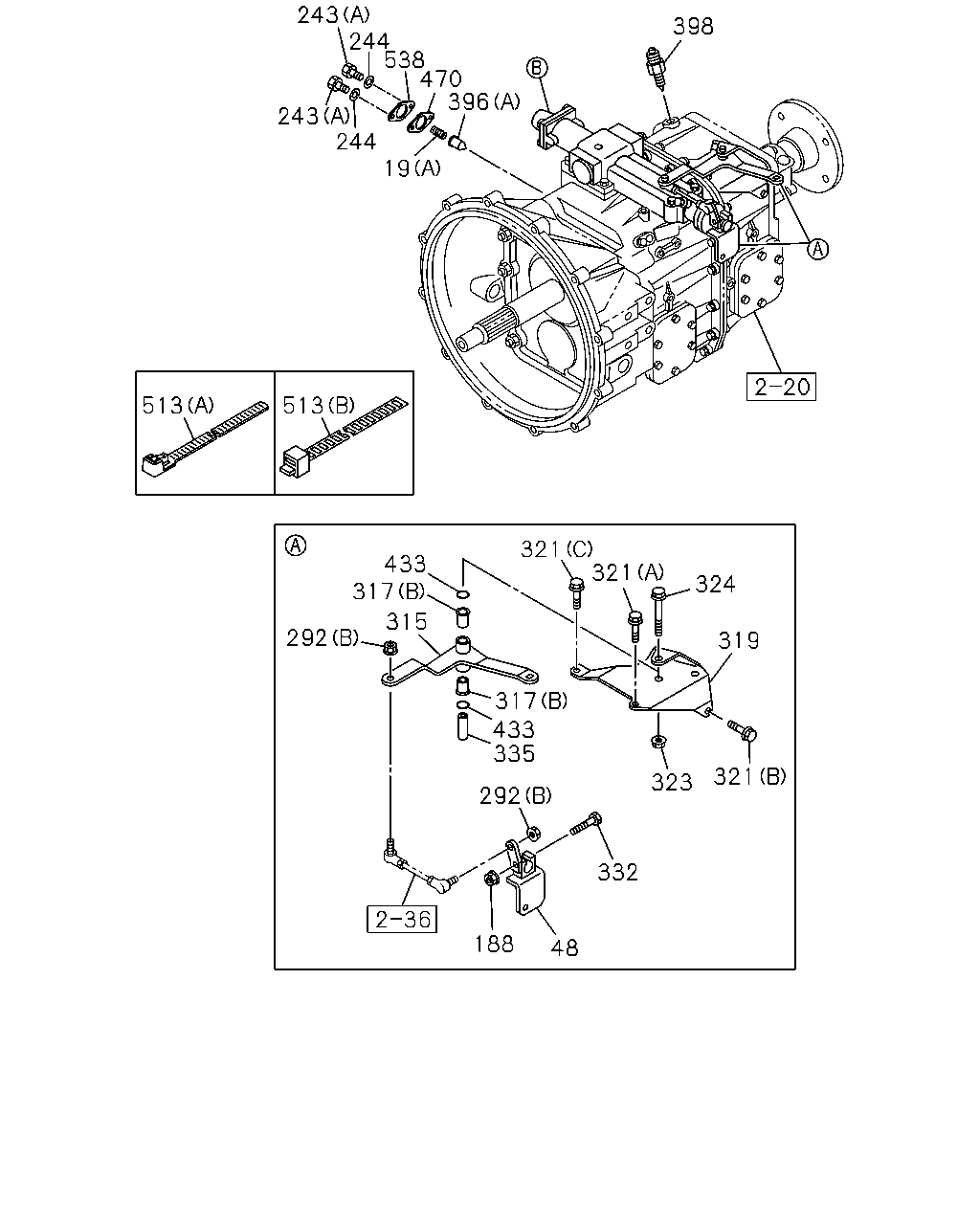

çizim 455198
321 321 324 19 244 243 243 538 244 470 396 398 319 321 323 292 433 335 317 315 317 433 292 513 513 188 332 48
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-085-0 01 1 1411-
19 SPRING; COIL COMP
(B) 		1-33549-392-0 01 1 1411-
19 SPRING; COIL COMP
(C) 		1-33549-393-0 01 1 1411-
48 LEVER; 4TH,SHIFT 8-98031-634-0 01 1 1411-
188 NUT; SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1411-
243 BOLT; COVER
(A) 		1-33119-575-0 02 1 1411-
243 BOLT; COVER
(B) 		1-33549-551-0 02 1 1411-
244 WASHER; LK,COVER 1-33119-564-0 02 1 1411-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1411-
315 LEVER; SELECT 8-98032-139-0 01 1 1411-
317 BUSHING; LEVER
(B) 		1-09330-119-0 02 1 1411-
319 BRACKET; SELECT LEVER 1-33657-816-0 01 1 1411-
321 BOLT; BRKT,RELAY LEVER
(C) M10X30 FLANGE 		0-28151-030-0 01 1 1411-
321 BOLT; BRKT,RELAY LEVER
(A) M10X60 FLANGE 		0-28151-060-0 01 1 1411-
321 BOLT; BRKT,RELAY LEVER
(B) M10X25 FLANGE 		0-28751-025-0 01 1 1411-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1411-
324 BOLT; SHAFT
M10X60 FLANGE 		0-28051-060-0 01 1 1411-
332 BOLT; 4TH,SHIFT LEVER 0-29261-060-0 01 1 1411-
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-203-0 01 1 1411-
396 PLUNGER; SHIFT ROD
(A) 		1-33539-084-0 01 1 1411-
396 PLUNGER; SHIFT ROD
(B) 		1-33549-390-0 01 1 1411-
398 SWITCH; REV LAMP 1-82440-128-0 01 1 1411-
433 GASKET; BUSHING 1-09623-594-0 02 1 1411-
470 GASKET; SPRING COVER 1-33119-489-0 02 1 1411-
513 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 1411-
513 CLIP; BAND
(A) L=250 		5-09707-030-1 01 1 1411-
538 COVER; DETENT 1-33119-574-0 01 1 1411-

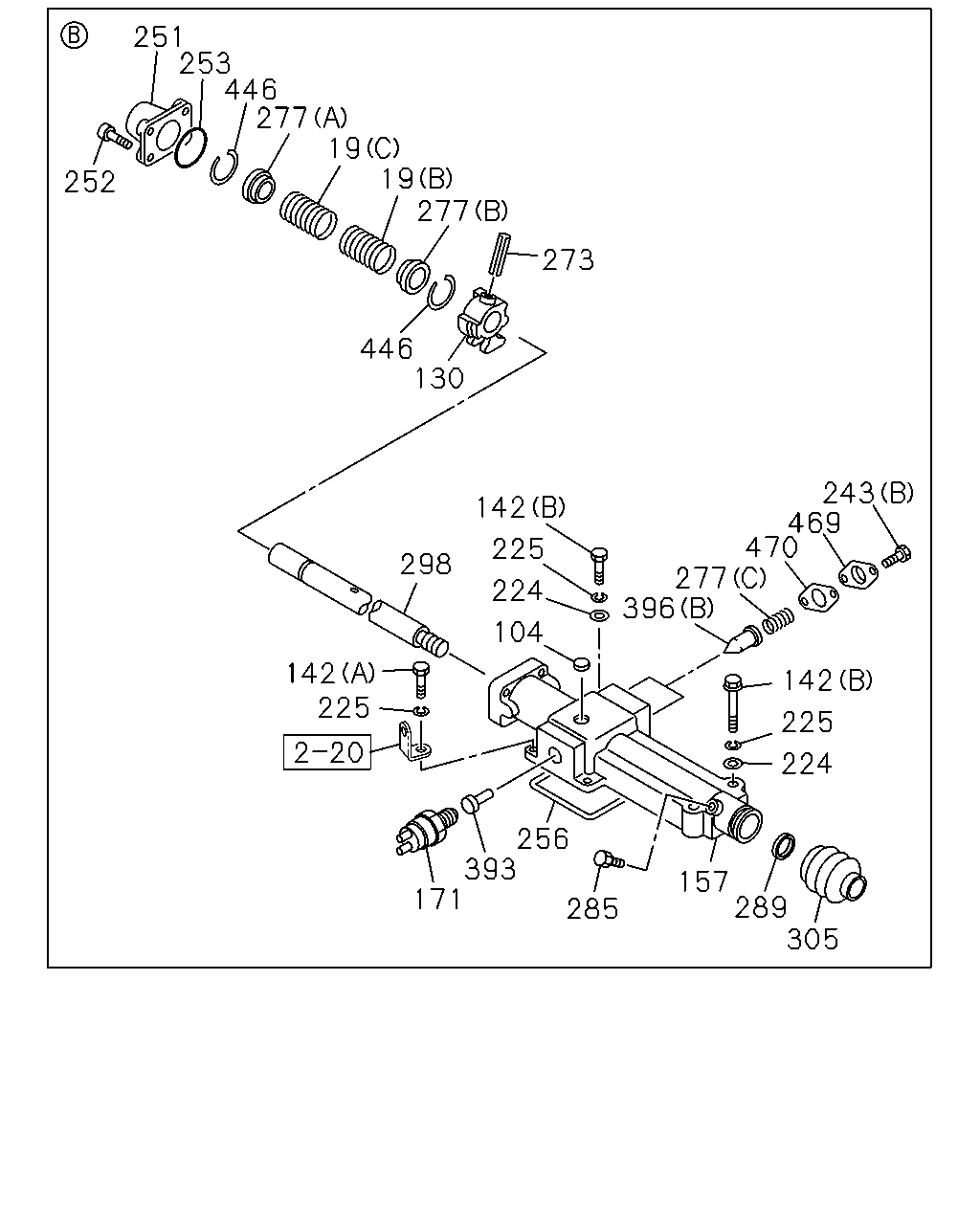

çizim 455500
142 225 224 104 396 277 470 469 243 142 225 224 289 305 157 285 256 393 171 225 142 298 130 446 273 277 19 19 277 446 253 251 252
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-085-0 01 1 1411-
19 SPRING; COIL COMP
(B) 		1-33549-392-0 01 1 1411-
19 SPRING; COIL COMP
(C) 		1-33549-393-0 01 1 1411-
104 PLUG; PLATE 1-33549-550-0 01 1 1411-
130 LEVER; SHIFT,INTERNAL 1-33521-186-0 01 1 1411-
142 BOLT; QUAD BOX
(A) 		1-33119-569-0 04 1 1411-
142 BOLT; QUAD BOX
(B) 		1-33119-585-0 02 1 1411-
157 BOX; QUAD,TRANS 1-33541-537-0 01 1 1411-
171 SWITCH; NEUTRAL 1-82440-123-0 01 1 1411-
224 WASHER; PL,QUAD BOX 1-33119-567-0 05 1 1411-
225 WASHER; LK,QUAD BOX 1-33119-568-0 06 1 1411-
243 BOLT; COVER
(A) 		1-33119-575-0 02 1 1411-
243 BOLT; COVER
(B) 		1-33549-551-0 02 1 1411-
251 COVER; SIDE 1-33545-013-0 01 1 1411-
252 BOLT; SIDE COVER 1-33549-552-0 04 1 1411-
253 GASKET; SIDE COVER 1-33544-055-0 01 1 1411-
256 GASKET; QUAD BOX TO TRANS CASE 1-33549-391-0 01 1 1411-
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 1411-
277 PLATE; SPRING SEAT
(A) 		1-33549-388-0 01 1 1411-
277 PLATE; SPRING SEAT
(B) 		1-33549-389-0 01 1 1411-
277 PLATE; SPRING SEAT
(C) 		1-33549-395-0 01 1 1411-
285 BREATHER; AIR,QUAD BOX 1-33549-354-0 01 1 1411-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-061-0 01 1 1411-
298 SHAFT; SHIFT LEVER 1-33522-209-0 01 1 1411-
305 BOOT; LEVER SHAFT 1-33549-233-0 01 1 1411-
393 PIN; SW 1-33549-394-0 01 1 1411-
396 PLUNGER; SHIFT ROD
(A) 		1-33539-084-0 01 1 1411-
396 PLUNGER; SHIFT ROD
(B) 		1-33549-390-0 01 1 1411-
446 RING; SNAP,SPR SEAT 1-33549-223-0 02 1 1411-
469 COVER; SPRING,QUAD BOX 1-33119-574-0 01 1 1411-
470 GASKET; SPRING COVER 1-33119-489-0 02 1 1411-
