Isuzu WW
▶
TRUCKS
▶
FVR
▶
11591 - FVR LHD EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

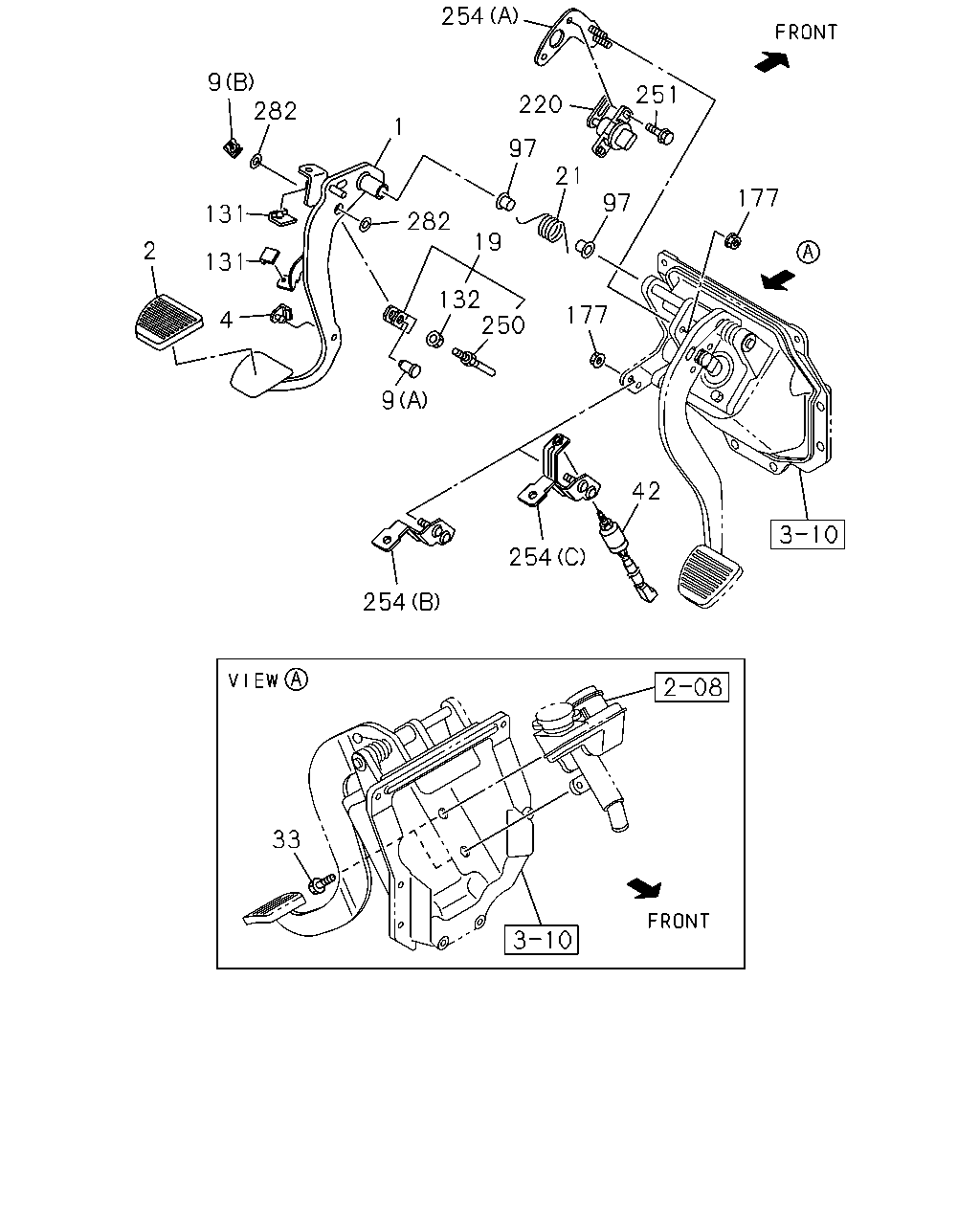

2-03 — CLUTCH PEDAL AND CONTROL
(#152060) — 25 parça
33
42
254
254
177
251
254
220
97
21
97
1
177
19
250
132
282
282
9
2
131
131
4
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. H.S.A SYSTEM<6EP>
8-98064-605-1
01
1
1411-
1
PEDAL; CLU
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) H.S.A SYSTEM<6EP>
8-98064-603-1
01
1
1411-
1
PEDAL; CLU
ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP>
8-98064-608-1
01
1
1411-
1
PEDAL; CLU
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>
8-98064-607-1
01
1
1411-
2
COVER; CLU PEDAL
8-98056-865-0
01
1
1411-
4
STOPPER; CLU PEDAL
8-98079-251-0
01
1
1411-
9
PIN; CLU PEDAL
(B)
8-98007-161-0
01
1
1411-
9
PIN; CLU PEDAL
(A)
8-98147-657-0
01
1
1411-
19
ROD ASM; PUSH,CLU
8-98021-406-1
01
1
1411-
21
SPRING; RETURN,CLU PEDAL
8-98021-560-0
01
1
1411-
33
BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE
0-28051-220-0
02
1
1411-
42
SWITCH; CLU
ZF9S1110 M/T(Y5E)
8-97620-841-0
01
1
1411-
97
BUSHING; CLU PEDAL SHAFT
8-94238-596-0
02
1
1411-
131
STOPPER; CLU SW
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V)
8-97302-305-0
01
1
1411-
131
STOPPER; CLU SW
ZF9S1110 M/T(Y5E)
8-97302-305-0
02
1
1411-
132
NUT; LK,PUSH ROD
M8 FLANGE
0-91180-108-0
01
1
1411-
177
NUT; BRKT
H.S.A SYSTEM<6EP> M8 FLANGE
0-91180-108-0
04
1
1411-
177
NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M8 FLANGE
0-91180-108-0
02
1
1411-
220
SENSOR; CLUTCH
H.S.A SYSTEM<6EP>
1-80250-014-0
01
1
1411-
250
ROD; PUSH,CLU
8-97615-589-0
01
1
1411-
251
BOLT; SENSOR
H.S.A SYSTEM<6EP> M6X16
0-52000-616-0
02
1
1411-
254
BRACKET; CLU SENSOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B)
8-98021-377-1
01
1
1411-
254
BRACKET; CLU SENSOR
H.S.A SYSTEM<6EP> (A)
8-98021-376-1
01
1
1411-
254
BRACKET; CLU SENSOR
ZF9S1110 M/T(Y5E) (C)
8-98103-197-0
01
1
1411-
282
SPACER; CLU PEDAL
8-98070-329-0
02
1
1411-
