Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#152052) — 198 parça

279 345 228 345 304 39 39 41 41 65 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL (D) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1411-
29	HOSE; FUEL (C) L=730	8-98205-834-0	01	1	1411-
29	HOSE; FUEL (E)	8-98284-975-0	01	1	1411-
29	HOSE; FUEL WHEEL BASE 6000MM(60W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=860 SERVICED BY L=3000	0-01558-300-0	02	1	1411-
29	HOSE; FUEL WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=860 SERVICED BY L=3000	0-01558-300-0	02	1	1411-
29	HOSE; FUEL WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=1200 SERVICED BY L=3000	0-01558-300-0	02	1	1411-
29	HOSE; FUEL WHEEL BASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=1350 SERVICED BY L=3000	0-01558-300-0	02	1	1411-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1411-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1411-
39	PIPE; FUEL (B)	8-98009-438-1	01	1	1411-
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=16	8-94238-568-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=16	8-94238-568-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=13	8-94238-571-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=13	8-94238-571-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1411-
65	HOSE; FUEL,DELIVERY PIPE L=1380	8-98186-528-0	01	1	1411-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1411-
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1411-
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1411-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1411-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1411-
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1411-
304	NUT; BRKT WHEEL BASE 6000MM(60W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1411-
304	NUT; BRKT WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	04	1	1411-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1411-
304	NUT; BRKT WHEEL BASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	03	1	1411-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1411-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1411-

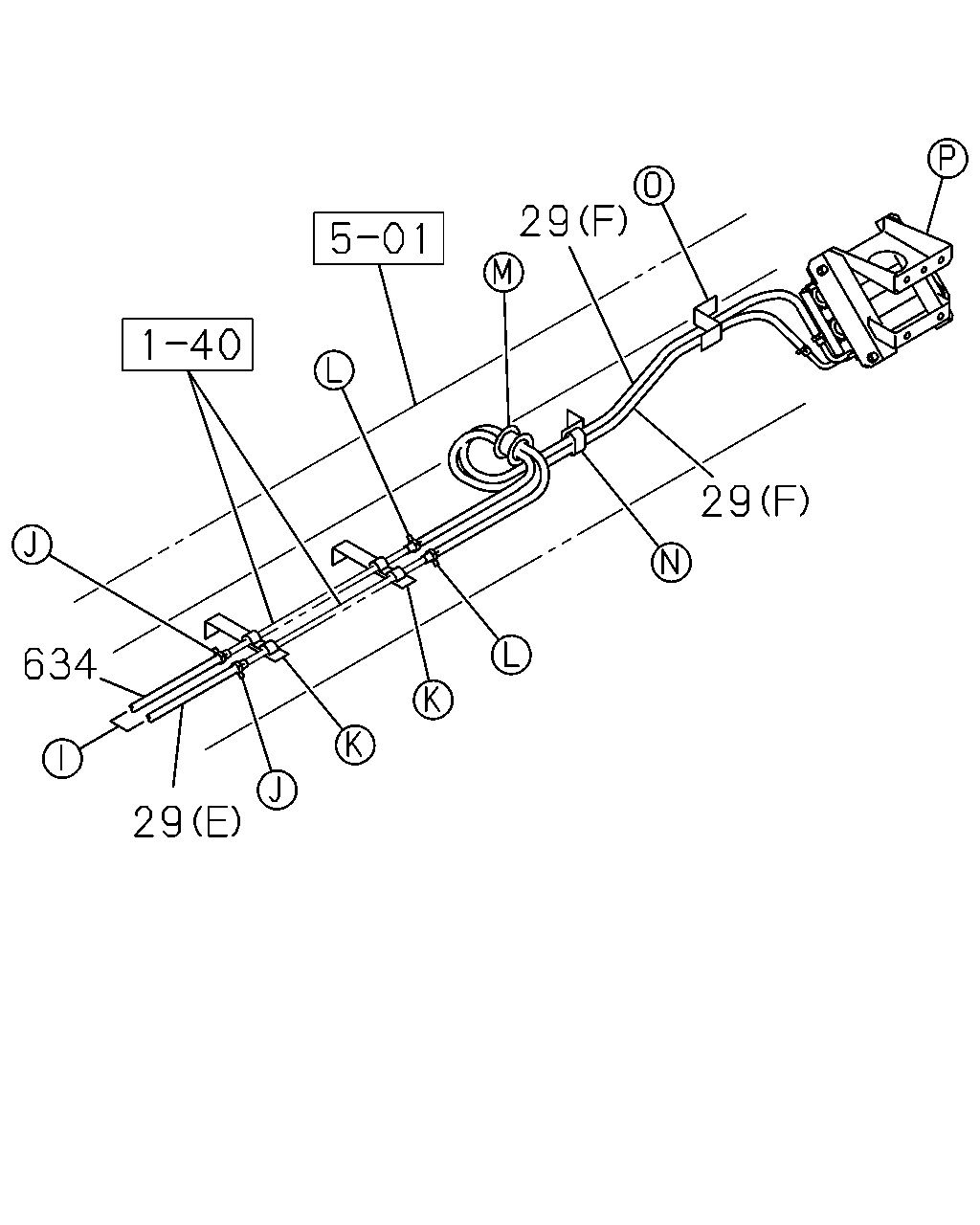

29 29 29 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL (D) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1411-
29	HOSE; FUEL (C) L=730	8-98205-834-0	01	1	1411-
29	HOSE; FUEL (E)	8-98284-975-0	01	1	1411-
29	HOSE; FUEL WHEEL BASE 6000MM(60W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=860 SERVICED BY L=3000	0-01558-300-0	02	1	1411-
29	HOSE; FUEL WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=860 SERVICED BY L=3000	0-01558-300-0	02	1	1411-
29	HOSE; FUEL WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=1200 SERVICED BY L=3000	0-01558-300-0	02	1	1411-
29	HOSE; FUEL WHEEL BASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=1350 SERVICED BY L=3000	0-01558-300-0	02	1	1411-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1411-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1411-
634	HOSE; RUBBER RETURN L=1450	8-98284-974-0	01	1	1411-

41 95 64 304 24 97 62 303 41 24 97 304 303 24 303 97 304 29 41 313 29 41 627 629 639 628

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1411-
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=14.5 & 14.5	1-09701-246-1	01	1	1411-
24	CLIP; FUEL HOSE WHEEL BASE 6000MM(60W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=14.5 & 14.5	1-09701-246-1	01	1	1411-
24	CLIP; FUEL HOSE WHEEL BASE 5000MM(50W),WHEEL BASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=14.5 & 14.5	1-09701-246-1	02	1	1411-
29	HOSE; FUEL (D) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1411-
29	HOSE; FUEL (C) L=730	8-98205-834-0	01	1	1411-
29	HOSE; FUEL (E)	8-98284-975-0	01	1	1411-
29	HOSE; FUEL WHEEL BASE 6000MM(60W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=860 SERVICED BY L=3000	0-01558-300-0	02	1	1411-
29	HOSE; FUEL WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=860 SERVICED BY L=3000	0-01558-300-0	02	1	1411-
29	HOSE; FUEL WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=1200 SERVICED BY L=3000	0-01558-300-0	02	1	1411-
29	HOSE; FUEL WHEEL BASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=1350 SERVICED BY L=3000	0-01558-300-0	02	1	1411-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1411-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=16	8-94238-568-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=16	8-94238-568-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=13	8-94238-571-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=13	8-94238-571-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1411-
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	1411-
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1411-
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=17	9-09956-256-2	01	1	1411-
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=25	1-09332-011-1	01	1	1411-
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=25	1-09332-011-1	01	1	1411-
97	BRACKET; CLIP (D)	8-98153-352-0	02	1	1411-
97	BRACKET; CLIP (E)	8-98185-861-0	01	1	1411-
97	BRACKET; CLIP WHEEL BASE 5000MM(50W),WHEEL BASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-98284-977-0	01	1	1411-
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1411-
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1411-
97	BRACKET; CLIP (C)	8-98129-922-0	01	1	1411-
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	01	1	1411-
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	1411-
303	BOLT; BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	1411-
303	BOLT; BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	1411-
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1411-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1411-
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1411-
304	NUT; BRKT WHEEL BASE 6000MM(60W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1411-
304	NUT; BRKT WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	04	1	1411-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1411-
304	NUT; BRKT WHEEL BASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	03	1	1411-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1411-
313	COOLER ASM; FUEL	8-98227-679-1	01	1	1411-
627	BOLT; FUEL CLR M6X25 FLANGE	0-28650-625-0	04	1	1411-
628	NUT; FUEL CLR M6 FLANGE	0-91180-106-0	04	1	1411-
629	BRACKET; FUEL CLR	8-98224-320-1	01	1	1411-
639	BOLT; BRKT,FUEL CLR M10X30 FLANGE	0-28651-030-0	04	1	1411-

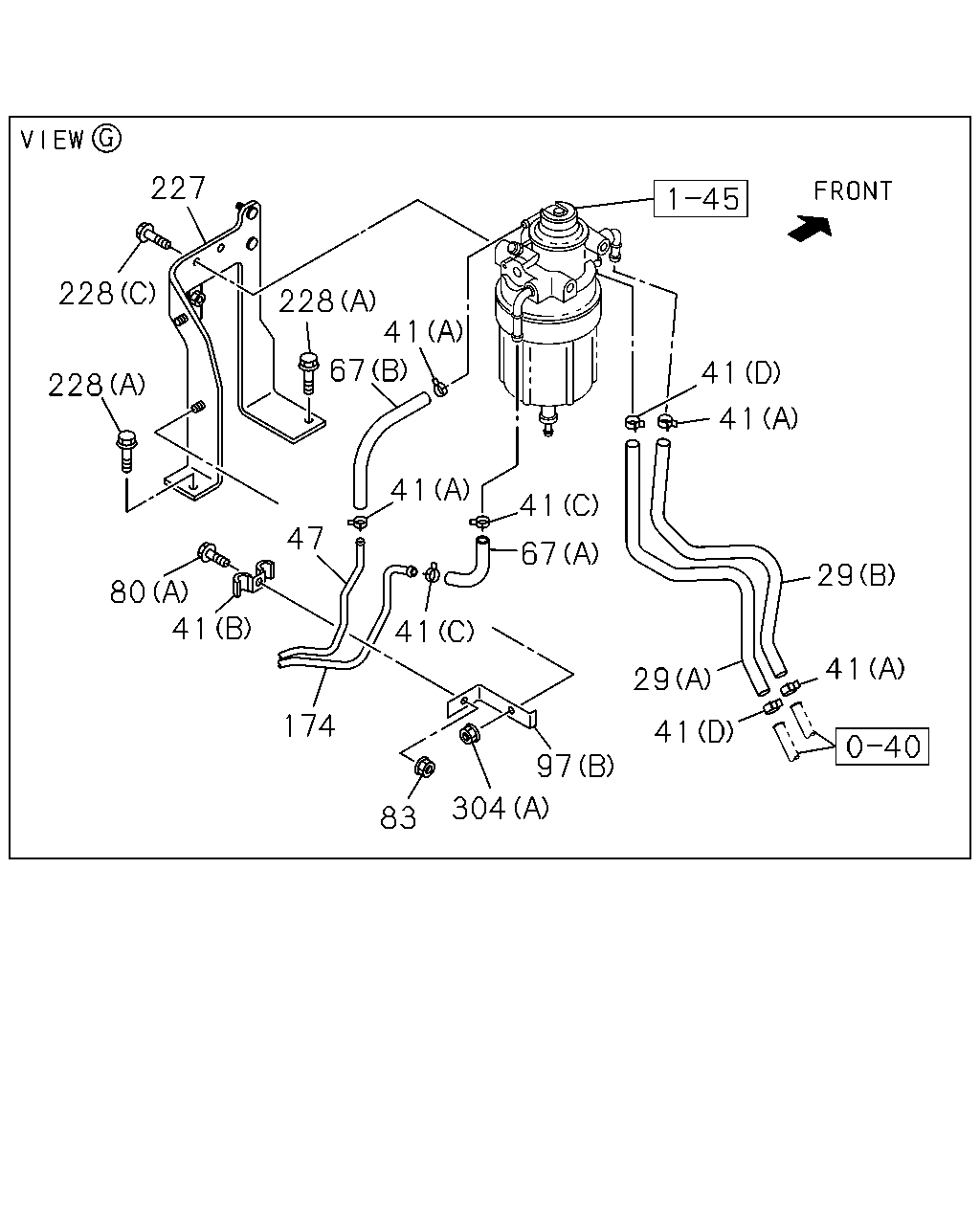

227 228 228 228 67 80 47 41 174 83 97 304 41 41 67 41 29 41 41 29 41 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL (D) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1411-
29	HOSE; FUEL (C) L=730	8-98205-834-0	01	1	1411-
29	HOSE; FUEL (E)	8-98284-975-0	01	1	1411-
29	HOSE; FUEL WHEEL BASE 6000MM(60W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=860 SERVICED BY L=3000	0-01558-300-0	02	1	1411-
29	HOSE; FUEL WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=860 SERVICED BY L=3000	0-01558-300-0	02	1	1411-
29	HOSE; FUEL WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=1200 SERVICED BY L=3000	0-01558-300-0	02	1	1411-
29	HOSE; FUEL WHEEL BASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=1350 SERVICED BY L=3000	0-01558-300-0	02	1	1411-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1411-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=16	8-94238-568-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=16	8-94238-568-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=13	8-94238-571-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=13	8-94238-571-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1411-
47	PIPE; FUEL,RETURN L=699	8-98286-297-0	01	1	1411-
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1411-
67	HOSE; FUEL,DELIVERY (B) L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1411-
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	01	1	1411-
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE	0-28650-820-0	02	1	1411-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1411-
97	BRACKET; CLIP (D)	8-98153-352-0	02	1	1411-
97	BRACKET; CLIP (E)	8-98185-861-0	01	1	1411-
97	BRACKET; CLIP WHEEL BASE 5000MM(50W),WHEEL BASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-98284-977-0	01	1	1411-
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1411-
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1411-
97	BRACKET; CLIP (C)	8-98129-922-0	01	1	1411-
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	1411-
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1411-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1411-
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1411-
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1411-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1411-
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1411-
304	NUT; BRKT WHEEL BASE 6000MM(60W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1411-
304	NUT; BRKT WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	04	1	1411-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1411-
304	NUT; BRKT WHEEL BASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	03	1	1411-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1411-

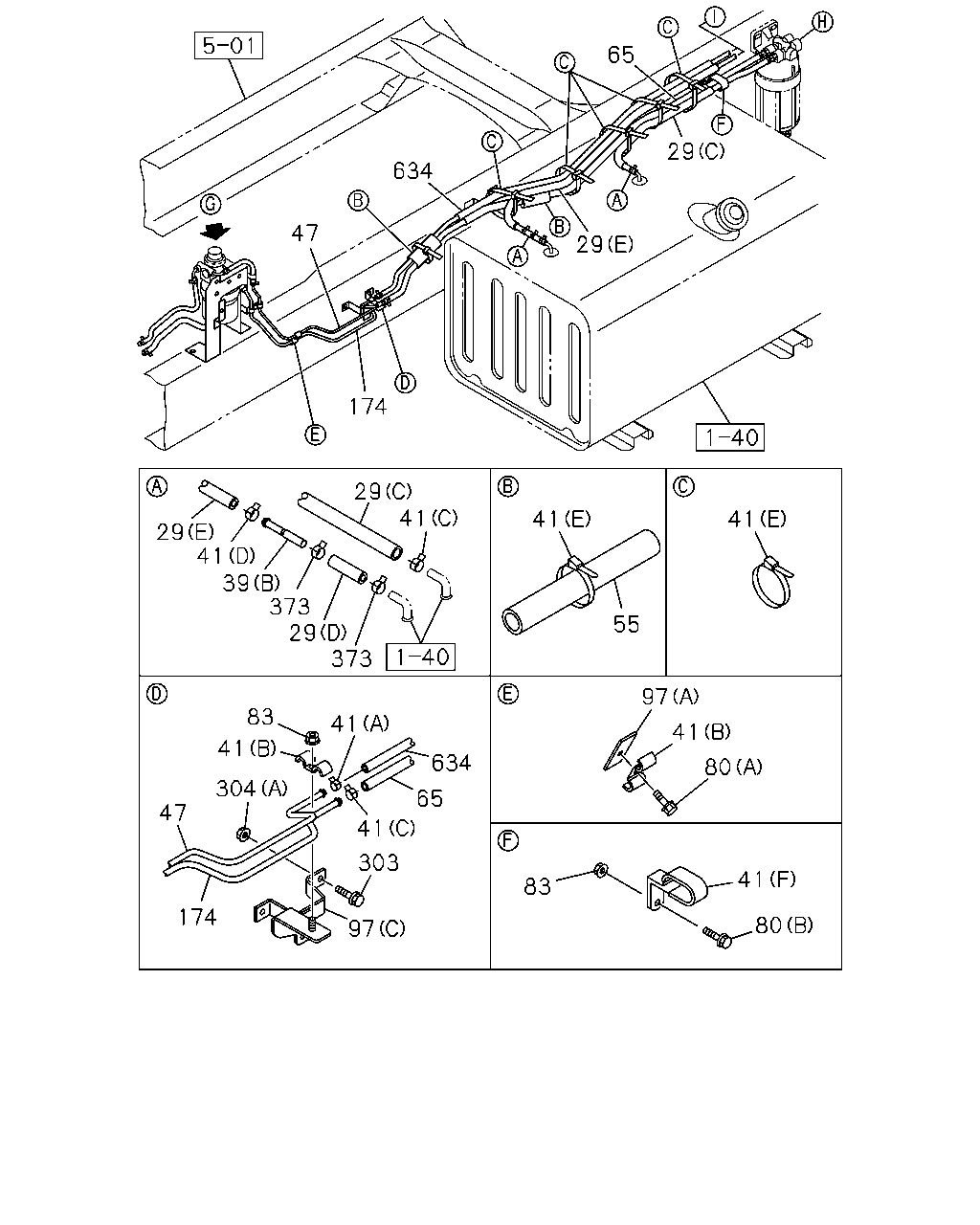

47 634 29 29 65 174 41 55 41 97 41 80 83 41 80 41 29 29 41 39 373 29 373 83 41 634 65 41 303 97 304 47 174 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL (D) L=100 SERVICED BY L=3000	0-01558-300-0	01	1	1411-
29	HOSE; FUEL (C) L=730	8-98205-834-0	01	1	1411-
29	HOSE; FUEL (E)	8-98284-975-0	01	1	1411-
29	HOSE; FUEL WHEEL BASE 6000MM(60W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=860 SERVICED BY L=3000	0-01558-300-0	02	1	1411-
29	HOSE; FUEL WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=860 SERVICED BY L=3000	0-01558-300-0	02	1	1411-
29	HOSE; FUEL WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=1200 SERVICED BY L=3000	0-01558-300-0	02	1	1411-
29	HOSE; FUEL WHEEL BASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=1350 SERVICED BY L=3000	0-01558-300-0	02	1	1411-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1411-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1411-
39	PIPE; FUEL (B)	8-98009-438-1	01	1	1411-
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	01	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=16	8-94238-568-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=16	8-94238-568-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=13	8-94238-571-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=13	8-94238-571-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1411-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1411-
47	PIPE; FUEL,RETURN L=699	8-98286-297-0	01	1	1411-
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1411-
65	HOSE; FUEL,DELIVERY PIPE L=1380	8-98186-528-0	01	1	1411-
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	01	1	1411-
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE	0-28650-820-0	02	1	1411-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1411-
97	BRACKET; CLIP (D)	8-98153-352-0	02	1	1411-
97	BRACKET; CLIP (E)	8-98185-861-0	01	1	1411-
97	BRACKET; CLIP WHEEL BASE 5000MM(50W),WHEEL BASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-98284-977-0	01	1	1411-
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1411-
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1411-
97	BRACKET; CLIP (C)	8-98129-922-0	01	1	1411-
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	1411-
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	01	1	1411-
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	1411-
303	BOLT; BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	1411-
303	BOLT; BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	1411-
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1411-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1411-
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1411-
304	NUT; BRKT WHEEL BASE 6000MM(60W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1411-
304	NUT; BRKT WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	04	1	1411-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1411-
304	NUT; BRKT WHEEL BASE 6500MM(65W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	03	1	1411-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1411-
373	CLAMP; HOSE,FUEL ID=13	8-94238-571-0	02	1	1411-
634	HOSE; RUBBER RETURN L=1450	8-98284-974-0	01	1	1411-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
