0-52 — OIL AND VACUUM PIPING; ENGINE (#152038) — 41 parça

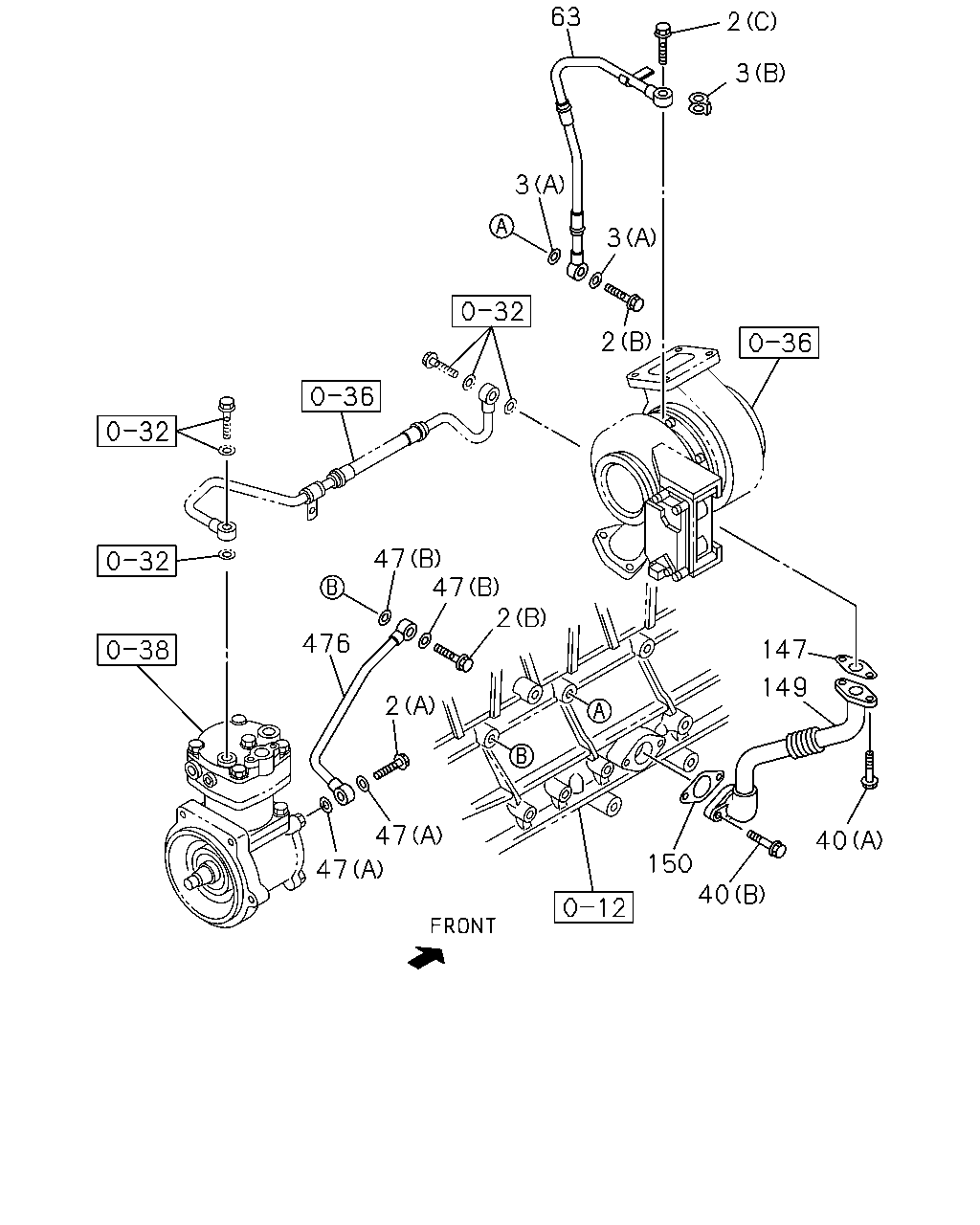

2 3 2 3 63 3 147 149 40 40 150 47 47 2 47 47 476 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) M14X27 FLANGE	1-09675-086-0	02	1	1411-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) M14X27 FLANGE	1-09675-086-0	01	1	1411-
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	1411-
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1411-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (D) M10X21 FLANGE	8-97372-239-0	01	1	1411-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (E) M14X43 EYE-BOLT	8-98037-829-0	01	1	1411-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	1411-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1411-
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1411-
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	1411-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1411-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1411-
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	1411-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	1411-
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-3	01	1	1411-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1411-
476	PIPE; OIL,C/BL TO AIR CMPR	8-97610-075-0	01	1	1411-

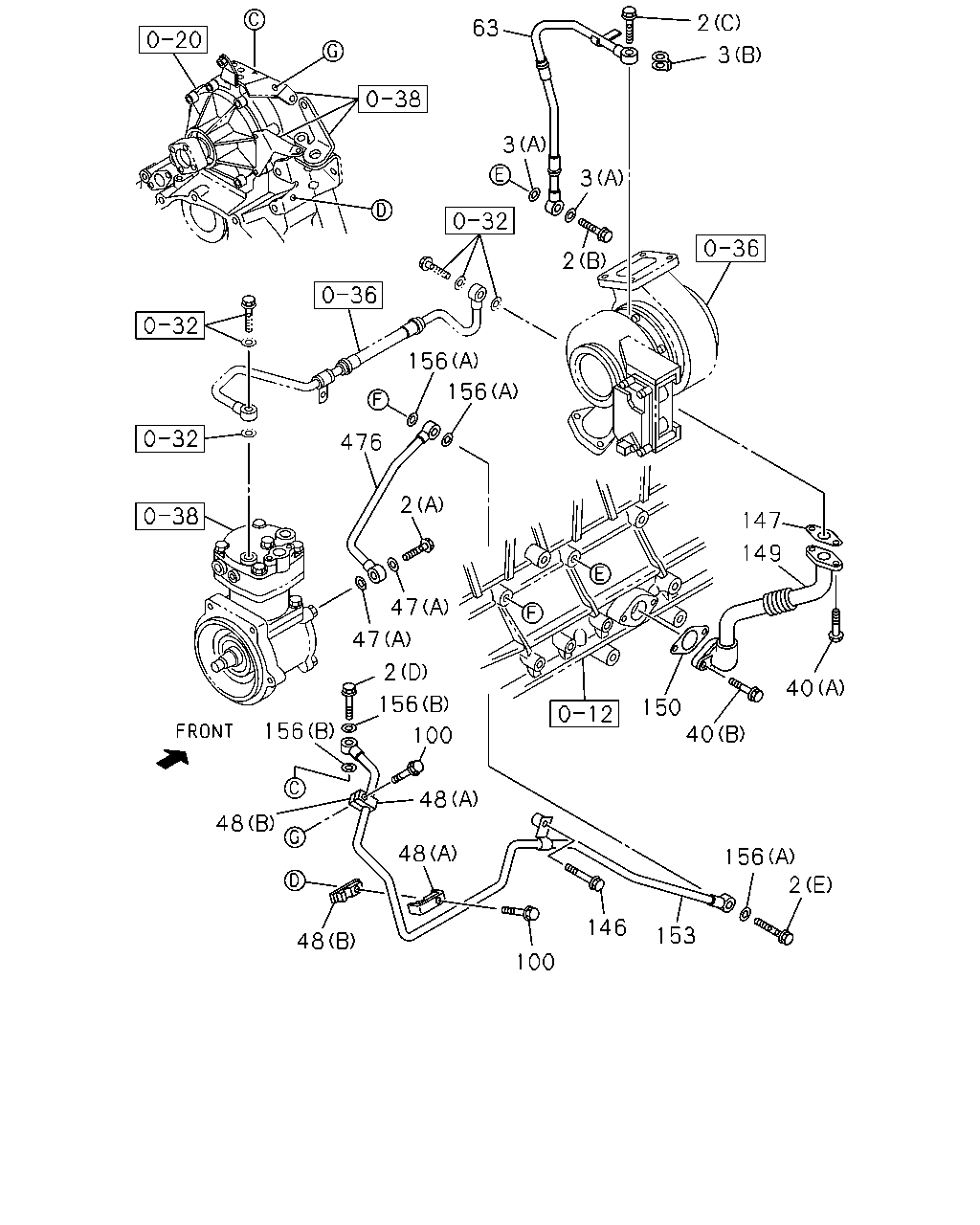

2 3 63 3 3 2 156 476 156 2 47 47 156 156 2 100 48 48 48 48 146 100 153 156 2 150 40 40 149 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) M14X27 FLANGE	1-09675-086-0	02	1	1411-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) M14X27 FLANGE	1-09675-086-0	01	1	1411-
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	1411-
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1411-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (D) M10X21 FLANGE	8-97372-239-0	01	1	1411-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (E) M14X43 EYE-BOLT	8-98037-829-0	01	1	1411-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	1411-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1411-
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1411-
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	1411-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1411-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1411-
48	CLIP; OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-97372-487-0	02	1	1411-
48	CLIP; OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97372-488-0	02	1	1411-
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	1411-
100	BOLT; CLIP ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M6X30 FLANGE	0-28650-630-0	01	1	1411-
146	BOLT; BRKT ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M8X30 FLANGE	0-28650-830-0	01	1	1411-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	1411-
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-3	01	1	1411-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1411-
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98052-616-0	01	1	1411-
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) ID=14.2 OD=19.2	8-98251-345-0	03	1	1411-
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	1411-
476	PIPE; OIL,C/BL TO AIR CMPR	8-97610-075-0	01	1	1411-
