Isuzu WW
▶
TRUCKS
▶
FVR
▶
11591 - FVR LHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

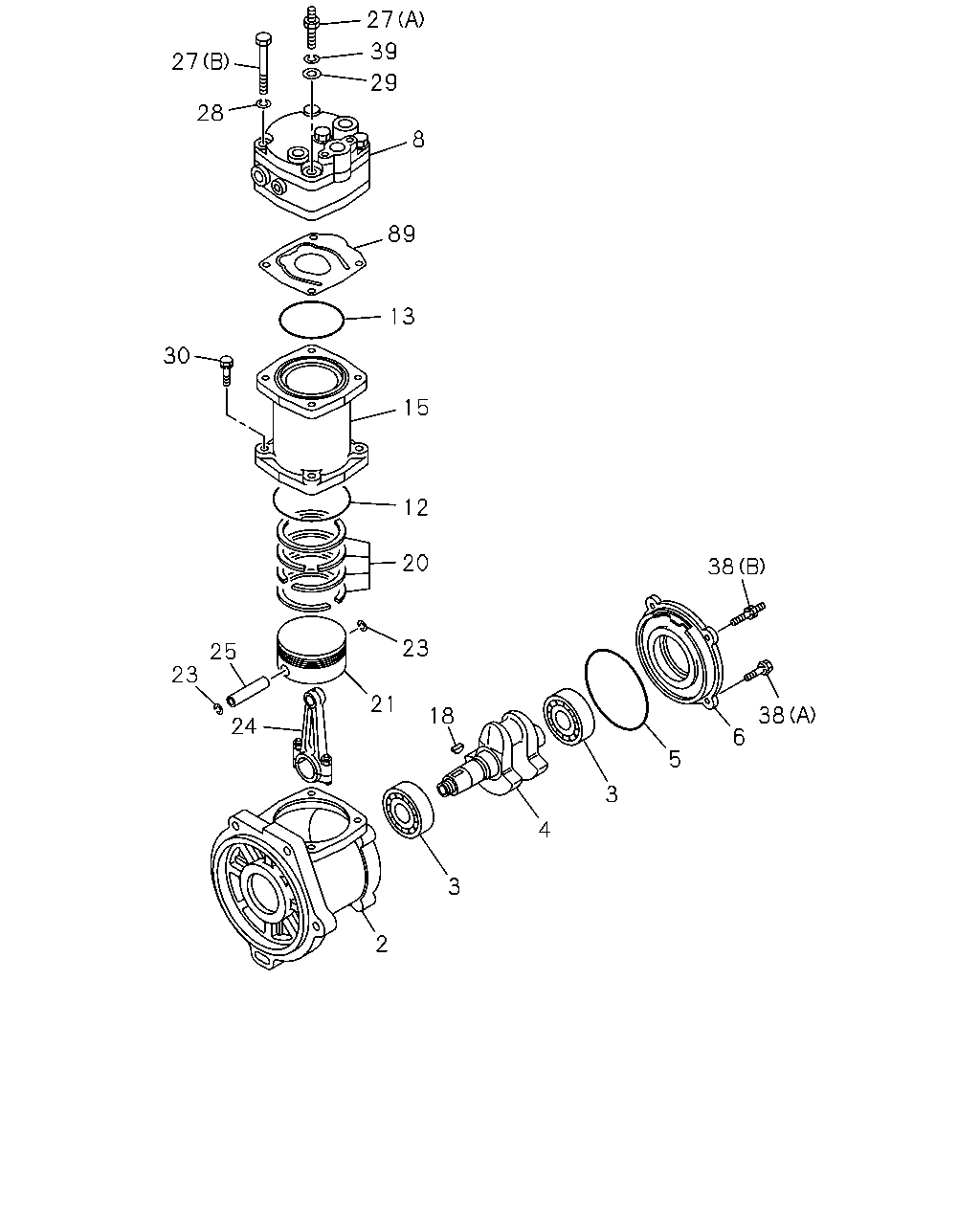

0-39 — AIR COMPRESSOR; BRAKE
(#152033) — 24 parça
27
28
27
39
29
8
89
13
15
12
20
23
30
25
23
24
21
18
4
3
3
2
5
6
38
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
CRANKCASE; AIR CMPR
8-97614-060-1
01
1
1411-
3
BEARING; AIR CMPR
1-09800-268-0
02
1
1411-
4
CRANKSHAFT; AIR CMPR
8-97614-059-1
01
1
1411-
5
GASKET; AIR CMPR
8-98192-463-0
01
1
1411-
6
COVER ASM; BRG,AIR CMPR
8-97614-058-1
01
1
1411-
8
HEAD ASM; CYL,AIR CMPR
8-98167-012-0
01
1
1411-
12
GASKET; AIR CMPR
8-98048-641-0
01
1
1411-
13
GASKET; AIR CMPR
8-98048-640-0
01
1
1411-
15
CYLINDER; AIR CMPR
8-97614-056-0
01
1
1411-
18
KEY; AIR CMPR
9-08055-516-0
01
1
1411-
20
RING KIT; PISTON,AIR CMPR
1-19163-058-0
01
1
1411-
21
PISTON; AIR CMPR
1-19161-027-0
01
1
1411-
23
RING; SNAP,PISTON,AIR CMPR
1-19169-004-0
02
1
1411-
24
ROD ASM; CONN,AIR CMPR
8-97614-057-0
01
1
1411-
25
PIN; PISTON,AIR CMPR
1-19167-003-0
01
1
1411-
27
BOLT; HD
(A)
8-97614-054-0
01
1
1411-
27
BOLT; HD
(B) M10X75
8-98167-018-0
03
1
1411-
28
WASHER; LK,HD BOLT
8-97613-694-0
01
1
1411-
29
WASHER; PL,HD BOLT
8-97613-686-0
01
1
1411-
30
BOLT; CYL TO CRANKCASE
M10X30
8-97613-704-0
04
1
1411-
38
BOLT; COVER FIX
(A) M10X30
8-97613-704-0
02
1
1411-
38
BOLT; COVER FIX
(B)
8-97617-310-0
02
1
1411-
39
WASHER; LK,COVER FIX
8-97613-694-0
02
1
1411-
89
VALVE; SUCTION
1-19119-045-0
01
1
1411-
