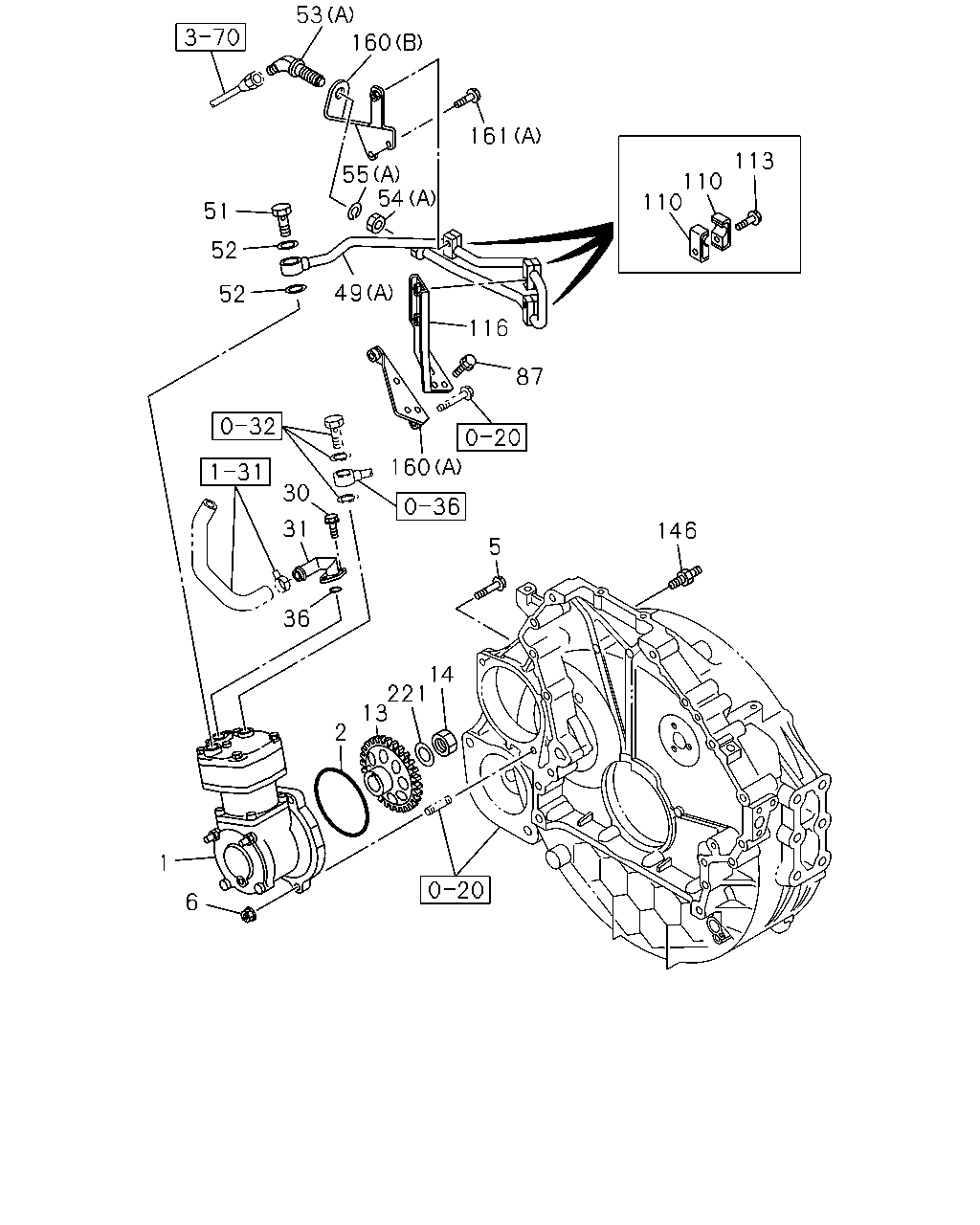

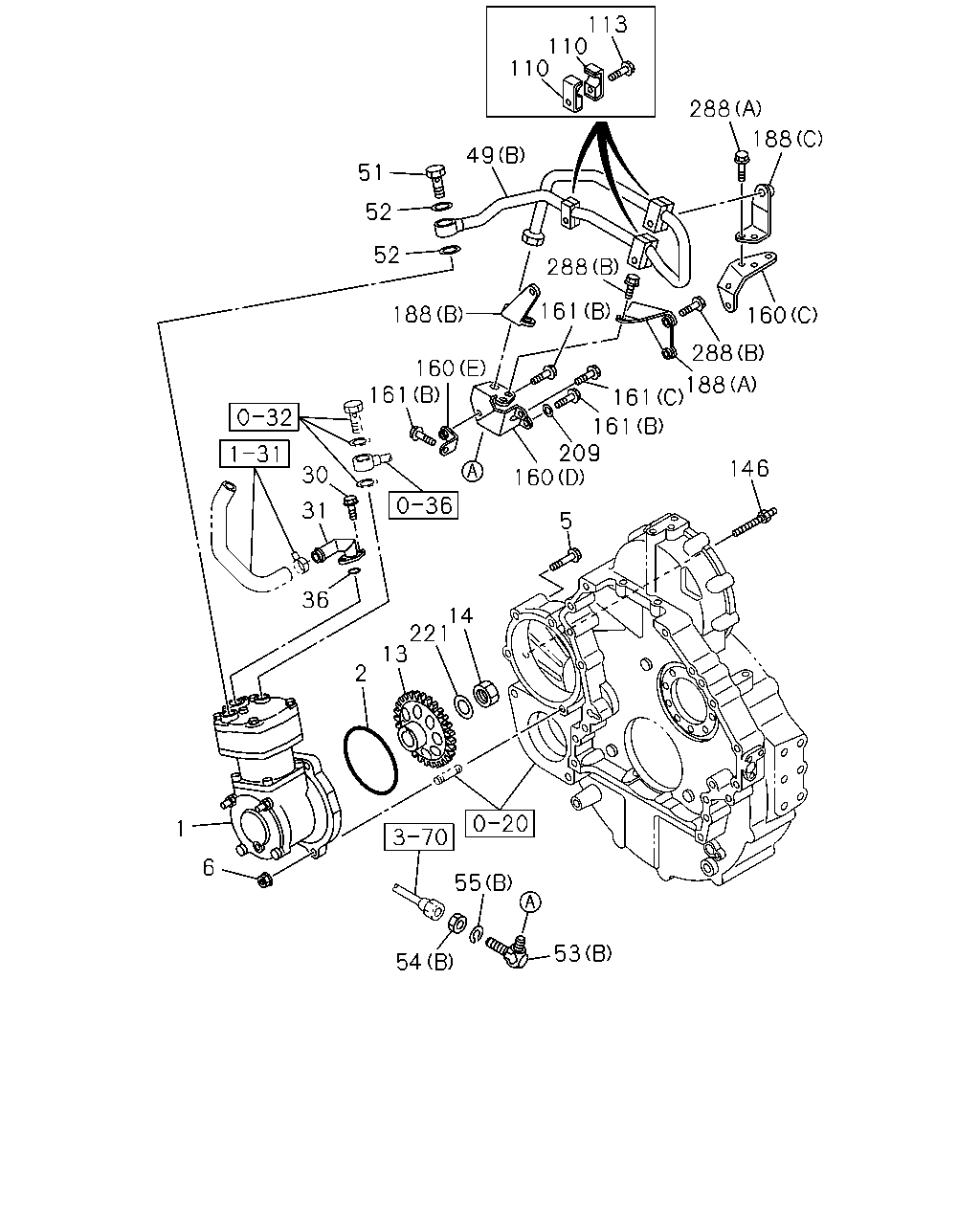

1 |
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
|
8-98187-304-1 |
01 |
1 |
1411- |
| |
2 |
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=162
|
1-09623-570-0 |
01 |
1 |
1411- |
| |
5 |
BOLT; AIR CMPR FIX
M12X70 FLANGE
|
0-28151-270-0 |
02 |
1 |
1411- |
| |
6 |
NUT; AIR CMPR
M12 FLANGE
|
0-91180-212-0 |
01 |
1 |
1411- |
| |
13 |
GEAR; AIR CMPR DRIVE
Z=49
|
8-94394-511-4 |
01 |
1 |
1411- |
| |
14 |
NUT; GEAR
M20
|
0-91110-520-0 |
01 |
1 |
1411- |
| |
30 |
BOLT; PIPE CLIP
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1411- |
| |
31 |
PIPE; AIR,AIR CMPR SUCTION
|
8-97620-948-0 |
01 |
1 |
1411- |
| |
36 |
GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.4
|
1-09623-057-0 |
01 |
1 |
1411- |
| |
49 |
PIPE; AIR,CHARGE
EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(A)
|
8-98052-612-0 |
01 |
1 |
1411- |
| |
49 |
PIPE; AIR,CHARGE
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(B)
|
8-98052-017-0 |
01 |
1 |
1411- |
| |
51 |
BOLT; EYE,AIR PIPE TO CMPR
M24X39
|
1-09675-175-2 |
01 |
1 |
1411- |
| |
52 |
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.5 OD=32
|
9-09571-424-0 |
02 |
1 |
1411- |
| |
53 |
UNION; CHARGE PIPE
EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(A)
M22 & M26 L=79 STRAIGHT
|
1-09654-318-1 |
01 |
1 |
1411- |
| |
53 |
UNION; CHARGE PIPE
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(B)
M22 & M26 ELBOW
|
8-98008-887-2 |
01 |
1 |
1411- |
| |
54 |
NUT; PIPE UNION
EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(A)
M22
|
0-91111-522-0 |
01 |
1 |
1411- |
| |
54 |
NUT; PIPE UNION
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(B)
M26
|
8-98049-390-0 |
01 |
1 |
1411- |
| |
55 |
WASHER; LK,PIPE UNION
EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(A)
ID=22.5
|
0-91510-522-0 |
01 |
1 |
1411- |
| |
55 |
WASHER; LK,PIPE UNION
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(B)
ID=27.5
|
0-91510-527-0 |
01 |
1 |
1411- |
| |
110 |
CLIP; AIR PIPE
ID=17 L=17
|
1-09701-284-0 |
06 |
1 |
1411- |
| |
113 |
BOLT; CLIP,AIR PIPE
M8X45 FLANGE
|
0-28050-845-0 |
03 |
1 |
1411- |
| |
146 |
STUD; AIR CMPR
M10X16,M12X70 L=97.7
|
1-09049-038-1 |
01 |
1 |
1411- |
| |
160 |
BRACKET; AIR PIPE
EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(A)
|
8-97614-182-2 |
01 |
1 |
1411- |
| |
160 |
BRACKET; AIR PIPE
EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(B)
|
8-98042-844-1 |
01 |
1 |
1411- |
| |
160 |
BRACKET; AIR PIPE
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(D)
|
8-98047-336-2 |
01 |
1 |
1411- |
| |
160 |
BRACKET; AIR PIPE
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(E)
|
8-98052-613-1 |
01 |
1 |
1411- |
| |
160 |
BRACKET; AIR PIPE
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(C)
|
8-98052-614-0 |
01 |
1 |
1411- |
| |
161 |
BOLT; BRKT,AIR PIPE
EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(A)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1411- |
| |
161 |
BOLT; BRKT,AIR PIPE
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(B)
M10X30 FLANGE
|
0-28151-030-0 |
02 |
1 |
1411- |
| |
161 |
BOLT; BRKT,AIR PIPE
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(B)
M12X185
|
8-94393-483-0 |
01 |
1 |
1411- |
| |
161 |
BOLT; BRKT,AIR PIPE
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(C)
M12X128
|
8-94399-252-0 |
01 |
1 |
1411- |
| |
188 |
STAY; AIR PIPE
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(A)
|
8-98052-615-1 |
01 |
1 |
1411- |
| |
188 |
STAY; AIR PIPE
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(B)
|
8-98053-882-0 |
01 |
1 |
1411- |
| |
188 |
STAY; AIR PIPE
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(C)
|
8-98053-883-0 |
01 |
1 |
1411- |
| |
209 |
WASHER; PL
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
ID=12.5 OD=22
|
8-94393-140-1 |
02 |
1 |
1411- |
| |
221 |
WASHER; PL,GEAR
ID=21
|
0-91610-520-0 |
01 |
1 |
1411- |
| |
288 |
BOLT; STAY FIX
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(A)
M8X20 FLANGE
|
0-28050-820-0 |
03 |
1 |
1411- |
| |
288 |
BOLT; STAY FIX
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>
(B)
M10X45 FLANGE
|
0-28151-045-0 |
02 |
1 |
1411- |
