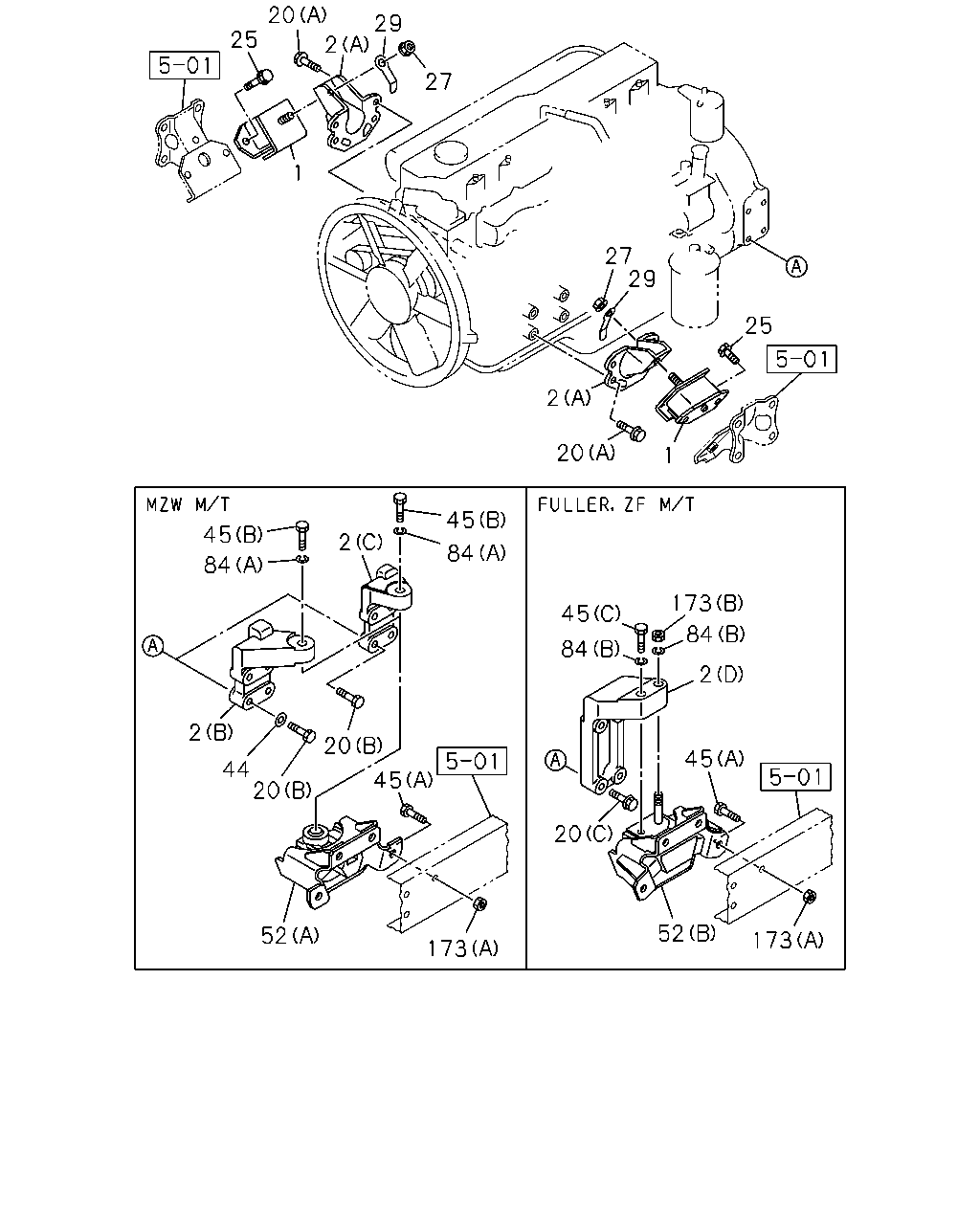

0-22 — ENGINE MOUNTING (#152022) — 24 parça

25 20 29 27 2 1 2 20 27 25 1 29 45 84 2 45 84 45 20 20 44 2 52 173 45 84 20 52 173 45 2 84 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	1411-
2	FOOT; ENG (A)	8-97602-589-1	02	1	1411-
2	FOOT; ENG ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C)	8-97616-617-0	01	1	1411-
2	FOOT; ENG ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C)	8-97616-618-0	01	1	1411-
2	FOOT; ENG MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-988-0	01	1	1411-
2	FOOT; ENG MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-989-0	01	1	1411-
2	FOOT; ENG FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (D)	8-97611-990-0	01	1	1411-
2	FOOT; ENG FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (D)	8-97611-991-0	01	1	1411-
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	1411-
20	BOLT; ENG FOOT MZW6P M/T(RSZ) (B) M12X50	0-16956-250-0	08	1	1411-
20	BOLT; ENG FOOT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C) M12X55	8-94399-884-1	08	1	1411-
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28651-235-0	04	1	1411-
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	1411-
29	PLATE; LK,CUSHION RUBBER,FRT	8-98010-312-0	02	1	1411-
44	WASHER; LK,ENG FOOT MZW6P M/T(RSZ) ID=12.5	0-91614-512-0	08	1	1411-
45	BOLT; CUSHION RUBBER TO FRAME MZW6P M/T(RSZ) (B) M18X65	8-94393-260-1	02	1	1411-
45	BOLT; CUSHION RUBBER TO FRAME FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C) M16X60	0-10956-660-0	02	1	1411-
45	BOLT; CUSHION RUBBER TO FRAME (A) M14X50	0-29261-450-0	08	1	1411-
52	RUBBER; CUSHION,ENG MTG,RR MZW6P M/T(RSZ) (A)	8-98013-021-1	02	1	1411-
52	RUBBER; CUSHION,ENG MTG,RR FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B)	8-98013-022-1	02	1	1411-
84	WASHER; PL,ENG MTG RR TO FRAME MZW6P M/T(RSZ) (A) ID=19 OD=36	0-91614-618-0	02	1	1411-
84	WASHER; PL,ENG MTG RR TO FRAME FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=17	9-09164-516-0	04	1	1411-
173	NUT; ENG MTG RR TO FRAME FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M16	0-91110-516-0	02	1	1411-
173	NUT; ENG MTG RR TO FRAME (A) M14 FLANGE	0-91180-214-0	08	1	1411-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
