◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11556 - FVR-RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#152012) — 11 parça

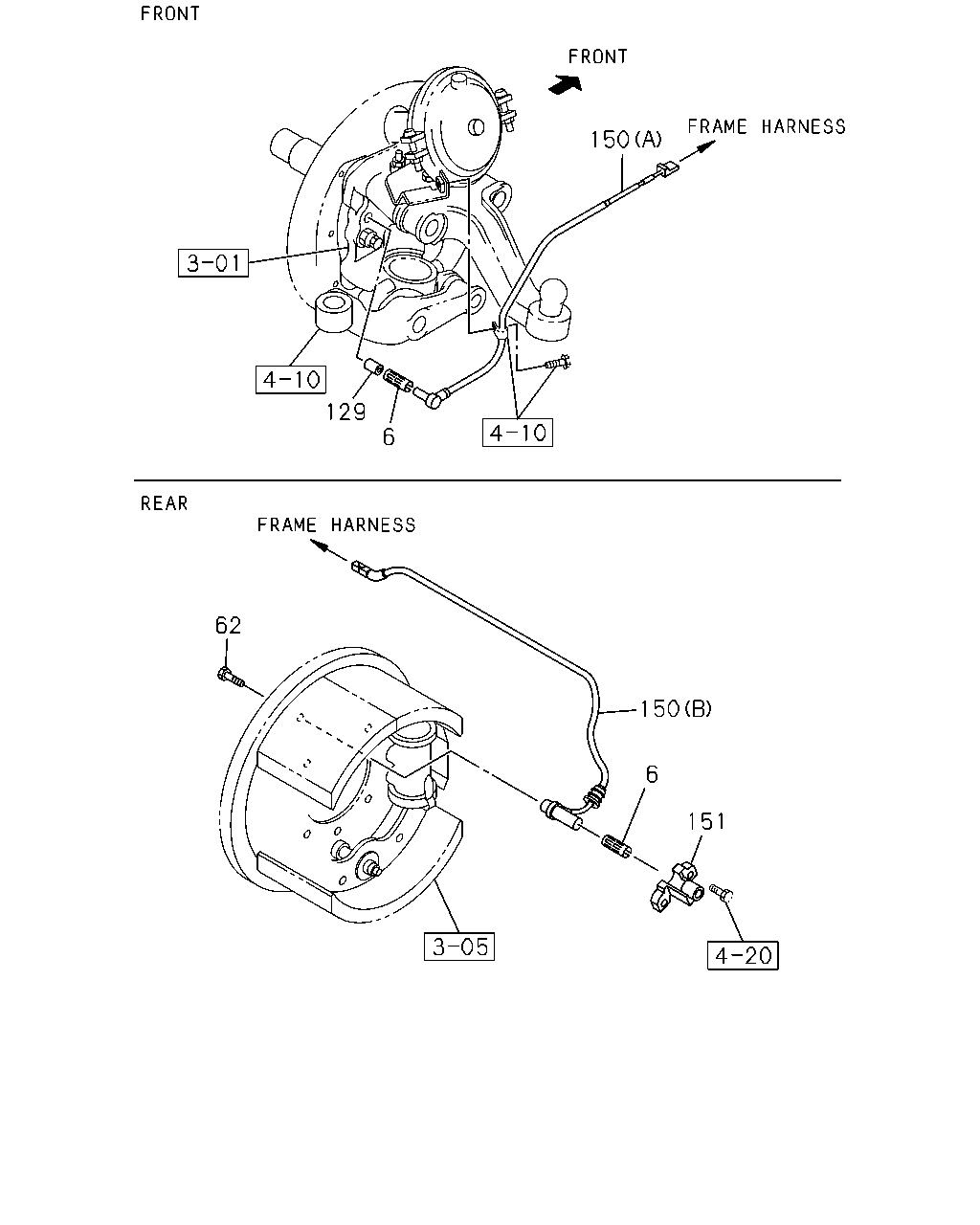

çizim 455408
150 6 129 150 6 151 62
BalonParca AdiParca NoAdetTipApplied Date
6 HOLDER; SPD SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> 		1-83129-260-1 02 1 1411-
6 HOLDER; SPD SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> 		1-83129-260-1 02 1 1411-
62 BOLT; SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> M8X16 HEX SOCKET 		0-58330-816-0 02 1 1411-
129 COLLAR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> 		1-83129-471-0 02 1 1411-
150 SENSOR; SPEED,ABS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (A) 		1-83227-024-1 02 1 1411-
150 SENSOR; SPEED,ABS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (B) 		8-98089-383-0 01 1 1411-
150 SENSOR; SPEED,ABS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (B) 		8-98089-384-0 01 1 1411-
151 BRACKET; SPD SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> 		1-83129-403-0 01 1 1411-1504
151 BRACKET; SPD SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> 		8-98299-396-0 01 1 1505-
151 BRACKET; SPD SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> 		1-83129-404-0 01 1 1411-1504
151 BRACKET; SPD SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> 		8-98299-397-0 01 1 1505-
