◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11556 - FVR-RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26C - MANUAL TRANSMISSION GEAR ▶
2-26C — MANUAL TRANSMISSION GEAR (#152005) — 200 parça
çizim 455152
323 408 408 66 126 339 42 324 66 339
BalonParca AdiParca NoAdetTipApplied Date
42 SLEEVE 1-33262-195-0 01 1 1411-
66 RING; BLOCK,SYN 1-33339-069-0 02 1 1411-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 1411-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 1411-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 1411-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 1411-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 1411-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 1411-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 1411-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 1411-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 1411-
323 INSERT
(B) 		1-33263-027-0 09 1 1411-
323 INSERT
(A) 		1-33263-030-0 06 1 1411-
324 HUB; CLU 1-33261-230-0 01 1 1411-
339 CLUTCH; PLANETARY GEAR
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33265-649-0 01 1 1411-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-632-0 01 1 1411-
339 CLUTCH; PLANETARY GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33265-453-0 01 1 1411-
408 SPRING
(B) 		1-33269-038-0 09 1 1411-
408 SPRING
(C) 		1-33269-039-0 09 1 1411-
408 SPRING
(A) 		1-33269-042-0 06 1 1411-

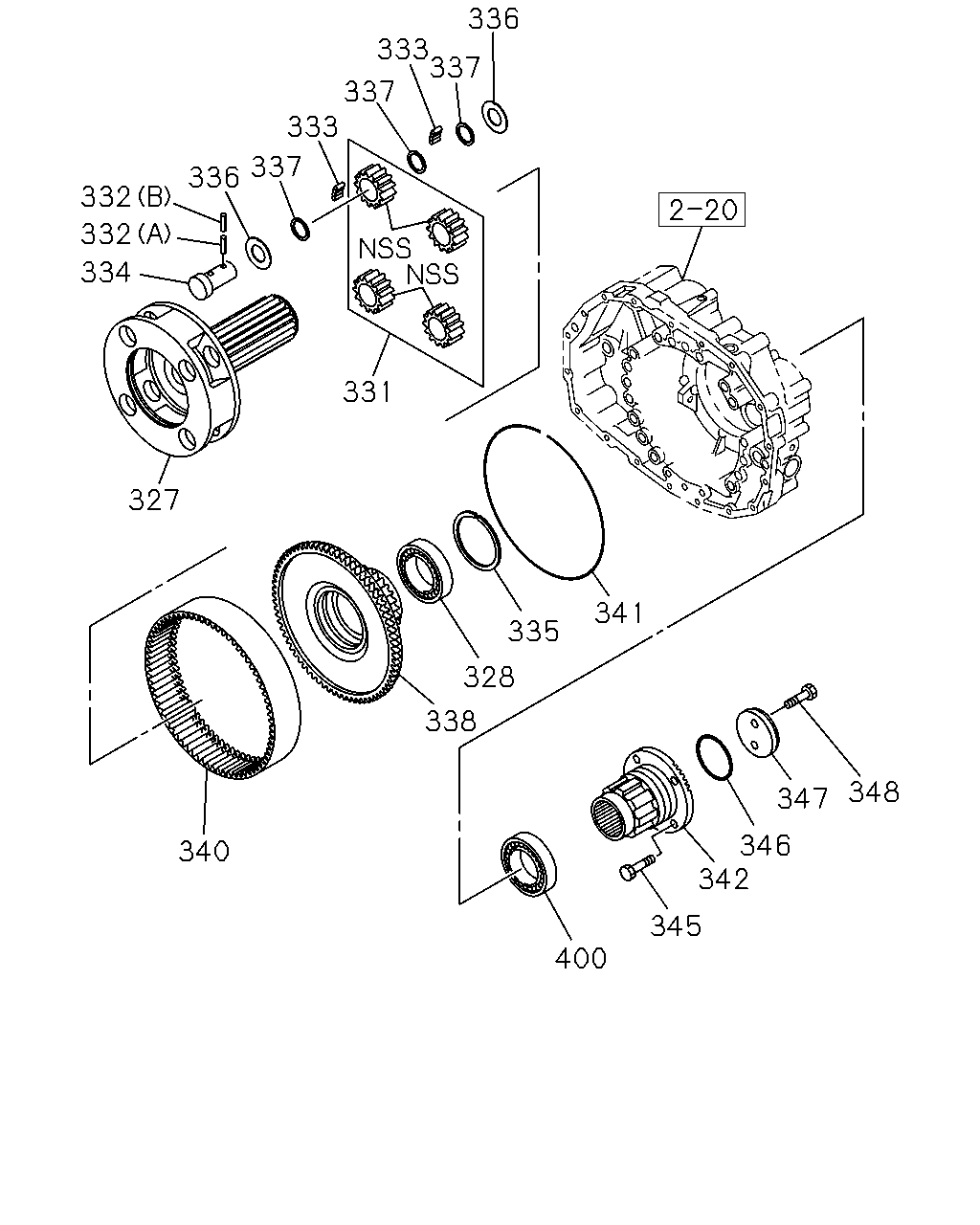

çizim 455187
336 337 333 337 333 337 336 332 332 334 327 331 340 338 335 328 341 348 347 346 342 345 400
BalonParca AdiParca NoAdetTipApplied Date
327 CARRIER; PLANETARY GEAR 1-33231-338-0 01 1 1411-
328 BEARING; CARRIER 1-33339-094-0 01 1 1411-
331 GEAR SET; PLANETARY 1-33239-350-0 01 1 1411-
332 PIN; LOCK,SHAFT
(A) 		1-33239-178-0 04 1 1411-
332 PIN; LOCK,SHAFT
(B) 		1-33239-179-0 04 1 1411-
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 1411-
334 SHAFT; PLANETARY GEAR 1-33239-359-0 04 1 1411-
335 RING; SNAP,BEARING
T=2.50 		1-33339-075-0 01 1 1411-
335 RING; SNAP,BEARING
T=2.40 		1-33339-076-0 01 1 1411-
335 RING; SNAP,BEARING
T=2.30 		1-33339-077-0 01 1 1411-
335 RING; SNAP,BEARING
T=2.20 		1-33339-078-0 01 1 1411-
335 RING; SNAP,BEARING
T=2.10 		1-33339-079-0 01 1 1411-
335 RING; SNAP,BEARING
T=2.00 		1-33339-080-0 01 1 1411-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-174-0 08 1 1411-
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 1411-
338 CARRIER; RING GEAR 1-33331-275-0 01 1 1411-
340 GEAR; RING 1-33339-099-0 01 1 1411-
341 WIRE; LOCK,CARRIER 1-33339-096-0 01 1 1411-
342 FLANGE; OUTPUT 1-37243-429-0 01 1 1411-
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 1411-
346 GASKET; FLANGE 1-37249-156-0 01 1 1411-
347 WASHER; FLANGE 1-09509-060-0 01 1 1411-
348 BOLT; SHAFT 1-37249-215-0 02 1 1411-
400 BEARING; OUTPUT SHAFT RR 1-33139-212-0 01 1 1411-
çizim 455502
317 233 408 21 233 230 569 16 316 36 33 32 306 408 323 44 41 315 50 49 30 311 306 330 393 59 314 126 68 67 70 313 82 18 27 41 429 9
BalonParca AdiParca NoAdetTipApplied Date
9 CLUTCH; DOG,TOP GEAR 1-33265-631-0 01 1 1411-
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 1411-
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 1411-
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 1411-
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 1411-
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 1411-
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 1411-
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 1411-
21 HUB; CLU,4TH & 5TH 1-33261-295-0 01 1 1411-
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 1411-
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 1411-
32 COLLAR; 3RD GEAR 1-33259-140-0 01 1 1411-
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 1411-
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 1411-
41 RING; BLOCK,2ND & 3RD 1-33265-498-0 02 1 1411-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-303-0 01 1 1411-
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 1411-
50 GEAR; 2ND,MAINSHAFT 1-33251-448-0 01 1 1411-
59 GEAR; REV MAINSHAFT 1-33257-101-0 01 1 1411-
67 HUB; CLU,1ST TO REV 1-33259-135-0 01 1 1411-
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 1411-
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 1411-
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 1411-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 1411-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 1411-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 1411-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 1411-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 1411-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 1411-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 1411-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 1411-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 1411-
230 SLEEVE; 4TH TO 5TH 1-33262-239-0 01 1 1411-
233 RING; BLOCK 4TH TO 5TH 1-33269-096-0 02 1 1411-
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 1411-
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 1411-
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 1411-
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 1411-
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 1411-
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 1411-
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 1411-
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 1411-
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 1411-
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 1411-
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 1411-
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 1411-
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 1411-
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 1411-
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 1411-
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 1411-
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 1411-
311 PIPE; MAINSHAFT 1-33239-349-0 01 1 1411-
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 1411-
314 BEARING; NEEDLE,REV GEAR 1-33259-125-0 01 1 1411-
315 CLUTCH; DOG,2ND GEAR 1-33265-629-0 01 1 1411-
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 1411-
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 1411-
323 INSERT
(B) 		1-33263-027-0 09 1 1411-
323 INSERT
(A) 		1-33263-030-0 06 1 1411-
330 GEAR; SUN 1-33259-134-0 01 1 1411-
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 1411-
408 SPRING
(B) 		1-33269-038-0 09 1 1411-
408 SPRING
(C) 		1-33269-039-0 09 1 1411-
408 SPRING
(A) 		1-33269-042-0 06 1 1411-
429 SLEEVE; 2ND & 3RD 1-33262-244-0 01 1 1411-
569 DAM; OIL 1-33269-097-0 01 1 1411-
çizim 455505
325 1 3 301
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33215-036-0 01 1 1411-
3 BEARING; TOP GEAR SHAFT 1-33219-320-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33139-039-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33139-041-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33139-042-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33139-043-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33139-045-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33139-046-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33139-047-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33139-050-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33139-201-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33139-202-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33139-204-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33139-205-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33139-206-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33139-223-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33139-224-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33139-225-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33139-226-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33139-227-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33139-228-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33139-229-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33139-230-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33139-231-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33139-232-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33139-233-0 01 1 1411-
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33139-234-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.60 		1-33389-047-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.50 		1-33389-049-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.50 		8-98080-571-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.50 		8-98080-571-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.60 		8-98080-572-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.60 		8-98080-572-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1411-

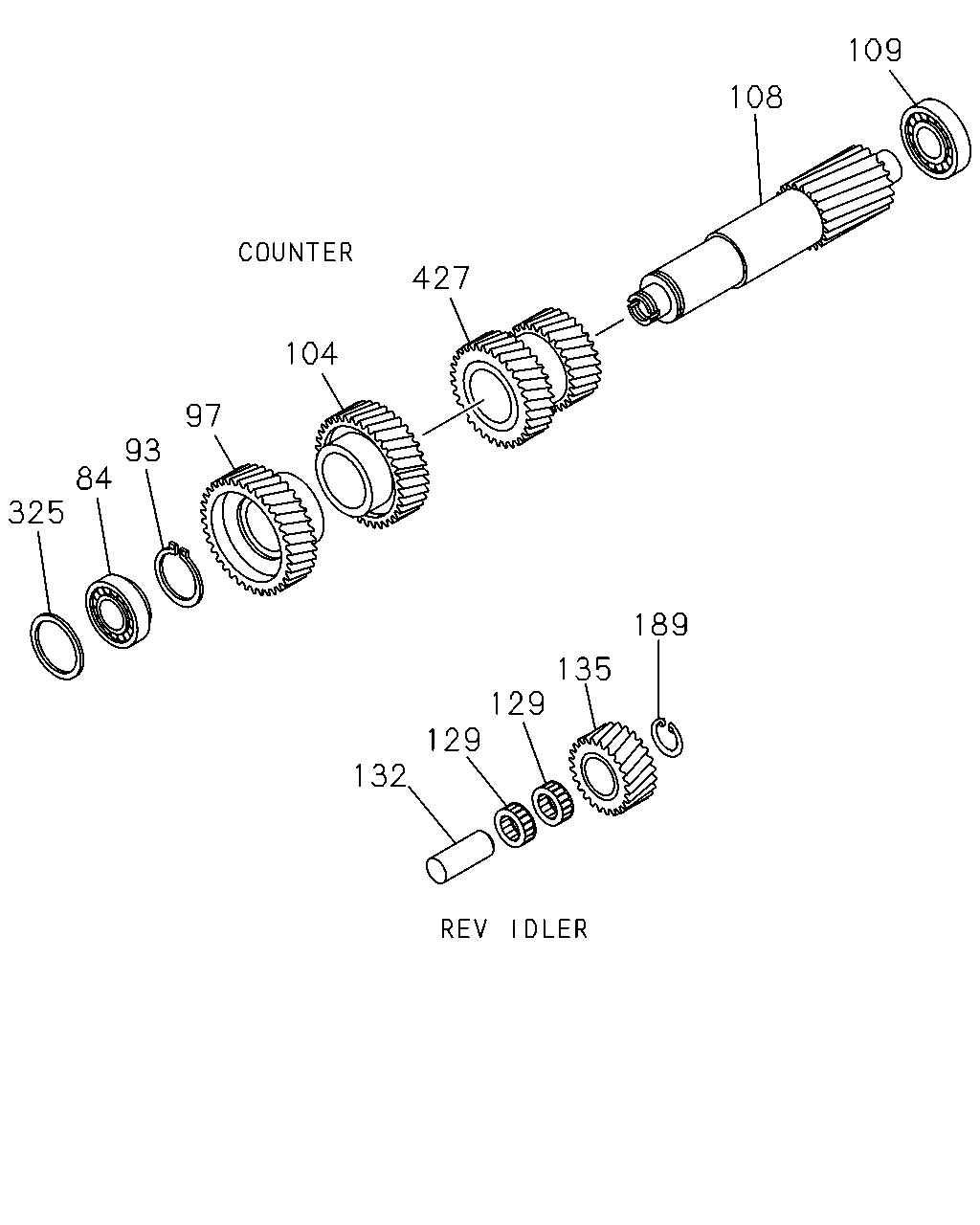

çizim 455610
427 104 97 93 84 325 108 109 189 135 129 129 132
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 1411-
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 1411-
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 1411-
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 1411-
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 1411-
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 1411-
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 1411-
93 RING; SNAP,COUNTER FRT BRG
T=2.6 		1-33319-264-0 01 1 1411-
97 GEAR; 5TH,COUNTER 1-33338-398-0 01 1 1411-
104 GEAR; 4TH,COUNTER 1-33338-397-0 01 1 1411-
108 SHAFT; COUNTER 1-33311-347-0 01 1 1411-
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 1411-
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 1411-
132 SHAFT; REV 1-33351-024-0 01 1 1411-
135 GEAR; REV IDLER 1-33361-096-0 01 1 1411-
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.60 		1-33389-047-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.50 		1-33389-049-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.50 		8-98080-571-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.50 		8-98080-571-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.60 		8-98080-572-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.60 		8-98080-572-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1411-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1411-
427 GEAR; 2ND & 3RD,COUNTER 1-33332-132-0 01 1 1411-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
