Isuzu WW
▶
TRUCKS
▶
FSR
▶
11139 - FSR-R(EU)EU4 EXC.SPA
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#15199) — 42 parça
◀
[378A] NO.1 (17 parça)
[378A] NO.2 (16 parça)
[378A] NO.3 (9 parça)
▶

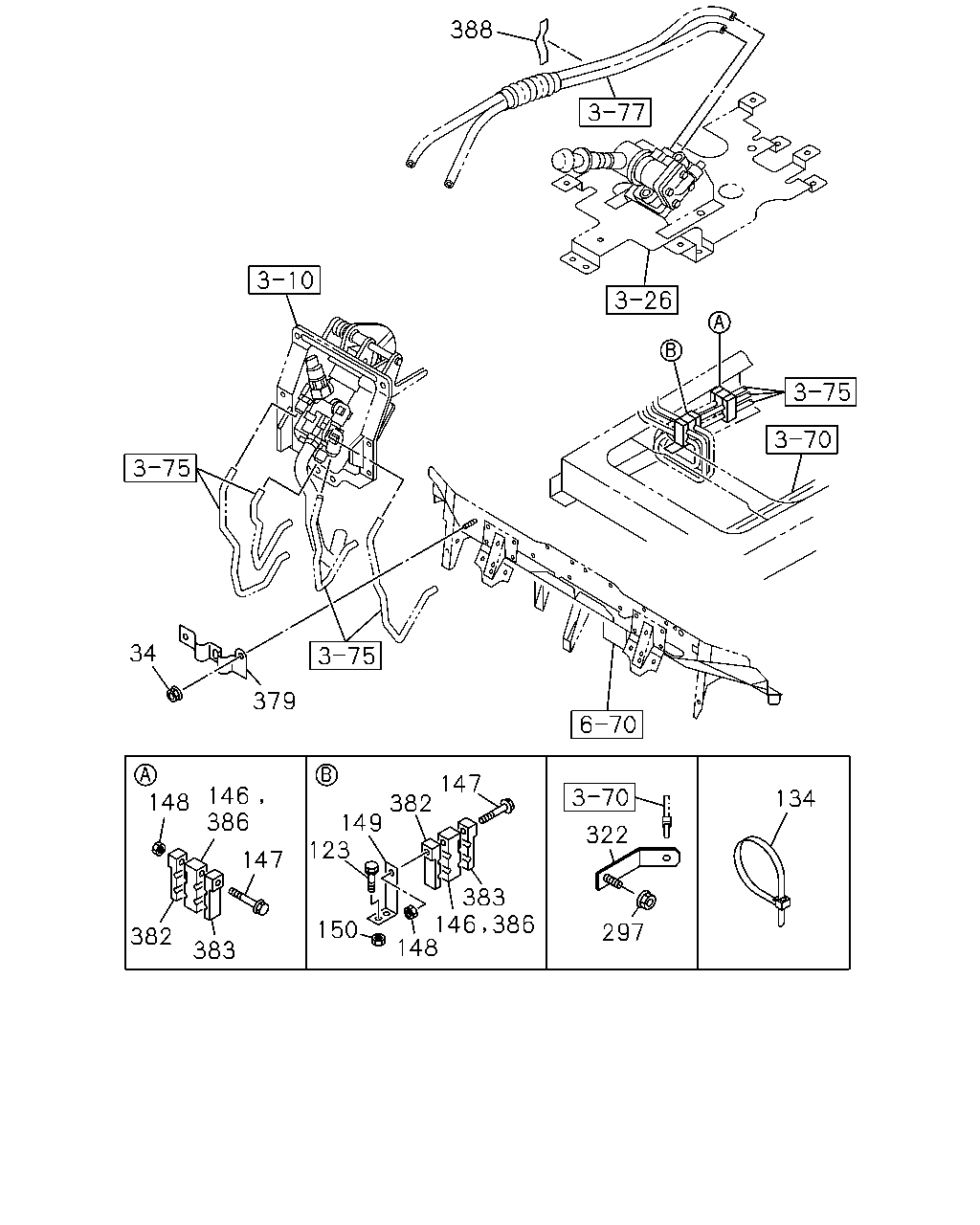

388
34
379
148
147
382
149
123
146
386
134
322
147
383
148
150
297
382
383
146
386
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
0803-
123
BOLT; PIPE CLIP
M8X20 FLANGE
0-28650-820-0
02
1
0803-
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
0804-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
02
1
0911-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
04
1
0803-
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
04
1
0803-
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
04
1
0803-
149
BRACKET; PIPE CLIP
1-47476-792-0
01
1
0803-1409
149
BRACKET; PIPE CLIP
8-98296-534-0
01
1
1410-
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
02
1
0803-
297
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0803-
322
BRACKET; CLIP
1-47479-936-1
01
1
0803-
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
0803-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
04
1
0803-
383
CLIP; LWR
ID=10 & 10
1-09709-241-0
04
1
0803-
386
CLIP; CENTER
ID=10
1-09709-242-0
04
1
0803-
388
SEAL
100X40
1-72498-022-1
03
1
0803-

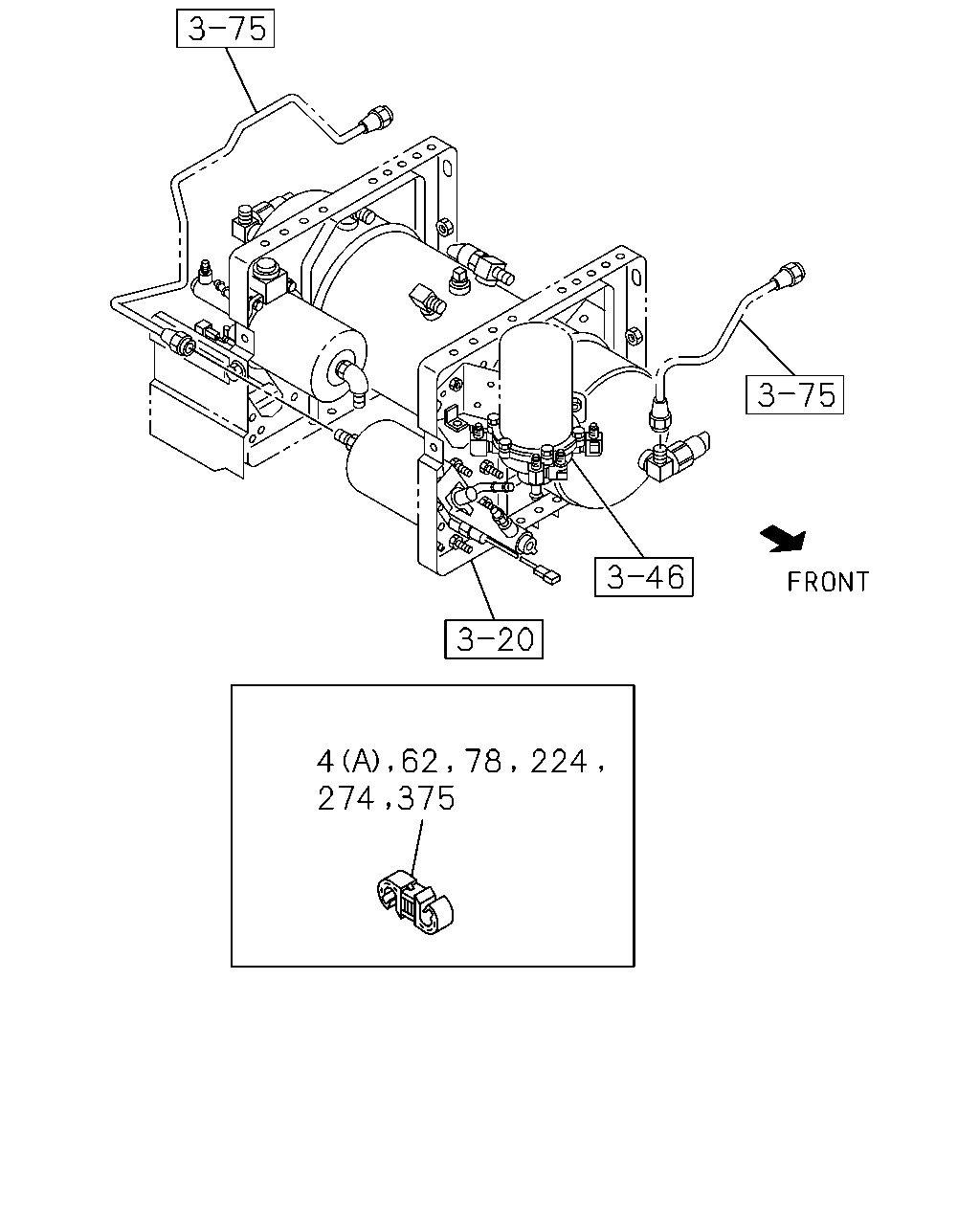

4
62
78
224
274
375
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
02
1
0803-0808
4
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
03
1
0809-0901
4
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
02
1
0902-
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
03
1
0803-
4
CLIP; AIR PIPE
(B) ID=10 & 12
1-09709-278-1
01
1
0803-
62
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
02
1
0803-0808
62
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
01
1
0809-0901
78
CLIP; AIR PIPE
ID=10 & 12
1-09709-278-1
01
1
0803-0901
224
CLIP; AIR PIPE
ID=10 & 12
1-09709-278-1
01
1
0809-
224
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
01
1
0803-0901
224
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
01
1
0902-
224
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
01
1
0902-
224
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
03
1
0803-0901
274
CLIP; AIR PIPE
ID=6.35 & 12
1-09709-275-1
01
1
0809-
274
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> ID=6.35 & 10.0
1-09709-274-1
01
1
0803-0805
375
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> ID=10 & 10
1-09709-277-1
02
1
0803-0805

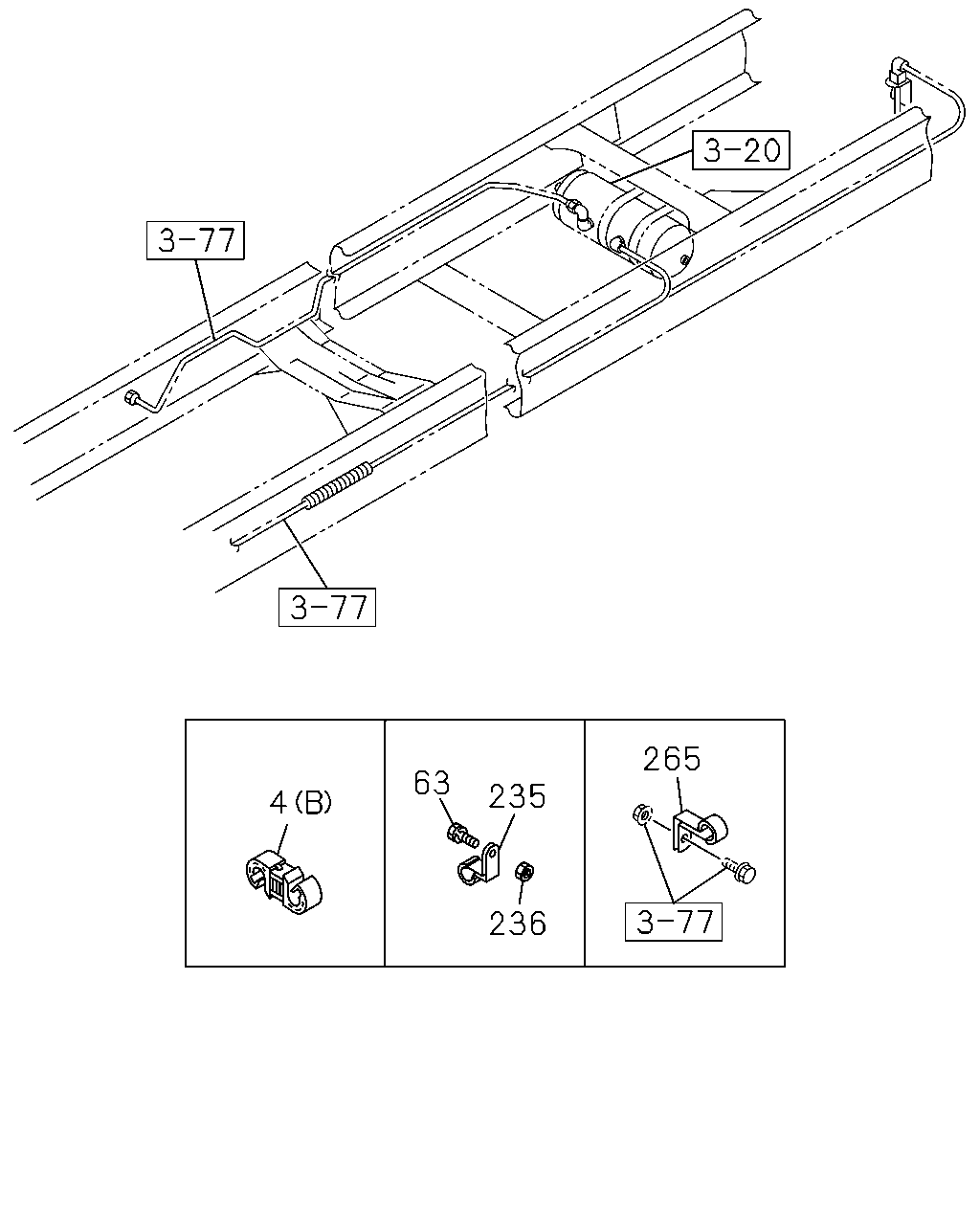

265
63
235
4
236
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
02
1
0803-0808
4
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
03
1
0809-0901
4
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
02
1
0902-
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
03
1
0803-
4
CLIP; AIR PIPE
(B) ID=10 & 12
1-09709-278-1
01
1
0803-
63
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
06
1
0803-
235
CLIP; AIR PIPE
ID=11 H=20 L=20
8-98033-780-0
06
1
0803-
236
NUT; CLIP
M8 FLANGE
0-91180-108-0
06
1
0803-
265
CLIP; NYLON TUBE
ID=21 H=25.5 L=26
8-94176-806-0
01
1
0803-
