3-75 — BRAKE PIPING; AIR,FRONT (#15197) — 55 parça

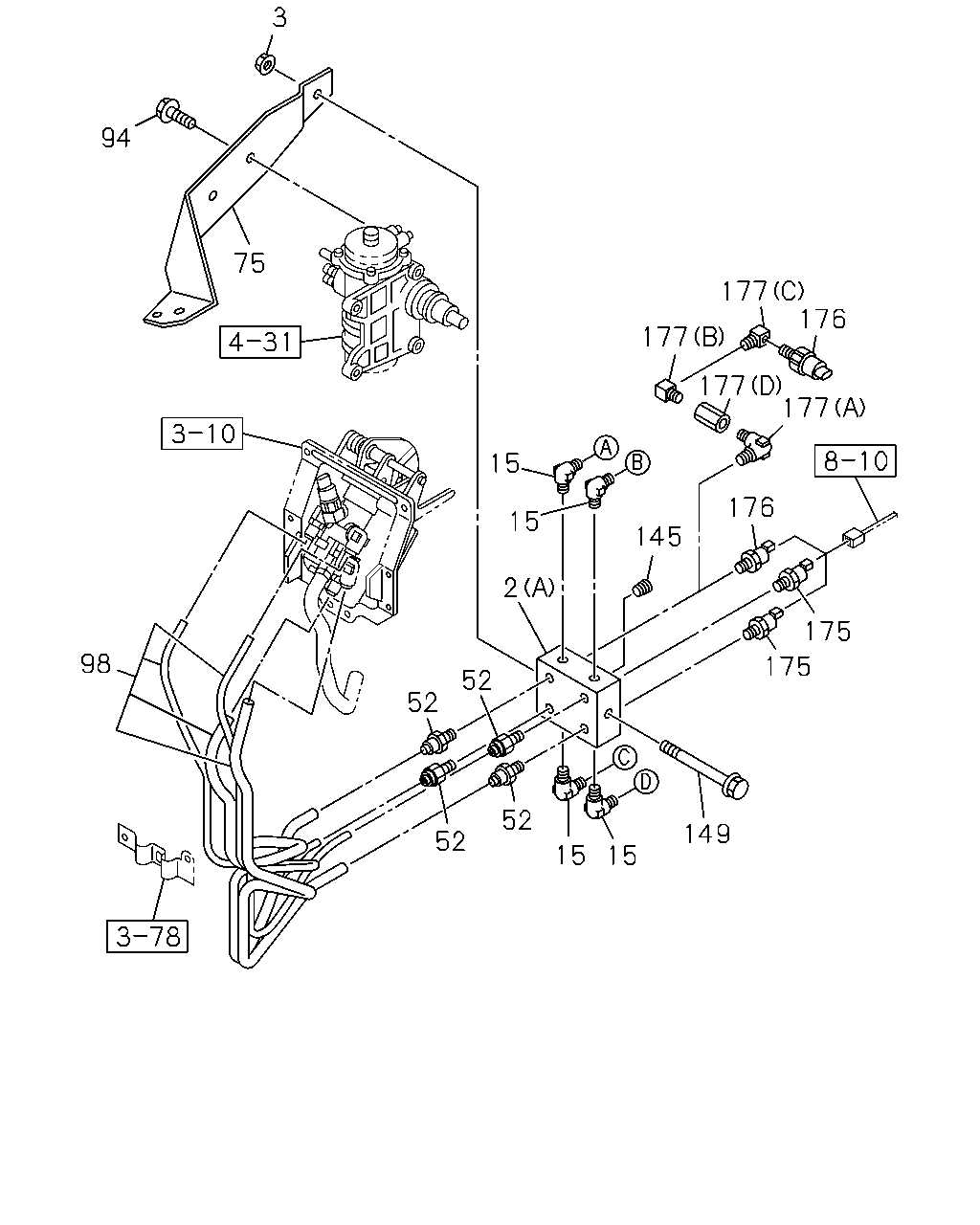

çizim 107215
3 94 75 177 176 177 177 177 15 176 15 145 2 175 98 175 52 52 52 149 52 15 15
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0803-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0803-
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 0809-
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0803-
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 0803-
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 0803-
75 BRACKET; UNION 8-98066-785-0 01 1 0803-
94 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 02 1 0803-0901
94 BOLT; BRKT
M10X20 FLANGE 		0-28651-020-0 02 1 0902-0902
94 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 02 1 0902-0911
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 0912-
98 TUBE; NYLON 8-98079-179-0 01 1 0803-
145 PLUG
PT1/4 		9-99204-513-0 01 1 0803-
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 0803-
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0803-
176 SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> STAMP 0.7 		8-97622-710-0 01 1 0803-0805
176 SWITCH; AIR PRESS
EXC. H.S.A SYSTEM<6EP> STAMP 0.3 		8-98010-857-0 01 1 0803-0805
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 0806-
177 CONNECTOR
H.S.A SYSTEM<6EP> (A) 		1-09650-433-0 01 1 0803-0805
177 CONNECTOR
H.S.A SYSTEM<6EP> (B) PT3/8 ELBOW 		1-09660-696-0 01 1 0803-0805
177 CONNECTOR
H.S.A SYSTEM<6EP> (C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0803-0805
177 CONNECTOR
H.S.A SYSTEM<6EP> (D) 		1-09660-881-0 01 1 0803-0805

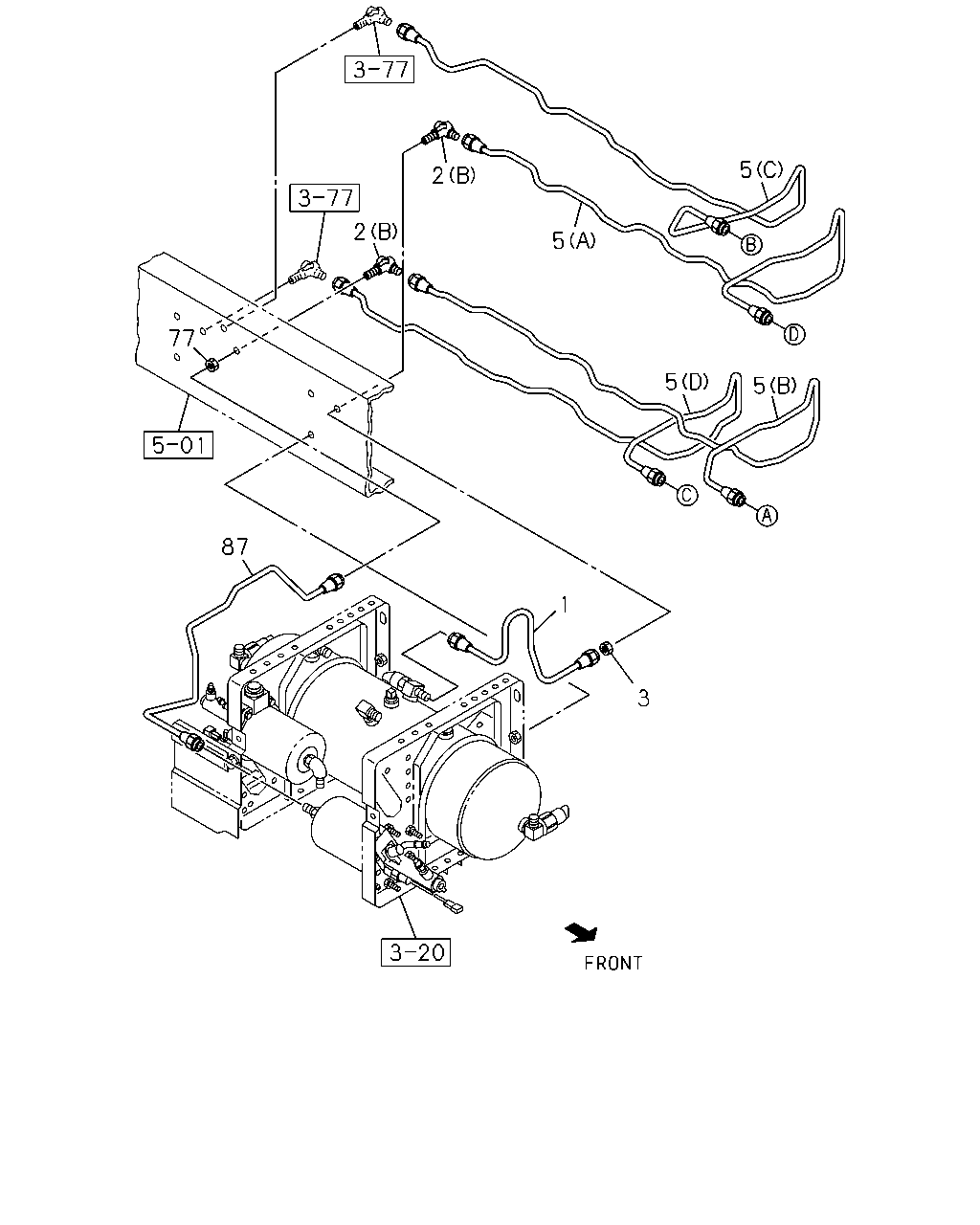

çizim 107613
5 2 2 5 77 5 5 87 1 3
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=347 		8-98101-769-0 01 1 0803-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0803-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0803-
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 0809-
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0803-
5 PIPE; AIR,UNION TO UNION
(D) L=2509 SERVICED BY L=2600 		1-47428-884-0 01 1 0803-1203
5 PIPE; AIR,UNION TO UNION
(D) L=2509 		8-98210-099-0 01 1 1204-
5 PIPE; AIR,UNION TO UNION
(A) L=2157 SERVICED BY L=2500 		1-47428-883-0 01 1 0803-1203
5 PIPE; AIR,UNION TO UNION
(A) L=2157 SERVICED BY L=2500 		1-47428-883-0 01 1 1204-
5 PIPE; AIR,UNION TO UNION
(B) L=2382 SERVICED BY L=2500 		1-47428-883-0 01 1 0803-1203
5 PIPE; AIR,UNION TO UNION
(B) L=2375 SERVICED BY L=2500 		1-47428-883-0 01 1 1204-
5 PIPE; AIR,UNION TO UNION
(C) L=2513 		8-98103-314-1 01 1 0803-1203
5 PIPE; AIR,UNION TO UNION
(C) L=2515 		8-98210-102-0 01 1 1204-
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0803-
87 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> L=1123 SERVICED BY L=1250 		1-47428-876-0 01 1 0803-0805
87 PIPE; AIR,UNION TO AIR MASTER
L=1123 SERVICED BY L=1250 		1-47428-876-0 01 1 0806-0809
87 PIPE; AIR,UNION TO AIR MASTER
L=1115 SERVICED BY L=1250 		1-47428-791-0 01 1 0810-

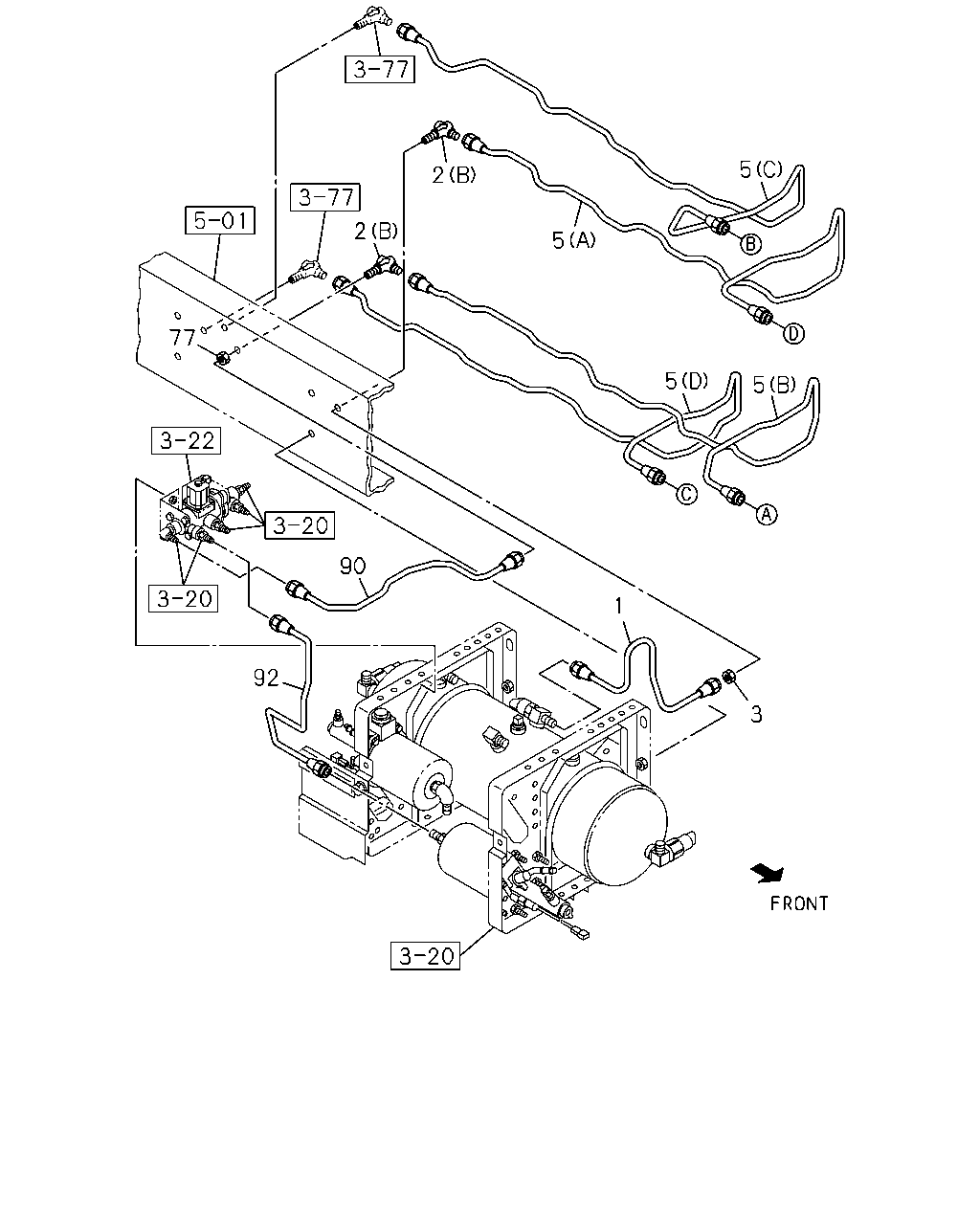

çizim 107819
5 2 2 5 77 5 5 90 1 92 3
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=347 		8-98101-769-0 01 1 0803-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0803-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0803-
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 0809-
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0803-
5 PIPE; AIR,UNION TO UNION
(D) L=2509 SERVICED BY L=2600 		1-47428-884-0 01 1 0803-1203
5 PIPE; AIR,UNION TO UNION
(D) L=2509 		8-98210-099-0 01 1 1204-
5 PIPE; AIR,UNION TO UNION
(A) L=2157 SERVICED BY L=2500 		1-47428-883-0 01 1 0803-1203
5 PIPE; AIR,UNION TO UNION
(A) L=2157 SERVICED BY L=2500 		1-47428-883-0 01 1 1204-
5 PIPE; AIR,UNION TO UNION
(B) L=2382 SERVICED BY L=2500 		1-47428-883-0 01 1 0803-1203
5 PIPE; AIR,UNION TO UNION
(B) L=2375 SERVICED BY L=2500 		1-47428-883-0 01 1 1204-
5 PIPE; AIR,UNION TO UNION
(C) L=2513 		8-98103-314-1 01 1 0803-1203
5 PIPE; AIR,UNION TO UNION
(C) L=2515 		8-98210-102-0 01 1 1204-
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0803-
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=781 SERVICED BY L=800 		1-47428-872-0 01 1 0803-0805
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=511 SERVICED BY L=550 		1-47428-867-0 01 1 0803-0805
