3-52 — BRAKE PIPING; OIL,FRONT (#15193) — 21 parça

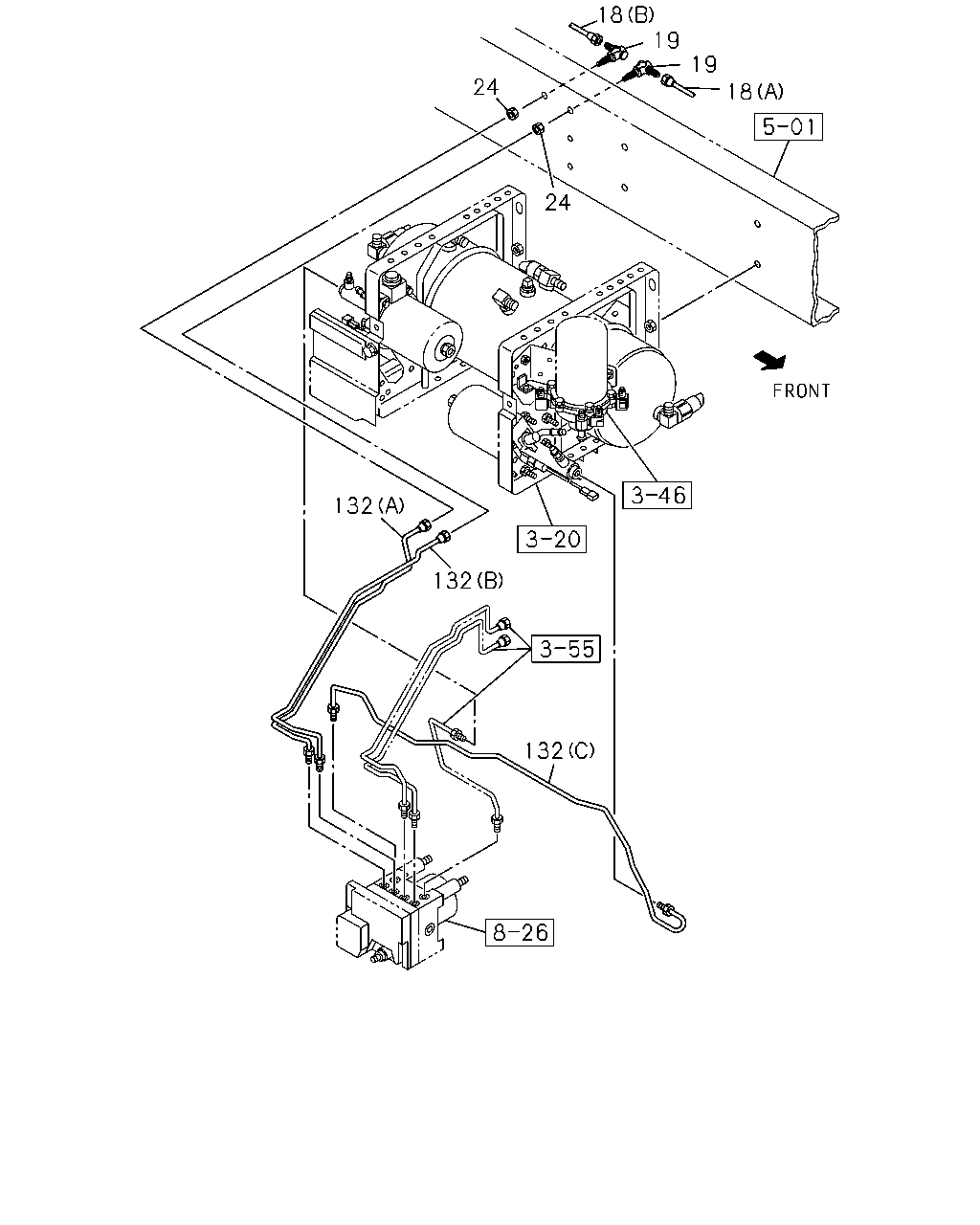

18 19 19 24 18 24 132 132 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH LINE	8-98113-248-0	01	1	0803-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE	8-98113-249-0	01	1	0803-0906
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE L=3695	8-98135-512-0	01	1	0907-
19	UNION; OIL PIPE	8-98018-438-0	02	1	0803-
24	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	02	1	0803-
132	PIPE; OIL,BRK,HYD UNIT ASSISTOR SHIFT CONTROL<WX8> (A) L=654	8-98101-775-0	01	1	0803-
132	PIPE; OIL,BRK,HYD UNIT ASSISTOR SHIFT CONTROL<WX8> (B) L=619	8-98101-776-0	01	1	0803-
132	PIPE; OIL,BRK,HYD UNIT (C) L=1039	8-98086-402-0	01	1	0803-

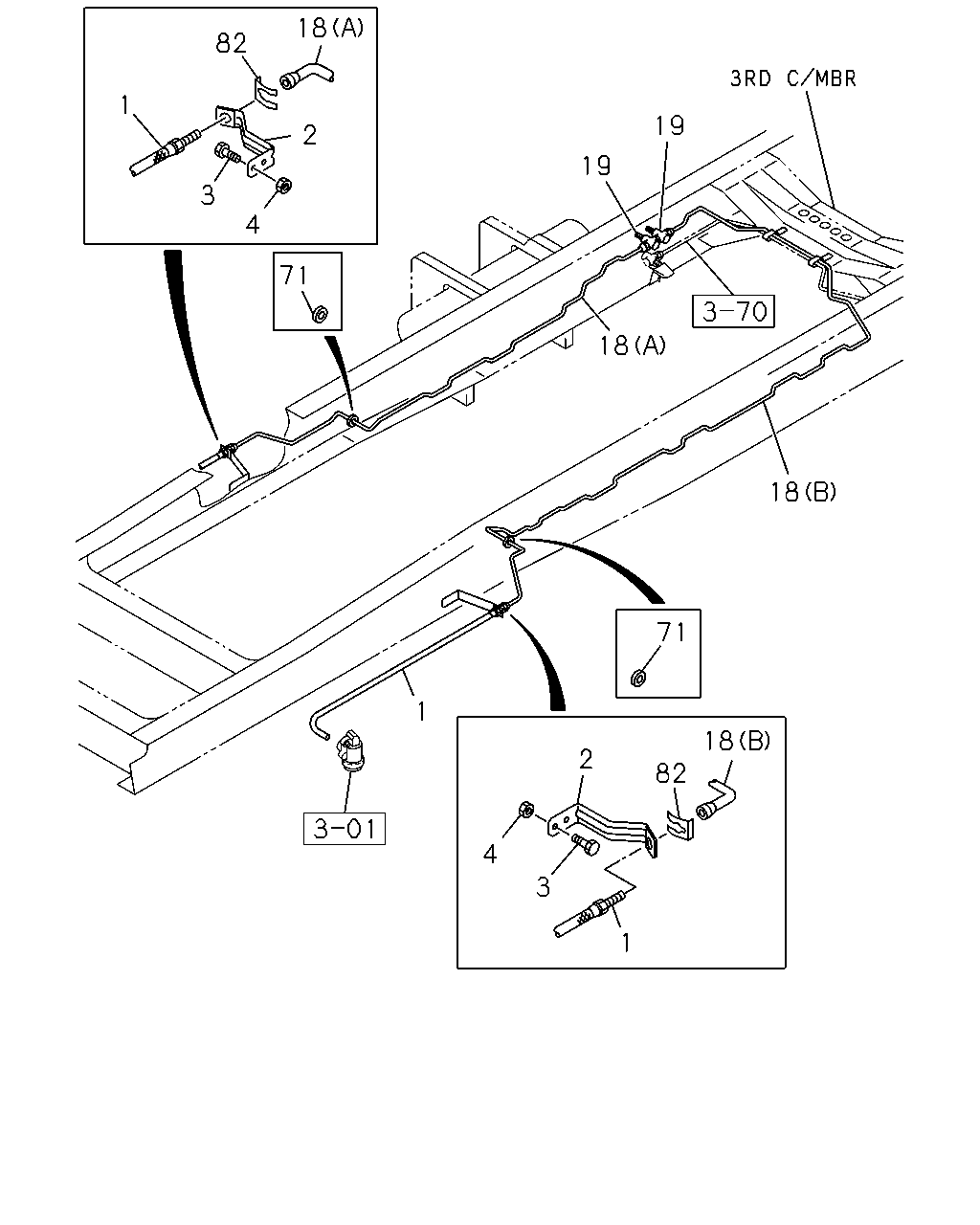

18 82 1 19 2 19 3 4 71 18 18 71 1 18 2 82 4 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK L=330	8-98024-433-0	02	1	0803-
2	BRACKET; FLEX HOSE,FRT BRK	8-98012-343-1	02	1	0803-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X20 FLANGE	0-28650-820-0	02	1	0803-0805
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	02	1	0803-0805
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0806-
4	NUT; FLEX HOSE BRKT,FRT BRK ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	04	1	0907-
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	0803-0803
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH LINE	8-98113-248-0	01	1	0803-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE	8-98113-249-0	01	1	0803-0906
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE L=3695	8-98135-512-0	01	1	0907-
19	UNION; OIL PIPE	8-98018-438-0	02	1	0803-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0803-
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	0803-
