◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 9 - Tools ▶ 9-33 - REAR BODY; GATE AND SIDE GUARD ▶
9-33 — REAR BODY; GATE AND SIDE GUARD (#151895) — 1175 parça

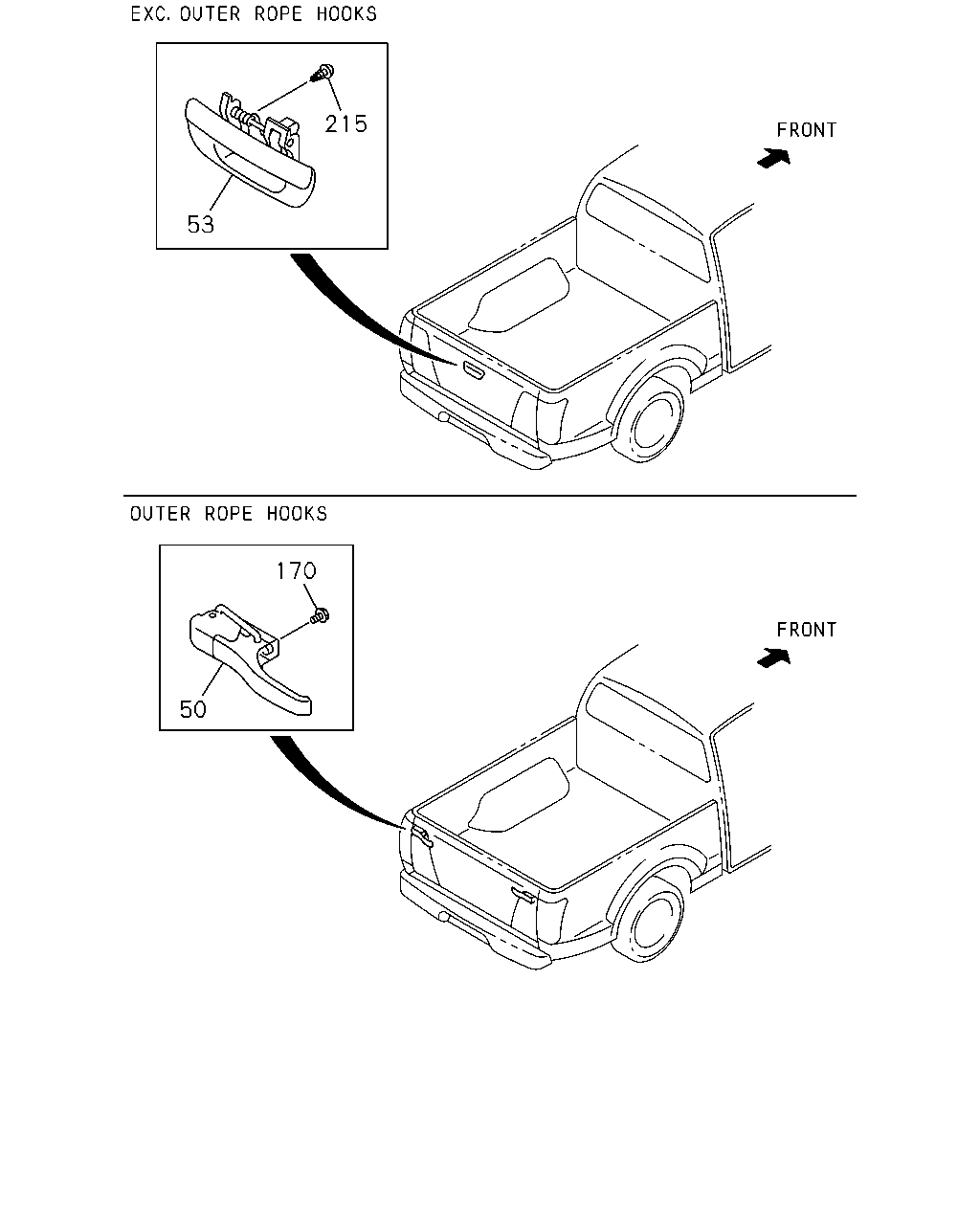

çizim 448586
215 53 170 50
BalonParca AdiParca NoAdetTipApplied Date A B C D E
50 17.204 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98061-099-0 02 1 1409- ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98061-099-0 02 1 1409- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) EXC. OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> 		8-98202-618-1 01 1 1504- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) 		8-98102-968-3 01 1 1409- ● ● ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. HANDLE O/S DOOR BODY COLOR<D75>, OUTSIDE HANDLE CHROME<E20>,OUTER ROPE H OOKS<7MZ>,LOCK END GATE<8CW> 		8-98102-967-3 01 1 1409- ● ● ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) KD PAINT LESS SUPPLY<7TV> EXC. OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> 		8-98200-680-1 01 1 1409- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-969-3 01 1 1409- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR NAUTILUS BLUE MICA(521) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. OUTER ROPE HOOKS<7MZ>,KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> DARK BLUE 		8-97416-517-3 01 1 1409- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. OUTER ROPE HOOKS<7MZ>,KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> BLACK 		8-97416-519-3 01 1 1409- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. OUTER ROPE HOOKS<7MZ>,KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> WHITE 		8-97416-521-3 01 1 1409- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. OUTER ROPE HOOKS<7MZ>,KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> SILVER 		8-97416-523-3 01 1 1409- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR MINERAL GRAY MET(530) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. OUTER ROPE HOOKS<7MZ>,KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> GRAY 		8-97416-524-3 01 1 1409- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SILKY WHITE PEARL(531) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. OUTER ROPE HOOKS<7MZ>,KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> WHITE 		8-97416-525-3 01 1 1409- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TUNDRA GREEN MICA(533) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. OUTER ROPE HOOKS<7MZ>,KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> DARK GREEN 		8-97416-527-3 01 1 1409- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ASH BEIGE MET(541) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. OUTER ROPE HOOKS<7MZ>,KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> LIGHT BEIGE 		8-97421-143-3 01 1 1409- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR FJORD BLUE MET(545) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. OUTER ROPE HOOKS<7MZ>,KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> LIGHT BLUE 		8-97424-561-3 01 1 1409- ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR VENETIAN RED MICA(546) HANDLE O/S DOOR BODY COLOR<D75> REAR BODY DBL WALL CTR PULL(E63) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. OUTER ROPE HOOKS<7MZ>,KD PAINT LESS SUPPLY<7TV>,LOCK END GATE<8CW> RED 		8-97424-562-3 01 1 1409- ● ●
170 17.635 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL(E63) 09.744 M6X20 W/WASHER 		8-98056-282-0 04 1 1409- ● ●
170 17.635 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 09.744 M6X20 W/WASHER 		8-98056-282-0 04 1 1409- ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,LOCK END GATE<8CW> 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1409- ● ● ● ● ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> EXC. OUTER ROPE HOOKS<7MZ> M6X14 FLANGE 		8-97247-698-0 01 1 1409- ● ● ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> EXC. OUTER ROPE HOOKS<7MZ> 10.765 M6X8 FLANGE 		8-98048-996-0 01 1 1409- ● ● ●

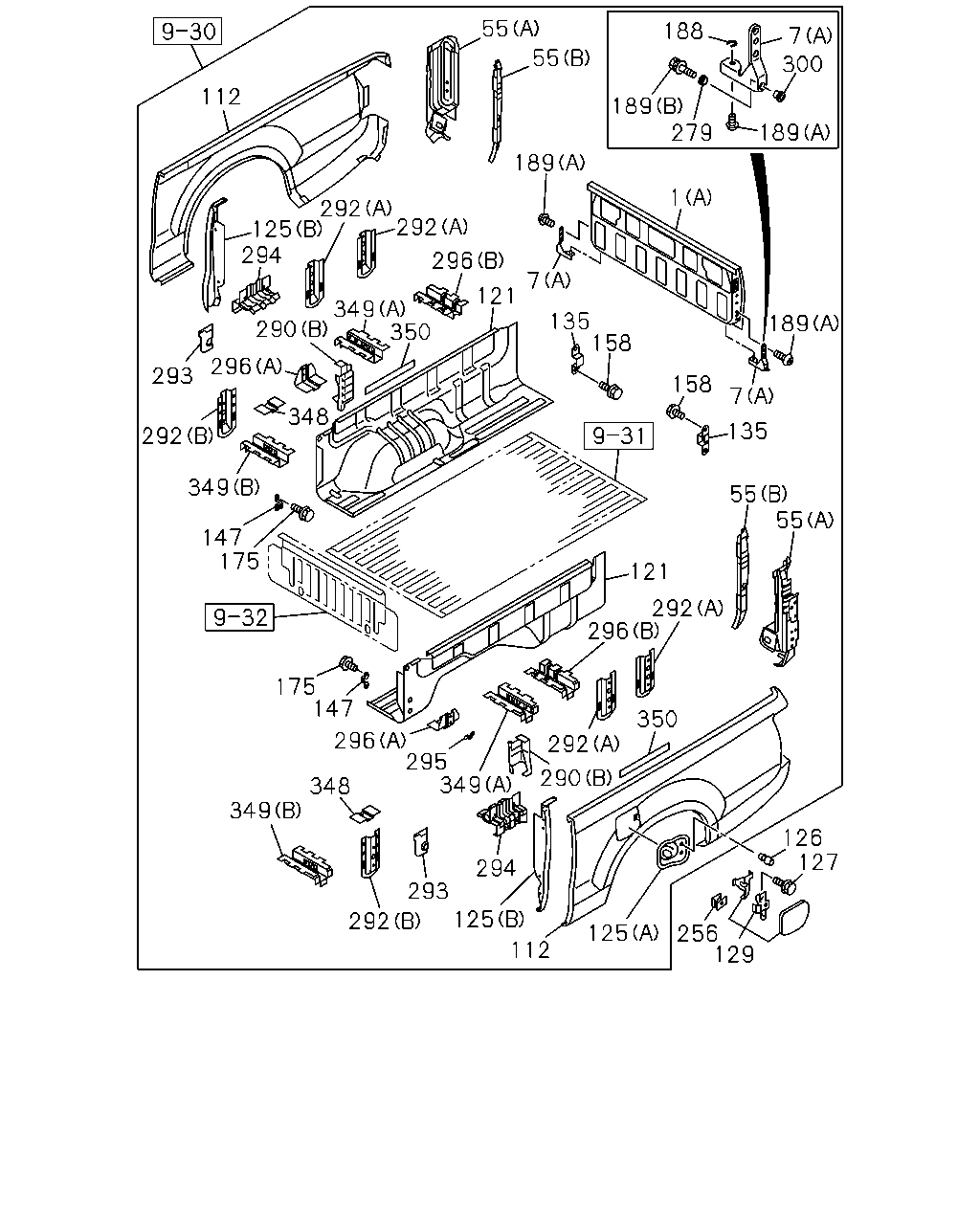

çizim 449138
7 300 188 189 279 189 1 55 55 112 189 292 292 125 294 290 296 293 292 349 147 175 175 147 296 348 349 292 293 125 112 125 256 129 127 126 350 292 290 349 294 295 348 350 349 296 121 7 135 158 158 7 189 135 55 55 121 292 296
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98198-539-2 01 1 1409- ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98198-539-2 01 1 1409- ●
1 17.185 GATE ASM; RR
REAR BODY FLAT BED(E39) (B) 		8-98165-718-1 01 1 1409- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1409-1411 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-362-9 01 1 1409-1411 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. CONGO EQUIPMENT(CDF) (A) 		8-98104-362-9 01 1 1409-1411 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. CONGO EQUIPMENT(CDF),OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1412- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-362-9 01 1 1412- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. CONGO EQUIPMENT(CDF) (A) 		8-98104-362-9 01 1 1412- ●
1 17.185 GATE ASM; RR
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-332-9 01 1 1409-1411 ●
1 17.185 GATE ASM; RR
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-332-9 01 1 1412- ●
1 17.185 GATE ASM; RR
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-332-9 01 1 1412- ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-948-0 01 1 1409- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-949-0 01 1 1409- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 03 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-262-5 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-262-5 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-264-5 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-264-5 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-380-4 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-380-4 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-381-4 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-381-4 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1409- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) 		8-98122-518-7 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-518-7 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) 		8-98122-519-9 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-519-9 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-553-8 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-555-6 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-977-5 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-978-6 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-560-9 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-560-9 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-561-7 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-561-7 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-551-8 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-552-6 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-558-9 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98205-935-1 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-927-6 01 1 1409- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-928-5 01 1 1409- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-979-3 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-980-3 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-294-7 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-294-7 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-296-7 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-296-7 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-316-6 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-318-6 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-608-4 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-609-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-180-1 01 1 1409- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-181-1 01 1 1409- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-234-7 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-234-7 01 1 1409- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-599-0 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-600-0 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-189-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-189-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-192-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-192-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-868-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-869-4 01 1 1409- ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1409- ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1409- ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98103-298-7 01 1 1409- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-298-7 01 1 1409- ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1409- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-656-2 01 1 1409- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1409- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-657-2 01 1 1409- ● ●

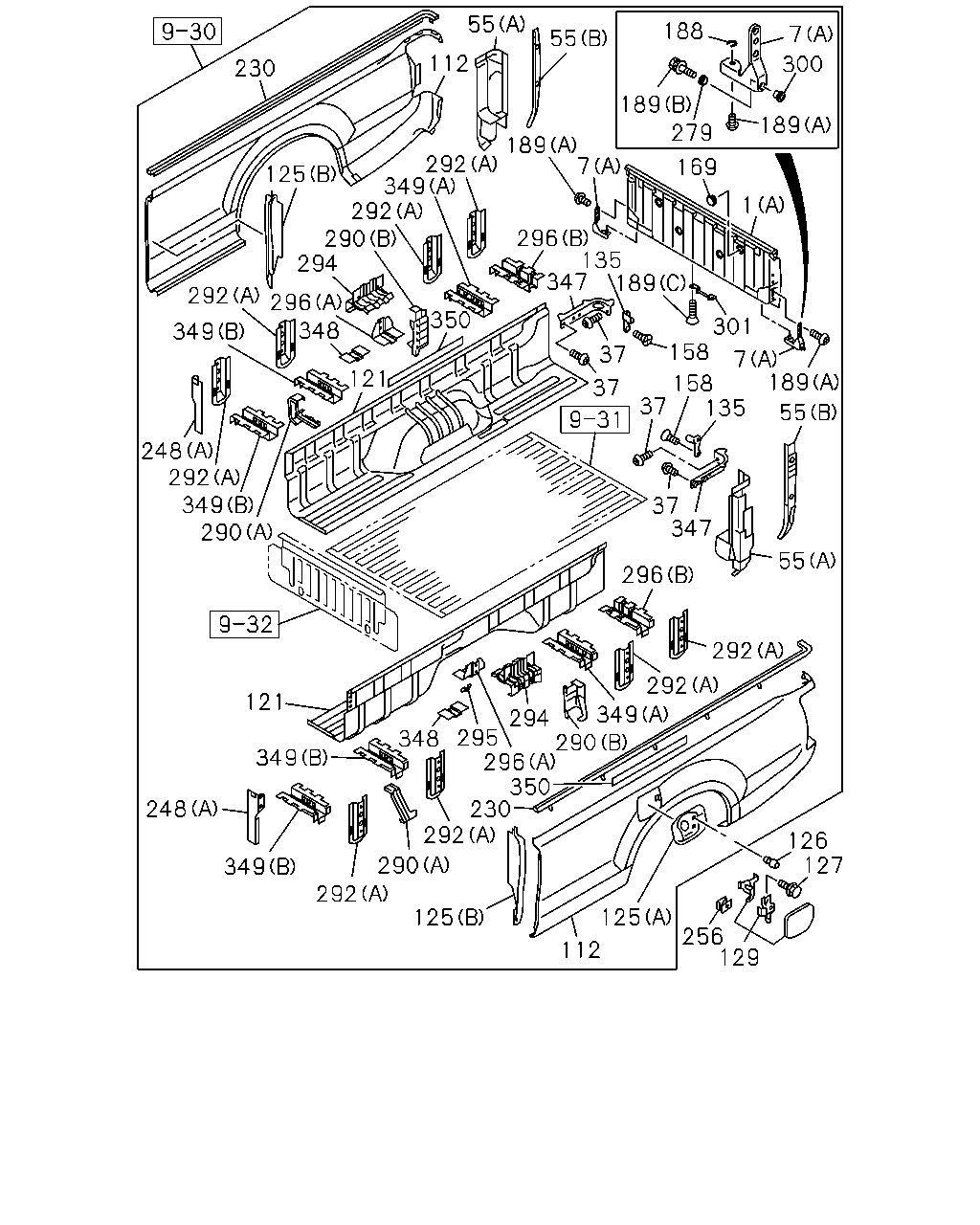

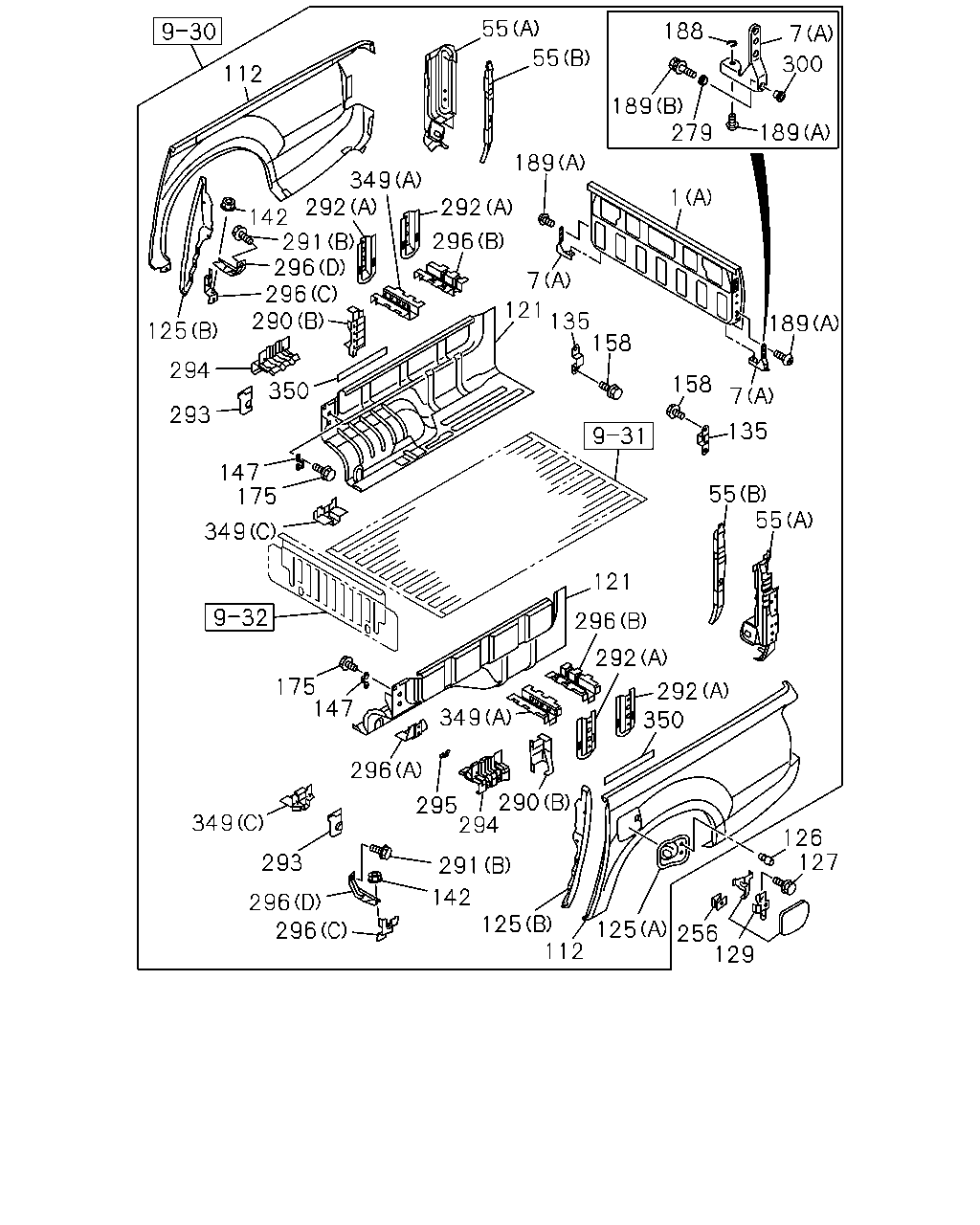

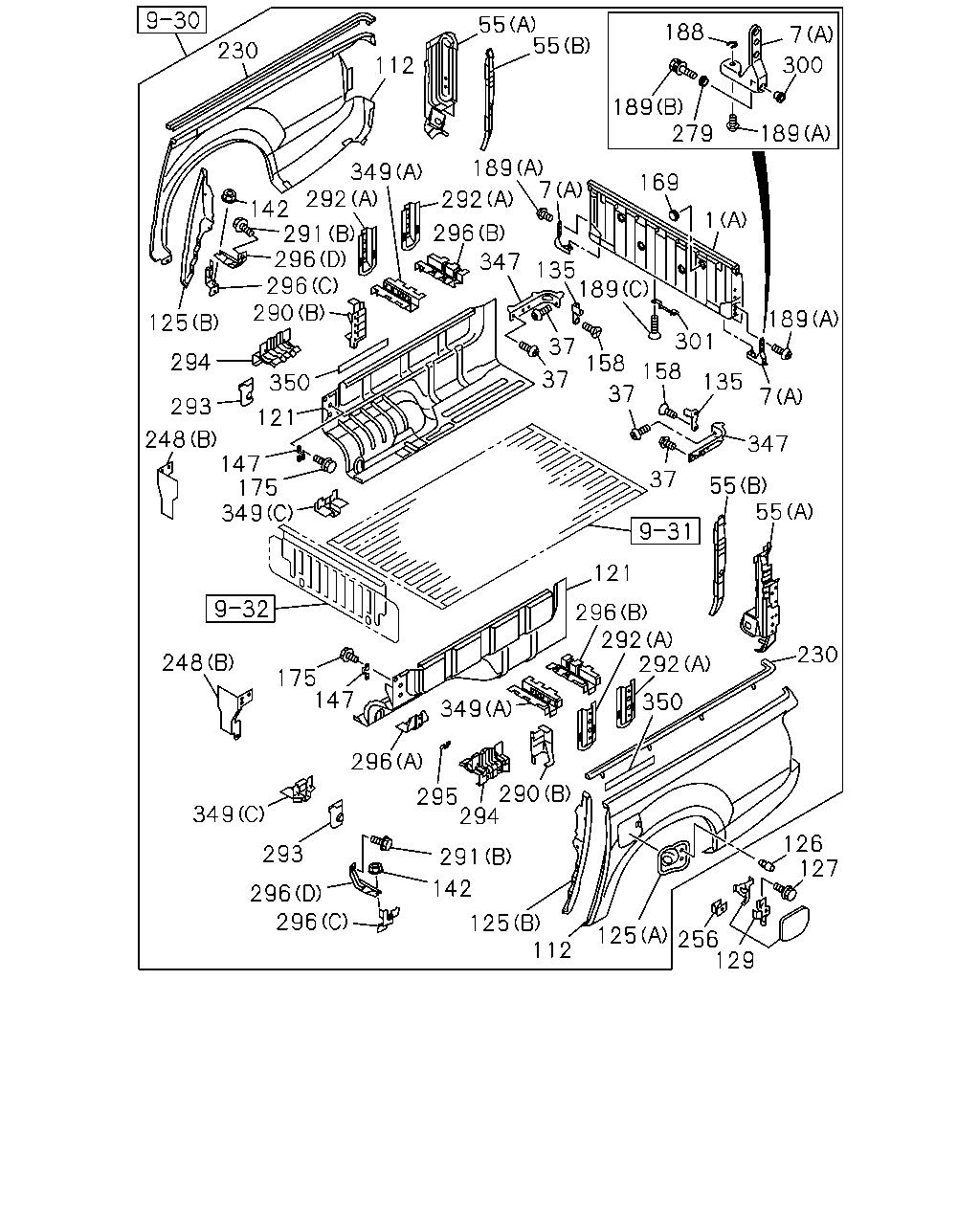

135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1409- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1409- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1409- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1409- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1409- ● ●

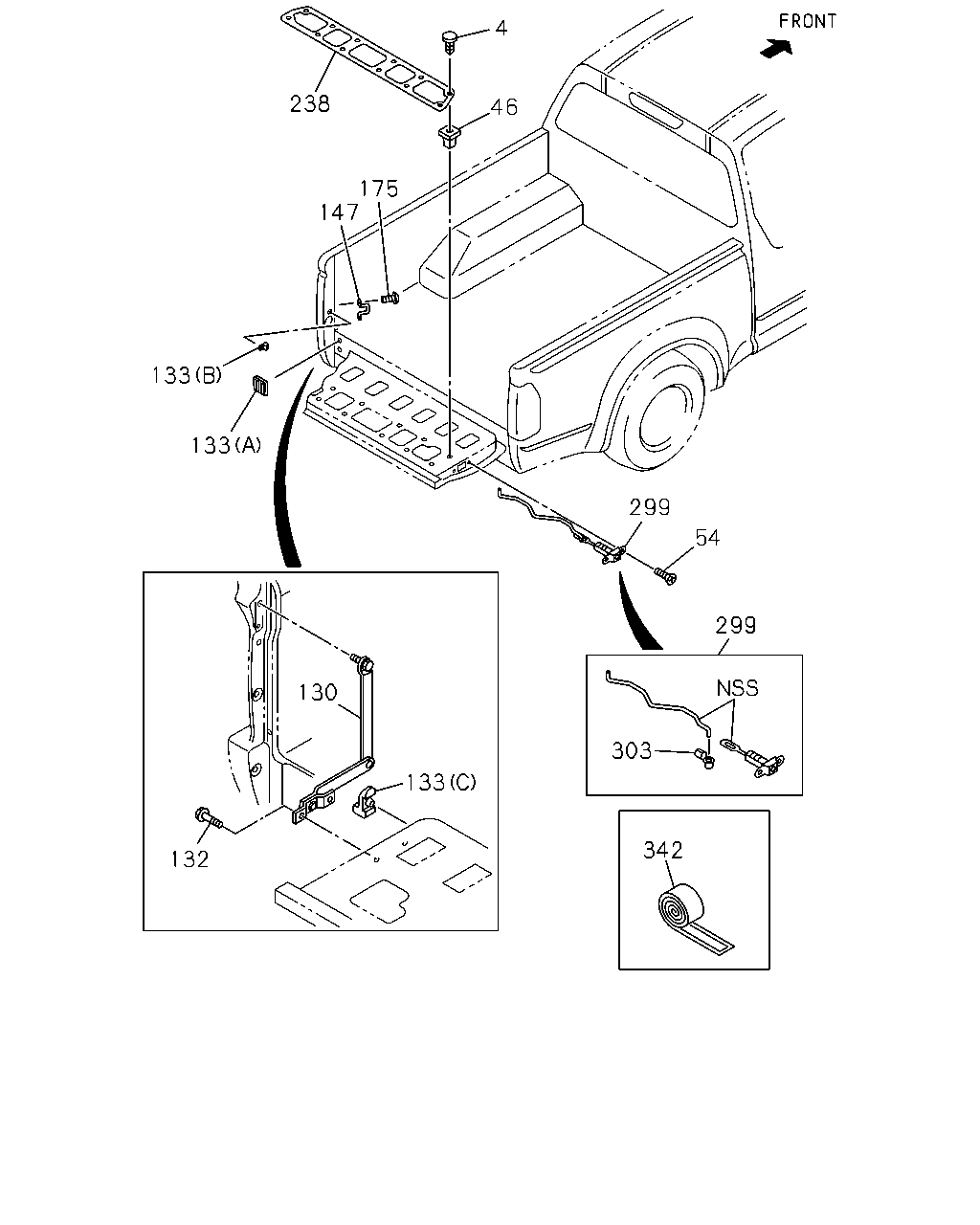

147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1409- ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1409- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 17.208 M8X22 		8-98050-437-0 04 1 1409- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 M8X22 		8-98050-437-0 04 1 1409- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1409- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1409- ● ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1409- ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1409- ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1409- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1409- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1409- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1409-1411 ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1409-1411 ●
189 17.208 BOLT; HINGE,RR GATE
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1409-1411 ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1412- ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1412- ●
189 17.208 BOLT; HINGE,RR GATE
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1412- ●
189 17.208 BOLT; HINGE,RR GATE
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1412- ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1409- ● ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1409- ● ● ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1409-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1409-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-543-0 01 1 1409- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-544-0 01 1 1409- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 08 1 1409- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 04 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 04 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 04 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-134-1 01 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98156-912-0 01 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-156-0 02 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-156-0 02 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-611-2 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-611-2 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-611-2 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-612-2 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-612-2 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-612-2 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-610-1 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-611-1 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) 		8-98104-405-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-405-3 01 1 1409- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) 		8-98104-406-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-406-3 01 1 1409- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1409- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1409- ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1409- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-666-1 01 1 1409- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1409- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1409- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1409- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-642-3 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-642-3 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-643-3 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-643-3 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-648-3 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-649-3 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-640-5 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-641-5 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-647-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 01 1 1409- ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1409- ● ● ● ● ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-619-0 02 1 1409- ● ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-619-0 01 1 1409- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-619-0 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1409- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 02 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-613-2 04 1 1409- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-650-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-650-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-650-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-651-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-651-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-651-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-613-2 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-613-2 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 01 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1409- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> INNER 		8-98192-940-0 02 1 1409- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> INNER 		8-98192-940-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) INNER 		8-98192-940-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) INNER 		8-98192-940-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 01 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 01 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) INNER 		8-98192-940-0 01 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) INNER 		8-98192-940-0 01 1 1409- ●
çizim 449261
7 300 189 279 189 188 55 55 112 230 349 292 142 291 296 296 290 125 294 293 248 147 175 349 248 175 147 296 349 293 296 296 142 125 112 125 256 129 127 126 291 294 295 290 349 350 292 292 296 121 230 55 55 37 347 7 135 158 37 158 37 37 189 135 347 301 189 1 169 7 189 292 296 350 121
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98198-539-2 01 1 1409- ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98198-539-2 01 1 1409- ●
1 17.185 GATE ASM; RR
REAR BODY FLAT BED(E39) (B) 		8-98165-718-1 01 1 1409- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1409-1411 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-362-9 01 1 1409-1411 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. CONGO EQUIPMENT(CDF) (A) 		8-98104-362-9 01 1 1409-1411 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. CONGO EQUIPMENT(CDF),OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1412- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-362-9 01 1 1412- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. CONGO EQUIPMENT(CDF) (A) 		8-98104-362-9 01 1 1412- ●
1 17.185 GATE ASM; RR
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-332-9 01 1 1409-1411 ●
1 17.185 GATE ASM; RR
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-332-9 01 1 1412- ●
1 17.185 GATE ASM; RR
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-332-9 01 1 1412- ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-948-0 01 1 1409- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-949-0 01 1 1409- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 03 1 1409- ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1409-1505 ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1409-1505 ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1409- ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-262-5 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-262-5 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-264-5 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-264-5 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-380-4 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-380-4 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-381-4 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-381-4 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1409- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) 		8-98122-518-7 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-518-7 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) 		8-98122-519-9 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-519-9 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-553-8 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-555-6 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-977-5 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-978-6 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-560-9 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-560-9 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-561-7 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-561-7 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-551-8 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-552-6 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-558-9 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98205-935-1 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-927-6 01 1 1409- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-928-5 01 1 1409- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-979-3 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-980-3 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-294-7 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-294-7 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-296-7 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-296-7 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-316-6 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-318-6 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-608-4 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-609-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-180-1 01 1 1409- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-181-1 01 1 1409- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-234-7 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-234-7 01 1 1409- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-599-0 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-600-0 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-189-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-189-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-192-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-192-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-868-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-869-4 01 1 1409- ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1409- ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1409- ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98103-298-7 01 1 1409- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-298-7 01 1 1409- ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1409- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-656-2 01 1 1409- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1409- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-657-2 01 1 1409- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1409- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1409- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1409- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1409- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1409- ● ●
142 17.505 NUT
REAR BODY DBL WALL CTR PULL(E63) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1409- ● ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1409- ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1409- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 17.208 M8X22 		8-98050-437-0 04 1 1409- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 M8X22 		8-98050-437-0 04 1 1409- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1409- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1409- ● ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-110-0 04 1 1409- ● ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-97166-110-0 04 1 1409- ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1409- ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1409- ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1409- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1409- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1409- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1409-1411 ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1409-1411 ●
189 17.208 BOLT; HINGE,RR GATE
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1409-1411 ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1412- ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1412- ●
189 17.208 BOLT; HINGE,RR GATE
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1412- ●
189 17.208 BOLT; HINGE,RR GATE
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1412- ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-565-2 01 1 1409- ● ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-566-2 01 1 1409- ● ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-983-1 01 1 1409- ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-984-1 01 1 1409- ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-333-0 01 1 1409- ● ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-336-0 01 1 1409- ● ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-590-0 01 1 1409- ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-591-0 01 1 1409- ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1409- ● ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1409- ● ● ● ● ●

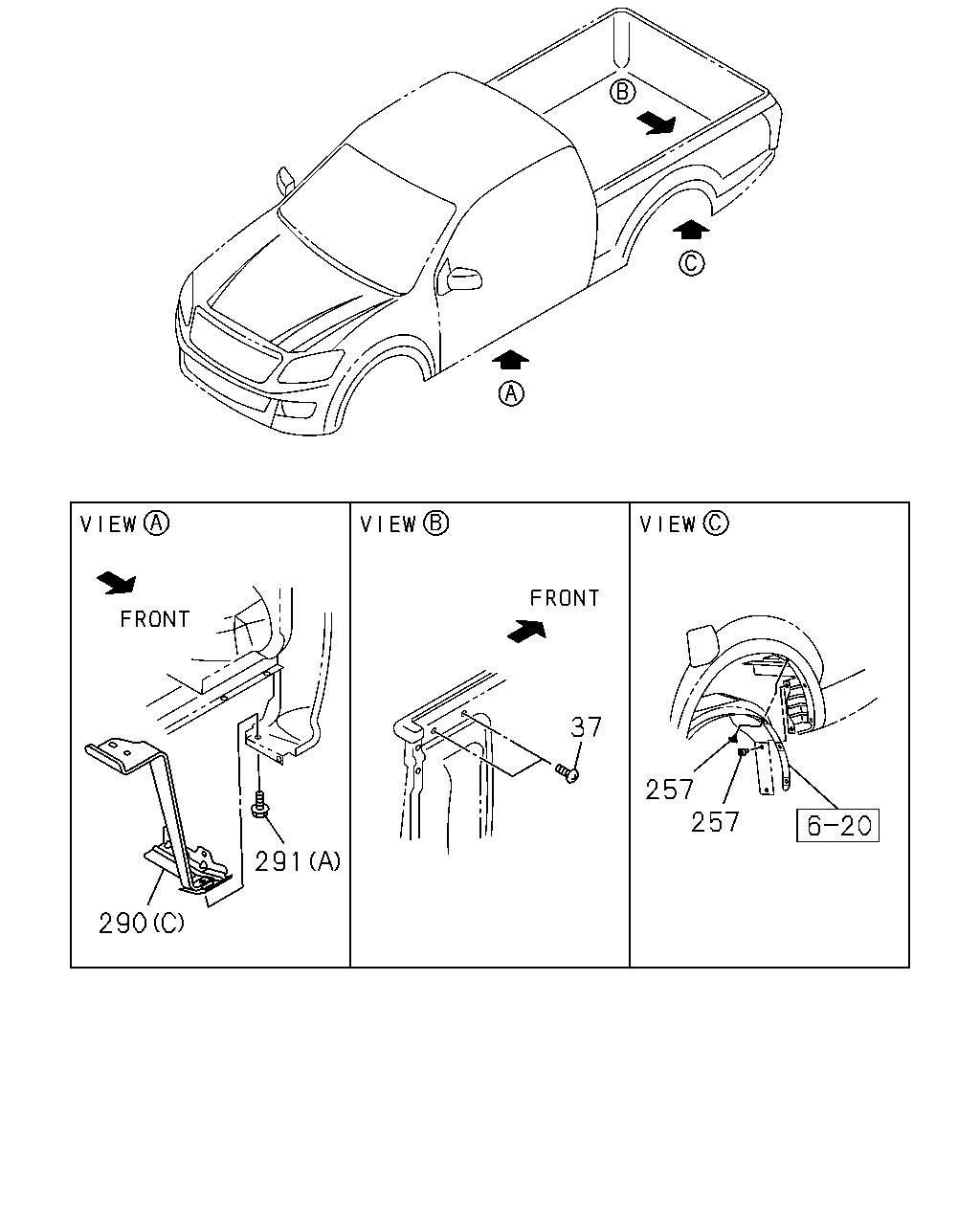

290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1409-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1409-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-543-0 01 1 1409- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-544-0 01 1 1409- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1506-1506 ● ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1506-1506 ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 01.540 (B) M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1409- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 08 1 1409- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 04 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 04 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 04 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-134-1 01 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98156-912-0 01 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-156-0 02 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-156-0 02 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-611-2 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-611-2 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-611-2 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-612-2 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-612-2 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-612-2 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-610-1 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-611-1 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) 		8-98104-405-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-405-3 01 1 1409- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) 		8-98104-406-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-406-3 01 1 1409- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1409- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1409- ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1409- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-666-1 01 1 1409- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1409- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1409- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1409- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-642-3 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-642-3 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-643-3 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-643-3 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-648-3 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-649-3 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-640-5 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-641-5 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-647-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 01 1 1409- ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1409- ● ● ● ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98053-899-0 01 1 1409-1411 ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98053-899-0 01 1 1409-1411 ●
301 17.204 SUPPORT; TAIL GATE
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) 		8-98053-899-0 01 1 1409-1411 ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98053-899-0 01 1 1412- ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98053-899-0 01 1 1412- ●
301 17.204 SUPPORT; TAIL GATE
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98053-899-0 01 1 1412- ●
301 17.204 SUPPORT; TAIL GATE
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) 		8-98053-899-0 01 1 1412- ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-603-1 01 1 1409- ● ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-603-1 01 1 1409- ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-604-1 01 1 1409- ● ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-604-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1409- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 02 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-613-2 04 1 1409- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-650-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-650-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-650-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-651-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-651-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-651-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-613-2 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-613-2 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 01 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1409- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> INNER 		8-98192-940-0 02 1 1409- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> INNER 		8-98192-940-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) INNER 		8-98192-940-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) INNER 		8-98192-940-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 01 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 01 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) INNER 		8-98192-940-0 01 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) INNER 		8-98192-940-0 01 1 1409- ●
çizim 449267
55 112 55 189 292 349 292 290 294 296 292 349 248 292 349 290 121 349 248 349 292 125 112 125 256 129 127 126 290 292 230 350 296 290 295 348 294 349 292 292 296 55 347 37 135 55 189 7 301 158 158 37 37 37 189 135 347 296 7 121 348 350 169 279 189 300 7 188 189 1 230 125
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98198-539-2 01 1 1409- ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98198-539-2 01 1 1409- ●
1 17.185 GATE ASM; RR
REAR BODY FLAT BED(E39) (B) 		8-98165-718-1 01 1 1409- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1409-1411 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-362-9 01 1 1409-1411 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. CONGO EQUIPMENT(CDF) (A) 		8-98104-362-9 01 1 1409-1411 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. CONGO EQUIPMENT(CDF),OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1412- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-362-9 01 1 1412- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. CONGO EQUIPMENT(CDF) (A) 		8-98104-362-9 01 1 1412- ●
1 17.185 GATE ASM; RR
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-332-9 01 1 1409-1411 ●
1 17.185 GATE ASM; RR
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-332-9 01 1 1412- ●
1 17.185 GATE ASM; RR
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-332-9 01 1 1412- ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-948-0 01 1 1409- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-949-0 01 1 1409- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 03 1 1409- ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1409-1505 ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1409-1505 ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1409- ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-262-5 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-262-5 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-264-5 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-264-5 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-380-4 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-380-4 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-381-4 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-381-4 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1409- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) 		8-98122-518-7 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-518-7 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) 		8-98122-519-9 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-519-9 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-553-8 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-555-6 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-977-5 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-978-6 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-560-9 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-560-9 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-561-7 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-561-7 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-551-8 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-552-6 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-558-9 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98205-935-1 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-927-6 01 1 1409- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-928-5 01 1 1409- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-979-3 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-980-3 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-294-7 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-294-7 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-296-7 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-296-7 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-316-6 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-318-6 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-608-4 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-609-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-180-1 01 1 1409- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-181-1 01 1 1409- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-234-7 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-234-7 01 1 1409- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-599-0 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-600-0 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-189-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-189-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-192-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-192-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-868-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-869-4 01 1 1409- ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1409- ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1409- ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98103-298-7 01 1 1409- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-298-7 01 1 1409- ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1409- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-656-2 01 1 1409- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1409- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-657-2 01 1 1409- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1409- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1409- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1409- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1409- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1409- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 17.208 M8X22 		8-98050-437-0 04 1 1409- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 M8X22 		8-98050-437-0 04 1 1409- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1409- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1409- ● ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-110-0 04 1 1409- ● ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-97166-110-0 04 1 1409- ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1409- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1409- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1409- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1409-1411 ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1409-1411 ●
189 17.208 BOLT; HINGE,RR GATE
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1409-1411 ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1412- ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1412- ●
189 17.208 BOLT; HINGE,RR GATE
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1412- ●
189 17.208 BOLT; HINGE,RR GATE
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1412- ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-565-2 01 1 1409- ● ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-566-2 01 1 1409- ● ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-983-1 01 1 1409- ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-984-1 01 1 1409- ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-333-0 01 1 1409- ● ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-336-0 01 1 1409- ● ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-590-0 01 1 1409- ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-591-0 01 1 1409- ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1409- ● ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1409- ● ● ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1409-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1409-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-543-0 01 1 1409- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-544-0 01 1 1409- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 08 1 1409- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 04 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 04 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 04 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-134-1 01 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98156-912-0 01 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-156-0 02 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-156-0 02 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) 		8-98104-405-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-405-3 01 1 1409- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) 		8-98104-406-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-406-3 01 1 1409- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1409- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1409- ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1409- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-666-1 01 1 1409- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1409- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1409- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1409- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-642-3 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-642-3 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-643-3 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-643-3 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-648-3 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-649-3 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-640-5 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-641-5 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-647-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 01 1 1409- ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1409- ● ● ● ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98053-899-0 01 1 1409-1411 ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98053-899-0 01 1 1409-1411 ●
301 17.204 SUPPORT; TAIL GATE
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) 		8-98053-899-0 01 1 1409-1411 ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98053-899-0 01 1 1412- ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98053-899-0 01 1 1412- ●
301 17.204 SUPPORT; TAIL GATE
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98053-899-0 01 1 1412- ●
301 17.204 SUPPORT; TAIL GATE
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) 		8-98053-899-0 01 1 1412- ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-603-1 01 1 1409- ● ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-603-1 01 1 1409- ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-604-1 01 1 1409- ● ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-604-1 01 1 1409- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-619-0 02 1 1409- ● ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-619-0 01 1 1409- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-619-0 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1409- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 02 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-613-2 04 1 1409- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-650-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-650-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-650-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-651-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-651-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-651-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-613-2 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-613-2 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 01 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1409- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> INNER 		8-98192-940-0 02 1 1409- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> INNER 		8-98192-940-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) INNER 		8-98192-940-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) INNER 		8-98192-940-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 01 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 01 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) INNER 		8-98192-940-0 01 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) INNER 		8-98192-940-0 01 1 1409- ●
çizim 449725
7 188 189 279 189 300 55 55 112 349 292 142 291 296 296 290 125 294 293 147 175 349 175 147 296 349 293 296 296 125 142 291 294 295 349 121 296 292 292 350 112 125 256 129 127 126 55 55 135 7 158 158 135 121 7 189 1 189 292 296 290 350
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98198-539-2 01 1 1409- ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98198-539-2 01 1 1409- ●
1 17.185 GATE ASM; RR
REAR BODY FLAT BED(E39) (B) 		8-98165-718-1 01 1 1409- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1409-1411 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-362-9 01 1 1409-1411 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. CONGO EQUIPMENT(CDF) (A) 		8-98104-362-9 01 1 1409-1411 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. CONGO EQUIPMENT(CDF),OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1412- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-362-9 01 1 1412- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. CONGO EQUIPMENT(CDF) (A) 		8-98104-362-9 01 1 1412- ●
1 17.185 GATE ASM; RR
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-332-9 01 1 1409-1411 ●
1 17.185 GATE ASM; RR
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-332-9 01 1 1412- ●
1 17.185 GATE ASM; RR
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-332-9 01 1 1412- ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-948-0 01 1 1409- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-949-0 01 1 1409- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 03 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-262-5 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-262-5 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-264-5 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-264-5 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-380-4 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-380-4 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-381-4 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-381-4 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1409- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1409- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1409- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) 		8-98122-518-7 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-518-7 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) 		8-98122-519-9 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-519-9 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-553-8 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-555-6 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-977-5 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-978-6 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-560-9 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-560-9 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-561-7 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-561-7 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-551-8 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-552-6 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-558-9 01 1 1409- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98205-935-1 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-927-6 01 1 1409- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-928-5 01 1 1409- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-979-3 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-980-3 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-294-7 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-294-7 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-296-7 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-296-7 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-316-6 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-318-6 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-608-4 01 1 1409- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-609-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-180-1 01 1 1409- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-181-1 01 1 1409- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-234-7 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-234-7 01 1 1409- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-599-0 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-600-0 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-189-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-189-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-192-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-192-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-868-4 01 1 1409- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-869-4 01 1 1409- ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1409- ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1409- ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98103-298-7 01 1 1409- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-298-7 01 1 1409- ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1409- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-656-2 01 1 1409- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1409- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-657-2 01 1 1409- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1409- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1409- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1409- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1409- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1409- ● ●
142 17.505 NUT
REAR BODY DBL WALL CTR PULL(E63) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1409- ● ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1409- ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1409- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 17.208 M8X22 		8-98050-437-0 04 1 1409- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 M8X22 		8-98050-437-0 04 1 1409- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1409- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1409- ● ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1409- ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1409- ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1409- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1409- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1409- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1409-1411 ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1409-1411 ●
189 17.208 BOLT; HINGE,RR GATE
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1409-1411 ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1412- ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1412- ●
189 17.208 BOLT; HINGE,RR GATE
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1412- ●
189 17.208 BOLT; HINGE,RR GATE
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1412- ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1409- ● ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1409- ● ● ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1409-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1409-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-543-0 01 1 1409- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-544-0 01 1 1409- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1506-1506 ● ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1506-1506 ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 01.540 (B) M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1409- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 08 1 1409- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 04 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 04 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 04 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-134-1 01 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98156-912-0 01 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-156-0 02 1 1409- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-156-0 02 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-611-2 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-611-2 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-611-2 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-612-2 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-612-2 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-612-2 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-610-1 01 1 1409- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-611-1 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) 		8-98104-405-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-405-3 01 1 1409- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) 		8-98104-406-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-406-3 01 1 1409- ● ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1409- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1409- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1409- ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1409- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-666-1 01 1 1409- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1409- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1409- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1409- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-642-3 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-642-3 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-643-3 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-643-3 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-648-3 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-649-3 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-640-5 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-641-5 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1409-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-647-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 01 1 1409- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 01 1 1409- ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1409- ● ● ● ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1409- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 02 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-613-2 04 1 1409- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-650-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-650-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-650-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98139-651-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98139-651-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-651-1 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-613-2 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-613-2 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 01 1 1409- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 01 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1409- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> INNER 		8-98192-940-0 02 1 1409- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> INNER 		8-98192-940-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) INNER 		8-98192-940-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) INNER 		8-98192-940-0 02 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 01 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 01 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) INNER 		8-98192-940-0 01 1 1409- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) INNER 		8-98192-940-0 01 1 1409- ●
çizim 451707
4 46 238 175 147 133 133 299 54 299 303 342 133 130 132
BalonParca AdiParca NoAdetTipApplied Date A B C D E
4 17.185 SCREW; PANEL,RR GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M4X10 		8-97043-528-0 12 1 1409- ●
4 17.185 SCREW; PANEL,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M4X10 		8-97043-528-0 12 1 1409- ● ●
46 17.507 GROMMET; SCREW,TAIL GATE HOLE CO
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98165-002-2 12 1 1409- ●
46 17.507 GROMMET; SCREW,TAIL GATE HOLE CO
REAR BODY DBL WALL CTR PULL(E63) 		8-98165-002-2 12 1 1409- ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M8X20 		8-97247-699-0 04 1 1409- ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) M8X20 		8-97247-699-0 04 1 1409- ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-461-1 01 1 1409- ● ● ● ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-462-1 01 1 1409- ● ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1409- ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97302-185-2 02 1 1409- ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98110-231-2 02 1 1409- ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98126-088-1 01 1 1409- ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),SALES PACKAGE SPORTY <XK0> (A) 		8-98126-088-1 01 1 1409- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98126-089-1 01 1 1409- ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),SALES PACKAGE SPORTY <XK0> (A) 		8-98126-089-1 01 1 1409- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),SALES PACKAGE SPORTY <XK0>,OUTER ROPE HOOKS<7MZ> (A) 		8-98134-726-1 01 1 1409- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98134-726-1 01 1 1409- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),SALES PACKAGE SPORTY <XK0> (A) 		8-98134-726-1 01 1 1409- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),SALES PACKAGE SPORTY <XK0>,OUTER ROPE HOOKS<7MZ> (A) 		8-98134-727-1 01 1 1409- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98134-727-1 01 1 1409- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),SALES PACKAGE SPORTY <XK0> (A) 		8-98134-727-1 01 1 1409- ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1409- ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1409- ● ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1409- ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1409- ● ●
238 17.185 COVER; RR GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98181-076-2 01 1 1409- ●
238 17.185 COVER; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98181-076-2 01 1 1409- ● ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-971-3 01 1 1409- ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98102-971-3 01 1 1409- ● ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-972-3 01 1 1409- ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98102-972-3 01 1 1409- ● ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97381-276-0 01 1 1409- ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97381-276-0 01 1 1409- ● ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97381-277-0 01 1 1409- ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97381-277-0 01 1 1409- ● ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) 		8-98139-776-4 01 1 1409- ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98139-776-4 01 1 1409- ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98139-776-4 01 1 1409- ● ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98139-776-4 01 1 1409- ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98139-775-4 01 1 1409- ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98139-775-4 01 1 1409- ●
çizim 451710
37 291 290 257 257
BalonParca AdiParca NoAdetTipApplied Date A B C D E
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1409-1505 ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1409-1505 ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1409- ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1409- ● ●
257 17.505 RIVET
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) 17.490 		8-98057-864-0 04 1 1409- ●
257 17.505 RIVET
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 17.490 		8-98057-864-0 04 1 1409- ●
257 17.505 RIVET
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.490 		8-98057-864-0 04 1 1409- ●
257 17.505 RIVET
REAR BODY DBL WALL CTR PULL(E63) 17.490 		8-98057-864-0 04 1 1409- ●
257 17.505 RIVET
REAR BODY DBL WALL CTR PULL(E63) 17.490 		8-98057-864-0 02 1 1409- ●
257 17.505 RIVET
REAR BODY DBL WALL CTR PULL(E63) 17.490 		8-98057-864-0 02 1 1409- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1409-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1409-1505 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1506- ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-117-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> HIGH RIDE SUSPENSION(7YC) (C) 		8-98187-118-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-543-0 01 1 1409- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98126-544-0 01 1 1409- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1409-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506- ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1409-1505 ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1506-1506 ● ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1506-1506 ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 01.540 (B) M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1409- ● ●
çizim 451741
1 11 11 18 19 20 108 65 287 75 65 277 13 108 28 27 27 65 13 11 9 14 5 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98198-539-2 01 1 1409- ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98198-539-2 01 1 1409- ●
1 17.185 GATE ASM; RR
REAR BODY FLAT BED(E39) (B) 		8-98165-718-1 01 1 1409- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1409-1411 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-362-9 01 1 1409-1411 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. CONGO EQUIPMENT(CDF) (A) 		8-98104-362-9 01 1 1409-1411 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. CONGO EQUIPMENT(CDF),OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1412- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-362-9 01 1 1412- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. CONGO EQUIPMENT(CDF) (A) 		8-98104-362-9 01 1 1412- ●
1 17.185 GATE ASM; RR
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-332-9 01 1 1409-1411 ●
1 17.185 GATE ASM; RR
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-332-9 01 1 1412- ●
1 17.185 GATE ASM; RR
CONGO EQUIPMENT(CDF) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-332-9 01 1 1412- ●
5 17.204 NUT; LATCH HANDLE
REAR BODY FLAT BED(E39) 04.439 M12 		0-91111-512-0 04 1 1409- ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-948-0 01 1 1409- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-949-0 01 1 1409- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 03 1 1409- ●
9 17.204 HANDLE; LATCH,RR GATE
REAR BODY FLAT BED(E39) 		8-98171-141-0 01 1 1409- ●
9 17.204 HANDLE; LATCH,RR GATE
REAR BODY FLAT BED(E39) 		8-98171-142-0 01 1 1409- ●
11 17.198 LOCK ASM; VERTICAL
REAR BODY FLAT BED(E39) 		8-98166-532-0 01 1 1409- ●
11 17.198 LOCK ASM; VERTICAL
REAR BODY FLAT BED(E39) 		8-98166-533-0 01 1 1409- ●
13 17.615 RUBBER; GATE HANDLE,RR BODY
REAR BODY FLAT BED(E39) (A) 		8-97354-210-0 02 1 1409- ●
13 17.615 RUBBER; GATE HANDLE,RR BODY
REAR BODY FLAT BED(E39) (B) 		8-97354-213-0 02 1 1409- ●
14 17.204 WASHER; PL,HANDLE
REAR BODY FLAT BED(E39) ID=12.5 		0-91614-512-0 02 1 1409- ●
18 17.198 PIN; VERTICAL LOCK
REAR BODY FLAT BED(E39) 		8-97353-379-0 02 1 1409- ●
19 17.198 PIN; SPLIT,VERTICAL LOCK
REAR BODY FLAT BED(E39) 04.439 OD=2.8 L=18 		0-81123-018-0 02 1 1409- ●
20 17.198 WASHER; PL,VERTICAL LOCK
REAR BODY FLAT BED(E39) ID=10.5 		0-91610-510-0 02 1 1409- ●
27 17.208 PIN; HINGE,SIDE GATE
REAR BODY FLAT BED(E39) (A) 		8-98171-884-0 11 1 1409- ●
27 17.208 PIN; HINGE,SIDE GATE
REAR BODY FLAT BED(E39) (B) ID=6 		9-09185-006-0 11 1 1409- ●
28 17.208 HINGE; UPR,SIDE GATE
REAR BODY FLAT BED(E39) 		8-98171-876-0 08 1 1409- ●
65 17.490 RUBBER; BUMPER
REAR BODY FLAT BED(E39) (A) 		8-97354-204-0 06 1 1409- ●
65 17.490 RUBBER; BUMPER
REAR BODY FLAT BED(E39) (B) 		8-97354-205-0 02 1 1409- ●
65 17.490 RUBBER; BUMPER
REAR BODY FLAT BED(E39) (C) 		8-97354-209-0 02 1 1409- ●
75 17.490 WASHER; PL
REAR BODY FLAT BED(E39) 00.413 ID=6.4 		0-91610-606-0 06 1 1409- ●
108 17.505 GATE ASM; SIDE
REAR BODY FLAT BED(E39) 		8-98172-551-2 01 1 1409- ●
108 17.505 GATE ASM; SIDE
REAR BODY FLAT BED(E39) 		8-98172-554-2 01 1 1409- ●
277 17.505 BOLT; CUSHION
REAR BODY FLAT BED(E39) 17.202 M6X30 W/PL WASHER 		0-36210-630-0 06 1 1409- ●
287 17.505 NUT; CUSHION
REAR BODY FLAT BED(E39) 		8-98171-949-0 06 1 1409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
