8-90 — RADIO AND TV (#151890) — 74 parça

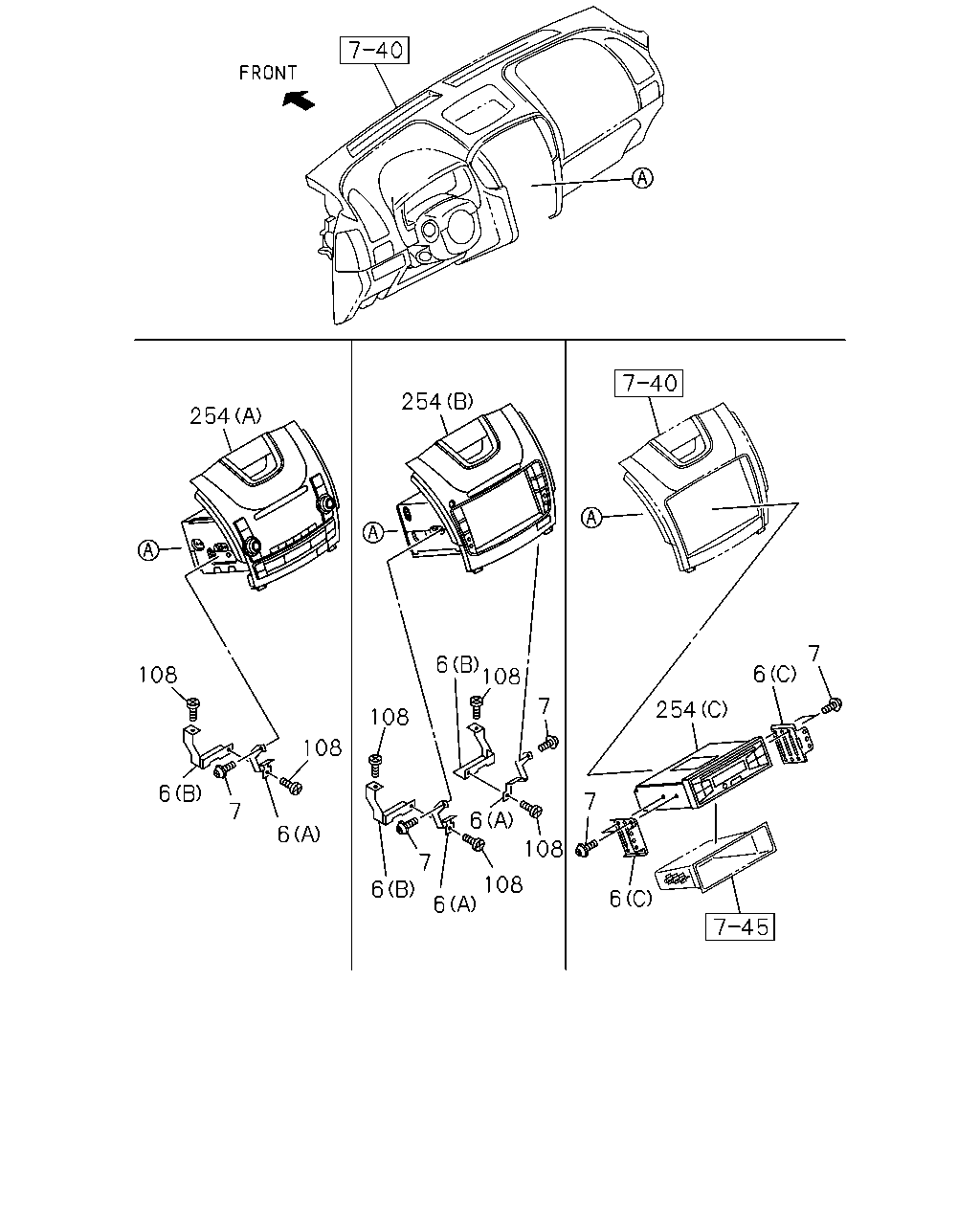

254 108 6 7 6 108 254 108 6 6 6 7 108 7 108 6 108 254 7 6 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	09.645 BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (A)	8-98102-186-2	01	1	1504-	●	●	●
6	09.645 BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (B)	8-98102-187-3	01	1	1504-	●	●	●
6	09.645 BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (A)	8-98109-822-2	01	1	1504-	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C) (C)	8-98102-188-2	02	1	1409-	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (B)	8-98106-390-3	01	1	1409-1503	●	●	●
6	09.645 BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (B)	8-98106-390-3	01	1	1504-	●	●	●
6	09.645 BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (A)	8-98227-139-1	01	1	1409-	●	●	●
7	09.650 SCREW; RADIO AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	1504-	●	●	●
7	09.650 SCREW; RADIO AM/FM,CLOCK,CD PLAYER(U1C) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	1409-	●	●	●	●	●
7	09.650 SCREW; RADIO AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1409-	●	●	●
108	09.645 SCREW; BRKT AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) 08.083 M5X16 TAPPING	8-98167-449-0	04	1	1504-	●	●	●
108	09.645 SCREW; BRKT AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 08.083 M5X16 TAPPING	8-98167-449-0	02	1	1409-	●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (B)	8-98222-317-3	01	1	1504-	●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,CD PLAYER(U1C) (C)	8-98219-844-3	01	1	1409-	●	●	●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. TUNER BAND LATIN AMERICA<7DM> (A)	8-98243-602-2	01	1	1409-1411	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF),ISRAEL EQUIPMENT(2G1) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. TUNER BAND LATIN AMERICA<7DM> (A)	8-98243-602-2	01	1	1409-1411			●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF),ISRAEL EQUIPMENT(2G1) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. TUNER BAND LATIN AMERICA<7DM> (A)	8-98243-602-2	01	1	1412-	●		●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>, TUNER BAND LATIN AMERICA<7DM> (A)	8-98241-357-2	01	1	1409-1411	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF),ISRAEL EQUIPMENT(2G1) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>, TUNER BAND LATIN AMERICA<7DM> (A)	8-98241-357-2	01	1	1409-1411			●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF),ISRAEL EQUIPMENT(2G1) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>, TUNER BAND LATIN AMERICA<7DM> (A)	8-98241-357-2	01	1	1412-	●		●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> TUNER BAND LATIN AMERICA<7DM> (A)	8-98243-603-2	01	1	1409-	●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1),TUNER BAND LATIN AMERICA<7DM> (A)	8-98219-845-3	01	1	1409-1411	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. TUNER BAND LATIN AMERICA<7DM> (A)	8-98219-845-3	01	1	1409-1411		●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF),ISRAEL EQUIPMENT(2G1),TUNER BAND LATIN AMERICA<7DM> (A)	8-98219-845-3	01	1	1409-1411			●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF),ISRAEL EQUIPMENT(2G1),TUNER BAND LATIN AMERICA<7DM> (A)	8-98219-845-3	01	1	1412-	●		●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. TUNER BAND LATIN AMERICA<7DM> (A)	8-98219-845-3	01	1	1412-		●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) TUNER BAND LATIN AMERICA<7DM> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> (A)	8-98241-358-2	01	1	1409-	●	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. TURKEY EQUIPMENT(B11),6-SPEAKER SYSTEM CUSTOM<UW6>,ISRAEL EQUIPMENT(2G1),TUNER BAND LATIN AMERICA<7DM> (A)	8-98228-730-2	01	1	1409-1411	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>, TUNER BAND LATIN AMERICA<7DM> (A)	8-98228-730-2	01	1	1409-1411		●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF),6-SPEAKER SYSTEM CUSTOM<UW6> ,ISRAEL EQUIPMENT(2G1),TUNER BAND LATIN AMERICA<7DM> (A)	8-98228-730-2	01	1	1409-1411			●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF),6-SPEAKER SYSTEM CUSTOM<UW6> ,ISRAEL EQUIPMENT(2G1),TUNER BAND LATIN AMERICA<7DM> (A)	8-98228-730-2	01	1	1412-	●		●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>, TUNER BAND LATIN AMERICA<7DM> (A)	8-98228-730-2	01	1	1412-		●

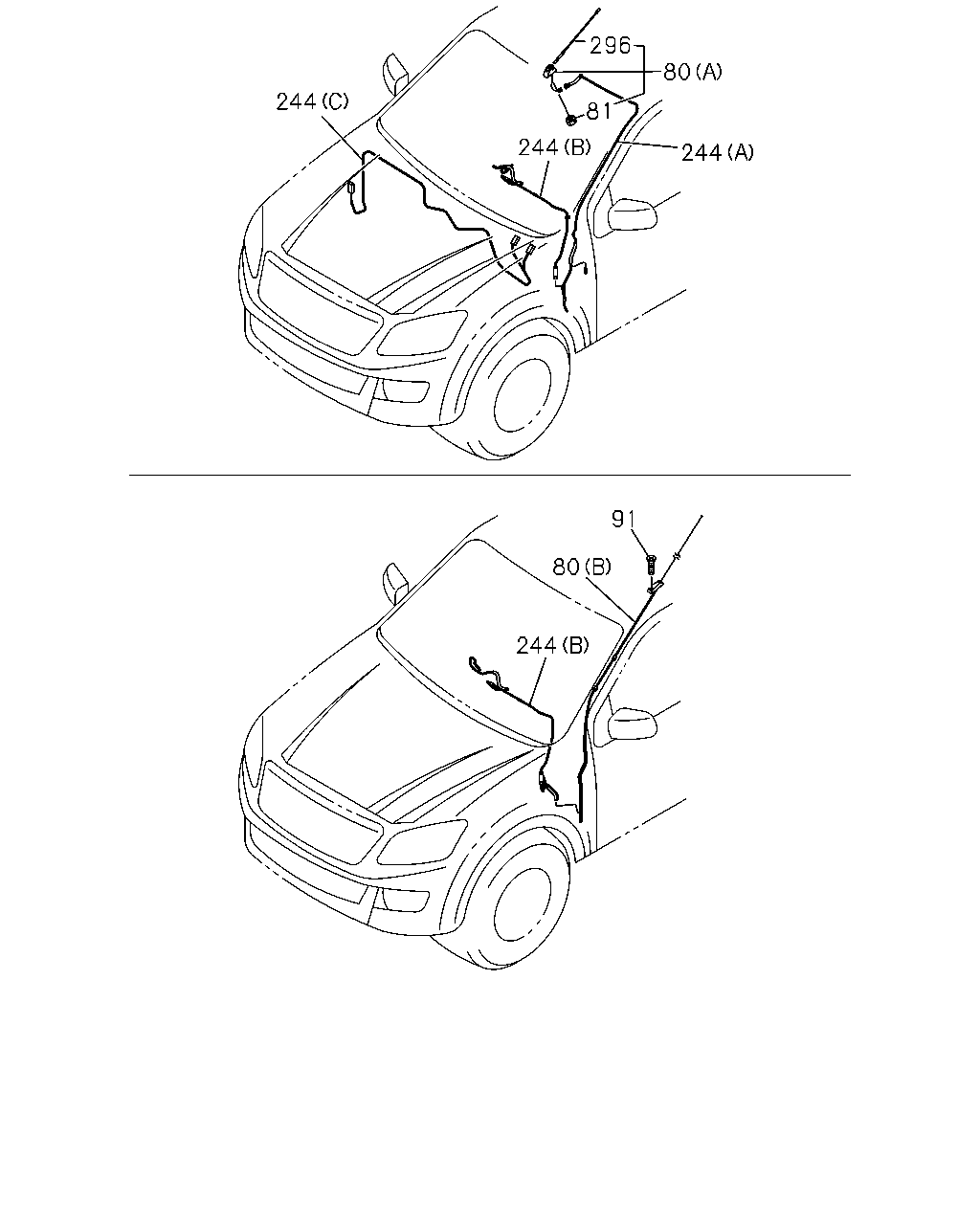

244 296 81 244 80 244 91 80 244

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
80	09.645 ANTENNA RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. CONGO EQUIPMENT(CDF) (B)	8-98064-703-2	01	1	1409-1411				●
80	09.645 ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. ROOF RADIO ANTENNA<U71> (B)	8-98064-703-2	01	1	1409-1411	●	●
80	09.645 ANTENNA RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B)	8-98064-703-2	01	1	1409-1411					●
80	09.645 ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. CONGO EQUIPMENT(CDF),ROOF RADIO ANTENNA<U71> (B)	8-98064-703-2	01	1	1409-1411			●
80	09.645 ANTENNA RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. CONGO EQUIPMENT(CDF) (B)	8-98064-703-2	01	1	1412-				●	●
80	09.645 ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. CONGO EQUIPMENT(CDF),ROOF RADIO ANTENNA<U71> (B)	8-98064-703-2	01	1	1412-	●		●
80	09.645 ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. ROOF RADIO ANTENNA<U71> (B)	8-98064-703-2	01	1	1412-		●
80	09.645 ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) ROOF RADIO ANTENNA<U71> (A)	8-98053-048-0	01	1	1409-1503	●	●	●
80	09.645 ANTENNA ROOF RADIO ANTENNA<U71> (A)	8-98053-048-0	01	1	1504-	●	●	●
81	09.647 NUT; ANTENNA POLE AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) ROOF RADIO ANTENNA<U71>	8-98165-971-0	01	1	1409-1503	●	●	●
81	09.647 NUT; ANTENNA POLE ROOF RADIO ANTENNA<U71>	8-98165-971-0	01	1	1504-	●	●	●
91	09.663 BOLT; ANTENNA RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. CONGO EQUIPMENT(CDF) M5X16	8-97375-569-0	02	1	1409-1411				●
91	09.663 BOLT; ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. ROOF RADIO ANTENNA<U71> M5X16	8-97375-569-0	02	1	1409-1411	●	●
91	09.663 BOLT; ANTENNA RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) M5X16	8-97375-569-0	02	1	1409-1411					●
91	09.663 BOLT; ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. CONGO EQUIPMENT(CDF),ROOF RADIO ANTENNA<U71> M5X16	8-97375-569-0	02	1	1409-1411			●
91	09.663 BOLT; ANTENNA RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. CONGO EQUIPMENT(CDF) M5X16	8-97375-569-0	02	1	1412-				●	●
91	09.663 BOLT; ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. CONGO EQUIPMENT(CDF),ROOF RADIO ANTENNA<U71> M5X16	8-97375-569-0	02	1	1412-	●		●
91	09.663 BOLT; ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. ROOF RADIO ANTENNA<U71> M5X16	8-97375-569-0	02	1	1412-		●
244	09.647 CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) ROOF RADIO ANTENNA<U71> (C)	8-98227-542-0	01	1	1504-	●	●	●
244	09.647 CABLE; FEEDER RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B)	8-98053-051-1	01	1	1409-				●	●
244	09.647 CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) (B)	8-98053-051-1	01	1	1409-	●	●	●
244	09.647 CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) ROOF RADIO ANTENNA<U71> (A)	8-98063-228-0	01	1	1409-1503	●	●	●
244	09.647 CABLE; FEEDER ROOF RADIO ANTENNA<U71> (A)	8-98063-228-0	01	1	1504-	●	●	●
296	09.665 ROD; ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) ROOF RADIO ANTENNA<U71>	8-98165-969-0	01	1	1409-1503	●	●	●
296	09.665 ROD; ANTENNA ROOF RADIO ANTENNA<U71>	8-98165-969-0	01	1	1504-	●	●	●

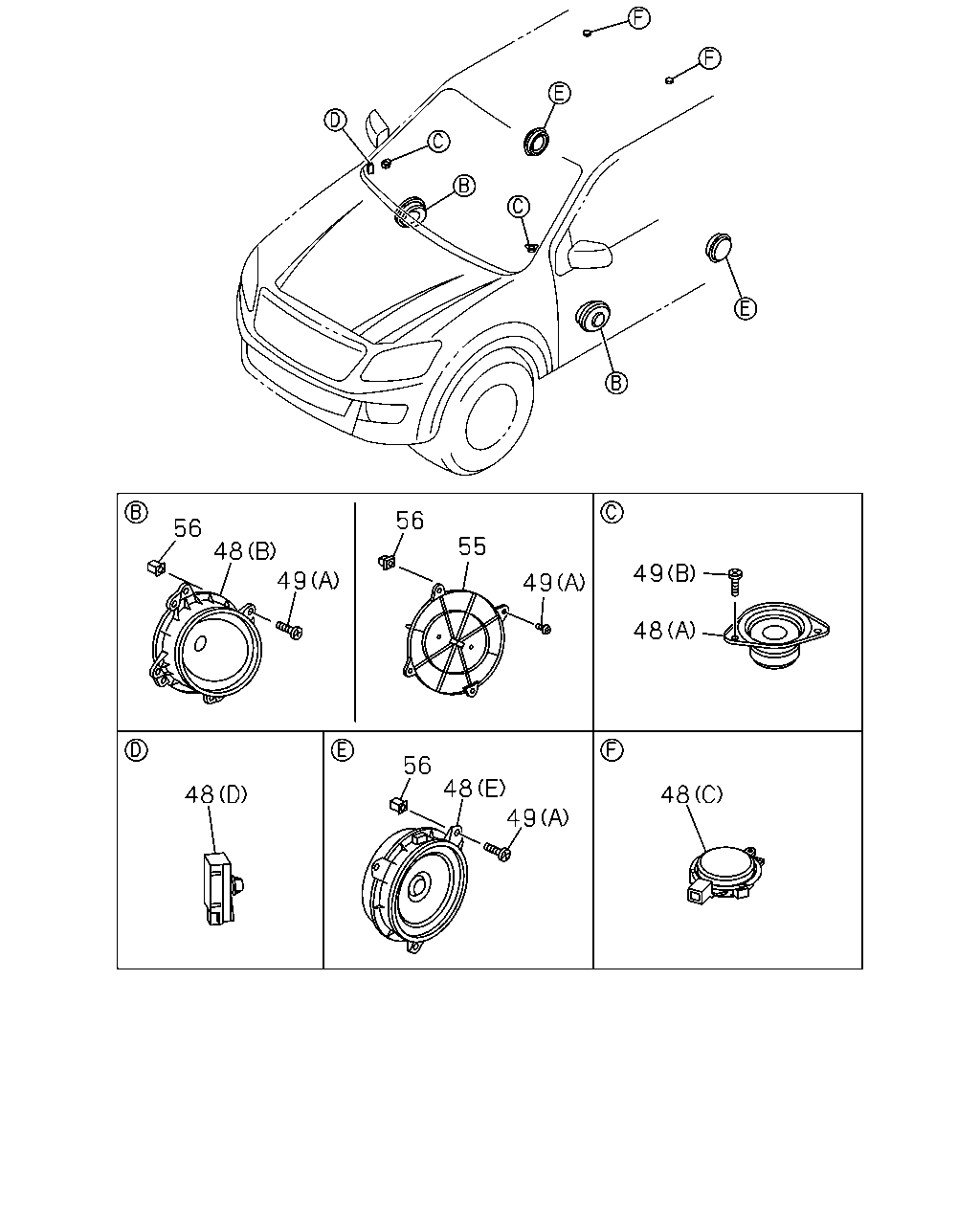

56 48 49 48 56 49 56 48 49 49 48 48 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95> (B)	8-98052-937-0	02	1	1409-	●	●	●	●	●
48	09.650 SPEAKER; AUDIO 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> (A)	8-98052-940-0	02	1	1409-	●	●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5> (E)	8-98052-941-0	02	1	1409-	●		●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6> (C)	8-98052-942-0	02	1	1409-	●	●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM CUSTOM<UW6> (D)	8-98064-704-0	01	1	1409-	●	●	●
49	09.655 SCREW; SPEAKER 16.345 (A) M5X14 TAPPING	8-98184-363-0	08	1	1409-	●	●	●	●	●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> 08.083 (B) M5X16 TAPPING	8-98167-449-0	04	1	1409-	●	●	●
49	09.655 SCREW; SPEAKER 6-SPEAKER SYSTEM BASE<UW5> 16.345 (A) M5X14 TAPPING	8-98184-363-0	06	1	1409-	●		●
55	09.650 COVER; SPEAKER HOLE EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95>	8-98102-183-0	02	1	1409-	●	●	●	●	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO	8-98163-895-0	08	1	1409-	●	●	●	●	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 6-SPEAKER SYSTEM BASE<UW5>	8-98163-895-0	06	1	1409-	●		●

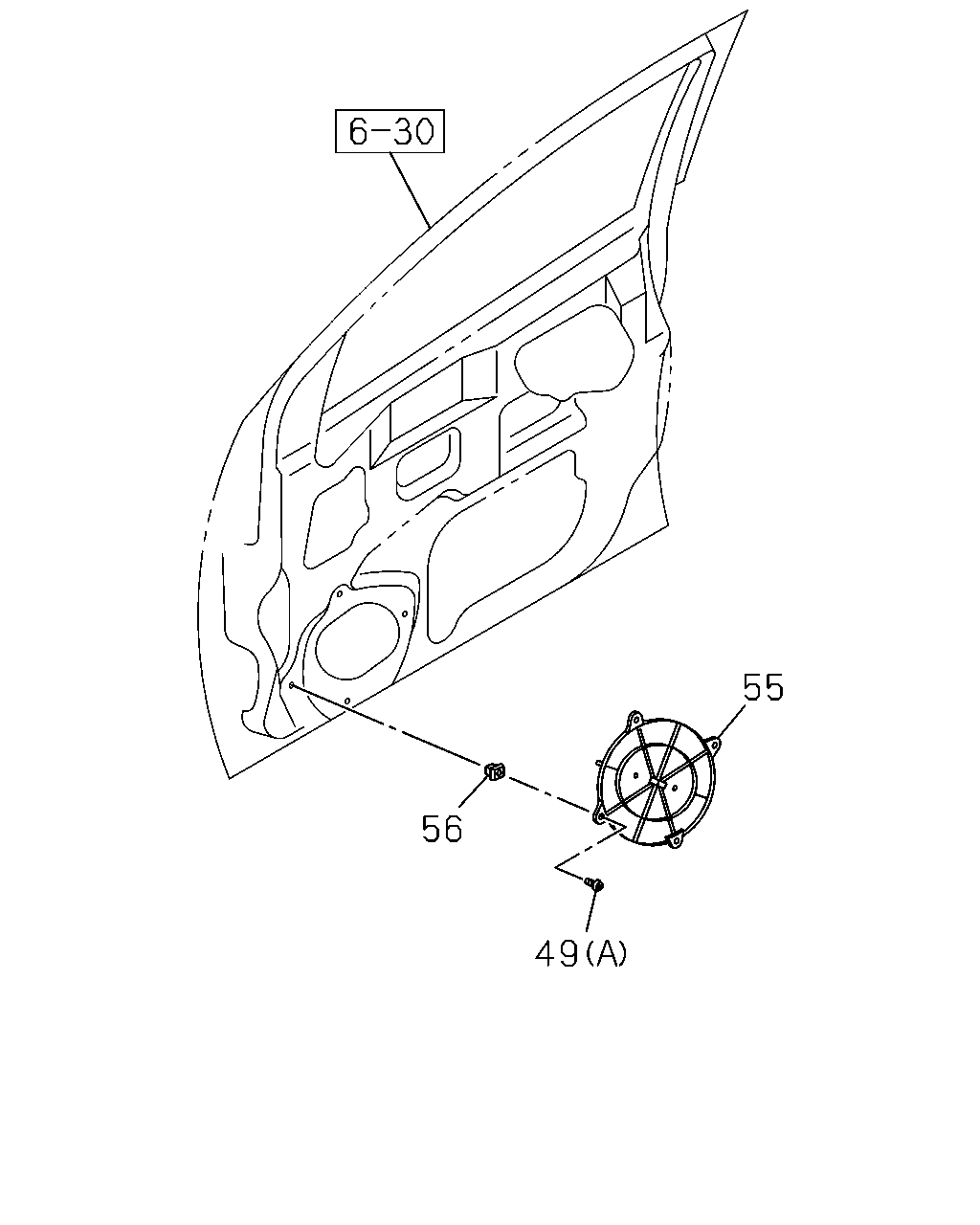

55 56 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
49	09.655 SCREW; SPEAKER 16.345 (A) M5X14 TAPPING	8-98184-363-0	08	1	1409-	●	●	●	●	●
49	09.655 SCREW; SPEAKER 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6> 08.083 (B) M5X16 TAPPING	8-98167-449-0	04	1	1409-	●	●	●
49	09.655 SCREW; SPEAKER 6-SPEAKER SYSTEM BASE<UW5> 16.345 (A) M5X14 TAPPING	8-98184-363-0	06	1	1409-	●		●
55	09.650 COVER; SPEAKER HOLE EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,2-SPEAKER SYSTEM BASE<U95>	8-98102-183-0	02	1	1409-	●	●	●	●	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO	8-98163-895-0	08	1	1409-	●	●	●	●	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 6-SPEAKER SYSTEM BASE<UW5>	8-98163-895-0	06	1	1409-	●		●
