8-75 — CONDENSER (#151888) — 30 parça

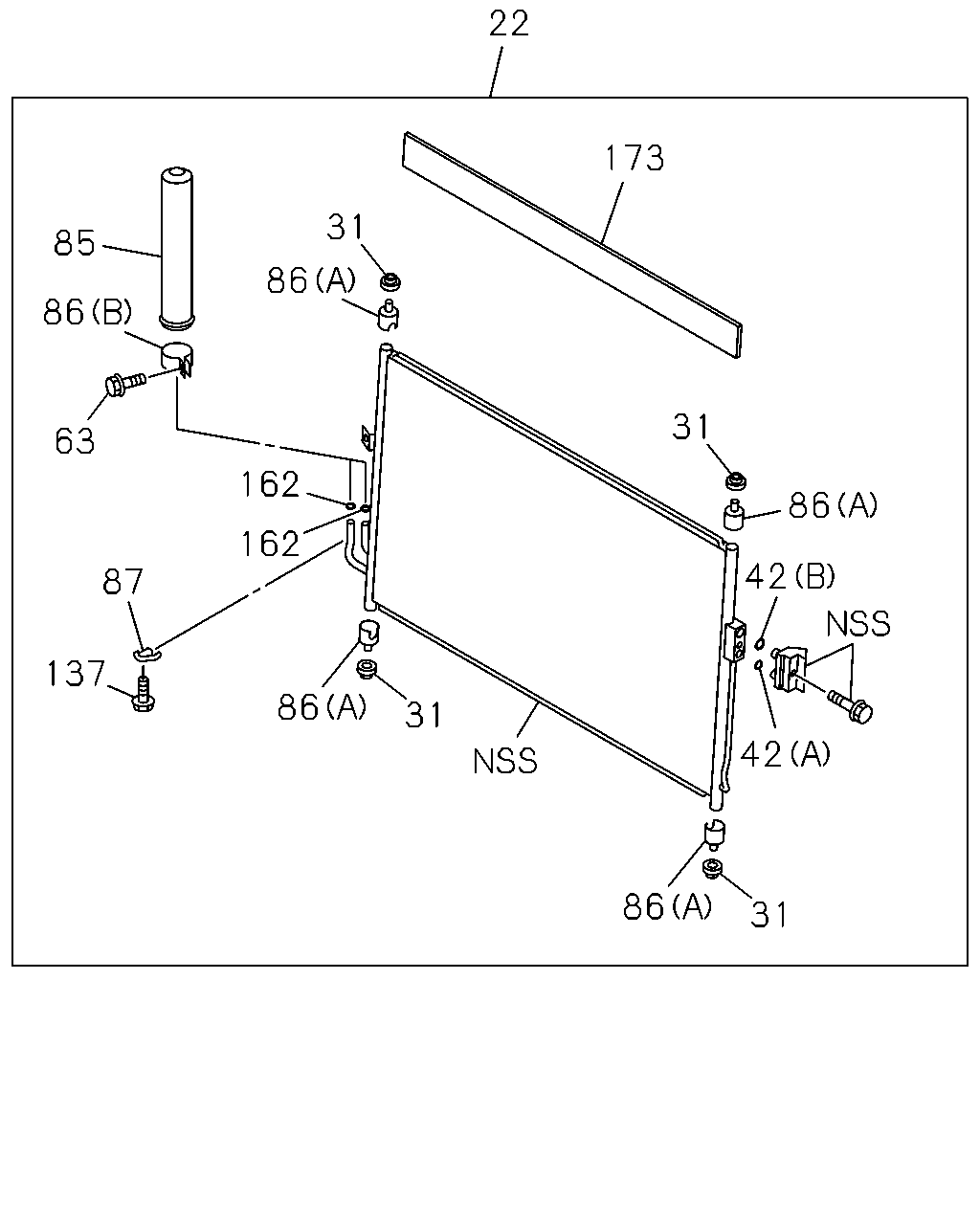

çizim 451601
22 173 31 86 42 42 31 86 31 86 162 162 87 137 63 86 85 86 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0) 		8-98052-635-3 01 1 1409- ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 		8-98052-634-3 01 1 1409-1411 ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98052-634-3 01 1 1412-1508 ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98052-634-3 01 1 1509- ● ● ● ● ●
31 09.190 RUBBER; MTG,CONDENSER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98193-616-0 04 1 1409- ● ● ● ● ●
42 09.190 GASKET; CONDENSER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A) ID=8 		8-98193-614-0 01 1 1409- ● ● ● ● ●
42 09.190 GASKET; CONDENSER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) ID=12 		8-98193-615-0 01 1 1409- ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) M5X16 		8-98193-604-0 01 1 1409- ● ● ● ● ●
85 09.172 DRYER; RECEIVER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98233-381-0 01 1 1409- ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) 		8-98193-599-0 01 1 1409- ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A) 		8-98193-618-0 04 1 1409- ● ● ● ● ●
87 09.196 BRACKET; RECEIVER DRYER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98193-602-0 01 1 1409- ● ● ● ● ●
137 09.196 BOLT; BRKT,DRYER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) M6X12 		8-98193-603-0 01 1 1409- ● ● ● ● ●
162 09.195 GASKET; PIPE TO DRYER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 09.190 ID=8 		8-98193-614-0 02 1 1409- ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98233-382-0 01 1 1409- ● ● ● ● ●

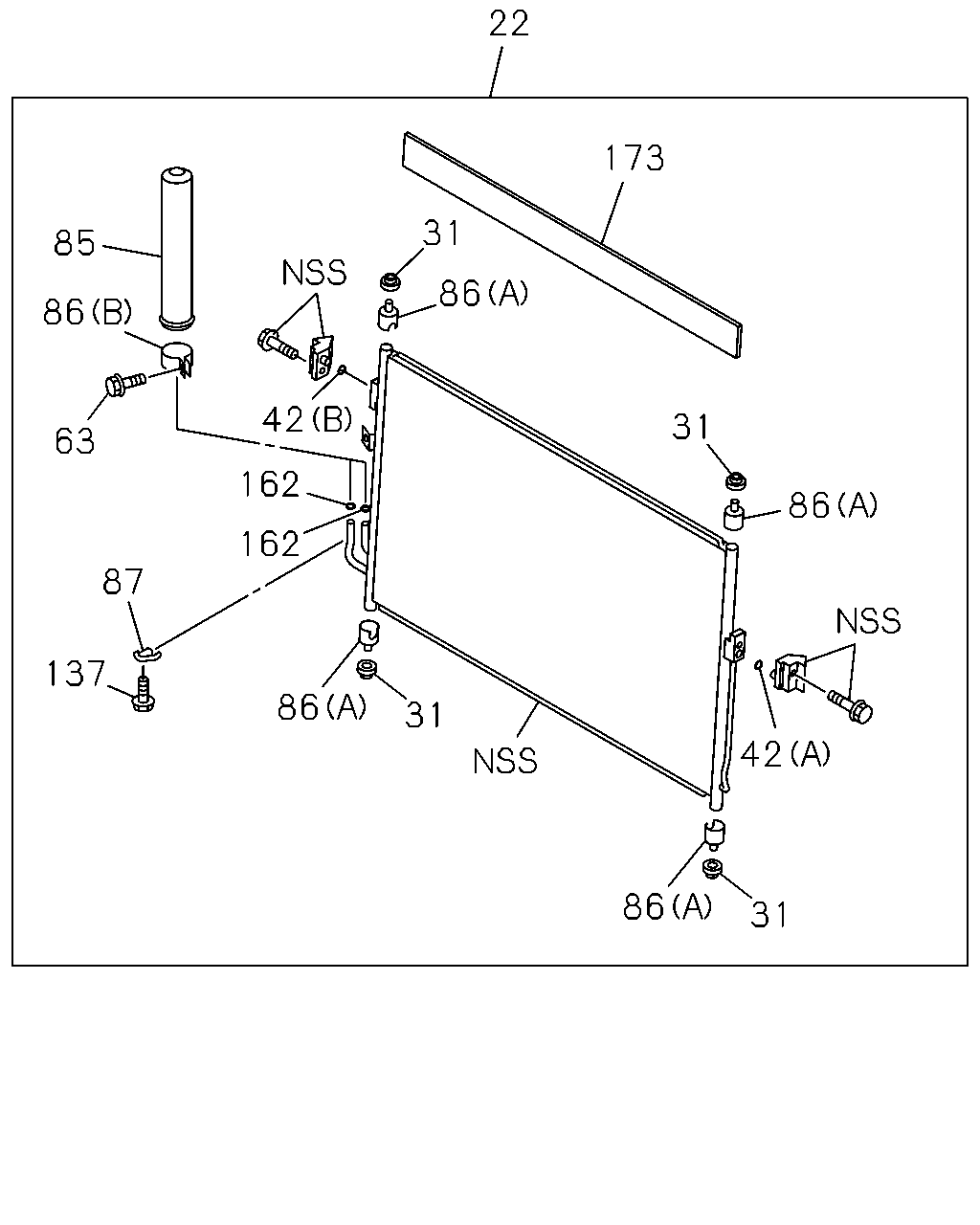

çizim 451736
22 173 31 86 42 31 86 31 86 87 137 162 162 42 31 86 85 86 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E
22 09.190 CONDENSER ASM; A/C
4JA1-T ENG(LP0) 		8-98052-635-3 01 1 1409- ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 		8-98052-634-3 01 1 1409-1411 ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98052-634-3 01 1 1412-1508 ● ● ● ● ●
22 09.190 CONDENSER ASM; A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98052-634-3 01 1 1509- ● ● ● ● ●
31 09.190 RUBBER; MTG,CONDENSER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98193-616-0 04 1 1409- ● ● ● ● ●
42 09.190 GASKET; CONDENSER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A) ID=8 		8-98193-614-0 01 1 1409- ● ● ● ● ●
42 09.190 GASKET; CONDENSER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) ID=12 		8-98193-615-0 01 1 1409- ● ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) M5X16 		8-98193-604-0 01 1 1409- ● ● ● ● ●
85 09.172 DRYER; RECEIVER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98233-381-0 01 1 1409- ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) 		8-98193-599-0 01 1 1409- ● ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A) 		8-98193-618-0 04 1 1409- ● ● ● ● ●
87 09.196 BRACKET; RECEIVER DRYER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98193-602-0 01 1 1409- ● ● ● ● ●
137 09.196 BOLT; BRKT,DRYER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) M6X12 		8-98193-603-0 01 1 1409- ● ● ● ● ●
162 09.195 GASKET; PIPE TO DRYER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 09.190 ID=8 		8-98193-614-0 02 1 1409- ● ● ● ● ●
173 09.190 INSULATOR; CONDENSER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98233-382-0 01 1 1409- ● ● ● ● ●
