8-73 — BLOWER UNIT (#151887) — 188 parça

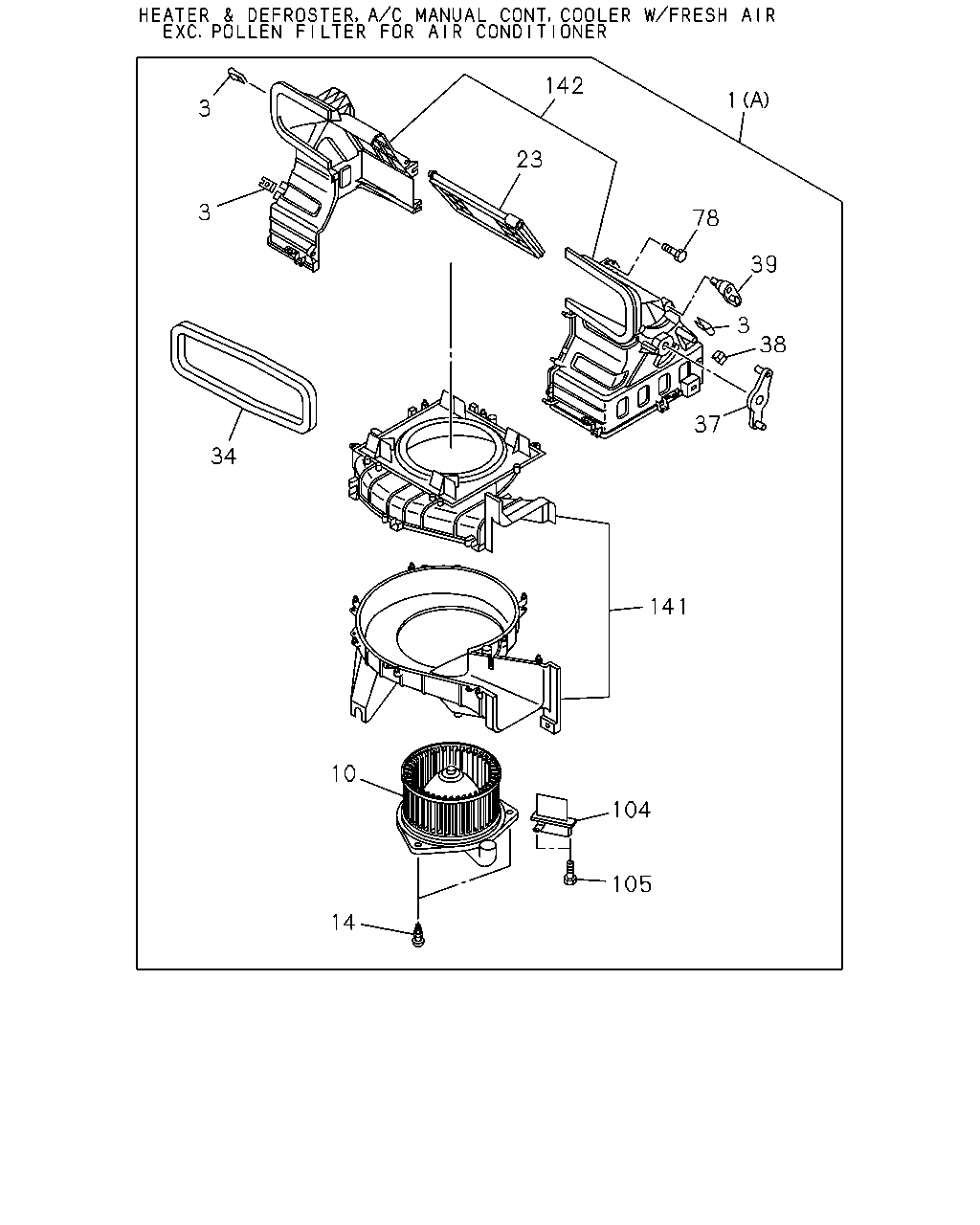

çizim 451866
142 1 78 3 39 38 37 141 104 105 14 10 34 3 3 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.855 BLOWER ASM
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-052-1 01 1 1409- ● ● ●
1 08.855 BLOWER ASM
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (A) 		8-98233-053-1 01 1 1409- ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. TURKEY EQUIPMENT(B11) (B) 		8-98233-047-1 01 1 1409- ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-047-1 01 1 1409- ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. TURKEY EQUIPMENT(B11),POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-042-1 01 1 1409- ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (A) 		8-98233-042-1 01 1 1409- ● ●
1 08.855 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D) 		8-98233-048-1 01 1 1409- ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D) 		8-98233-048-1 01 1 1409- ●
1 08.855 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (C) 		8-98233-043-1 01 1 1409- ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (C) 		8-98233-043-1 01 1 1409- ●
3 08.855 NUT; CASE
08.845 		8-98139-394-1 03 1 1409- ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-98165-412-0 01 1 1409- ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
08.852 		8-98139-395-1 03 1 1409- ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98196-273-0 01 1 1409-1410 ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98294-588-0 01 1 1411- ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. TURKEY EQUIPMENT(B11) 		8-98139-413-0 01 1 1409-1410 ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-413-0 01 1 1409-1410 ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98139-413-0 01 1 1409-1410 ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-413-0 01 1 1409-1410 ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. TURKEY EQUIPMENT(B11) 		8-98295-682-0 01 1 1411- ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98295-682-0 01 1 1411- ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98295-682-0 01 1 1411- ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98295-682-0 01 1 1411- ●
34 08.856 LINING; BLOWER UNIT 8-98139-426-1 01 1 1409- ● ● ● ● ●
37 09.786 LEVER; MODE LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98165-410-0 01 1 1409- ● ● ● ● ●
38 09.787 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-422-1 01 1 1409- ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-98165-409-0 01 1 1409- ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 		8-98139-395-1 01 1 1409- ● ● ● ● ●
104 08.855 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98183-234-0 01 1 1409- ● ● ● ● ●
105 08.855 SCREW; RESISTOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 08.852 		8-98139-395-1 02 1 1409- ● ● ● ● ●
141 08.857 CASE ASM; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98233-651-0 01 1 1409- ● ● ● ● ●
141 08.857 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-652-0 01 1 1409- ● ●
141 08.857 CASE ASM; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-652-0 01 1 1409- ●
142 08.857 CASE ASM
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-657-0 01 1 1409- ● ● ●
142 08.857 CASE ASM
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> 		8-98233-658-0 01 1 1409- ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. TURKEY EQUIPMENT(B11) 		8-98233-655-0 01 1 1409- ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-655-0 01 1 1409- ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. TURKEY EQUIPMENT(B11),POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-653-0 01 1 1409- ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> 		8-98233-653-0 01 1 1409- ● ●
142 08.857 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-656-0 01 1 1409- ● ●
142 08.857 CASE ASM
AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-656-0 01 1 1409- ●
142 08.857 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> 		8-98233-654-0 01 1 1409- ● ●
142 08.857 CASE ASM
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> 		8-98233-654-0 01 1 1409- ●

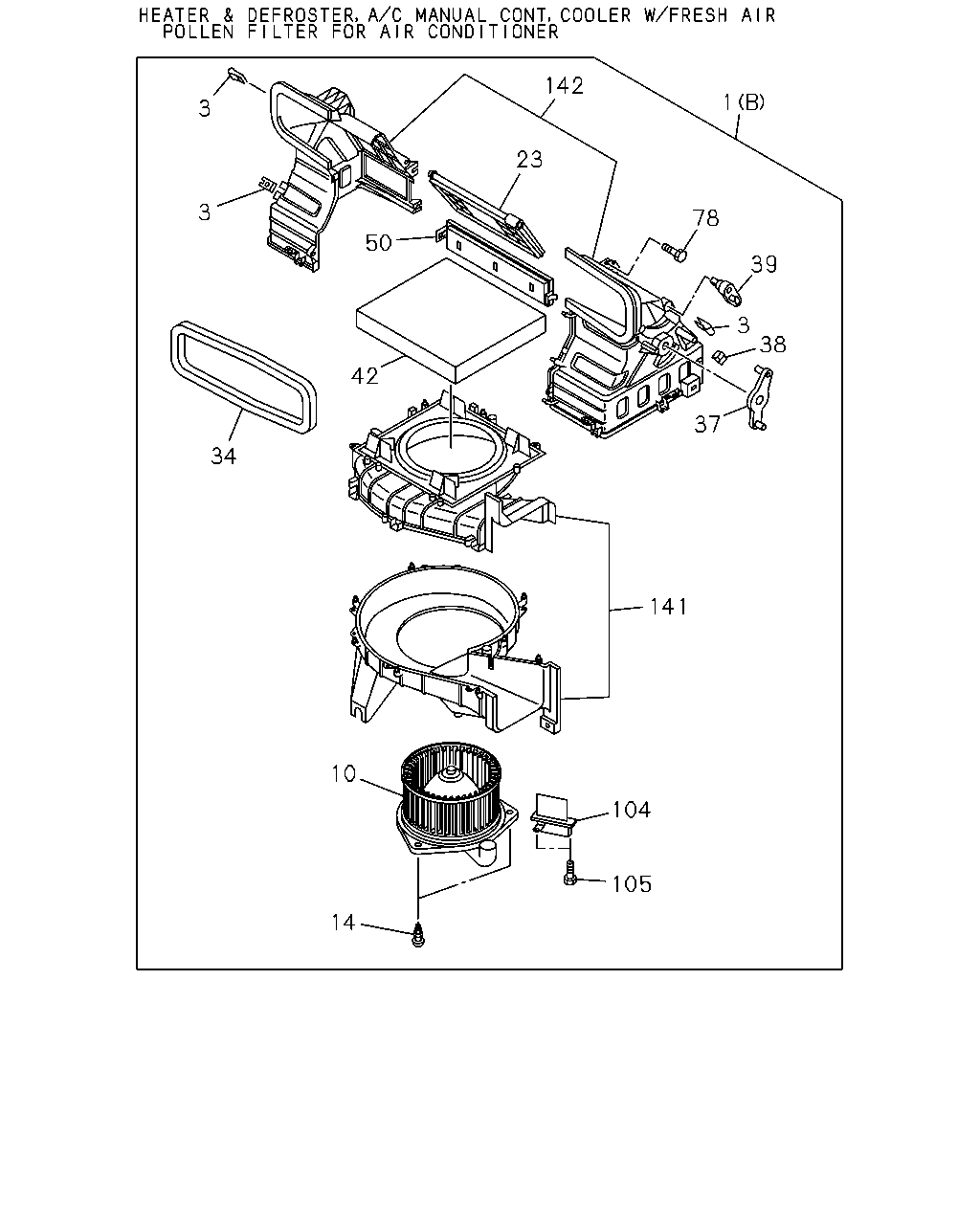

çizim 451897
142 1 78 39 3 37 38 50 42 3 23 141 104 105 14 10 34 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.855 BLOWER ASM
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-052-1 01 1 1409- ● ● ●
1 08.855 BLOWER ASM
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (A) 		8-98233-053-1 01 1 1409- ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. TURKEY EQUIPMENT(B11) (B) 		8-98233-047-1 01 1 1409- ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-047-1 01 1 1409- ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. TURKEY EQUIPMENT(B11),POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-042-1 01 1 1409- ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (A) 		8-98233-042-1 01 1 1409- ● ●
1 08.855 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D) 		8-98233-048-1 01 1 1409- ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D) 		8-98233-048-1 01 1 1409- ●
1 08.855 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (C) 		8-98233-043-1 01 1 1409- ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (C) 		8-98233-043-1 01 1 1409- ●
3 08.855 NUT; CASE
08.845 		8-98139-394-1 03 1 1409- ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-98165-412-0 01 1 1409- ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
08.852 		8-98139-395-1 03 1 1409- ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98196-273-0 01 1 1409-1410 ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98294-588-0 01 1 1411- ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. TURKEY EQUIPMENT(B11) 		8-98139-413-0 01 1 1409-1410 ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-413-0 01 1 1409-1410 ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98139-413-0 01 1 1409-1410 ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-413-0 01 1 1409-1410 ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. TURKEY EQUIPMENT(B11) 		8-98295-682-0 01 1 1411- ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98295-682-0 01 1 1411- ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98295-682-0 01 1 1411- ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98295-682-0 01 1 1411- ●
34 08.856 LINING; BLOWER UNIT 8-98139-426-1 01 1 1409- ● ● ● ● ●
37 09.786 LEVER; MODE LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98165-410-0 01 1 1409- ● ● ● ● ●
38 09.787 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-422-1 01 1 1409- ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-98165-409-0 01 1 1409- ● ● ● ● ●
42 08.857 FILTER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98139-428-0 01 1 1409- ● ● ● ● ●
50 08.857 COVER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-650-0 01 1 1409- ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 		8-98139-395-1 01 1 1409- ● ● ● ● ●
104 08.855 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98183-234-0 01 1 1409- ● ● ● ● ●
105 08.855 SCREW; RESISTOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 08.852 		8-98139-395-1 02 1 1409- ● ● ● ● ●
141 08.857 CASE ASM; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98233-651-0 01 1 1409- ● ● ● ● ●
141 08.857 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-652-0 01 1 1409- ● ●
141 08.857 CASE ASM; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-652-0 01 1 1409- ●
142 08.857 CASE ASM
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-657-0 01 1 1409- ● ● ●
142 08.857 CASE ASM
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> 		8-98233-658-0 01 1 1409- ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. TURKEY EQUIPMENT(B11) 		8-98233-655-0 01 1 1409- ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-655-0 01 1 1409- ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. TURKEY EQUIPMENT(B11),POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-653-0 01 1 1409- ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> 		8-98233-653-0 01 1 1409- ● ●
142 08.857 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-656-0 01 1 1409- ● ●
142 08.857 CASE ASM
AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-656-0 01 1 1409- ●
142 08.857 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> 		8-98233-654-0 01 1 1409- ● ●
142 08.857 CASE ASM
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> 		8-98233-654-0 01 1 1409- ●

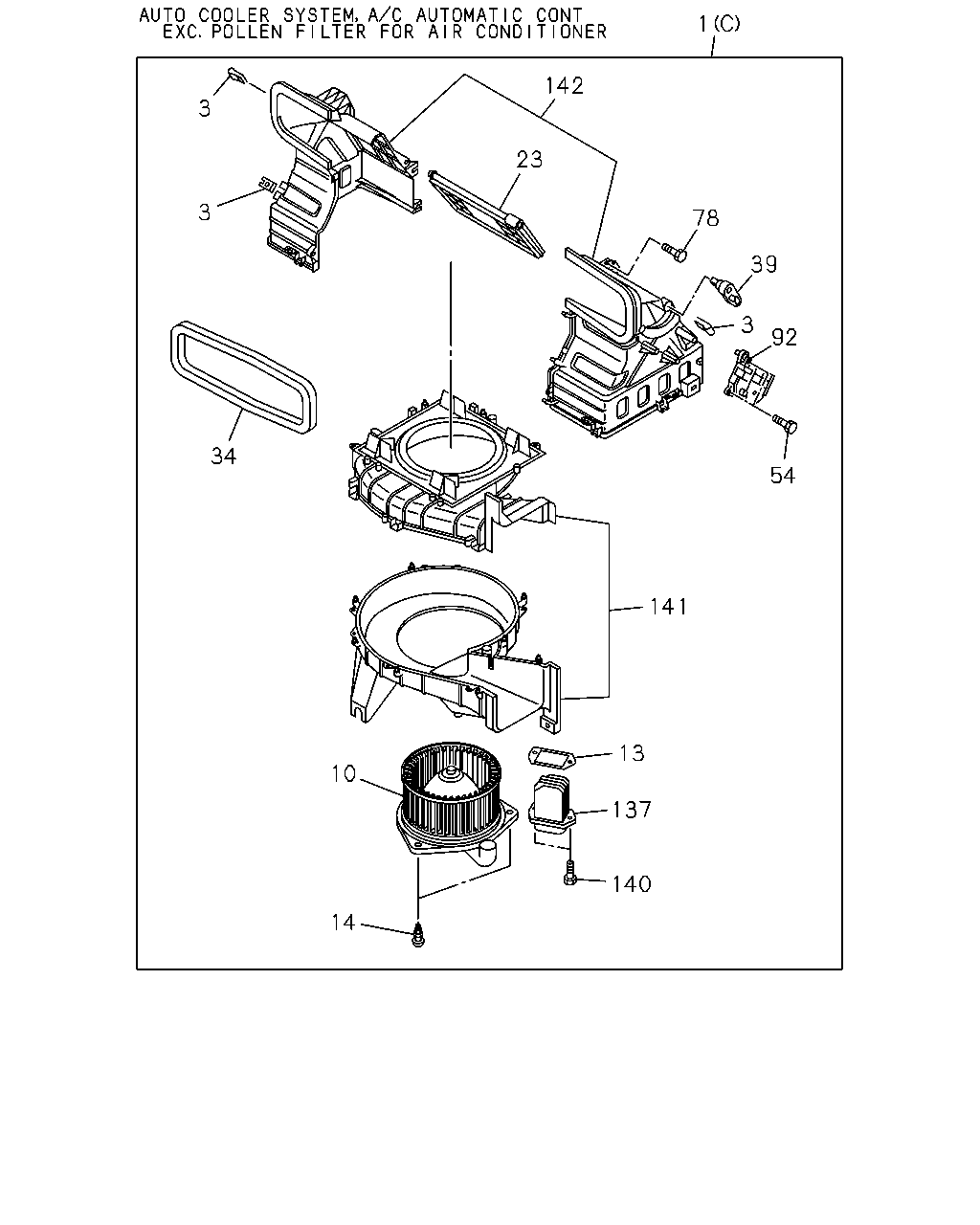

çizim 451932
1 142 23 78 39 3 54 92 3 3 34 141 13 137 140 14 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.855 BLOWER ASM
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-052-1 01 1 1409- ● ● ●
1 08.855 BLOWER ASM
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (A) 		8-98233-053-1 01 1 1409- ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. TURKEY EQUIPMENT(B11) (B) 		8-98233-047-1 01 1 1409- ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-047-1 01 1 1409- ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. TURKEY EQUIPMENT(B11),POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-042-1 01 1 1409- ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (A) 		8-98233-042-1 01 1 1409- ● ●
1 08.855 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D) 		8-98233-048-1 01 1 1409- ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D) 		8-98233-048-1 01 1 1409- ●
1 08.855 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (C) 		8-98233-043-1 01 1 1409- ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (C) 		8-98233-043-1 01 1 1409- ●
3 08.855 NUT; CASE
08.845 		8-98139-394-1 03 1 1409- ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-98165-412-0 01 1 1409- ● ● ● ● ●
13 08.856 LINING; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98157-116-1 01 1 1409- ● ●
13 08.856 LINING; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98157-116-1 01 1 1409- ●
14 08.857 SCREW; COVER TO CASE
08.852 		8-98139-395-1 03 1 1409- ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98196-273-0 01 1 1409-1410 ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98294-588-0 01 1 1411- ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. TURKEY EQUIPMENT(B11) 		8-98139-413-0 01 1 1409-1410 ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-413-0 01 1 1409-1410 ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98139-413-0 01 1 1409-1410 ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-413-0 01 1 1409-1410 ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. TURKEY EQUIPMENT(B11) 		8-98295-682-0 01 1 1411- ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98295-682-0 01 1 1411- ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98295-682-0 01 1 1411- ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98295-682-0 01 1 1411- ●
34 08.856 LINING; BLOWER UNIT 8-98139-426-1 01 1 1409- ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-98165-409-0 01 1 1409- ● ● ● ● ●
54 08.856 SCREW; ACTUATOR TO CASE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-1 02 1 1409- ● ●
54 08.856 SCREW; ACTUATOR TO CASE
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-1 02 1 1409- ●
78 08.857 SCREW; CASE TO CASE
08.852 		8-98139-395-1 01 1 1409- ● ● ● ● ●
92 08.857 ACTUATOR; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98165-411-0 01 1 1409- ● ●
92 08.857 ACTUATOR; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98165-411-0 01 1 1409- ●
137 08.855 MODULE ASM; BLOWER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-431-1 01 1 1409- ● ●
137 08.855 MODULE ASM; BLOWER
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-431-1 01 1 1409- ●
140 08.857 SCREW; MODULE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-421-0 02 1 1409- ● ●
140 08.857 SCREW; MODULE
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-421-0 02 1 1409- ●
141 08.857 CASE ASM; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98233-651-0 01 1 1409- ● ● ● ● ●
141 08.857 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-652-0 01 1 1409- ● ●
141 08.857 CASE ASM; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-652-0 01 1 1409- ●
142 08.857 CASE ASM
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-657-0 01 1 1409- ● ● ●
142 08.857 CASE ASM
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> 		8-98233-658-0 01 1 1409- ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. TURKEY EQUIPMENT(B11) 		8-98233-655-0 01 1 1409- ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-655-0 01 1 1409- ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. TURKEY EQUIPMENT(B11),POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-653-0 01 1 1409- ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> 		8-98233-653-0 01 1 1409- ● ●
142 08.857 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-656-0 01 1 1409- ● ●
142 08.857 CASE ASM
AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-656-0 01 1 1409- ●
142 08.857 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> 		8-98233-654-0 01 1 1409- ● ●
142 08.857 CASE ASM
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> 		8-98233-654-0 01 1 1409- ●
çizim 451974
1 142 23 78 39 3 92 54 141 13 137 140 14 10 42 50 3 3 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.855 BLOWER ASM
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-052-1 01 1 1409- ● ● ●
1 08.855 BLOWER ASM
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (A) 		8-98233-053-1 01 1 1409- ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. TURKEY EQUIPMENT(B11) (B) 		8-98233-047-1 01 1 1409- ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-047-1 01 1 1409- ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. TURKEY EQUIPMENT(B11),POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-042-1 01 1 1409- ● ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (A) 		8-98233-042-1 01 1 1409- ● ●
1 08.855 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D) 		8-98233-048-1 01 1 1409- ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D) 		8-98233-048-1 01 1 1409- ●
1 08.855 BLOWER ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (C) 		8-98233-043-1 01 1 1409- ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (C) 		8-98233-043-1 01 1 1409- ●
3 08.855 NUT; CASE
08.845 		8-98139-394-1 03 1 1409- ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-98165-412-0 01 1 1409- ● ● ● ● ●
13 08.856 LINING; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98157-116-1 01 1 1409- ● ●
13 08.856 LINING; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98157-116-1 01 1 1409- ●
14 08.857 SCREW; COVER TO CASE
08.852 		8-98139-395-1 03 1 1409- ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98196-273-0 01 1 1409-1410 ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98294-588-0 01 1 1411- ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. TURKEY EQUIPMENT(B11) 		8-98139-413-0 01 1 1409-1410 ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-413-0 01 1 1409-1410 ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98139-413-0 01 1 1409-1410 ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98139-413-0 01 1 1409-1410 ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. TURKEY EQUIPMENT(B11) 		8-98295-682-0 01 1 1411- ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98295-682-0 01 1 1411- ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98295-682-0 01 1 1411- ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98295-682-0 01 1 1411- ●
34 08.856 LINING; BLOWER UNIT 8-98139-426-1 01 1 1409- ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-98165-409-0 01 1 1409- ● ● ● ● ●
42 08.857 FILTER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98139-428-0 01 1 1409- ● ● ● ● ●
50 08.857 COVER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-650-0 01 1 1409- ● ● ● ● ●
54 08.856 SCREW; ACTUATOR TO CASE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-1 02 1 1409- ● ●
54 08.856 SCREW; ACTUATOR TO CASE
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98139-395-1 02 1 1409- ●
78 08.857 SCREW; CASE TO CASE
08.852 		8-98139-395-1 01 1 1409- ● ● ● ● ●
92 08.857 ACTUATOR; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98165-411-0 01 1 1409- ● ●
92 08.857 ACTUATOR; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98165-411-0 01 1 1409- ●
137 08.855 MODULE ASM; BLOWER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-431-1 01 1 1409- ● ●
137 08.855 MODULE ASM; BLOWER
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-431-1 01 1 1409- ●
140 08.857 SCREW; MODULE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-421-0 02 1 1409- ● ●
140 08.857 SCREW; MODULE
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-421-0 02 1 1409- ●
141 08.857 CASE ASM; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 		8-98233-651-0 01 1 1409- ● ● ● ● ●
141 08.857 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-652-0 01 1 1409- ● ●
141 08.857 CASE ASM; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-652-0 01 1 1409- ●
142 08.857 CASE ASM
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-657-0 01 1 1409- ● ● ●
142 08.857 CASE ASM
TURKEY EQUIPMENT(B11) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> 		8-98233-658-0 01 1 1409- ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> EXC. TURKEY EQUIPMENT(B11) 		8-98233-655-0 01 1 1409- ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-655-0 01 1 1409- ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. TURKEY EQUIPMENT(B11),POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-653-0 01 1 1409- ● ● ●
142 08.857 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> 		8-98233-653-0 01 1 1409- ● ●
142 08.857 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-656-0 01 1 1409- ● ●
142 08.857 CASE ASM
AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-656-0 01 1 1409- ●
142 08.857 CASE ASM
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> 		8-98233-654-0 01 1 1409- ● ●
142 08.857 CASE ASM
AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> 		8-98233-654-0 01 1 1409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
