8-71 — COMPRESSOR; AIR CONDITIONING (#151886) — 12 parça

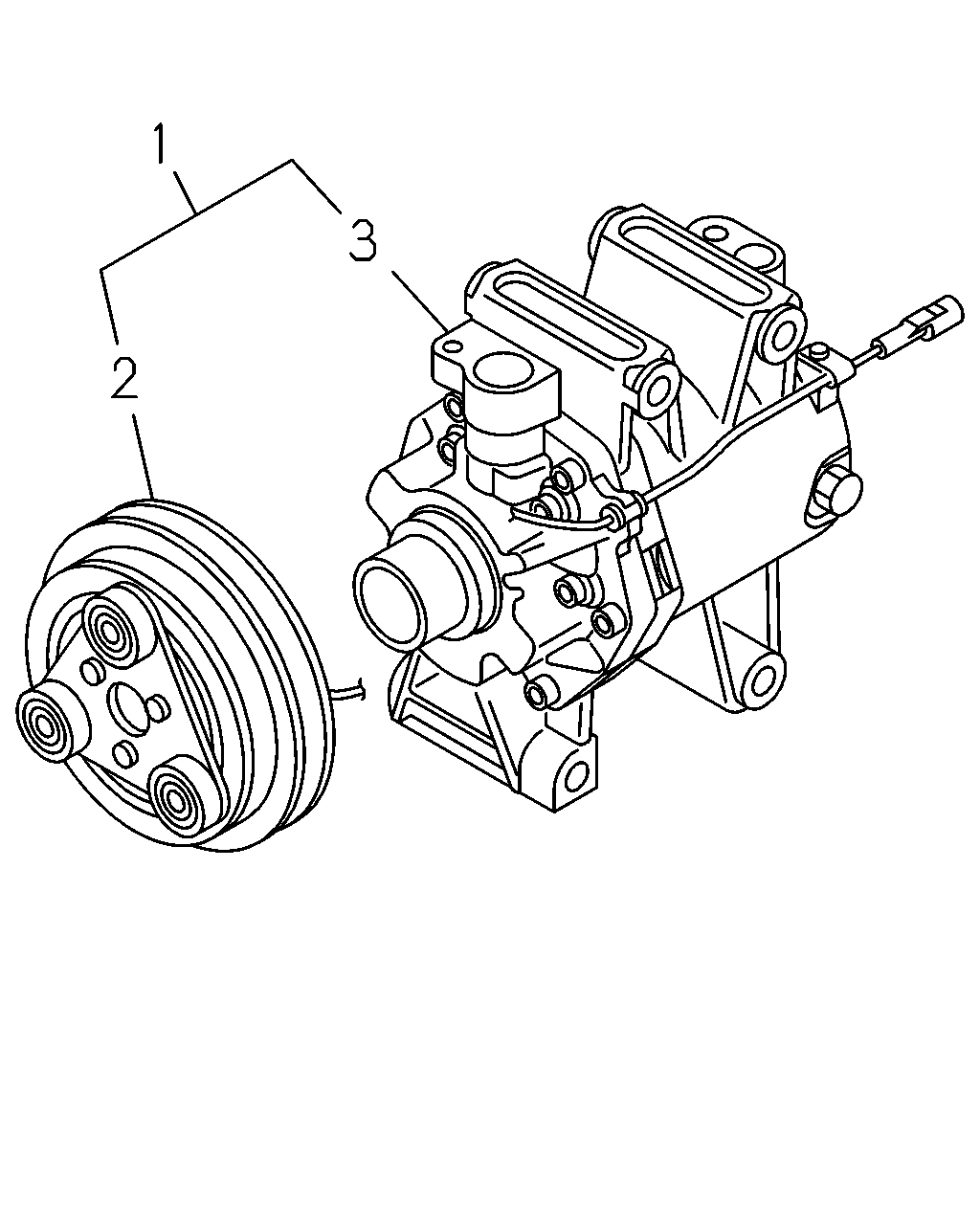

3 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0)	8-98200-246-1	01	1	1409-	●	●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98102-824-1	01	1	1409-1411	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98102-824-1	01	1	1412-1508	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98102-824-1	01	1	1509-	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1-T ENG(LP0)	8-98258-537-0	01	1	1409-	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98139-936-1	01	1	1409-1411	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98139-936-1	01	1	1412-1508	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98139-936-1	01	1	1509-	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0)	8-98258-536-0	01	1	1409-	●	●
3	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98139-935-1	01	1	1409-1411	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98139-935-1	01	1	1412-1508	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98139-935-1	01	1	1509-	●	●	●	●	●
