◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#151883) — 87 parça

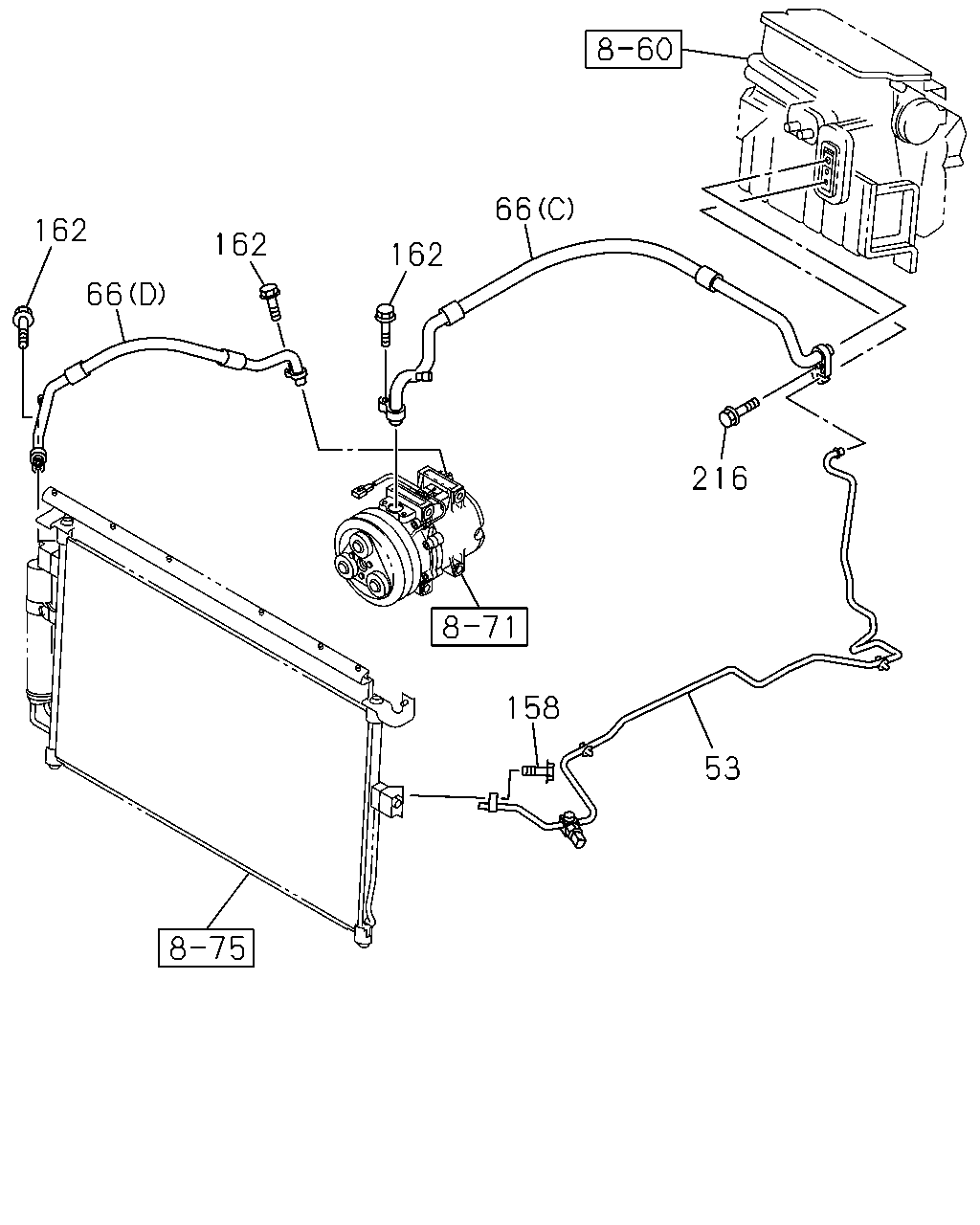

çizim 449414
162 66 162 158 53 216 162 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E
53 09.220 PIPE; RECEIVER TANK TO EVAP
4JA1-T ENG(LP0) HIGH PRESSURE 		8-98102-232-2 01 1 1409- ● ●
53 09.220 PIPE; RECEIVER TANK TO EVAP
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) HIGH PRESSURE 		8-98129-150-4 01 1 1409-1411 ● ● ● ● ●
53 09.220 PIPE; RECEIVER TANK TO EVAP
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) HIGH PRESSURE 		8-98129-150-4 01 1 1412-1508 ● ● ● ● ●
53 09.220 PIPE; RECEIVER TANK TO EVAP
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) HIGH PRESSURE 		8-98129-150-4 01 1 1509- ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JA1-T ENG(LP0) (C) LOW PRESSURE 		8-98102-234-2 01 1 1409- ● ●
66 09.225 HOSE; FLEX,A/C
4JA1-T ENG(LP0) (D) HIGH PRESSURE 		8-98102-236-2 01 1 1409- ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE 		8-98209-993-0 01 1 1409-1411 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE 		8-98209-993-0 01 1 1412-1508 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE 		8-98209-993-0 01 1 1509- ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (A) LOW PRESSURE 		8-98102-233-3 01 1 1409-1411 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (A) LOW PRESSURE 		8-98102-233-3 01 1 1412-1508 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (A) LOW PRESSURE 		8-98102-233-3 01 1 1509- ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1409-1411 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1412-1508 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1509- ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A) LOW PRESSURE 		8-98212-092-0 01 1 1409- ● ● ● ●
158 09.220 BOLT; PIPE FIX
4JA1-T ENG(LP0) 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 1409- ● ●
162 09.173 BOLT; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1409- ● ● ● ● ●
216 09.173 BOLT; HOSE FIX
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 1409- ● ● ● ● ●

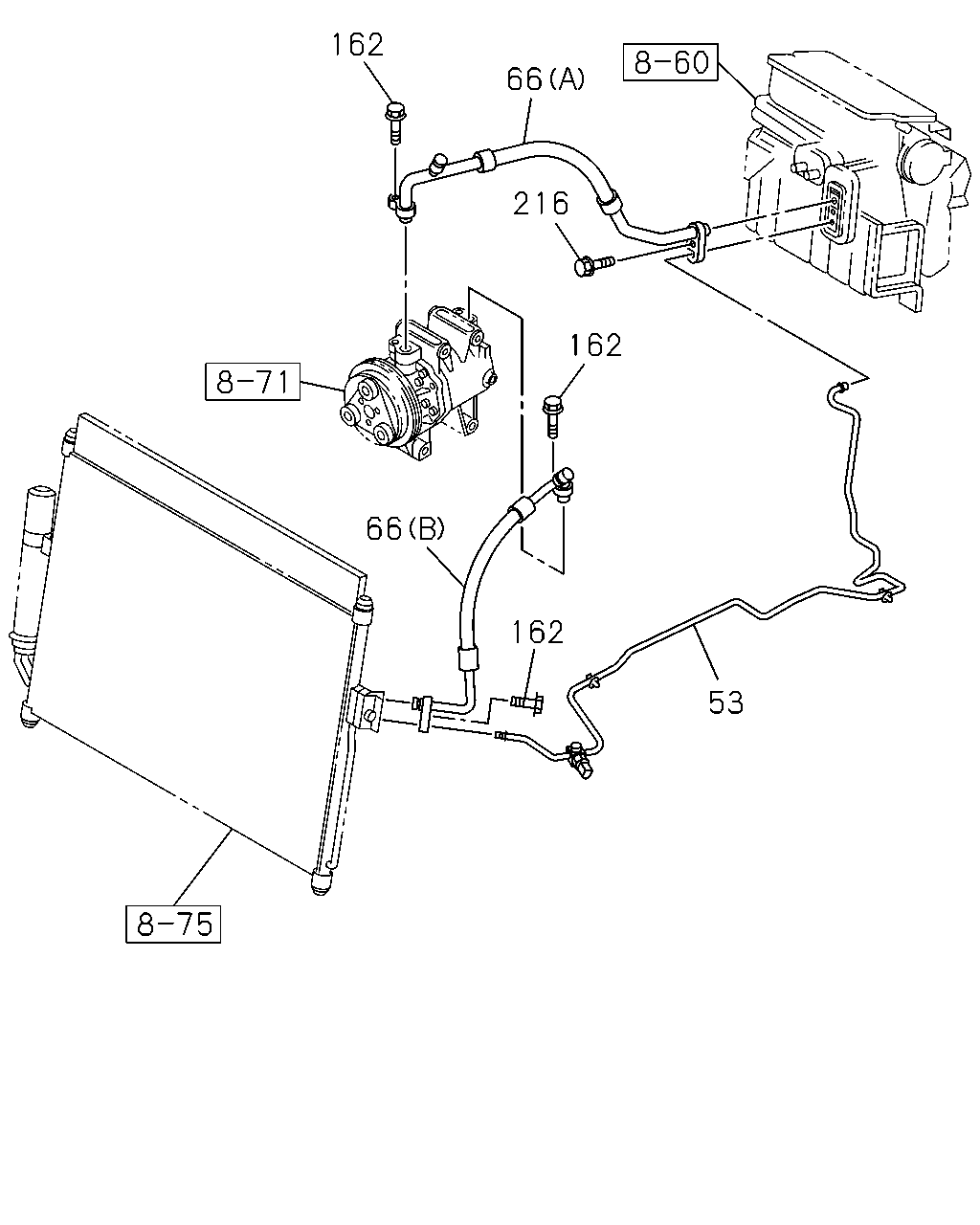

çizim 451425
162 66 216 162 66 162 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E
53 09.220 PIPE; RECEIVER TANK TO EVAP
4JA1-T ENG(LP0) HIGH PRESSURE 		8-98102-232-2 01 1 1409- ● ●
53 09.220 PIPE; RECEIVER TANK TO EVAP
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) HIGH PRESSURE 		8-98129-150-4 01 1 1409-1411 ● ● ● ● ●
53 09.220 PIPE; RECEIVER TANK TO EVAP
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) HIGH PRESSURE 		8-98129-150-4 01 1 1412-1508 ● ● ● ● ●
53 09.220 PIPE; RECEIVER TANK TO EVAP
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) HIGH PRESSURE 		8-98129-150-4 01 1 1509- ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JA1-T ENG(LP0) (C) LOW PRESSURE 		8-98102-234-2 01 1 1409- ● ●
66 09.225 HOSE; FLEX,A/C
4JA1-T ENG(LP0) (D) HIGH PRESSURE 		8-98102-236-2 01 1 1409- ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE 		8-98209-993-0 01 1 1409-1411 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE 		8-98209-993-0 01 1 1412-1508 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE 		8-98209-993-0 01 1 1509- ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (A) LOW PRESSURE 		8-98102-233-3 01 1 1409-1411 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (A) LOW PRESSURE 		8-98102-233-3 01 1 1412-1508 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (A) LOW PRESSURE 		8-98102-233-3 01 1 1509- ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1409-1411 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1412-1508 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1509- ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A) LOW PRESSURE 		8-98212-092-0 01 1 1409- ● ● ● ●
162 09.173 BOLT; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1409- ● ● ● ● ●
216 09.173 BOLT; HOSE FIX
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 1409- ● ● ● ● ●
çizim 451699
53 66 66 67 67 147 67 147 67 202 122 146 123 146 123
BalonParca AdiParca NoAdetTipApplied Date A B C D E
53 09.220 PIPE; RECEIVER TANK TO EVAP
4JA1-T ENG(LP0) HIGH PRESSURE 		8-98102-232-2 01 1 1409- ● ●
53 09.220 PIPE; RECEIVER TANK TO EVAP
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) HIGH PRESSURE 		8-98129-150-4 01 1 1409-1411 ● ● ● ● ●
53 09.220 PIPE; RECEIVER TANK TO EVAP
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) HIGH PRESSURE 		8-98129-150-4 01 1 1412-1508 ● ● ● ● ●
53 09.220 PIPE; RECEIVER TANK TO EVAP
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) HIGH PRESSURE 		8-98129-150-4 01 1 1509- ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JA1-T ENG(LP0) (C) LOW PRESSURE 		8-98102-234-2 01 1 1409- ● ●
66 09.225 HOSE; FLEX,A/C
4JA1-T ENG(LP0) (D) HIGH PRESSURE 		8-98102-236-2 01 1 1409- ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE 		8-98209-993-0 01 1 1409-1411 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE 		8-98209-993-0 01 1 1412-1508 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE 		8-98209-993-0 01 1 1509- ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (A) LOW PRESSURE 		8-98102-233-3 01 1 1409-1411 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (A) LOW PRESSURE 		8-98102-233-3 01 1 1412-1508 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (A) LOW PRESSURE 		8-98102-233-3 01 1 1509- ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1409-1411 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1412-1508 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1509- ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A) LOW PRESSURE 		8-98212-092-0 01 1 1409- ● ● ● ●
67 09.260 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) 		8-98164-687-0 01 1 1409- ● ● ● ● ●
67 09.260 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (C) 		8-98164-688-0 01 1 1409- ● ● ● ● ●
67 09.260 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A) 		8-98193-624-0 02 1 1409- ● ● ● ● ●
122 09.225 GASKET
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98164-690-0 01 1 1409- ● ● ● ● ●
123 09.195 GASKET; RECEIVER PIPE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98164-689-0 02 1 1409- ● ● ● ● ●
146 09.196 CLIP; RECEIVER PIPE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98193-622-0 02 1 1409- ● ● ● ● ●
147 09.242 CAP; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A) 		8-98193-623-0 01 1 1409- ● ● ● ● ●
147 09.242 CAP; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) 		8-98193-625-0 01 1 1409- ● ● ● ● ●
202 09.275 SWITCH; PRESSURE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98164-691-0 01 1 1409- ● ● ● ● ●
çizim 451732
67 66 66 53 123 67 147 67 147 122 202 146 146 123 67
BalonParca AdiParca NoAdetTipApplied Date A B C D E
53 09.220 PIPE; RECEIVER TANK TO EVAP
4JA1-T ENG(LP0) HIGH PRESSURE 		8-98102-232-2 01 1 1409- ● ●
53 09.220 PIPE; RECEIVER TANK TO EVAP
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) HIGH PRESSURE 		8-98129-150-4 01 1 1409-1411 ● ● ● ● ●
53 09.220 PIPE; RECEIVER TANK TO EVAP
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) HIGH PRESSURE 		8-98129-150-4 01 1 1412-1508 ● ● ● ● ●
53 09.220 PIPE; RECEIVER TANK TO EVAP
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) HIGH PRESSURE 		8-98129-150-4 01 1 1509- ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JA1-T ENG(LP0) (C) LOW PRESSURE 		8-98102-234-2 01 1 1409- ● ●
66 09.225 HOSE; FLEX,A/C
4JA1-T ENG(LP0) (D) HIGH PRESSURE 		8-98102-236-2 01 1 1409- ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE 		8-98209-993-0 01 1 1409-1411 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE 		8-98209-993-0 01 1 1412-1508 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) LOW PRESSURE 		8-98209-993-0 01 1 1509- ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (A) LOW PRESSURE 		8-98102-233-3 01 1 1409-1411 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (A) LOW PRESSURE 		8-98102-233-3 01 1 1412-1508 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (A) LOW PRESSURE 		8-98102-233-3 01 1 1509- ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1409-1411 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1412-1508 ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1509- ● ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A) LOW PRESSURE 		8-98212-092-0 01 1 1409- ● ● ● ●
67 09.260 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) 		8-98164-687-0 01 1 1409- ● ● ● ● ●
67 09.260 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (C) 		8-98164-688-0 01 1 1409- ● ● ● ● ●
67 09.260 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A) 		8-98193-624-0 02 1 1409- ● ● ● ● ●
122 09.225 GASKET
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98164-690-0 01 1 1409- ● ● ● ● ●
123 09.195 GASKET; RECEIVER PIPE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98164-689-0 02 1 1409- ● ● ● ● ●
146 09.196 CLIP; RECEIVER PIPE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98193-622-0 02 1 1409- ● ● ● ● ●
147 09.242 CAP; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A) 		8-98193-623-0 01 1 1409- ● ● ● ● ●
147 09.242 CAP; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) 		8-98193-625-0 01 1 1409- ● ● ● ● ●
202 09.275 SWITCH; PRESSURE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 		8-98164-691-0 01 1 1409- ● ● ● ● ●
