Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#151881) — 257 parça

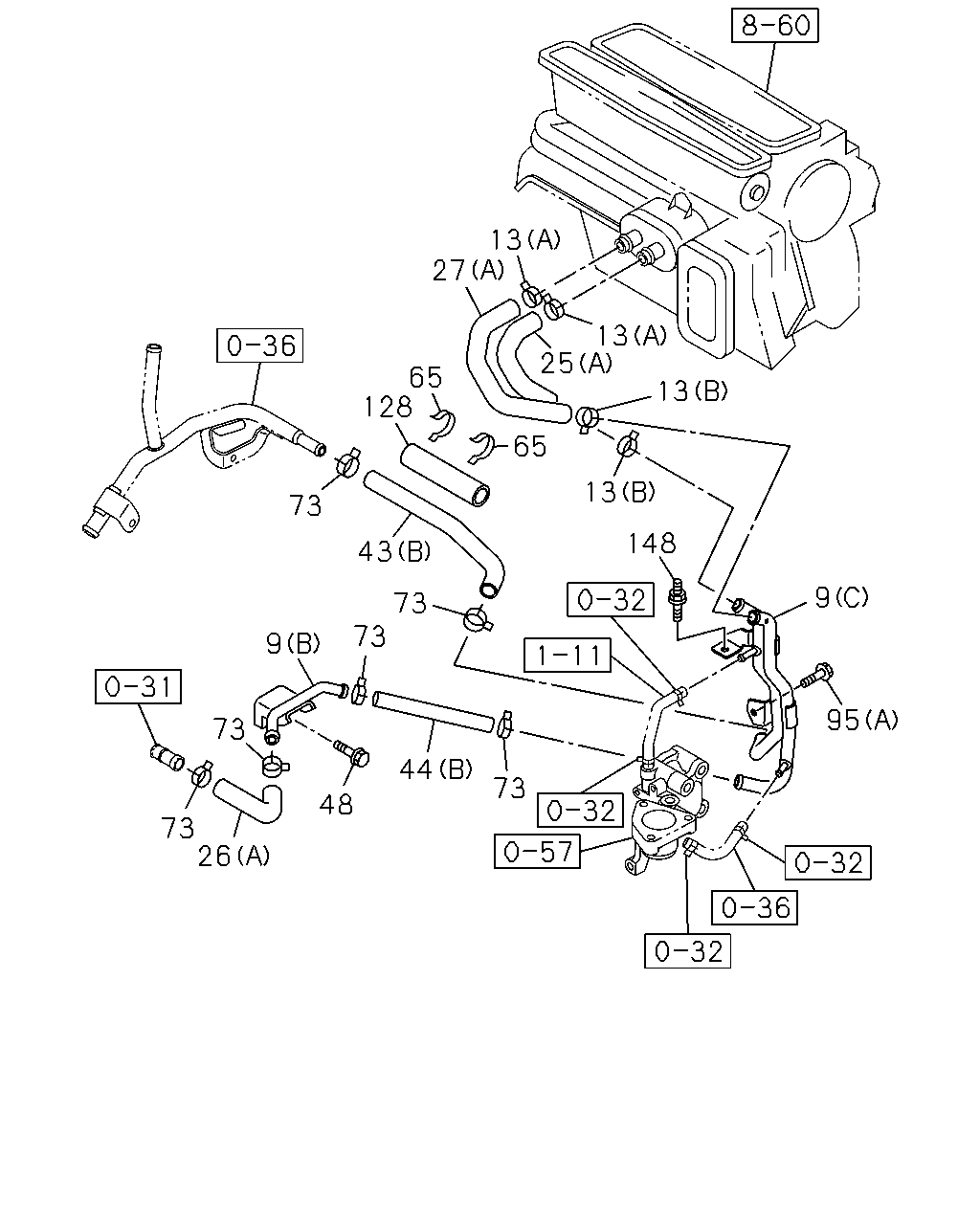

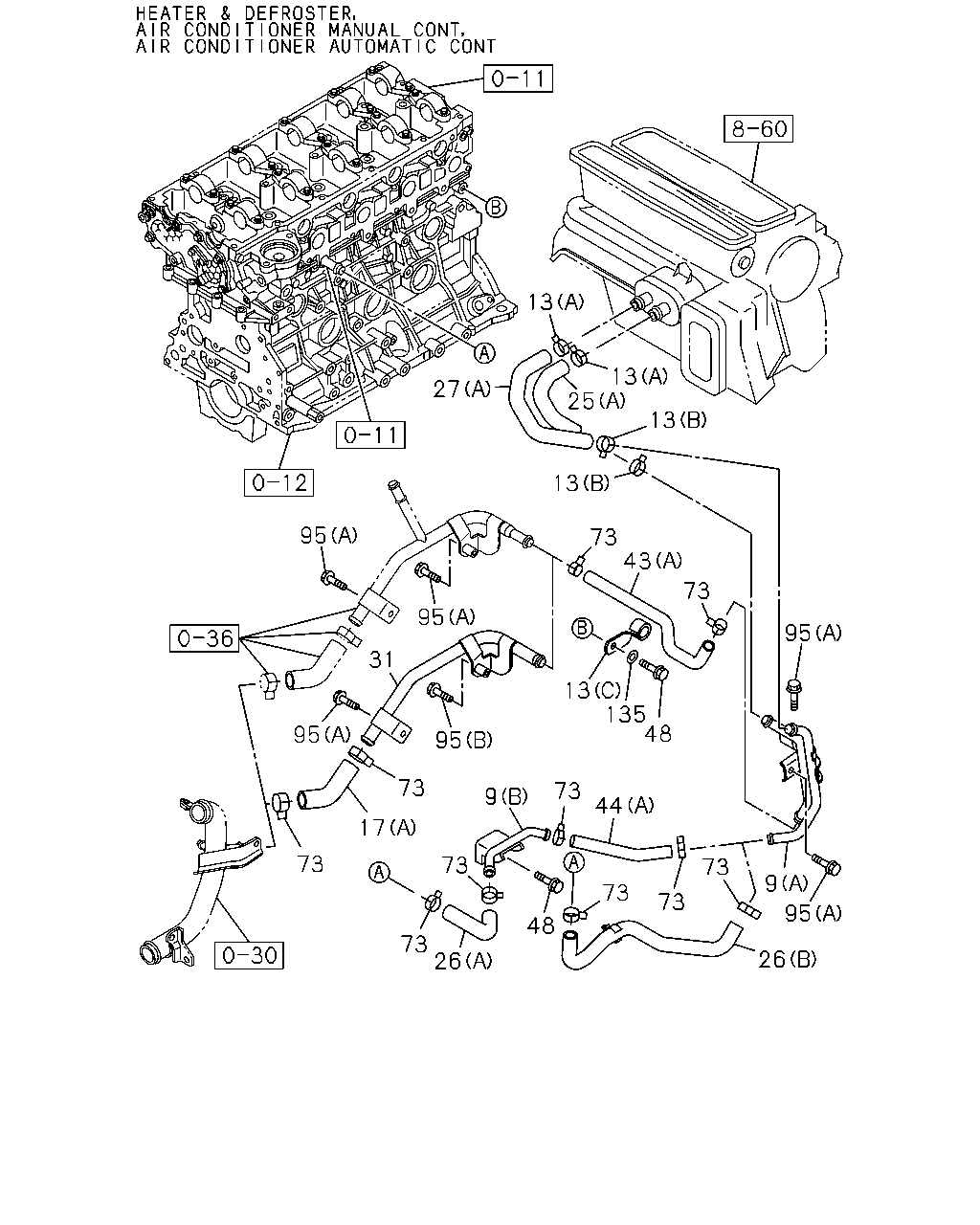

13 27 13 25 13 13 95 73 73 43 95 13 135 48 9 95 26 73 44 73 73 73 9 95 95 31 95 73 17 73 48 26 73 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
9	08.846 PIPE; HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98228-412-0	01	1	1409-1508	●	●	●	●	●
9	08.846 PIPE; HTR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98228-412-0	01	1	1509-	●	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98131-991-1	01	1	1409-1411		●		●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98131-991-1	01	1	1412-	●	●	●	●	●
9	08.846 PIPE; HTR 4JK1-TCY ENG(RDX) (C)	8-98151-180-1	01	1	1409-	●	●		●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCY ENG(RDX) (B)	8-98163-300-0	01	1	1409-1411	●	●		●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98163-300-0	01	1	1412-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1412-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.278 (A) ID=22	8-97359-141-0	02	1	1409-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1409-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1409-1411	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1412-1508	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1412-1508	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1509-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1509-	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCS ENG(LKZ) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (C)	8-98036-848-0	01	1	1412-	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-98132-368-0	01	1	1409-1411	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-98132-368-0	01	1	1412-1508	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-98132-368-0	01	1	1412-1508	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-98132-368-0	01	1	1509-	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-98132-368-0	01	1	1509-	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (B)	8-98205-896-0	01	1	1409-1508	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (B)	8-98205-896-0	01	1	1509-	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98129-342-3	01	1	1409-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1409-1411	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1412-1508	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1509-	●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCY ENG(RDX) (A)	8-98011-630-0	01	1	1409-1411	●	●		●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98011-630-0	01	1	1412-	●	●	●	●	●
26	08.846 HOSE; HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98228-459-0	01	1	1409-1508	●	●	●	●	●
26	08.846 HOSE; HTR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98228-459-0	01	1	1509-	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98129-340-3	01	1	1409-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1409-1411	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1412-1508	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1509-	●	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98131-989-0	01	1	1409-1411	●	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98131-989-0	01	1	1412-1508	●	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98131-989-0	01	1	1412-1508	●	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98131-989-0	01	1	1509-	●	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98131-989-0	01	1	1509-	●	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98239-131-0	01	1	1409-1508	●	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98239-131-0	01	1	1509-	●	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98134-332-0	01	1	1409-1411		●		●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98134-332-0	01	1	1412-	●	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JK1-TCY ENG(RDX) (B)	8-98151-181-1	01	1	1409-	●	●		●	●
44	08.846 HOSE; WATER,HTR,INL 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 01.540 (A) L=160 SERVICED BY L=3000	0-03566-300-0	01	1	1409-1411		●		●	●
44	08.846 HOSE; WATER,HTR,INL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 01.540 (A) L=160 SERVICED BY L=3000	0-03566-300-0	01	1	1412-	●	●	●	●	●
44	08.846 HOSE; WATER,HTR,INL 4JK1-TCY ENG(RDX) 01.540 (B) L=190 SERVICED BY L=3000	0-03566-300-0	01	1	1409-	●	●		●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1412-1508	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1412-1508	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1409-1411	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1409-1411	●	●		●	●
48	09.262 BOLT; CLIP FIX 4JK1-TCS ENG(LKZ) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1412-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) ID=20.8	8-97944-127-0	02	1	1409-1508	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) ID=20.8	8-97944-127-0	02	1	1509-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	08	1	1409-1411		●		●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	08	1	1412-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> ID=20.8	8-97944-127-0	06	1	1409-1508	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCY ENG(RDX) ID=20.8	8-97944-127-0	06	1	1409-1508	●	●		●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> ID=20.8	8-97944-127-0	06	1	1509-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCY ENG(RDX) ID=20.8	8-97944-127-0	06	1	1509-	●	●		●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) EURO4 SPECIFICATION<NT4> ID=20.8	8-97944-127-0	04	1	1409-1411	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) EURO4 SPECIFICATION<NT4> ID=20.8	8-97944-127-0	04	1	1412-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> ID=20.8	8-97944-127-0	04	1	1412-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1409-1411	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1412-1508	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1412-1508	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1509-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1509-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1409-1411	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1412-1508	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1509-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1509-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCY ENG(RDX) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411	●	●		●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1412-1508	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1412-1508	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCY ENG(RDX) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1412-1508	●	●		●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCY ENG(RDX) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●		●	●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1409-1411	●	●	●	●	●
135	08.846 WASHER; PL 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1412-1508	●	●	●	●	●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1412-1508	●	●	●	●	●
135	08.846 WASHER; PL 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1509-	●	●	●	●	●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1509-	●	●	●	●	●

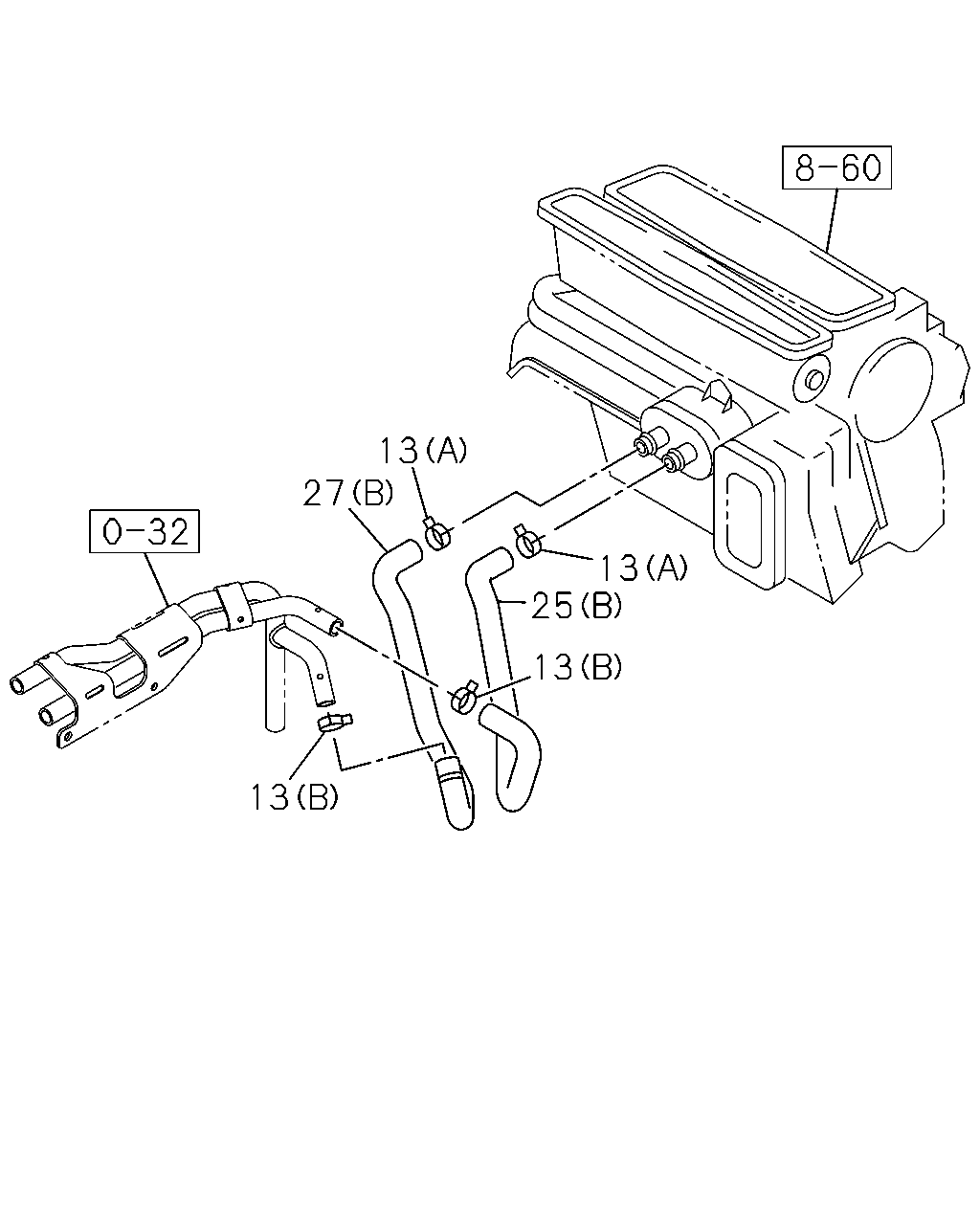

27 13 13 25 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
13	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1412-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.278 (A) ID=22	8-97359-141-0	02	1	1409-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1409-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1409-1411	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1412-1508	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1412-1508	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1509-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1509-	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98129-342-3	01	1	1409-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1409-1411	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1412-1508	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1509-	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98129-340-3	01	1	1409-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1409-1411	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1412-1508	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1509-	●	●	●	●	●

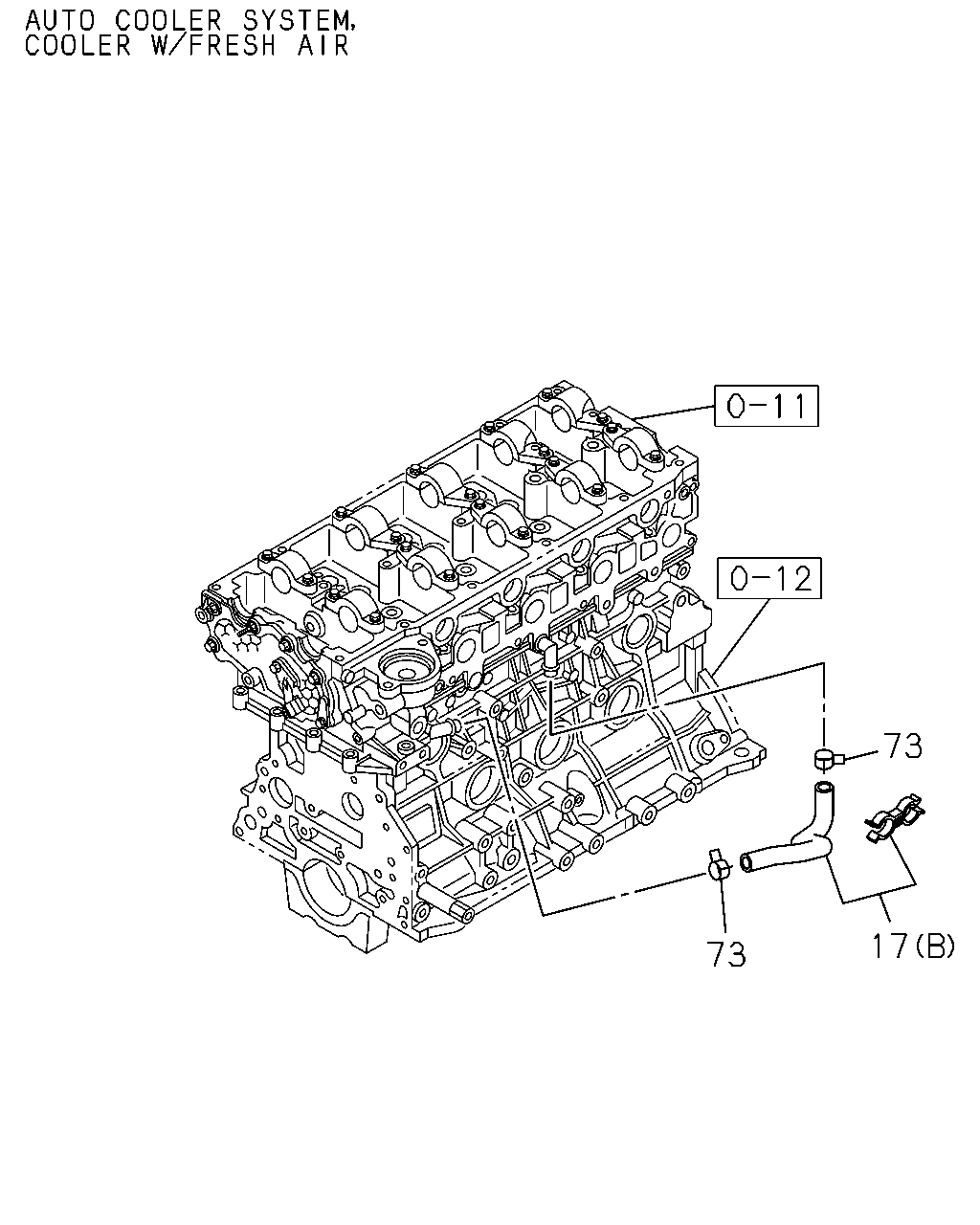

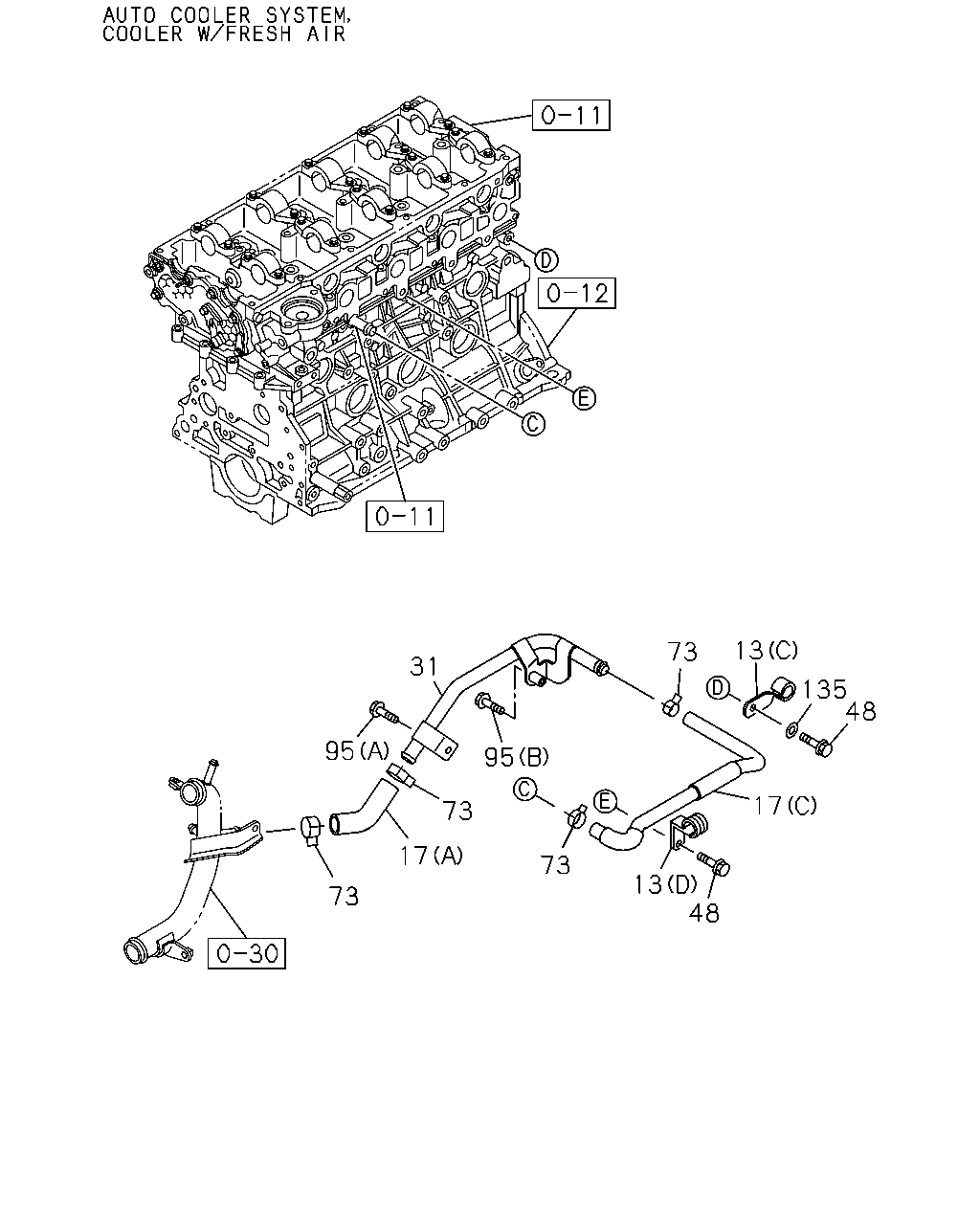

31 95 73 17 73 95 73 13 48 17 73 13 135 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
13	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1412-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.278 (A) ID=22	8-97359-141-0	02	1	1409-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1409-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1409-1411	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1412-1508	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1412-1508	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1509-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1509-	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCS ENG(LKZ) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (C)	8-98036-848-0	01	1	1412-	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-98132-368-0	01	1	1409-1411	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-98132-368-0	01	1	1412-1508	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-98132-368-0	01	1	1412-1508	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-98132-368-0	01	1	1509-	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-98132-368-0	01	1	1509-	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (B)	8-98205-896-0	01	1	1409-1508	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (B)	8-98205-896-0	01	1	1509-	●	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98131-989-0	01	1	1409-1411	●	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98131-989-0	01	1	1412-1508	●	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98131-989-0	01	1	1412-1508	●	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98131-989-0	01	1	1509-	●	●	●	●	●
31	08.846 PIPE; BYPASS,HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98131-989-0	01	1	1509-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1412-1508	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1412-1508	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1409-1411	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1409-1411	●	●		●	●
48	09.262 BOLT; CLIP FIX 4JK1-TCS ENG(LKZ) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1412-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) ID=20.8	8-97944-127-0	02	1	1409-1508	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) ID=20.8	8-97944-127-0	02	1	1509-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	08	1	1409-1411		●		●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	08	1	1412-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> ID=20.8	8-97944-127-0	06	1	1409-1508	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCY ENG(RDX) ID=20.8	8-97944-127-0	06	1	1409-1508	●	●		●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> ID=20.8	8-97944-127-0	06	1	1509-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCY ENG(RDX) ID=20.8	8-97944-127-0	06	1	1509-	●	●		●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) EURO4 SPECIFICATION<NT4> ID=20.8	8-97944-127-0	04	1	1409-1411	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) EURO4 SPECIFICATION<NT4> ID=20.8	8-97944-127-0	04	1	1412-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> ID=20.8	8-97944-127-0	04	1	1412-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1409-1411	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1412-1508	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1412-1508	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1509-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1509-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1409-1411	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1412-1508	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1509-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1509-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCY ENG(RDX) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411	●	●		●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1412-1508	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1412-1508	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCY ENG(RDX) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1412-1508	●	●		●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCY ENG(RDX) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●		●	●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1409-1411	●	●	●	●	●
135	08.846 WASHER; PL 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1412-1508	●	●	●	●	●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1412-1508	●	●	●	●	●
135	08.846 WASHER; PL 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1509-	●	●	●	●	●
135	08.846 WASHER; PL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1509-	●	●	●	●	●

73 73 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
17	08.846 HOSE; WATER,BYPASS 4JK1-TCS ENG(LKZ) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (C)	8-98036-848-0	01	1	1412-	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-98132-368-0	01	1	1409-1411	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-98132-368-0	01	1	1412-1508	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-98132-368-0	01	1	1412-1508	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-98132-368-0	01	1	1509-	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (A)	8-98132-368-0	01	1	1509-	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (B)	8-98205-896-0	01	1	1409-1508	●	●	●	●	●
17	08.846 HOSE; WATER,BYPASS 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) (B)	8-98205-896-0	01	1	1509-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) ID=20.8	8-97944-127-0	02	1	1409-1508	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) ID=20.8	8-97944-127-0	02	1	1509-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	08	1	1409-1411		●		●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	08	1	1412-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> ID=20.8	8-97944-127-0	06	1	1409-1508	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCY ENG(RDX) ID=20.8	8-97944-127-0	06	1	1409-1508	●	●		●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> ID=20.8	8-97944-127-0	06	1	1509-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCY ENG(RDX) ID=20.8	8-97944-127-0	06	1	1509-	●	●		●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) EURO4 SPECIFICATION<NT4> ID=20.8	8-97944-127-0	04	1	1409-1411	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) EURO4 SPECIFICATION<NT4> ID=20.8	8-97944-127-0	04	1	1412-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> ID=20.8	8-97944-127-0	04	1	1412-	●	●	●	●	●

13 27 13 25 13 65 128 65 73 73 43 9 73 73 73 26 48 73 44 148 13 9 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
9	08.846 PIPE; HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98228-412-0	01	1	1409-1508	●	●	●	●	●
9	08.846 PIPE; HTR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98228-412-0	01	1	1509-	●	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98131-991-1	01	1	1409-1411		●		●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98131-991-1	01	1	1412-	●	●	●	●	●
9	08.846 PIPE; HTR 4JK1-TCY ENG(RDX) (C)	8-98151-180-1	01	1	1409-	●	●		●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCY ENG(RDX) (B)	8-98163-300-0	01	1	1409-1411	●	●		●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98163-300-0	01	1	1412-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) 02.559 (D) ID=24 H=40 L=24	1-09701-243-1	01	1	1412-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.278 (A) ID=22	8-97359-141-0	02	1	1409-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.417 (B) ID=20.8	8-98133-607-0	02	1	1409-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1409-1411	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1412-1508	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1412-1508	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1509-	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.559 (C) ID=25 L=54	1-09700-392-1	01	1	1509-	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98129-342-3	01	1	1409-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1409-1411	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1412-1508	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-341-3	01	1	1509-	●	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCY ENG(RDX) (A)	8-98011-630-0	01	1	1409-1411	●	●		●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98011-630-0	01	1	1412-	●	●	●	●	●
26	08.846 HOSE; HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98228-459-0	01	1	1409-1508	●	●	●	●	●
26	08.846 HOSE; HTR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98228-459-0	01	1	1509-	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98129-340-3	01	1	1409-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1409-1411	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1412-1508	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-339-3	01	1	1509-	●	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98239-131-0	01	1	1409-1508	●	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98239-131-0	01	1	1509-	●	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98134-332-0	01	1	1409-1411		●		●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98134-332-0	01	1	1412-	●	●	●	●	●
43	08.846 HOSE; WATER,OUTLET,HTR 4JK1-TCY ENG(RDX) (B)	8-98151-181-1	01	1	1409-	●	●		●	●
44	08.846 HOSE; WATER,HTR,INL 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 01.540 (A) L=160 SERVICED BY L=3000	0-03566-300-0	01	1	1409-1411		●		●	●
44	08.846 HOSE; WATER,HTR,INL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 01.540 (A) L=160 SERVICED BY L=3000	0-03566-300-0	01	1	1412-	●	●	●	●	●
44	08.846 HOSE; WATER,HTR,INL 4JK1-TCY ENG(RDX) 01.540 (B) L=190 SERVICED BY L=3000	0-03566-300-0	01	1	1409-	●	●		●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1412-1508	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1412-1508	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1409-1411	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1409-1411	●	●		●	●
48	09.262 BOLT; CLIP FIX 4JK1-TCS ENG(LKZ) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1412-	●	●	●	●	●
65	08.846 CLIP; MTG RUBBER 4JK1-TCY ENG(RDX) 01.540	8-97101-337-0	02	1	1409-	●	●		●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) ID=20.8	8-97944-127-0	02	1	1409-1508	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) ID=20.8	8-97944-127-0	02	1	1509-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	08	1	1409-1411		●		●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) ID=20.8	8-97944-127-0	08	1	1412-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> ID=20.8	8-97944-127-0	06	1	1409-1508	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCY ENG(RDX) ID=20.8	8-97944-127-0	06	1	1409-1508	●	●		●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> ID=20.8	8-97944-127-0	06	1	1509-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCY ENG(RDX) ID=20.8	8-97944-127-0	06	1	1509-	●	●		●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) EURO4 SPECIFICATION<NT4> ID=20.8	8-97944-127-0	04	1	1409-1411	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCX ENG(LR0) EURO4 SPECIFICATION<NT4> ID=20.8	8-97944-127-0	04	1	1412-	●	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JK1-TCS ENG(LKZ) AUTO COOLER SYSTEM(CJ2),COOLER W/FRESHAIR(C65) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> ID=20.8	8-97944-127-0	04	1	1412-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1409-1411	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1412-1508	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1412-1508	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1509-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.685 (B) M8X40 FLANGE	0-28650-840-0	01	1	1509-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1409-1411	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1412-1508	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1509-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1509-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCY ENG(RDX) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411	●	●		●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1412-1508	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1412-1508	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCY ENG(RDX) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1412-1508	●	●		●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●	●	●	●
95	08.866 BOLT; BYPASS PIPE 4JK1-TCY ENG(RDX) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●		●	●
128	08.845 INSULATOR; RR HTR 4JK1-TCY ENG(RDX) 03.374	8-98031-884-0	01	1	1409-	●	●		●	●
148	08.846 STUD; PIPE 4JK1-TCY ENG(RDX) 00.413 M8X15,M8X17 L=40	8-98009-913-0	01	1	1409-	●	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
