◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#151873) — 195 parça

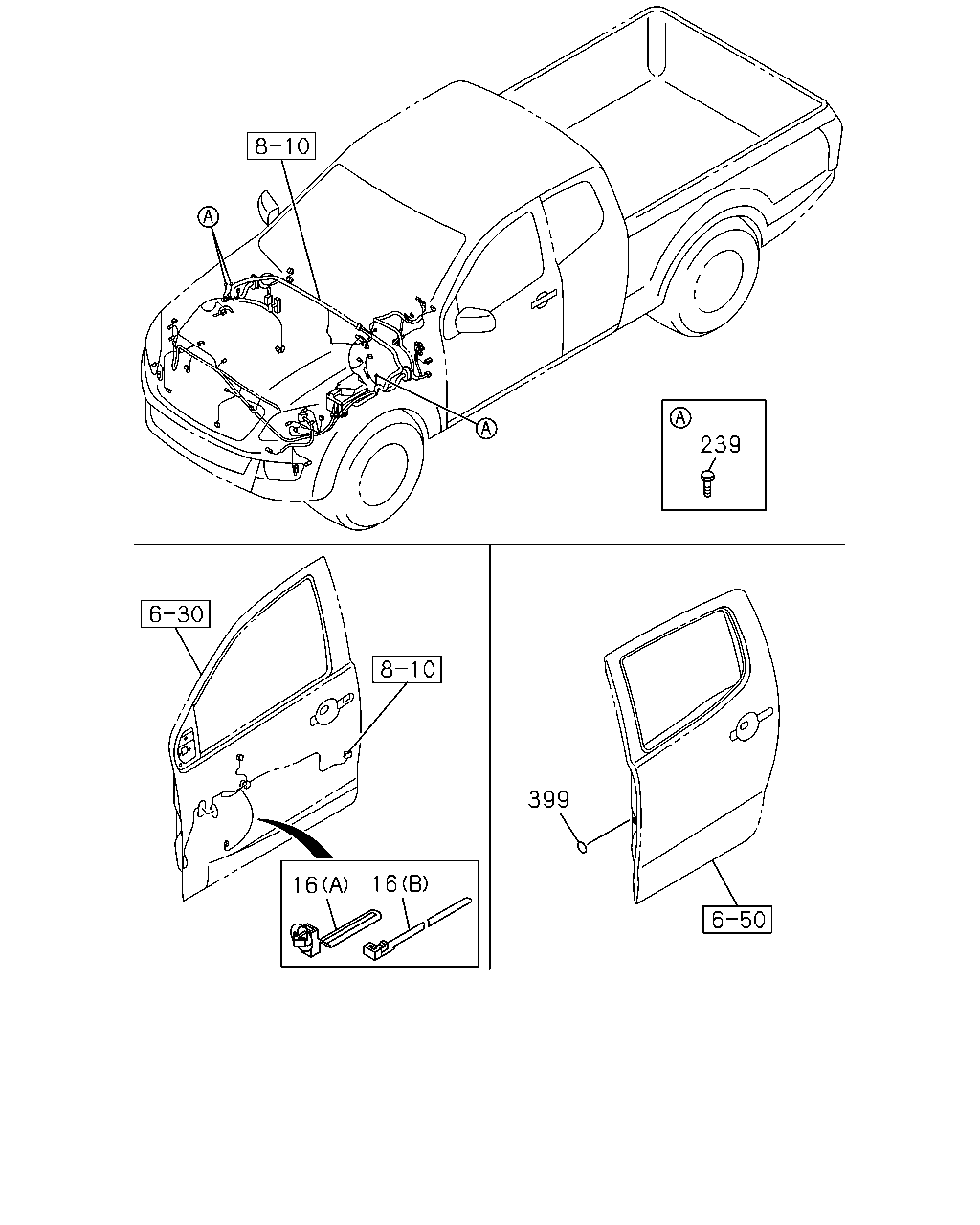

çizim 448727
239 16 16 399
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) 03.162 (D) L=140 		5-09707-031-1 01 1 1409- ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) 02.313 (C) ID=18 L=44 		8-97367-985-1 02 1 1409- ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 02 1 1409- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 02 1 1409- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(B) L=140 		8-97378-707-0 03 1 1409- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(B) L=140 		8-97378-707-0 03 1 1409- ● ● ● ● ●
239 02.559 BOLT; GRAND
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 1409-1411 ●
239 02.559 BOLT; GRAND
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 1409-1411 ● ● ●
239 02.559 BOLT; GRAND
4JK1-TCX ENG(LR0) M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 1409-1411 ●
239 02.559 BOLT; GRAND
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 1412-1501 ● ● ● ● ●
239 02.559 BOLT; GRAND
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M6X14 W/PL WASHER 		8-98164-836-0 03 1 1502-1508 ● ● ● ● ●
239 02.559 BOLT; GRAND
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) M6X14 W/PL WASHER 		8-98164-836-0 03 1 1509- ● ● ● ● ●
239 02.559 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ● ● ● ●
239 02.559 BOLT; GRAND
4JA1-T ENG(LP0) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOT E CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/ ANTI THEFT<7KY> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> EXC. HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOT E CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ●
239 02.559 BOLT; GRAND
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ●
239 02.559 BOLT; GRAND
M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ● ● ● ●
239 02.559 BOLT; GRAND
4JA1-T ENG(LP0) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOT E CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/ ANTI THEFT<7KY> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> EXC. HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOT E CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ●
239 02.559 BOLT; GRAND
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ●
399 02.559 COVER; HOLE,HARNESS,RR DOOR
EXC. AUTO DOOR LOCK<AU4>,6-SPEAKER SYSTEM BASE<UW5> 16.064 OD=44 BLACK 		5-76777-037-0 02 1 1409-1502 ● ●
399 02.559 COVER; HOLE,HARNESS,RR DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4>,6-SPEAKER SYSTEM BASE<UW5> 16.064 OD=44 BLACK 		5-76777-037-0 02 1 1503-1505 ● ●
399 02.559 COVER; HOLE,HARNESS,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 16.064 OD=44 BLACK 		5-76777-037-0 02 1 1506- ● ●

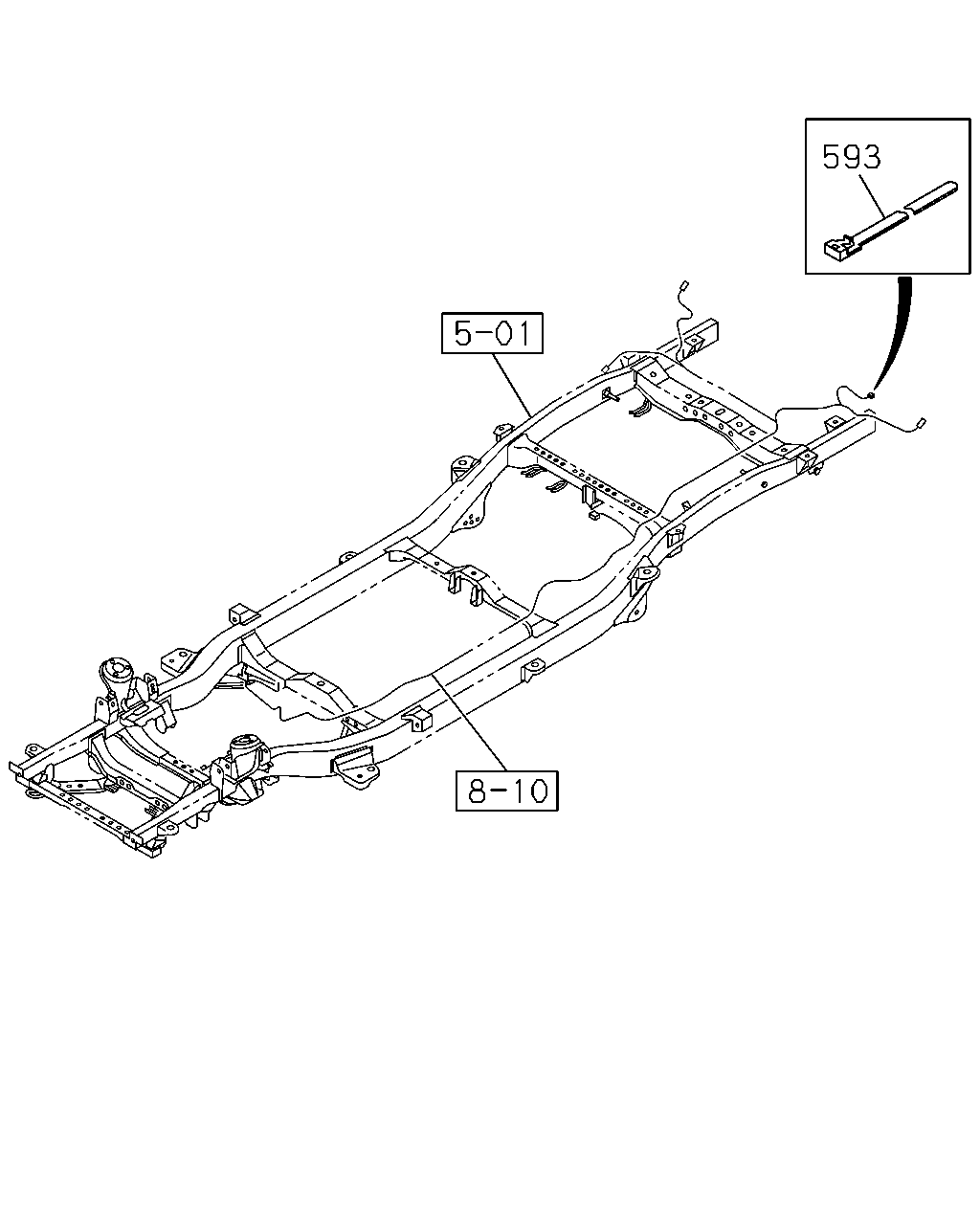

çizim 449653
593
BalonParca AdiParca NoAdetTipApplied Date A B C D E
593 02.559 CLIP
REAR BODY DELETE(8HH) L=250 		5-09707-030-1 01 1 1409- ● ● ● ● ●

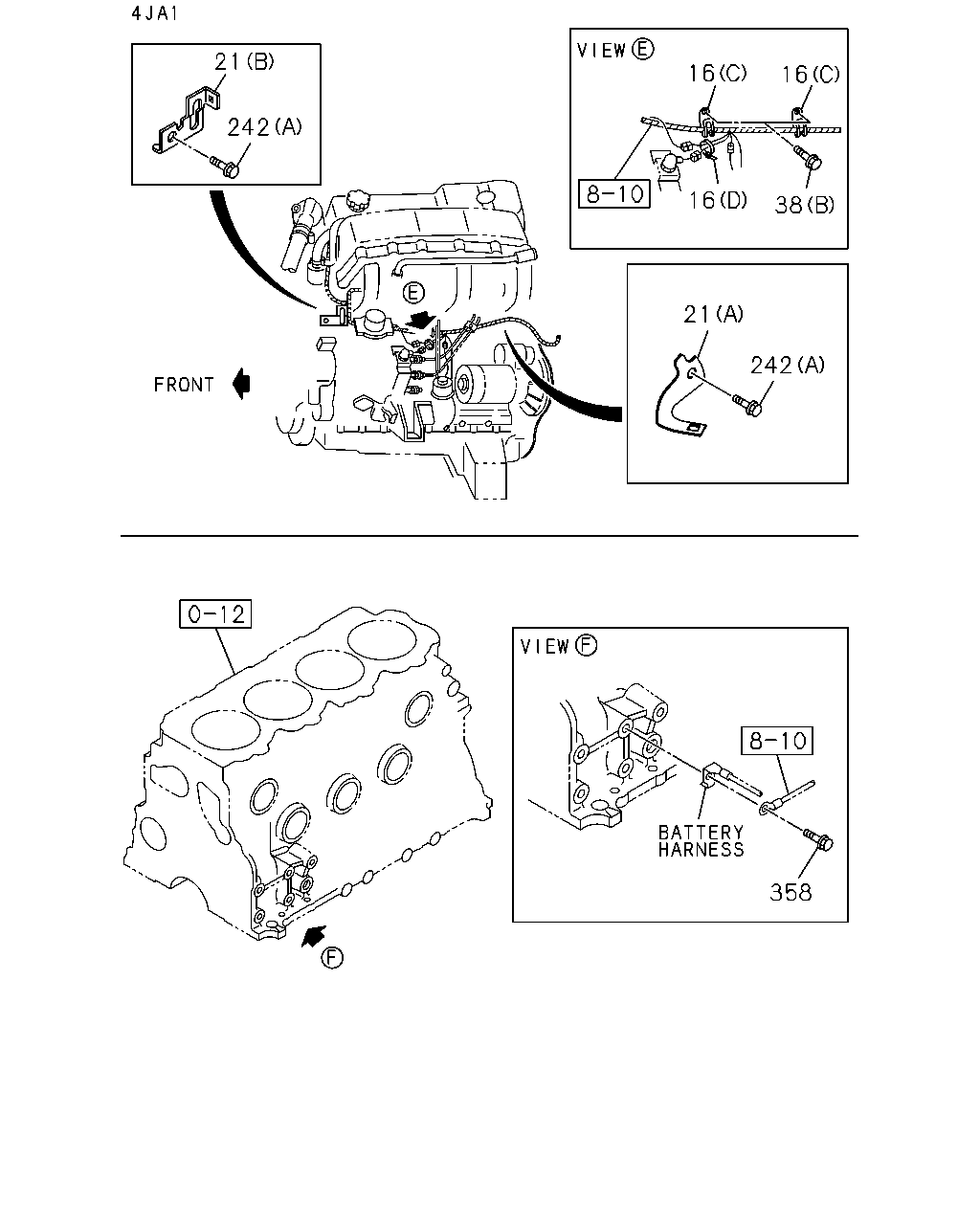

çizim 451463
21 242 16 16 38 16 21 242 358
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) 03.162 (D) L=140 		5-09707-031-1 01 1 1409- ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) 02.313 (C) ID=18 L=44 		8-97367-985-1 02 1 1409- ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 02 1 1409- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 02 1 1409- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(B) L=140 		8-97378-707-0 03 1 1409- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(B) L=140 		8-97378-707-0 03 1 1409- ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) (B) 		8-97249-918-1 01 1 1409- ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) (A) 		8-98179-923-0 01 1 1409- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1504- ● ●
38 02.559 BOLT; CLIP,HARNESS
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.343 (D) M6X16 FLANGE 		0-28650-616-0 05 1 1409-1505 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.343 (D) M6X16 FLANGE 		0-28650-616-0 05 1 1409-1505 ● ●
38 02.559 BOLT; CLIP,HARNESS
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.343 (D) M6X16 FLANGE 		0-28650-616-0 05 1 1409-1505 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (D) M6X16 FLANGE 		0-28650-616-0 05 1 1506- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 04.338 (E) M8X20 FLANGE 		0-28050-820-0 02 1 1409-1411 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 04.338 (E) M8X20 FLANGE 		0-28050-820-0 02 1 1412-1508 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 04.338 (E) M8X20 FLANGE 		0-28050-820-0 02 1 1509- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCY ENG(RDX) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1409-1411 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCY ENG(RDX) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1412- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 02 1 1409-1411 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 02 1 1412-1508 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 02 1 1509- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1409-1411 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1412-1508 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1509- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JK1-TCX ENG(LR0) 02.343 (F) M10X12 FLANGE 		0-28151-012-0 01 1 1409-1508 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 (F) M10X12 FLANGE 		0-28151-012-0 01 1 1509- ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 1509- ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 03 1 1409-1503 ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 1504- ● ●
242 02.483 BOLT; BRKT,HARNESS
4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) 03.895 (B) M8X16 FLANGE 		8-98076-109-0 01 1 1409- ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
M/T AISIN 6 SPEED(RNU) 03.895 (B) M8X16 FLANGE 		8-98076-109-0 01 1 1409- ● ● ● ●
358 02.480 BOLT; EARTH
4JA1-T ENG(LP0) 02.483 M10X16 FLANGE 		0-28051-016-0 01 1 1409- ● ●

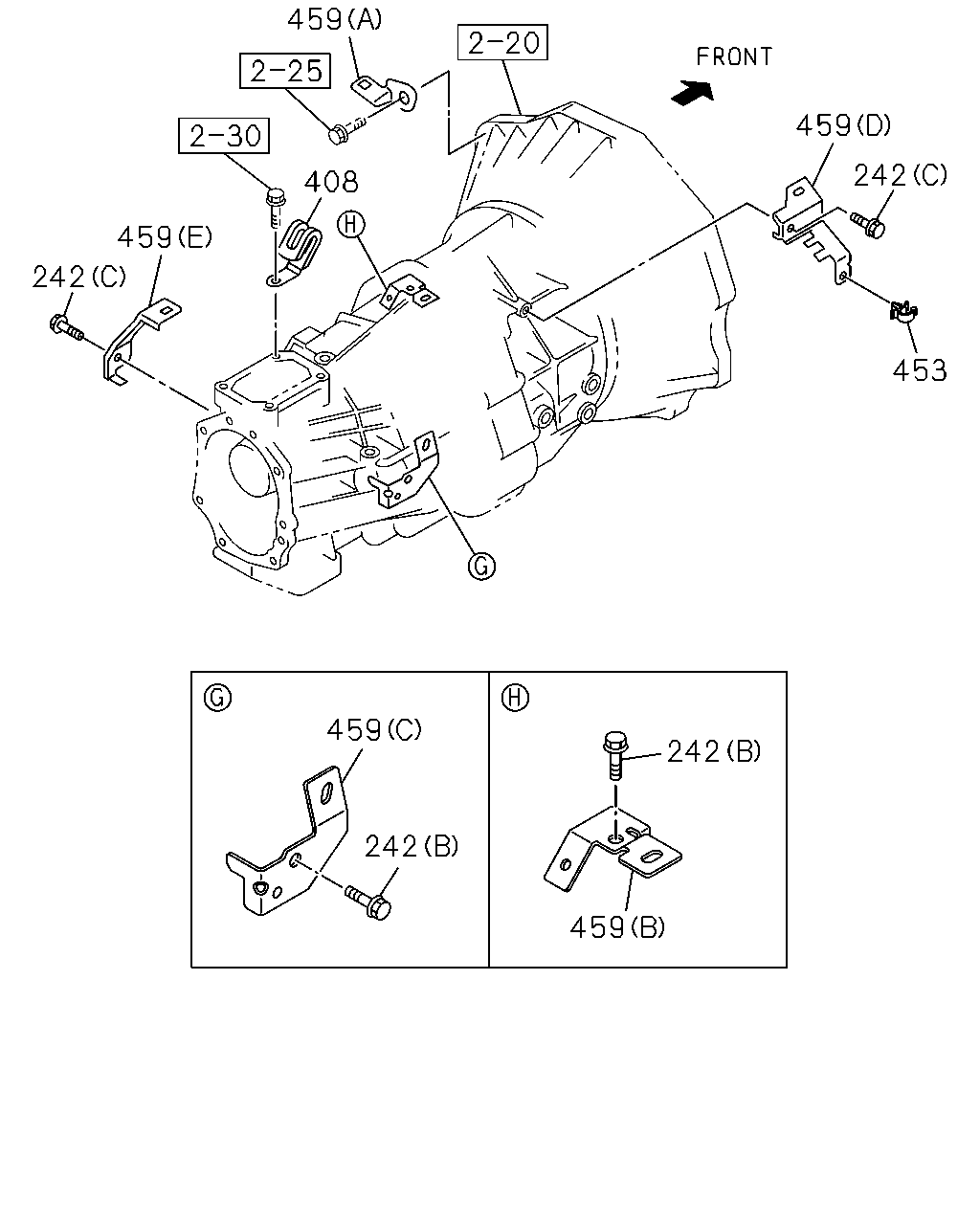

çizim 451582
459 408 459 242 459 242 459 242 242 453 459
BalonParca AdiParca NoAdetTipApplied Date A B C D E
242 02.483 BOLT; BRKT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 1509- ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 03 1 1409-1503 ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 1504- ● ●
242 02.483 BOLT; BRKT,HARNESS
4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) 03.895 (B) M8X16 FLANGE 		8-98076-109-0 01 1 1409- ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
M/T AISIN 6 SPEED(RNU) 03.895 (B) M8X16 FLANGE 		8-98076-109-0 01 1 1409- ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) 03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 1409-1411 ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 1412- ● ● ● ● ●
453 02.559 CLIP; CABLE HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 04.342 ID=6.5 		5-09709-117-0 01 1 1509- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (D) 		8-98035-740-0 01 1 1509- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (E) 		8-98035-741-0 01 1 1509- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA5 SPEED 5S(RSQ) (A) 		8-98050-882-0 01 1 1409- ●
459 02.483 BRACKET; SUPPORT,HARNESS
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) 		8-98050-882-0 01 1 1409- ●
459 02.483 BRACKET; SUPPORT,HARNESS
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98050-882-0 01 1 1409- ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
M/T AISIN 6 SPEED(RNU) 04.686 (B) 		8-98159-956-0 01 1 1409- ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) 04.686 (C) 		8-98206-131-0 01 1 1409- ● ● ● ●

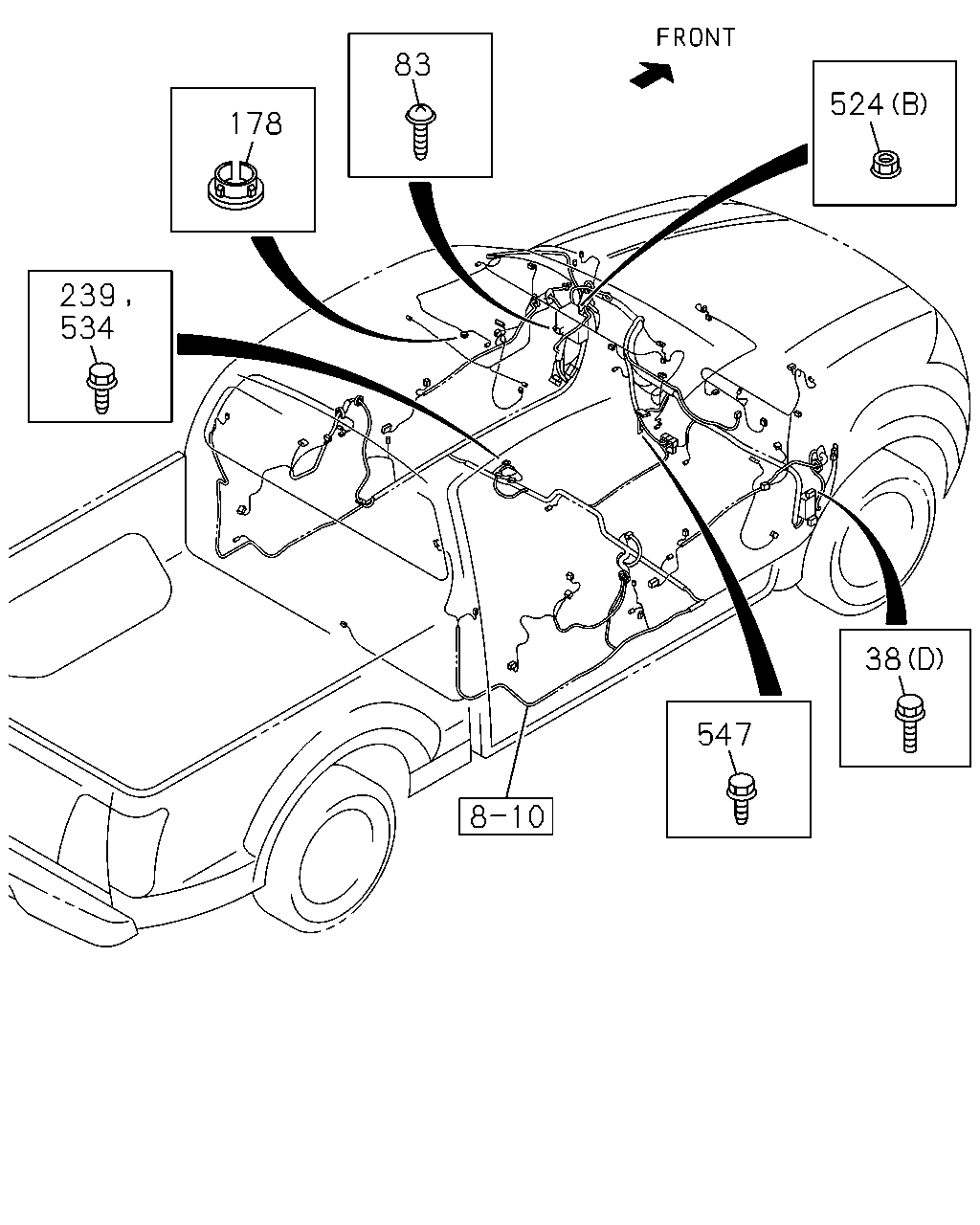

çizim 451817
83 178 239 547 534 38 524
BalonParca AdiParca NoAdetTipApplied Date A B C D E
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1504- ● ●
38 02.559 BOLT; CLIP,HARNESS
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.343 (D) M6X16 FLANGE 		0-28650-616-0 05 1 1409-1505 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.343 (D) M6X16 FLANGE 		0-28650-616-0 05 1 1409-1505 ● ●
38 02.559 BOLT; CLIP,HARNESS
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.343 (D) M6X16 FLANGE 		0-28650-616-0 05 1 1409-1505 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (D) M6X16 FLANGE 		0-28650-616-0 05 1 1506- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 04.338 (E) M8X20 FLANGE 		0-28050-820-0 02 1 1409-1411 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 04.338 (E) M8X20 FLANGE 		0-28050-820-0 02 1 1412-1508 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 04.338 (E) M8X20 FLANGE 		0-28050-820-0 02 1 1509- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCY ENG(RDX) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1409-1411 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCY ENG(RDX) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1412- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 02 1 1409-1411 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 02 1 1412-1508 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 02 1 1509- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1409-1411 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1412-1508 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1509- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JK1-TCX ENG(LR0) 02.343 (F) M10X12 FLANGE 		0-28151-012-0 01 1 1409-1508 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 (F) M10X12 FLANGE 		0-28151-012-0 01 1 1509- ● ● ● ● ●
83 02.483 SCREW; HARNESS
16.549 M5X25 TAPPING W/PL WASHER 		0-74360-525-0 01 1 1409- ● ● ● ● ●
178 02.559 GROMMET; HARNESS
09.647 		8-97027-381-0 01 1 1409- ● ● ● ● ●
239 02.559 BOLT; GRAND
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 1409-1411 ●
239 02.559 BOLT; GRAND
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 1409-1411 ● ● ●
239 02.559 BOLT; GRAND
4JK1-TCX ENG(LR0) M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 1409-1411 ●
239 02.559 BOLT; GRAND
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 1412-1501 ● ● ● ● ●
239 02.559 BOLT; GRAND
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M6X14 W/PL WASHER 		8-98164-836-0 03 1 1502-1508 ● ● ● ● ●
239 02.559 BOLT; GRAND
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) M6X14 W/PL WASHER 		8-98164-836-0 03 1 1509- ● ● ● ● ●
239 02.559 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ● ● ● ●
239 02.559 BOLT; GRAND
4JA1-T ENG(LP0) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOT E CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/ ANTI THEFT<7KY> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> EXC. HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOT E CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ● ●
239 02.559 BOLT; GRAND
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ●
239 02.559 BOLT; GRAND
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1409-1501 ●
239 02.559 BOLT; GRAND
M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ● ● ● ●
239 02.559 BOLT; GRAND
4JA1-T ENG(LP0) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOT E CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/ ANTI THEFT<7KY> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> EXC. HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOT E CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ●
239 02.559 BOLT; GRAND
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ●
524 02.559 NUT; HARNESS
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1409- ● ● ● ● ●
524 02.559 NUT; HARNESS
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1409-1411 ● ● ● ● ●
524 02.559 NUT; HARNESS
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1412-1508 ● ● ● ● ●
524 02.559 NUT; HARNESS
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1509- ● ● ● ● ●
534 02.480 BOLT; EARTH
02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 1409-1501 ●
534 02.480 BOLT; EARTH
02.559 M6X14 W/PL WASHER 		8-98164-836-0 04 1 1502- ●
547 02.559 BOLT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. HIGH RIDE SUSPENSION(7YC) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1409-1501 ●
547 02.559 BOLT
AIR BAG DRIVER & PASSENGER(AK5) HIGH RIDE SUSPENSION(7YC) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1409-1501 ●
547 02.559 BOLT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1409-1501 ● ● ●
547 02.559 BOLT
AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1409-1501 ●
547 02.559 BOLT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. HIGH RIDE SUSPENSION(7YC) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502-1505 ●
547 02.559 BOLT
AIR BAG DRIVER & PASSENGER(AK5) HIGH RIDE SUSPENSION(7YC) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502-1505 ●
547 02.559 BOLT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502-1505 ● ● ●
547 02.559 BOLT
AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502-1505 ●
547 02.559 BOLT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1506- ● ● ● ●
547 02.559 BOLT
AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1506- ●

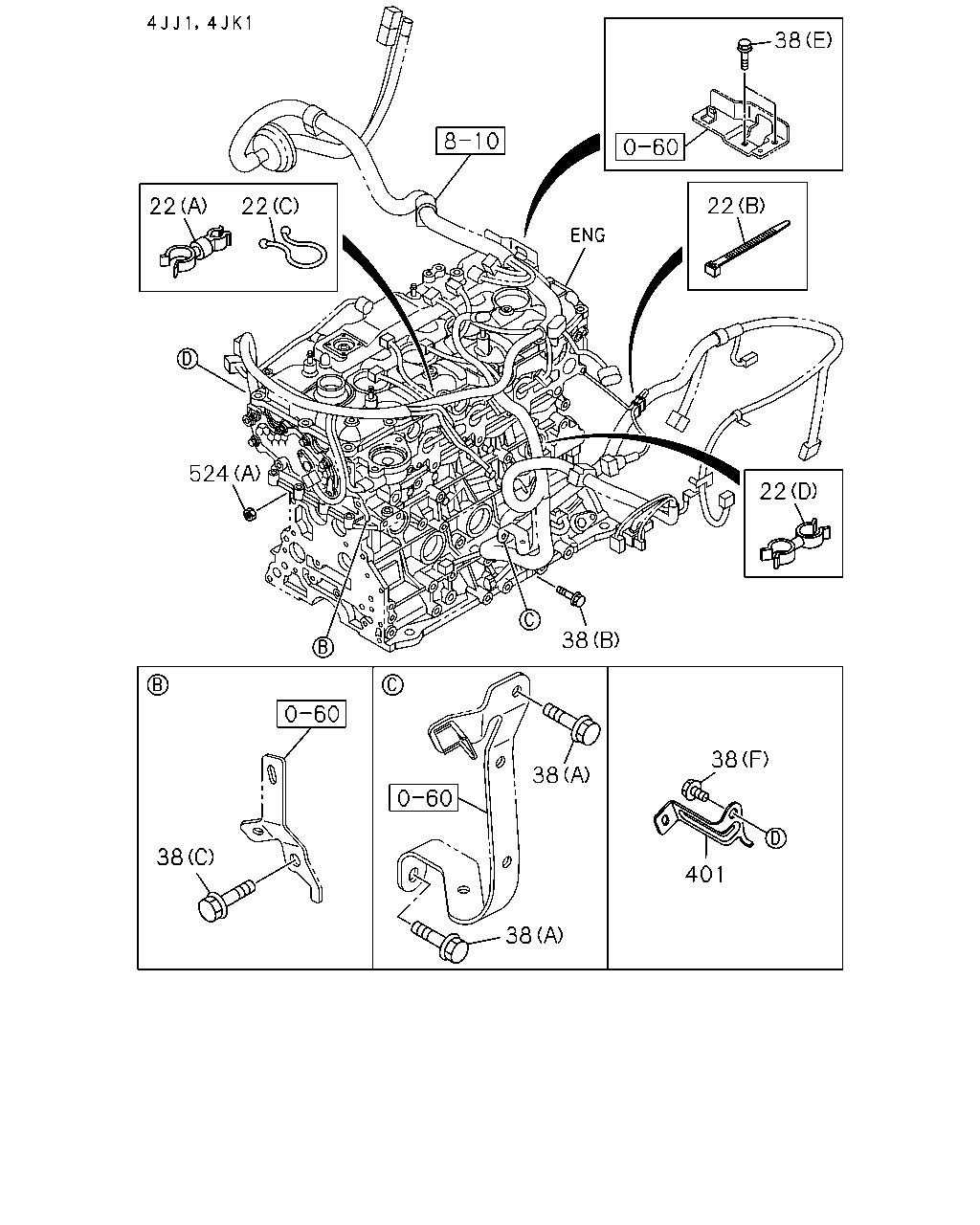

çizim 451883
22 22 38 22 524 38 22 38 38 38 401 38
BalonParca AdiParca NoAdetTipApplied Date A B C D E
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42) 09.663 (C) ID=15 		1-09709-003-0 01 1 1409-1411 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42) 09.663 (C) ID=15 		1-09709-003-0 01 1 1412-1508 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42) 09.663 (C) ID=15 		1-09709-003-0 01 1 1509- ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (D) ID=7.5 & 7.5 		8-98212-981-0 01 1 1409-1411 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (D) ID=7.5 & 7.5 		8-98212-981-0 01 1 1412-1508 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (D) ID=7.5 & 7.5 		8-98212-981-0 01 1 1509- ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JK1-TCY ENG(RDX) 16.716 (B) L=129.5 		8-94368-493-0 02 1 1409- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) (A) ID=11.8 & 7.5 		8-98212-982-0 01 1 1409-1411 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) (A) ID=11.8 & 7.5 		8-98212-982-0 01 1 1412-1508 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (A) ID=11.8 & 7.5 		8-98212-982-0 01 1 1509- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1504- ● ●
38 02.559 BOLT; CLIP,HARNESS
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.343 (D) M6X16 FLANGE 		0-28650-616-0 05 1 1409-1505 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.343 (D) M6X16 FLANGE 		0-28650-616-0 05 1 1409-1505 ● ●
38 02.559 BOLT; CLIP,HARNESS
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 02.343 (D) M6X16 FLANGE 		0-28650-616-0 05 1 1409-1505 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (D) M6X16 FLANGE 		0-28650-616-0 05 1 1506- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 04.338 (E) M8X20 FLANGE 		0-28050-820-0 02 1 1409-1411 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 04.338 (E) M8X20 FLANGE 		0-28050-820-0 02 1 1412-1508 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 04.338 (E) M8X20 FLANGE 		0-28050-820-0 02 1 1509- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCY ENG(RDX) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1409-1411 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCY ENG(RDX) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1412- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 02 1 1409-1411 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 02 1 1412-1508 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 02 1 1509- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1409-1411 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1412-1508 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1509- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JK1-TCX ENG(LR0) 02.343 (F) M10X12 FLANGE 		0-28151-012-0 01 1 1409-1508 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 (F) M10X12 FLANGE 		0-28151-012-0 01 1 1509- ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4JK1-TCX ENG(LR0) 		8-98224-801-0 01 1 1409-1508 ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-98224-801-0 01 1 1509- ● ● ● ● ●
524 02.559 NUT; HARNESS
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1409- ● ● ● ● ●
524 02.559 NUT; HARNESS
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1409-1411 ● ● ● ● ●
524 02.559 NUT; HARNESS
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1412-1508 ● ● ● ● ●
524 02.559 NUT; HARNESS
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1509- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
