◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11139 - FSR-R(EU)EU4 EXC.SPA ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#15187) — 50 parça

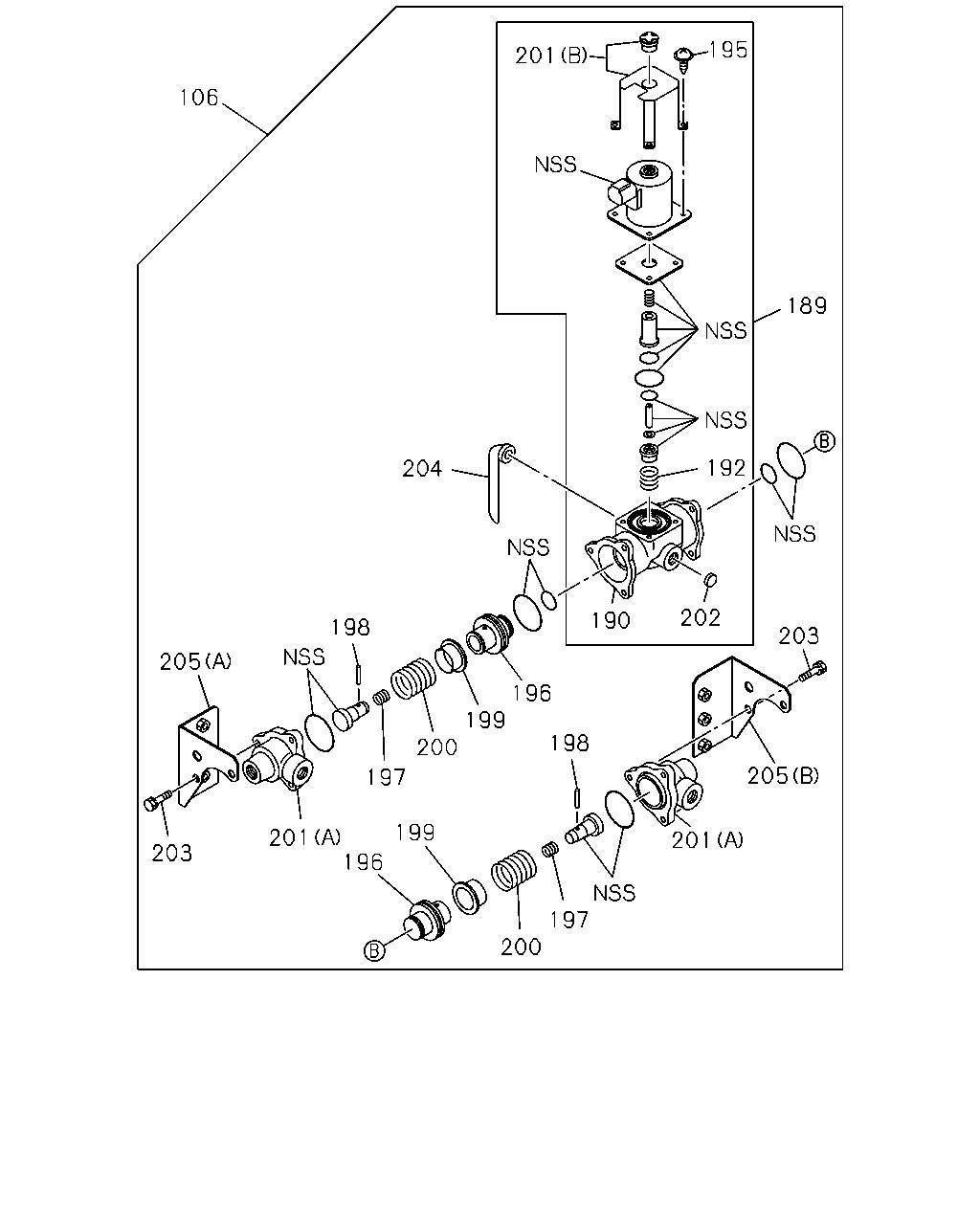

çizim 107280
195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200
BalonParca AdiParca NoAdetTipApplied Date
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-147-0 01 1 0803-0805
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-253-0 01 1 0803-0805
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-192-0 01 1 0803-0805
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 0803-0805
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 0803-0805
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-251-0 02 1 0803-0805
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 0803-0805
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 0803-0805
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 0803-0805
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 0803-0805
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 0803-0805
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 0803-0805
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 0803-0805
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 0803-0805
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0803-0805
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 0803-0805
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 0803-0805

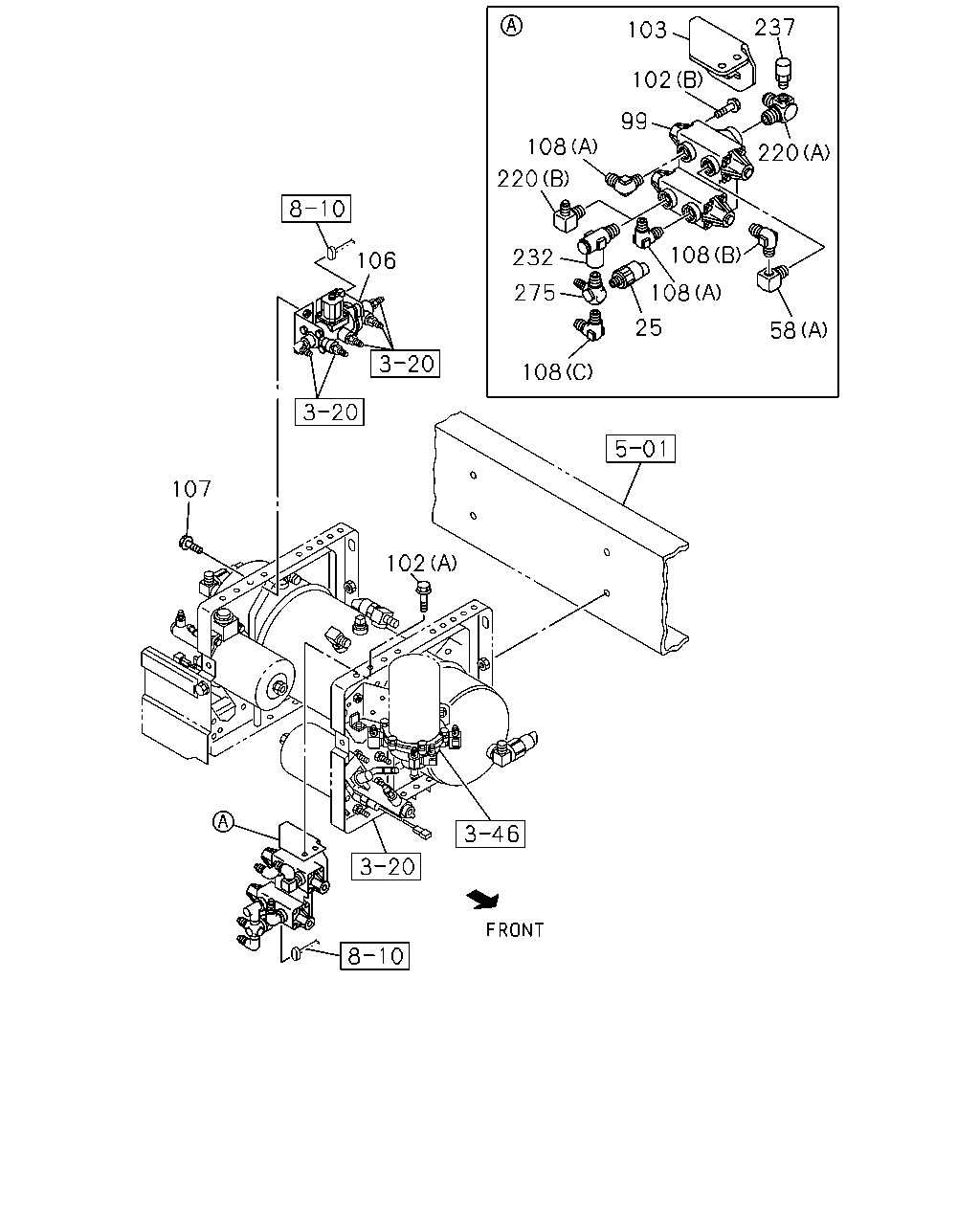

çizim 107612
237 103 102 99 108 220 220 108 232 106 275 108 25 58 108 107 102
BalonParca AdiParca NoAdetTipApplied Date
25 SWITCH; PRESSURE
STAMP 5.5 		8-97609-249-0 01 1 0803-
58 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0803-
58 ADAPTER
(B) 		1-09661-815-0 02 1 0803-
99 VALVE; PROTECTION 1-48110-290-2 01 1 0803-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0803-
102 BOLT; PROTECTION VALVE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0803-
103 BRACKET; PROTECTION VALVE 8-98034-985-1 01 1 0803-1311
103 BRACKET; PROTECTION VALVE 8-98221-293-0 01 1 1312-
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-147-0 01 1 0803-0805
107 BOLT; VLV
H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 03 1 0803-0805
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803-0805
108 CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0803-
108 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0803-
220 CONNECTOR; 3WAY
(A) 		8-98031-239-0 01 1 0803-
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP> (B) 		1-09656-698-0 01 1 0803-0805
220 CONNECTOR; 3WAY
(B) 		1-09656-698-0 01 1 0806-
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0803-
237 VALVE; SAFETY 1-48320-012-2 01 1 0803-
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> 		8-98035-011-0 01 1 0803-0805
çizim 107751
188 204
BalonParca AdiParca NoAdetTipApplied Date
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-469-0 01 1 0803-0805
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0803-0805

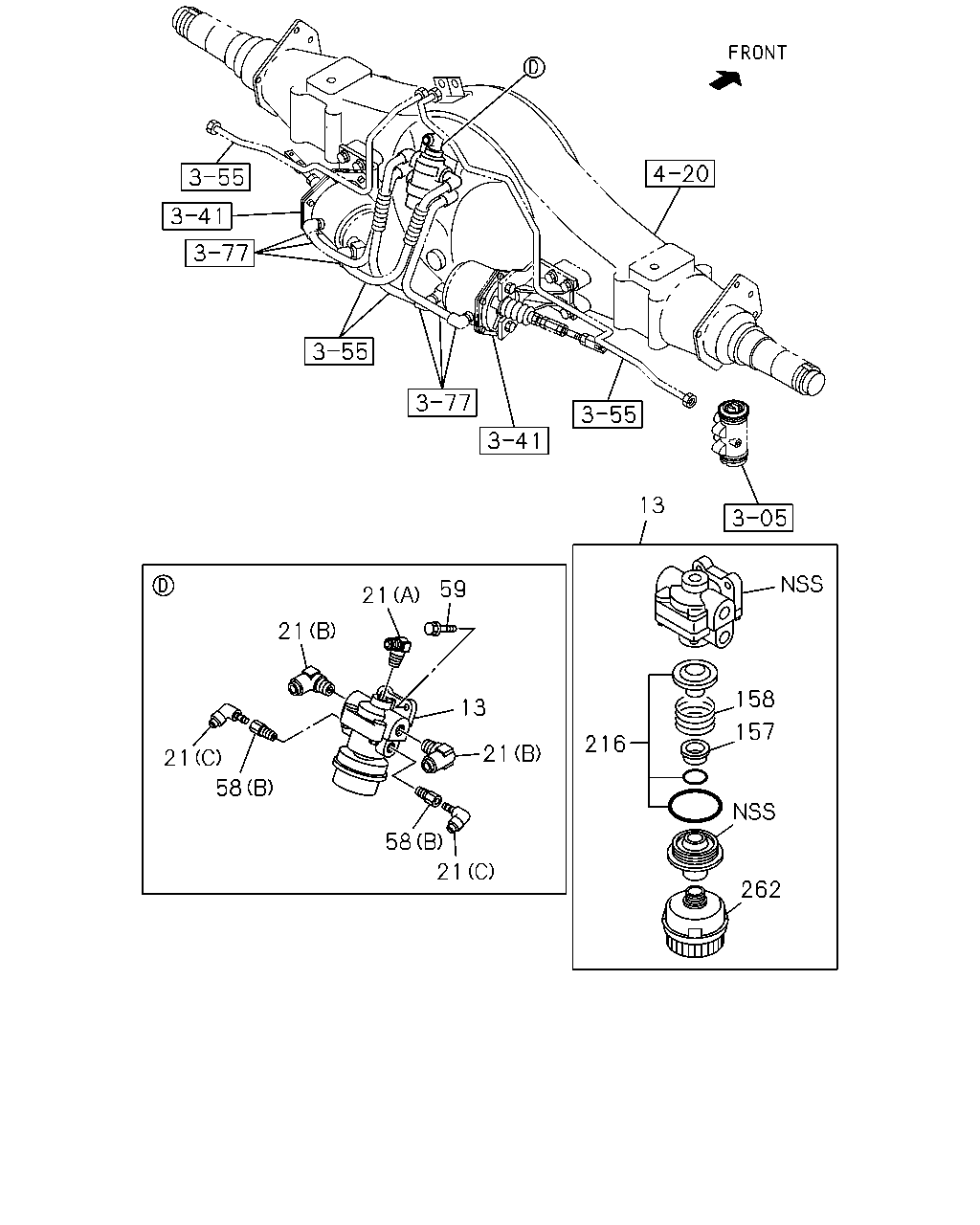

çizim 108006
13 158 157 262 216 21 13 21 58 59 21 21 58 21
BalonParca AdiParca NoAdetTipApplied Date
13 VALVE ASM; QUICK RELEASE 1-48410-781-2 01 1 0803-
21 CONNECTOR; QUICK RELEASE VLV
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0803-
21 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0803-
21 CONNECTOR; QUICK RELEASE VLV
(C) 		1-09661-816-0 02 1 0803-
58 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0803-
58 ADAPTER
(B) 		1-09661-815-0 02 1 0803-
59 BOLT; RELEASE VALVE FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0906
59 BOLT; RELEASE VALVE FIX
M8X20 FLANGE 		0-28050-820-0 02 1 0907-
157 RETAINER; VALVE 1-48419-036-0 01 1 0810-
158 SPRING; VALVE 9-48419-003-0 01 1 0810-
216 REPAIR KIT; QUICK RELEASE VLV 1-85579-062-0 01 1 0810-
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0810-
