◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#151864) — 81 parça

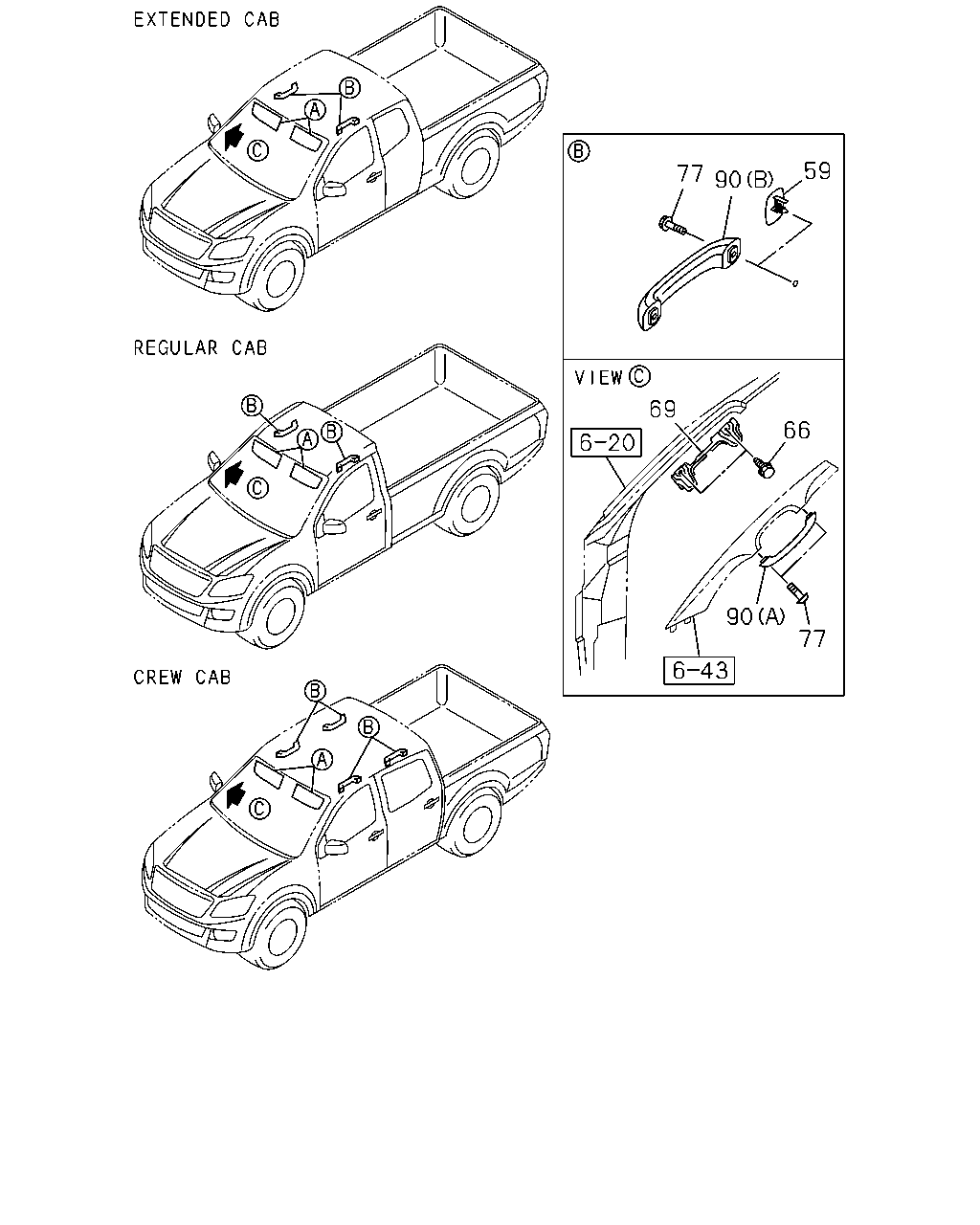

çizim 449203
77 90 59 69 66 90 77
BalonParca AdiParca NoAdetTipApplied Date A B C D E
59 16.450 COVER; ASSIST GRIP
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY 		8-97416-700-0 02 1 1409- ● ● ●
59 16.450 COVER; ASSIST GRIP
EXC. ASSIST HANDLE<E28> GRAY 		8-97416-700-0 02 1 1409- ● ● ●
59 16.450 COVER; ASSIST GRIP
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY 		8-97416-700-0 02 1 1409- ● ●
59 16.450 COVER; ASSIST GRIP
INTERIOR COLOR DARK GRAY(117) EXC. ASSIST HANDLE<E28> GRAY 		8-97416-700-0 02 1 1409- ● ●
59 16.450 COVER; ASSIST GRIP
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97423-934-0 02 1 1409- ● ●
59 16.450 COVER; ASSIST GRIP
INTERIOR COLOR UPR & LWR DARK GRAY(154) EXC. ASSIST HANDLE<E28> BLACK 		8-97423-934-0 02 1 1409- ● ●
66 16.450 BOLT; ASSIST GRIP BRKT
HIGH RIDE SUSPENSION(7YC) M6X16 FLANGE 		8-98050-320-0 04 1 1409- ● ●
66 16.450 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE 		8-98050-320-0 04 1 1409- ● ● ●
69 16.450 BRACKET; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) 		8-98103-347-3 01 1 1409- ● ●
69 16.450 BRACKET; ASSIST GRIP 8-98103-347-3 01 1 1409- ● ● ●
69 16.450 BRACKET; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) 		8-98103-348-3 01 1 1409- ● ●
69 16.450 BRACKET; ASSIST GRIP 8-98103-348-3 01 1 1409- ● ● ●
77 16.450 SCREW; ASSIST GRIP
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ASSIST HANDLE<E28> M6X25 		0-36230-625-0 02 1 1409- ● ● ● ● ●
77 16.450 SCREW; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) M6X25 		0-36230-625-0 04 1 1409- ● ●
77 16.450 SCREW; ASSIST GRIP
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) M6X25 		0-36230-625-0 04 1 1409- ● ●
77 16.450 SCREW; ASSIST GRIP
M6X25 		0-36230-625-0 04 1 1409- ● ● ●
90 16.450 GRIP; ASSIST,ROOF
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ASSIST HANDLE<E28> (B) FRONT GRAY 		8-97416-698-4 01 1 1409- ● ● ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ASSIST HANDLE<E28> (B) FRONT GRAY 		8-97416-698-4 01 1 1409- ● ●
90 16.450 GRIP; ASSIST,ROOF
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ASSIST HANDLE<E28> (A) GRAY 		8-97423-866-2 02 1 1409- ● ●
90 16.450 GRIP; ASSIST,ROOF
HIGH RIDE SUSPENSION(7YC) (A) GRAY 		8-97416-698-4 02 1 1409- ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR DARK GRAY(117) HIGH RIDE SUSPENSION(7YC) (A) GRAY 		8-97416-698-4 02 1 1409- ●
90 16.450 GRIP; ASSIST,ROOF
(A) GRAY 		8-97416-698-4 02 1 1409- ● ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR DARK GRAY(117) (A) GRAY 		8-97416-698-4 02 1 1409- ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) (B) REAR GRAY 		8-97418-299-1 01 1 1409- ● ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) (B) REAR GRAY 		8-97418-300-1 01 1 1409- ● ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) (B) REAR GRAY 		8-97419-357-6 01 1 1409- ● ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) (B) REAR GRAY 		8-97423-347-4 01 1 1409- ● ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ASSIST HANDLE<E28> (B) FRONT GRAY 		8-97419-356-5 02 1 1409- ● ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) (B) REAR BLACK 		8-97423-932-1 01 1 1409- ● ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) (B) REAR BLACK 		8-97423-933-1 01 1 1409- ● ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ASSIST HANDLE<E28> (B) FRONT BLACK 		8-97423-931-4 01 1 1409- ● ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR UPR & LWR DARK GRAY(154) HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97423-931-4 02 1 1409- ●
90 16.450 GRIP; ASSIST,ROOF
INTERIOR COLOR UPR & LWR DARK GRAY(154) (A) BLACK 		8-97423-931-4 02 1 1409- ●

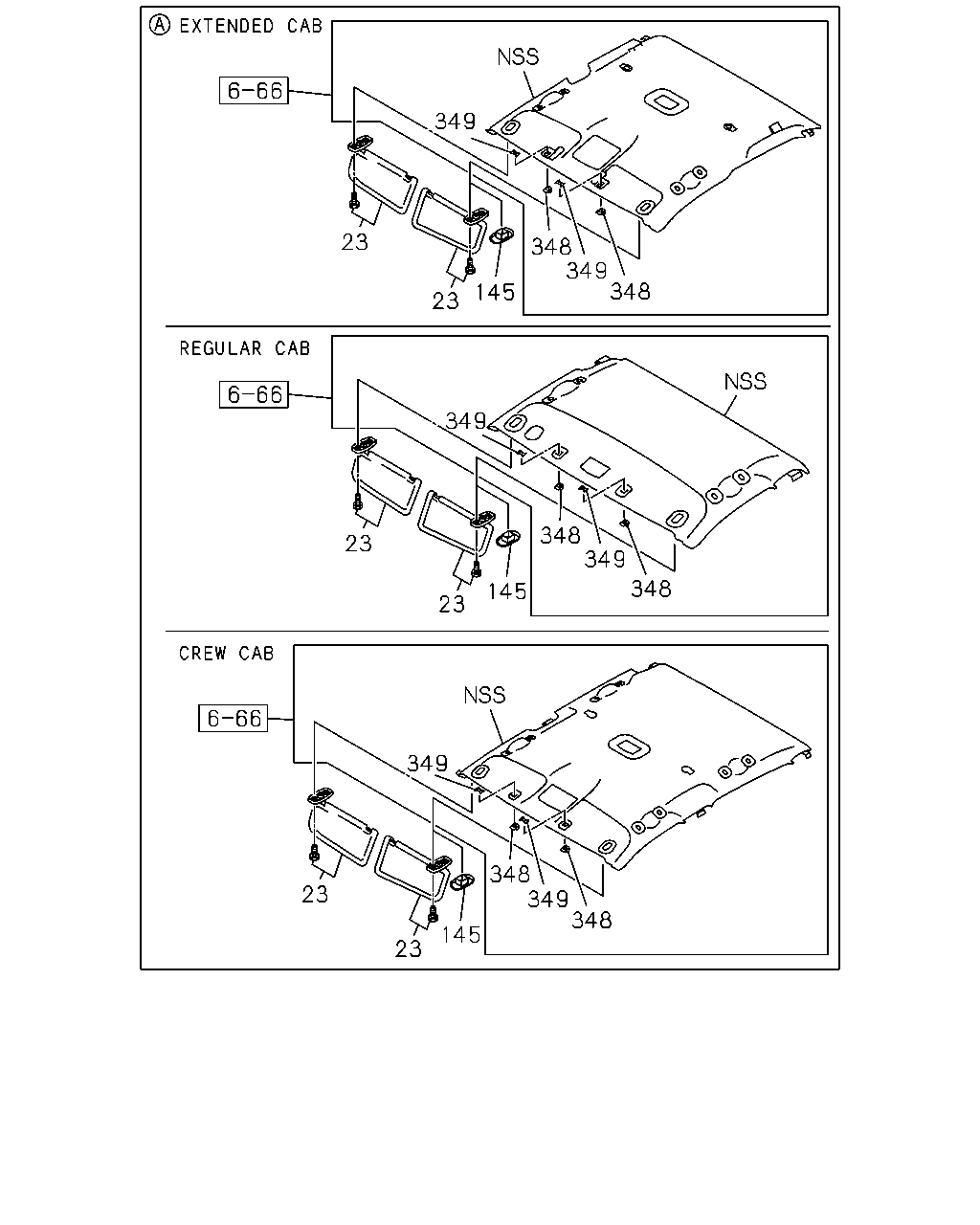

çizim 450918
349 348 349 348 145 23 23 23 23 145 348 349 348 349 349 348 349 348 145 23 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> EC OPTION TYPE1<8NP> GRAY 		8-97419-372-4 01 1 1409- ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> EC OPTION TYPE1<8NP> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY 		8-97419-372-4 01 1 1409- ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> EC OPTION TYPE2<8NQ> GRAY 		8-97419-370-4 01 1 1409- ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> EC OPTION TYPE2<8NQ> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY 		8-97419-370-4 01 1 1409- ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> EC OPTION TYPE3<8NR> GRAY 		8-97419-374-4 01 1 1409- ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> EC OPTION TYPE3<8NR> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY 		8-97419-374-4 01 1 1409- ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> EC OPTION TYPE4<8PD> GRAY 		8-97422-855-3 01 1 1409- ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> EC OPTION TYPE4<8PD> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY 		8-97422-855-3 01 1 1409- ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> EXC. EC OPTION TYPE1<8NP>,EC OPTION TYPE2<8NQ>,EC OPTION TYPE3<8NR>,EC OPTIO N TYPE4<8PD> GRAY 		8-97419-373-3 01 1 1409- ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34>,EC OPTION TYPE1<8NP>,EC OPTION TYPE2<8NQ>,EC OPTION TYPE3<8NR>,E C OPTION TYPE4<8PD> GRAY 		8-97419-373-3 01 1 1409- ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5) SUNVISOR PASSENGER SIDE<D20> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY 		8-97419-373-3 01 1 1409- ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> GRAY 		8-97419-373-3 01 1 1409- ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE<D20> GRAY 		8-97416-682-2 01 1 1409- ● ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE<D20> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY 		8-97416-682-2 01 1 1409- ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE<D20> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY 		8-97416-682-2 01 1 1409- ●
23 16.070 SUN VISOR
TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) GRAY 		8-97417-449-2 01 1 1409-1412 ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY 		8-97417-449-2 01 1 1409-1412 ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> GRAY 		8-97417-449-2 01 1 1409-1412 ●
23 16.070 SUN VISOR
TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) GRAY 		8-97417-449-2 01 1 1501- ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY 		8-97417-449-2 01 1 1501- ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> GRAY 		8-97417-449-2 01 1 1501- ●
23 16.070 SUN VISOR
EXC. TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) GRAY 		8-97416-681-2 01 1 1409-1412 ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),SUNVISOR PASSENGER SIDE W/V ANITY MIRROR<D34>,CHILE EQUIPMENT(KE1) ,ISRAEL EQUIPMENT(2G1) GRAY 		8-97416-681-2 01 1 1409-1412 ●
23 16.070 SUN VISOR
EXC. TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) GRAY 		8-97416-681-2 01 1 1501- ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) EXC. TURKEY EQUIPMENT(B11),SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34>,CHIL E EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) GRAY 		8-97416-681-2 01 1 1501- ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> EC OPTION TYPE1<8NP> GRAY 		8-97419-367-5 01 1 1409- ● ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> EC OPTION TYPE2<8NQ> GRAY 		8-97419-366-5 01 1 1409- ● ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> EC OPTION TYPE3<8NR> GRAY 		8-97419-368-5 01 1 1409- ● ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> EC OPTION TYPE4<8PD> GRAY 		8-97422-854-4 01 1 1409- ● ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> EXC. EC OPTION TYPE1<8NP>,EC OPTION TYPE2<8NQ>,EC OPTION TYPE3<8NR>,EC OPTIO N TYPE4<8PD> GRAY 		8-97417-452-4 01 1 1409- ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> GRAY 		8-97417-452-4 01 1 1409- ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> GRAY 		8-97417-451-3 01 1 1409- ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> GRAY 		8-97417-451-3 01 1 1409- ●
23 16.070 SUN VISOR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> EXC. EC OPTION TYPE1<8NP>,EC OPTION TYPE2<8NQ>,EC OPTION TYPE3<8NR>,EC OPTIO N TYPE4<8PD> BLACK 		8-97429-207-4 01 1 1409- ● ●
23 16.070 SUN VISOR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> BLACK 		8-97429-206-3 01 1 1409- ● ●
23 16.070 SUN VISOR
INTERIOR COLOR UPR & LWR DARK GRAY(154) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> BLACK 		8-97429-208-2 01 1 1409-1412 ●
23 16.070 SUN VISOR
INTERIOR COLOR UPR & LWR DARK GRAY(154) SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> BLACK 		8-97429-208-2 01 1 1409-1412 ●
23 16.070 SUN VISOR
INTERIOR COLOR UPR & LWR DARK GRAY(154) TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> BLACK 		8-97429-208-2 01 1 1501- ●
23 16.070 SUN VISOR
INTERIOR COLOR UPR & LWR DARK GRAY(154) SUNVISOR PASSENGER SIDE W/VANITY MIRRO R<D34> BLACK 		8-97429-208-2 01 1 1501- ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY 		8-97417-453-2 01 1 1409- ●
23 16.070 SUN VISOR
GRAY 		8-97417-453-2 01 1 1409- ●
23 16.070 SUN VISOR
INTERIOR COLOR DARK GRAY(117) GRAY 		8-97417-453-2 01 1 1409- ●
23 16.070 SUN VISOR
INTERIOR COLOR UPR & LWR DARK GRAY(154) BLACK 		8-97429-209-2 01 1 1409- ●
145 16.070 PLUG; HOLE
EXC. SUNVISOR PASSENGER SIDE<D20> GRAY 		8-97416-689-1 01 1 1409- ● ● ●
145 16.070 PLUG; HOLE
INTERIOR COLOR DARK GRAY(117) EXC. SUNVISOR PASSENGER SIDE<D20> GRAY 		8-97416-689-1 01 1 1409- ● ●
348 16.070 RETAINER; SUNSHADE
INTERIOR COLOR UPR & LWR DARK GRAY(154) BLACK 		8-97423-949-0 02 1 1409- ● ●
348 16.070 RETAINER; SUNSHADE
INTERIOR COLOR DARK GRAY(117) GRAY 		8-97403-990-0 02 1 1409- ● ● ● ● ●
349 16.070 CLIP; RETAINER SUNSHADE 8-98039-903-0 02 1 1409- ● ● ● ● ●
