Sayfa 7-20 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶

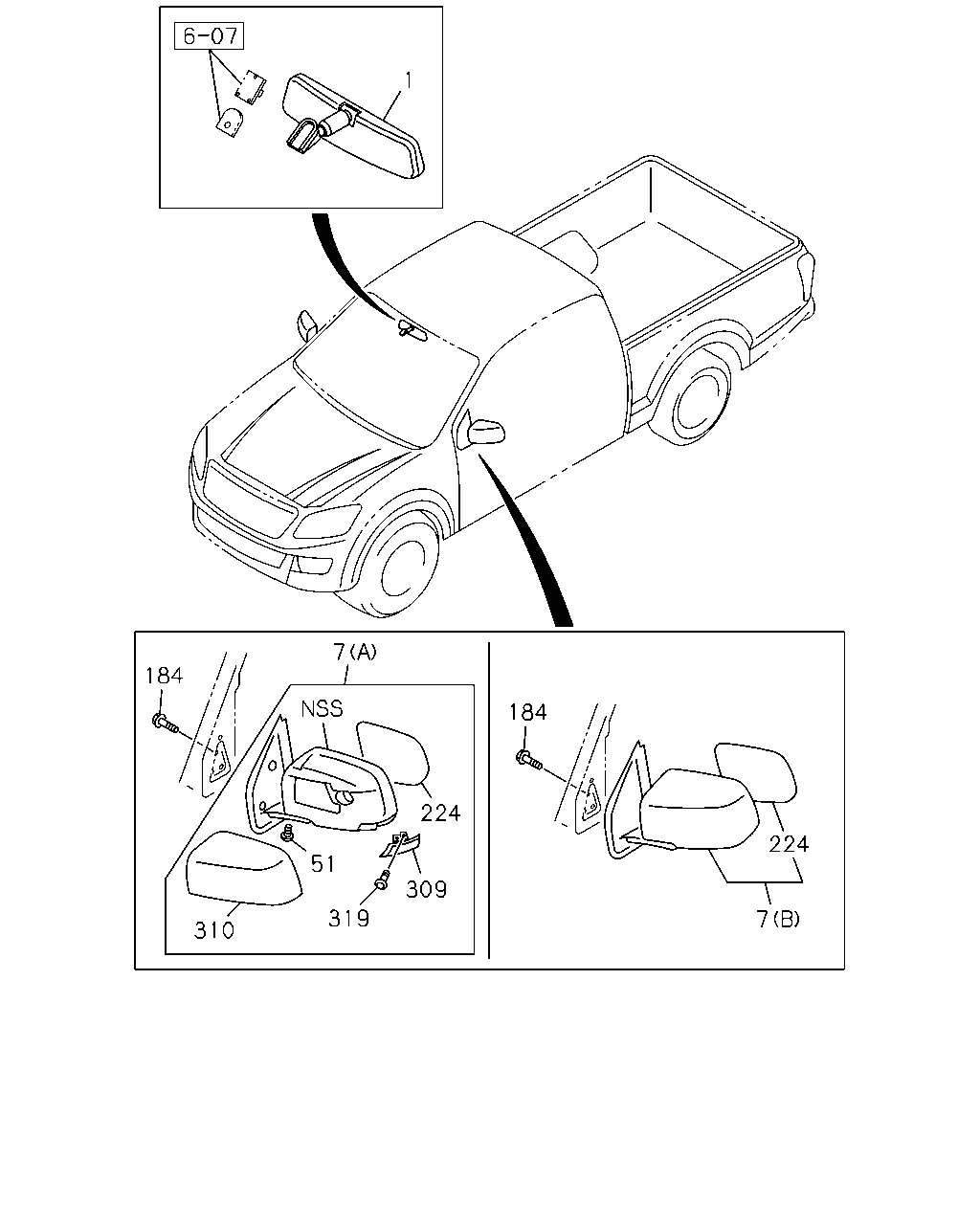

7-20 — MIRROR AND MIRROR STAY (#151860) — 47 parça

1 224 7 184 7 224 309 319 51 184 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	16.068 MIRROR; ROOM RR VIEW MIRROR TILT DAY & NIGHT<D31>	8-97237-560-0	01	1	1409-	●	●	●	●	●
1	16.068 MIRROR; ROOM EXC. RR VIEW MIRROR TILT DAY & NIGHT<D31>	8-98053-645-0	01	1	1409-	●	●	●	●	●
7	16.068 MIRROR ASM; DOOR DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> KD PAINT LESS SUPPLY<7TV> (A)	8-98259-780-0	01	1	1412-		●			●
7	16.068 MIRROR ASM; DOOR DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> KD PAINT LESS SUPPLY<7TV> (A)	8-98259-781-0	01	1	1412-		●			●
7	16.068 MIRROR ASM; DOOR DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. KD PAINT LESS SUPPLY<7TV> (A)	8-98241-106-0	01	1	1412-		●			●
7	16.068 MIRROR ASM; DOOR DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. KD PAINT LESS SUPPLY<7TV> (A)	8-98241-107-0	01	1	1412-		●			●
7	16.068 MIRROR ASM; DOOR (B)	8-98065-319-3	01	1	1409-	●			●
7	16.068 MIRROR ASM; DOOR DOOR MIRROR<RT9> (B)	8-98065-319-3	01	1	1409-		●	●		●
7	16.068 MIRROR ASM; DOOR (B)	8-98065-320-3	01	1	1409-	●			●
7	16.068 MIRROR ASM; DOOR DOOR MIRROR<RT9> (B)	8-98065-320-3	01	1	1409-		●	●		●
7	16.068 MIRROR ASM; DOOR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> (A)	8-98065-336-4	01	1	1409-		●	●		●
7	16.068 MIRROR ASM; DOOR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> (A)	8-98065-337-4	01	1	1409-		●	●		●
7	16.068 MIRROR ASM; DOOR DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> (A)	8-98065-344-4	01	1	1409-		●			●
7	16.068 MIRROR ASM; DOOR DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> (A)	8-98065-345-4	01	1	1409-		●			●
51	16.069 SCREW; MIRROR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>	8-98193-685-0	02	1	1409-1411		●			●
51	16.069 SCREW; MIRROR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>	8-98193-685-0	02	1	1409-1411			●
51	16.069 SCREW; MIRROR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>	8-98193-685-0	02	1	1412-		●			●
51	16.069 SCREW; MIRROR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>	8-98193-685-0	02	1	1412-			●
184	16.069 BOLT; MIRROR 17.455 M6X14 FLANGE	8-97247-698-0	06	1	1409-	●	●	●	●	●
224	16.068 MIRROR; DOOR	8-98193-669-0	01	1	1409-	●			●
224	16.068 MIRROR; DOOR DOOR MIRROR<RT9>	8-98193-669-0	01	1	1409-		●	●		●
224	16.068 MIRROR; DOOR	8-98193-670-0	01	1	1409-	●			●
224	16.068 MIRROR; DOOR DOOR MIRROR<RT9>	8-98193-670-0	01	1	1409-		●	●		●
224	16.068 MIRROR; DOOR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>	8-98193-681-0	01	1	1409-1411		●	●		●
224	16.068 MIRROR; DOOR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>	8-98193-681-0	01	1	1412-		●	●		●
224	16.068 MIRROR; DOOR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>	8-98193-682-0	01	1	1409-1411		●	●		●
224	16.068 MIRROR; DOOR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>	8-98193-682-0	01	1	1412-		●	●		●
224	16.068 MIRROR; DOOR DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>	8-98193-676-0	01	1	1409-		●			●
224	16.068 MIRROR; DOOR DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>	8-98193-677-0	01	1	1409-		●			●
309	16.069 LAMP ASM; SIDE TURN,DOOR MIRROR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>	8-98193-683-0	01	1	1409-1411		●			●
309	16.069 LAMP ASM; SIDE TURN,DOOR MIRROR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>	8-98193-683-0	01	1	1409-1411			●
309	16.069 LAMP ASM; SIDE TURN,DOOR MIRROR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>	8-98193-683-0	01	1	1412-		●			●
309	16.069 LAMP ASM; SIDE TURN,DOOR MIRROR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>	8-98193-683-0	01	1	1412-			●
309	16.069 LAMP ASM; SIDE TURN,DOOR MIRROR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>	8-98193-684-0	01	1	1409-1411		●			●
309	16.069 LAMP ASM; SIDE TURN,DOOR MIRROR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>	8-98193-684-0	01	1	1409-1411			●
309	16.069 LAMP ASM; SIDE TURN,DOOR MIRROR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>	8-98193-684-0	01	1	1412-		●			●
309	16.069 LAMP ASM; SIDE TURN,DOOR MIRROR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>	8-98193-684-0	01	1	1412-			●
310	16.069 COVER; DOOR MIRROR DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>	8-98203-335-0	01	1	1412-		●			●
310	16.069 COVER; DOOR MIRROR DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>	8-98203-336-0	01	1	1412-		●			●
310	16.069 COVER; DOOR MIRROR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>	8-98193-686-0	01	1	1409-		●			●
310	16.069 COVER; DOOR MIRROR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>	8-98193-686-0	01	1	1409-			●
310	16.069 COVER; DOOR MIRROR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>	8-98193-687-0	01	1	1409-		●			●
310	16.069 COVER; DOOR MIRROR DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>	8-98193-687-0	01	1	1409-			●
319	16.069 SCREW; SIDE TURN LAMP DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>	8-98193-685-0	02	1	1409-1411		●			●
319	16.069 SCREW; SIDE TURN LAMP DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>	8-98193-685-0	02	1	1409-1411			●
319	16.069 SCREW; SIDE TURN LAMP DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ>	8-98193-685-0	02	1	1412-		●			●
319	16.069 SCREW; SIDE TURN LAMP DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>	8-98193-685-0	02	1	1412-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
