◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#151859) — 50 parça

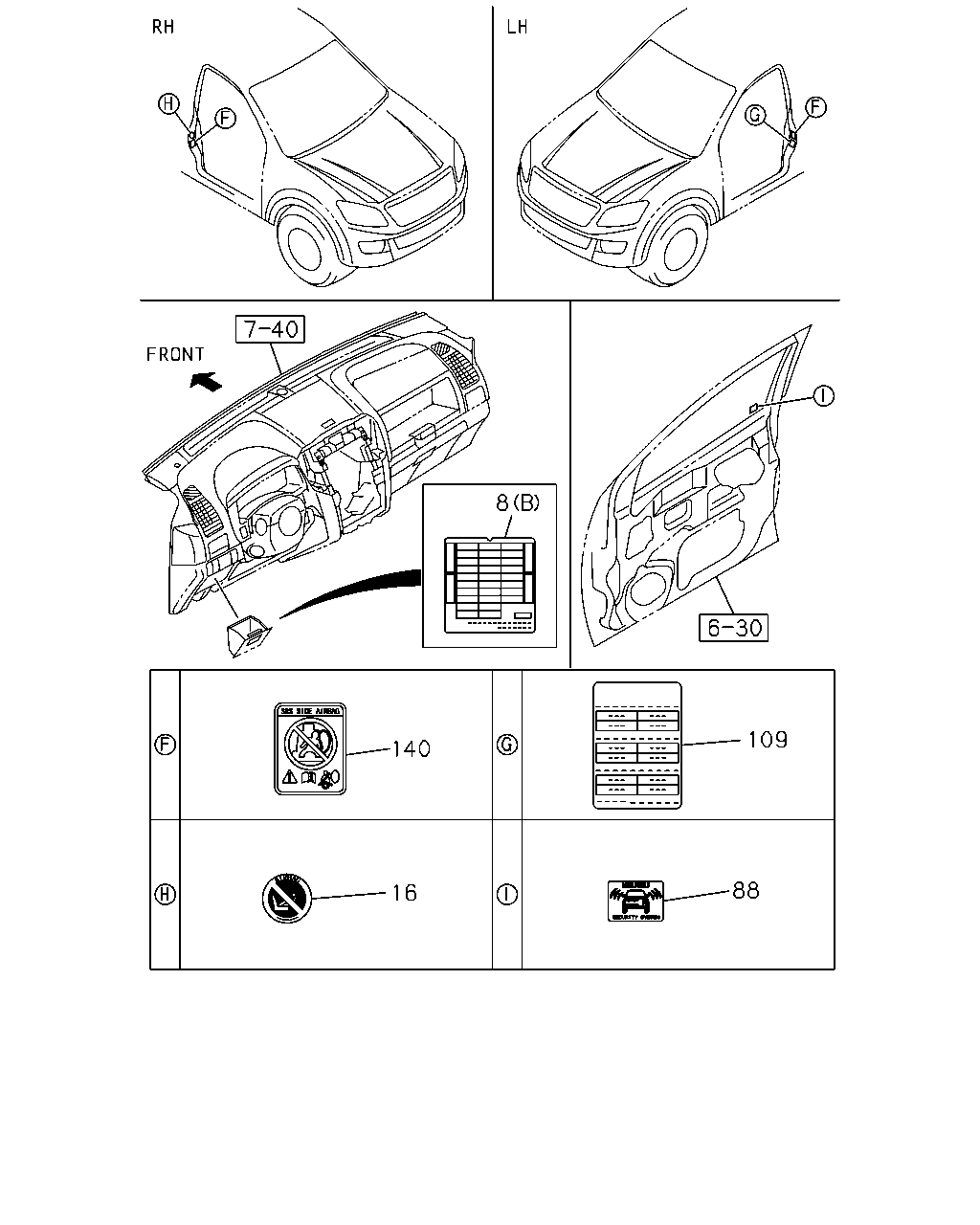

çizim 448743
109 88 140 16 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
8 03.680 LABEL; FUSE
4JA1-T ENG(LP0) (A) 		8-98181-920-1 01 1 1409- ● ●
8 03.680 LABEL; FUSE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98213-358-0 01 1 1409- ● ● ● ● ●
8 03.680 LABEL; FUSE
PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98272-293-0 01 1 1409- ● ● ●
8 03.680 LABEL; FUSE
PASSIVE ENTRY AND START SYSTEM<AP3> (A) 		8-98273-330-0 01 1 1409- ● ● ●
8 03.680 LABEL; FUSE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) 		8-98166-842-3 01 1 1409-1411 ● ● ● ● ●
8 03.680 LABEL; FUSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) 		8-98166-842-3 01 1 1412-1508 ● ● ● ● ●
8 03.680 LABEL; FUSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) 		8-98166-842-3 01 1 1509- ● ● ● ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 		8-97378-569-0 01 1 1409- ● ● ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-97378-569-0 01 1 1409- ●
88 08.808 LABEL; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98141-993-2 02 1 1409- ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
HIGH RIDE SUSPENSION(7YC) 		8-98102-346-1 01 1 1409- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 205R16C(CUY),FRT&RR 245/70R16(QCQ),FRT&RR 255/65R17(QZX) 		8-98102-346-1 01 1 1409- ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98100-752-1 01 1 1409- ● ●
140 08.808 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 		8-98179-251-2 02 1 1409- ● ● ● ●

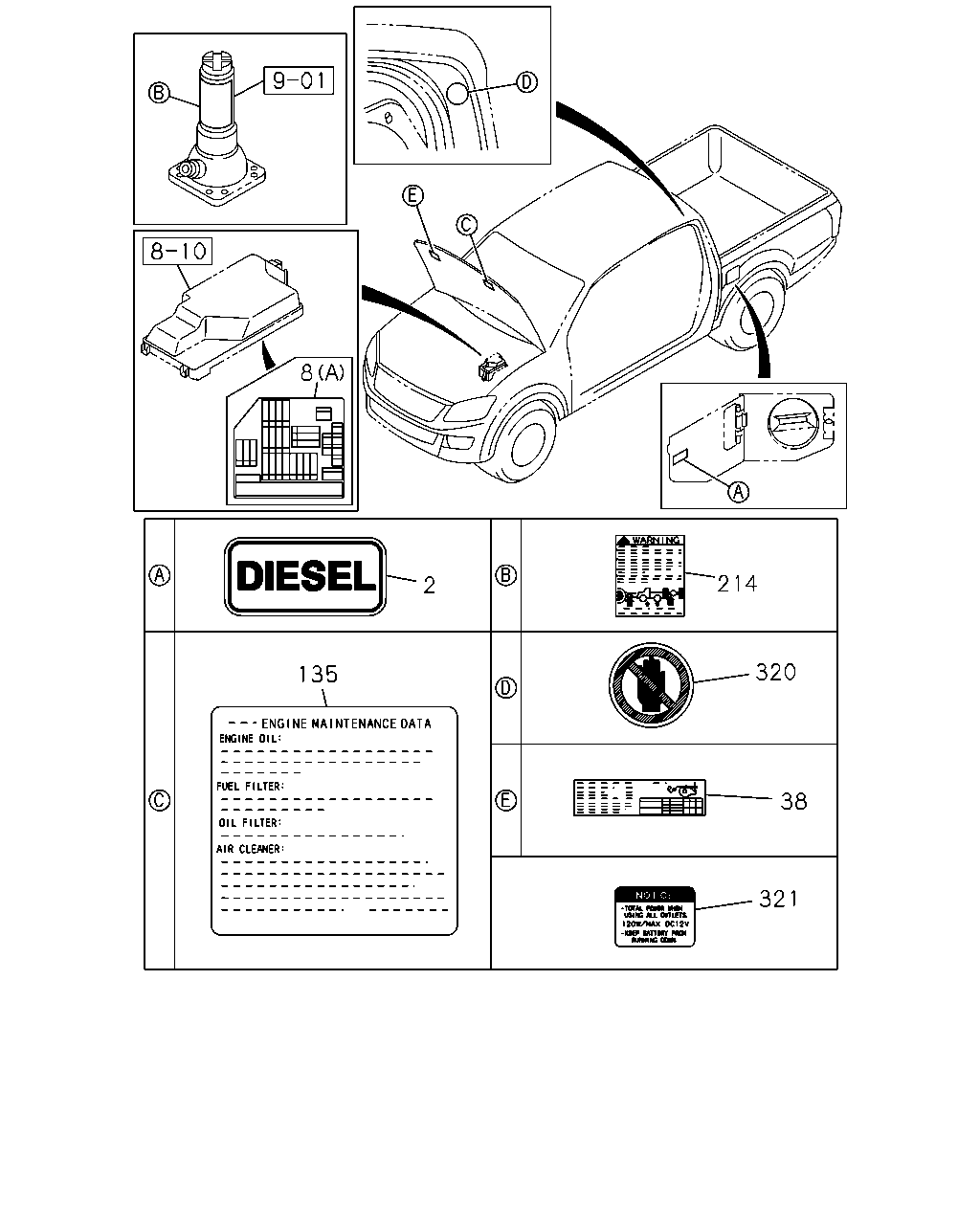

çizim 451103
135 2 214 320 38 321 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 03.680 LABEL; FUEL CAUTION
REAR BODY DBL WALL CTR PULL(E63) 		8-98147-133-0 01 1 1409-1510 ● ● ● ● ●
8 03.680 LABEL; FUSE
4JA1-T ENG(LP0) (A) 		8-98181-920-1 01 1 1409- ● ●
8 03.680 LABEL; FUSE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98213-358-0 01 1 1409- ● ● ● ● ●
8 03.680 LABEL; FUSE
PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98272-293-0 01 1 1409- ● ● ●
8 03.680 LABEL; FUSE
PASSIVE ENTRY AND START SYSTEM<AP3> (A) 		8-98273-330-0 01 1 1409- ● ● ●
8 03.680 LABEL; FUSE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) 		8-98166-842-3 01 1 1409-1411 ● ● ● ● ●
8 03.680 LABEL; FUSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) 		8-98166-842-3 01 1 1412-1508 ● ● ● ● ●
8 03.680 LABEL; FUSE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) 		8-98166-842-3 01 1 1509- ● ● ● ● ●
38 08.808 PLATE; CAUTION,LSV
CONGO EQUIPMENT(CDF),ARGENTINA EQUIPMENT(E06) BRK WHL LK CONT LSPV<JR9> 		8-97947-963-0 01 1 1409-1411 ● ●
38 08.808 PLATE; CAUTION,LSV
ARGENTINA EQUIPMENT(E06) BRK WHL LK CONT LSPV<JR9> 		8-97947-963-0 01 1 1409-1411 ● ●
38 08.808 PLATE; CAUTION,LSV
CONGO EQUIPMENT(CDF),ARGENTINA EQUIPMENT(E06) BRK WHL LK CONT LSPV<JR9> 		8-97947-963-0 01 1 1412-1412 ● ● ●
38 08.808 PLATE; CAUTION,LSV
ARGENTINA EQUIPMENT(E06) BRK WHL LK CONT LSPV<JR9> 		8-97947-963-0 01 1 1412-1412 ●
38 08.808 PLATE; CAUTION,LSV
CONGO EQUIPMENT(CDF) BRK WHL LK CONT LSPV<JR9> 		8-97947-963-0 01 1 1412-1412 ●
38 08.808 PLATE; CAUTION,LSV
CONGO EQUIPMENT(CDF) BRK WHL LK CONT LSPV<JR9> 		8-97947-963-0 01 1 1501- ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JA1-T ENG(LP0) ISUZU BRAND<7WL> 		8-97332-377-1 01 1 1409-1411 ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JA1-T ENG(LP0) 		8-97332-377-1 01 1 1412- ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCX ENG(LR0) ISUZU BRAND<7WL> 		8-98200-831-0 01 1 1409-1411 ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCX ENG(LR0) 		8-98200-831-0 01 1 1409-1411 ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) ISUZU BRAND<7WL> 		8-98200-831-0 01 1 1412- ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 		8-98200-831-0 01 1 1412- ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCY ENG(RDX) ISUZU BRAND<7WL> 		8-98196-345-0 01 1 1409- ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1-TCS ENG(LFB) ISUZU BRAND<7WL> 		8-98200-830-0 01 1 1409-1508 ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) ISUZU BRAND<7WL> 		8-98200-830-0 01 1 1509- ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1-TCS ENG(LFB) ISUZU BRAND<7WL> 		8-98200-830-0 01 1 1509- ●
214 08.808 LABEL; JACK 8-98245-069-0 01 1 1409-1501 ● ● ● ● ●
214 08.808 LABEL; JACK 8-98304-658-0 01 1 1502- ● ● ● ● ●
320 08.808 LABEL; WARNING,DOOR 8-98183-175-0 01 1 1409-1501 ●
320 08.808 LABEL; WARNING,DOOR 8-98302-861-0 02 1 1502- ●
320 08.808 LABEL; WARNING,DOOR 8-98183-176-0 01 1 1409-1501 ●
321 08.808 LABEL; WARNING,POWER
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98183-494-1 01 1 1409- ● ● ● ● ●

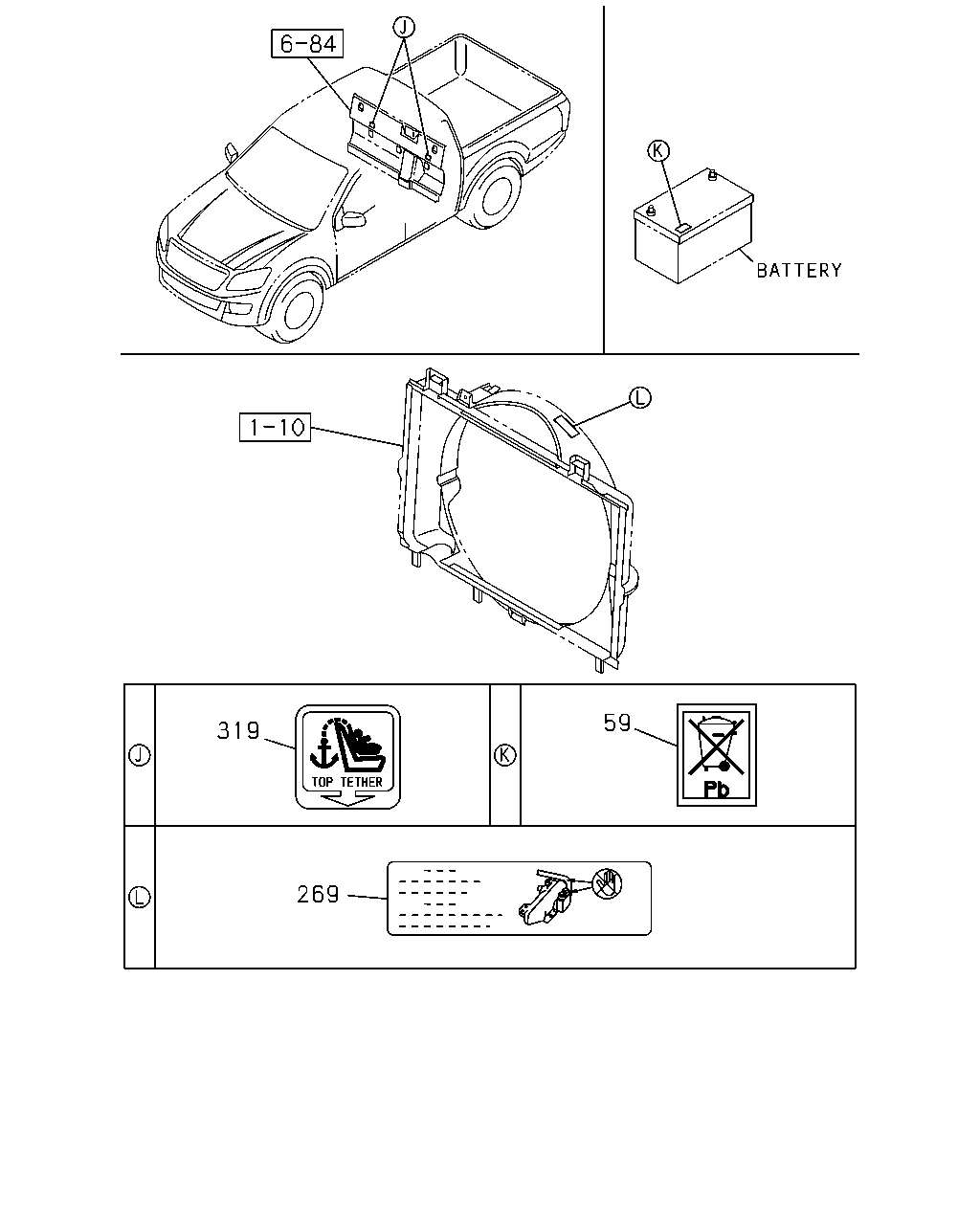

çizim 451188
269 319 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E
59 08.808 PLATE; CAUTION,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 		8-98140-947-0 02 1 1409- ● ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
ISRAEL EQUIPMENT(2G1) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-98140-947-0 01 1 1409- ● ● ● ●
269 08.808 LABEL; CAUTION,EGR
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97943-094-0 01 1 1409- ● ●
319 08.808 LABEL; TOP TETHER
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),LAOS EQUIPMENT(CF0),ARGENTINA EQUIPMENT(E06),ECUAD OR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) ,ISRAEL EQUIPMENT(2G1) 		8-98174-417-0 02 1 1409-1409 ● ●
319 08.808 LABEL; TOP TETHER
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),LAOS EQUIPMENT(CF0),MOROCCO EQUIPMENT(CGA),ARGENTI NA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98174-417-0 02 1 1410-1412 ● ●
319 08.808 LABEL; TOP TETHER
TURKEY EQUIPMENT(B11),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),LAOS EQUIPMENT(CF0),MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98174-417-0 02 1 1501- ● ●
