◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#151853) — 23 parça

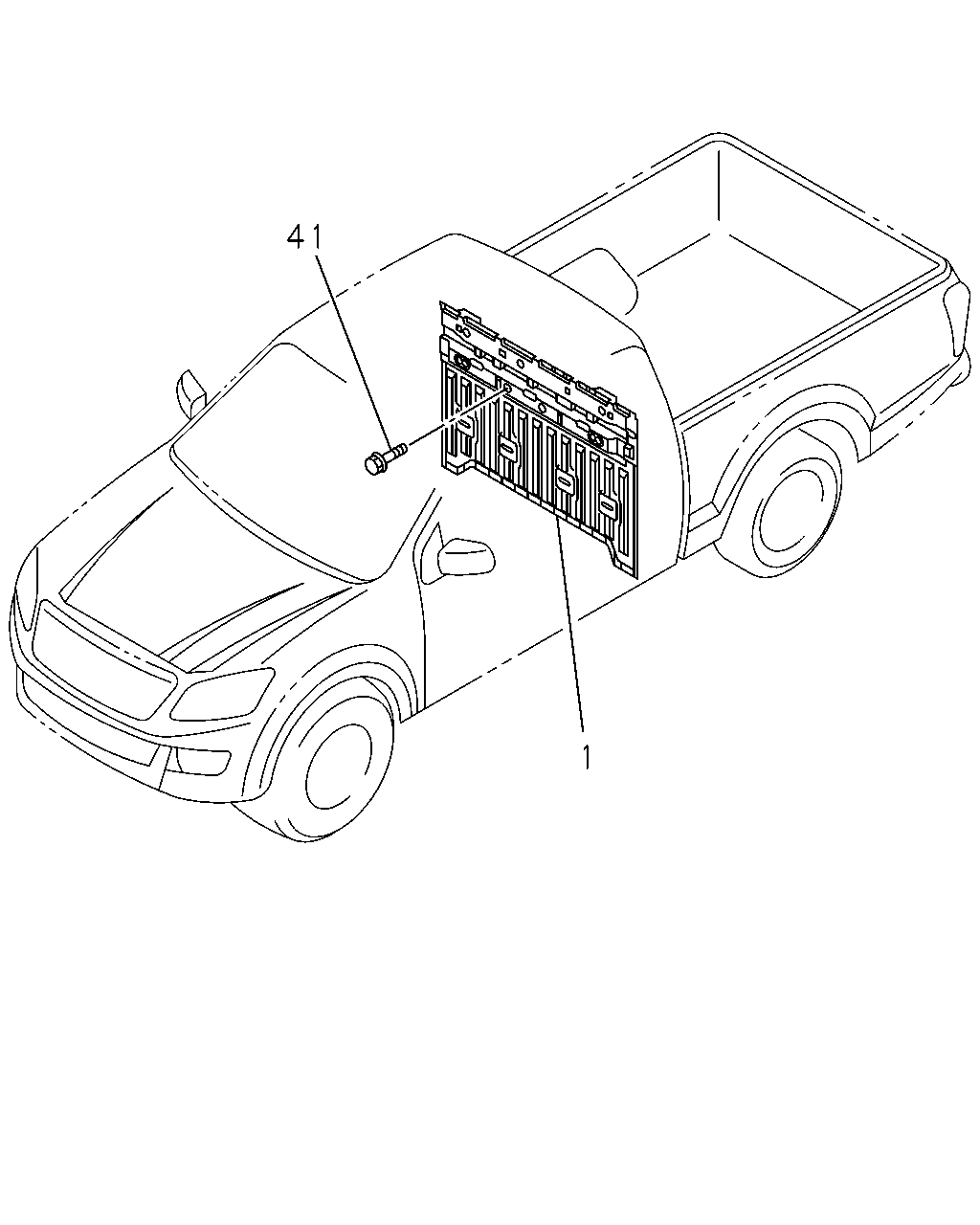

çizim 451278
41 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.587 PANEL; BACK OUTER 8-98234-973-0 01 1 1409- ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR BASIC(RBA) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),LAOS EQUIPMENT(CF0),ARGENTINA EQUIPMENT(E06),ECUAD OR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) ,ISRAEL EQUIPMENT(2G1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98234-975-1 01 1 1409-1409 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR BASIC(RBA) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),LAOS EQUIPMENT(CF0),MOROCCO EQUIPMENT(CGA),ARGENTI NA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98234-975-1 01 1 1410-1412 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR BASIC(RBA) TURKEY EQUIPMENT(B11),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),LAOS EQUIPMENT(CF0),MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98234-975-1 01 1 1501- ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR BASIC(RBA) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),LAOS EQUIPMENT(CF0),ARGENTINA EQUIPMENT(E06),EC UADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98234-974-1 01 1 1409-1409 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR BASIC(RBA) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),LAOS EQUIPMENT(CF0),MOROCCO EQUIPMENT(CGA),ARGE NTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98234-974-1 01 1 1410-1412 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR BASIC(RBA) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,TURKEY EQUIPMENT(B11),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMEN T(CB7),LAOS EQUIPMENT(CF0),MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),CHI LE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98234-974-1 01 1 1501- ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),LAOS EQUIPMENT(CF0),ARGENTINA EQUIPMENT(E06),ECUAD OR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) ,ISRAEL EQUIPMENT(2G1) 		8-98275-185-1 01 1 1409-1409 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),LAOS EQUIPMENT(CF0),MOROCCO EQUIPMENT(CGA),ARGENTI NA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98275-185-1 01 1 1410-1412 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> TURKEY EQUIPMENT(B11),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),LAOS EQUIPMENT(CF0),MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98275-185-1 01 1 1501- ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMEN T(B15),COLOMBIA EQUIPMENT(CB7),LAOS EQUIPMENT(CF0),ARGENTINA EQUIPMENT(E06), ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98271-517-1 01 1 1409-1409 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMEN T(B15),COLOMBIA EQUIPMENT(CB7),LAOS EQUIPMENT(CF0),MOROCCO EQUIPMENT(CGA),AR GENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQ UIPMENT(2G1) 		8-98271-517-1 01 1 1410-1412 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) PASSIVE ENTRY AND START SYSTEM<AP3> EXC. TURKEY EQUIPMENT(B11),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),LAOS EQUIPMENT(CF0),MOROCCO E QUIPMENT(CGA),ECUADOR EQUIPMENT(E46), CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98271-517-1 01 1 1501- ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),LAOS EQUIPMENT(CF0),ARGENTINA EQUIPMENT(E06),ECUAD OR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) ,ISRAEL EQUIPMENT(2G1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98207-117-1 01 1 1409-1409 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),LAOS EQUIPMENT(CF0),MOROCCO EQUIPMENT(CGA),ARGENTI NA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98207-117-1 01 1 1410-1412 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) TURKEY EQUIPMENT(B11),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),LAOS EQUIPMENT(CF0),MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98207-117-1 01 1 1501- ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),LAOS EQUIPMENT(CF0),ARGENTINA EQUIPMENT(E06),EC UADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98207-116-1 01 1 1409-1409 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),LAOS EQUIPMENT(CF0),MOROCCO EQUIPMENT(CGA),ARGE NTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98207-116-1 01 1 1410-1412 ● ●
1 16.587 PANEL; BACK OUTER
INTERIOR CUSTOM(RBD) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,TURKEY EQUIPMENT(B11),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMEN T(CB7),LAOS EQUIPMENT(CF0),MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),CHI LE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98207-116-1 01 1 1501- ● ●
1 16.587 PANEL; BACK OUTER 8-98103-272-1 01 1 1409- ●
41 16.587 BOLT
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),ECUADOR E QUIPMENT(E46),CHILE EQUIPMENT(KE1), ISRAEL EQUIPMENT(2G1) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1409-1411 ● ●
41 16.587 BOLT
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),ECUADOR E QUIPMENT(E46),CHILE EQUIPMENT(KE1), ISRAEL EQUIPMENT(2G1) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1412-1412 ● ● ●
41 16.587 BOLT
TURKEY EQUIPMENT(B11),PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),ECUADOR EQUIPMENT(E46),CHILE EQ UIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1501- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
