◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#151852) — 10 parça

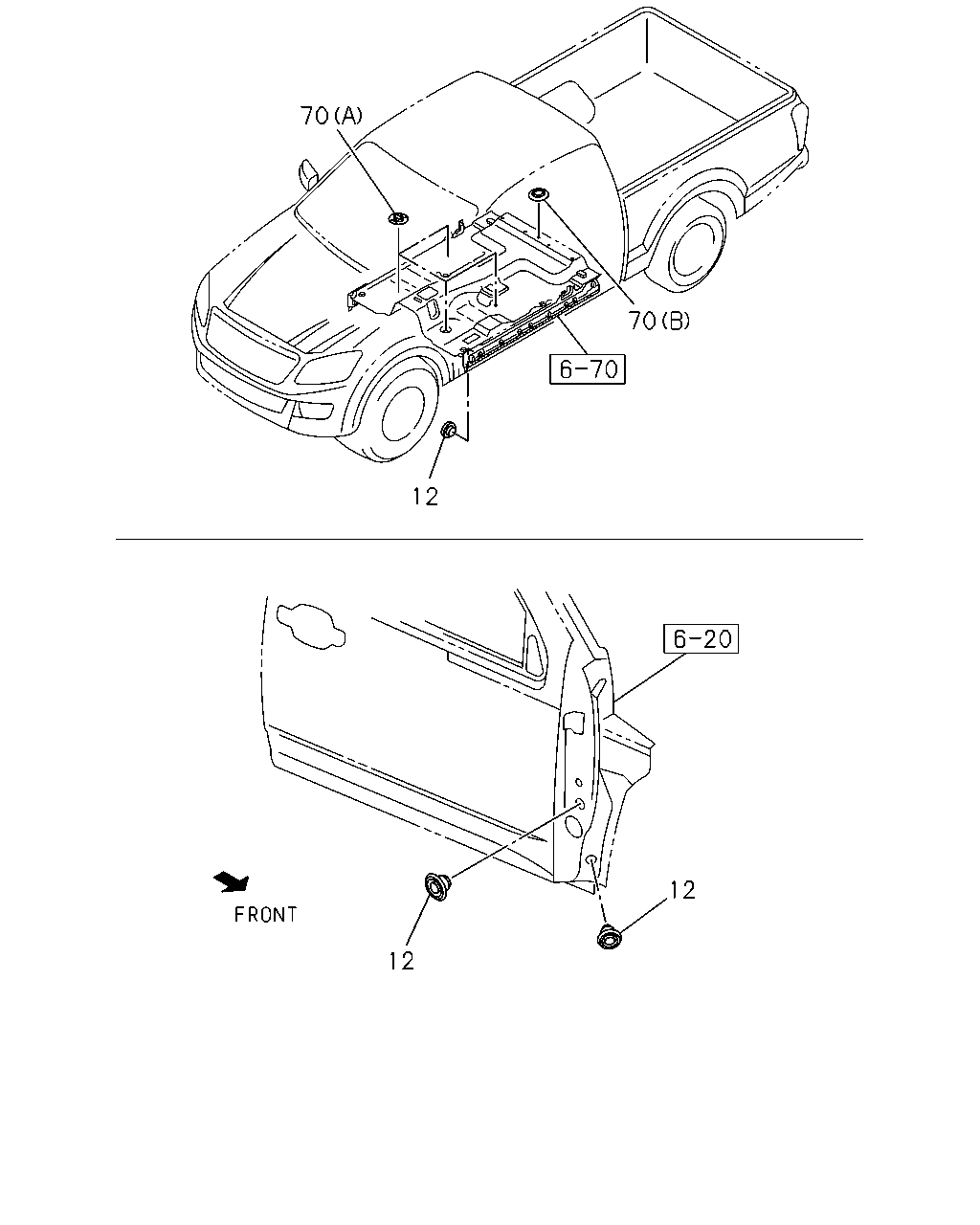

çizim 449565
70 70 12 12 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35 		8-97320-908-0 06 1 1409-1505 ● ● ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35 		8-97320-908-0 04 1 1506- ● ● ● ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35 		8-97320-908-0 12 1 1409-1505 ● ● ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35 		8-97320-908-0 06 1 1506- ● ● ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35 		8-97320-908-0 04 1 1409-1505 ● ● ● ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
OD=35 		8-97320-908-0 12 1 1506- ● ● ●
70 09.775 PLUG; METAL,FLOOR
(A) 		8-97324-563-0 04 1 1409- ● ● ● ● ●
70 09.775 PLUG; METAL,FLOOR
4JK1-TCX ENG(LR0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. JUMP SEAT<AJ2> 12.491 (B) OD=24 		8-94119-796-0 01 1 1409-1411 ●
70 09.775 PLUG; METAL,FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. JUMP SEAT<AJ2>,LAOS EQUIPMENT(CF0) 12.491 (B) OD=24 		8-94119-796-0 01 1 1412-1505 ●
70 09.775 PLUG; METAL,FLOOR
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. JUMP SEAT<AJ2> 12.491 (B) OD=24 		8-94119-796-0 01 1 1506- ●
