◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#151851) — 13 parça

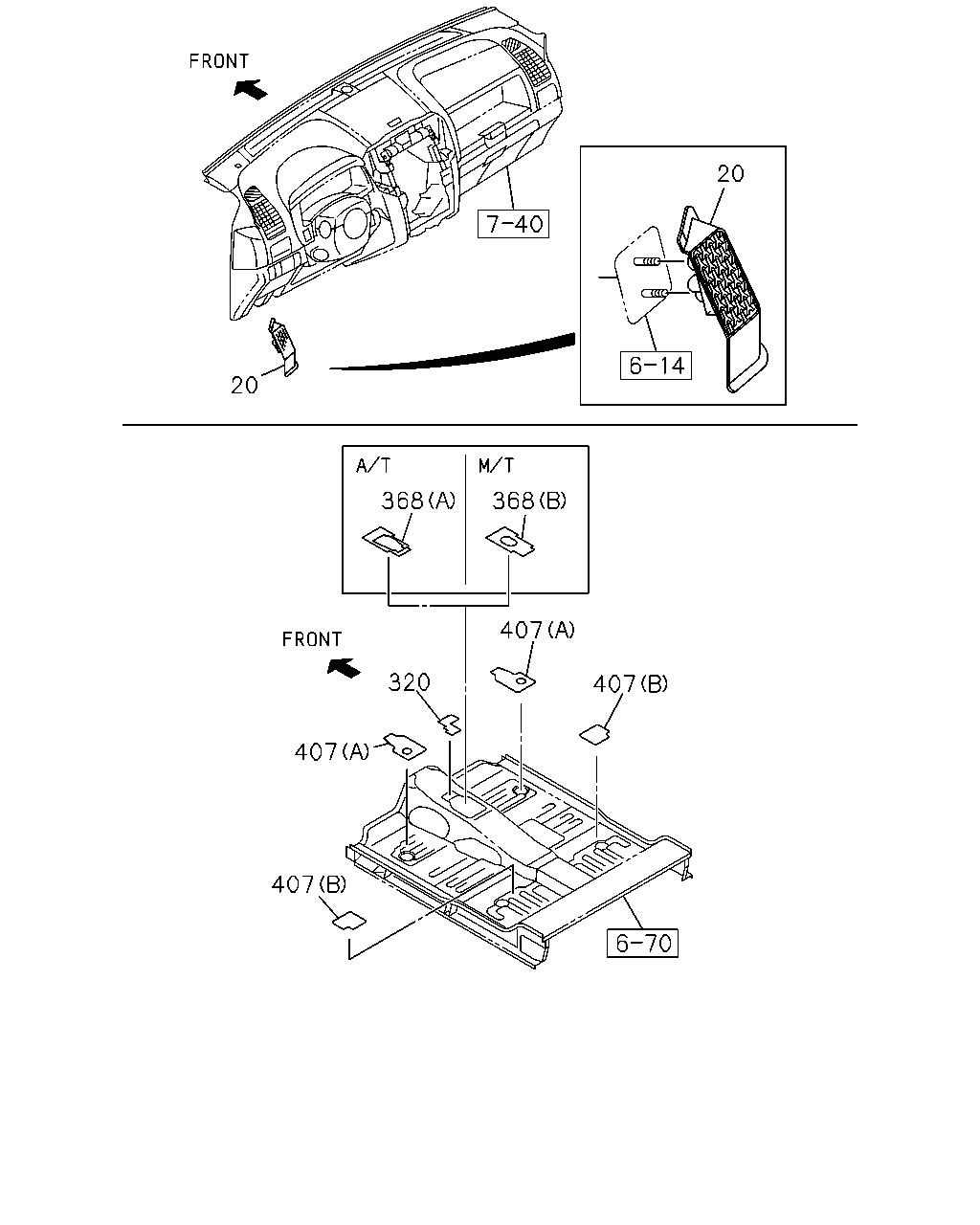

çizim 449121
20 20 407 407 407 407 368 368 320
BalonParca AdiParca NoAdetTipApplied Date A B C D E
20 16.547 REST; FOOT 8-98102-836-2 01 1 1409- ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 		8-98166-704-0 01 1 1409- ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER DELETE(AK6) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 		8-98166-705-0 01 1 1409- ● ● ● ● ●
368 16.549 INSULATOR; FLOOR,RR
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) FRONT CONSOLE W/LID<D55> (B) 		8-98166-706-0 01 1 1409-1508 ● ● ● ● ●
368 16.549 INSULATOR; FLOOR,RR
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98166-706-0 01 1 1509- ● ● ● ● ●
368 16.549 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98166-707-0 01 1 1409- ● ●
368 16.549 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN(MA1) FRONT CONSOLE W/LID<D55> (A) 		8-98166-707-0 01 1 1409- ●
407 16.850 DEADENER; FLOOR PANEL
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) FRONT SEAT BUCKET STANDARD<A50> TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) (A) 		8-98103-655-1 01 1 1409-1411 ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) FRONT SEAT BUCKET STANDARD<A50> ISRAEL EQUIPMENT(2G1) (A) 		8-98103-655-1 01 1 1409-1411 ●
407 16.850 DEADENER; FLOOR PANEL
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) FRONT SEAT BUCKET STANDARD<A50> TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) (A) 		8-98103-655-1 01 1 1412- ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) FRONT SEAT BUCKET STANDARD<A50> ISRAEL EQUIPMENT(2G1) (A) 		8-98103-655-1 01 1 1412- ●
407 16.850 DEADENER; FLOOR PANEL
(A) 		8-98103-655-1 02 1 1409- ● ● ●
407 16.850 DEADENER; FLOOR PANEL
(B) 		8-98155-918-0 02 1 1409- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
