◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#151848) — 40 parça

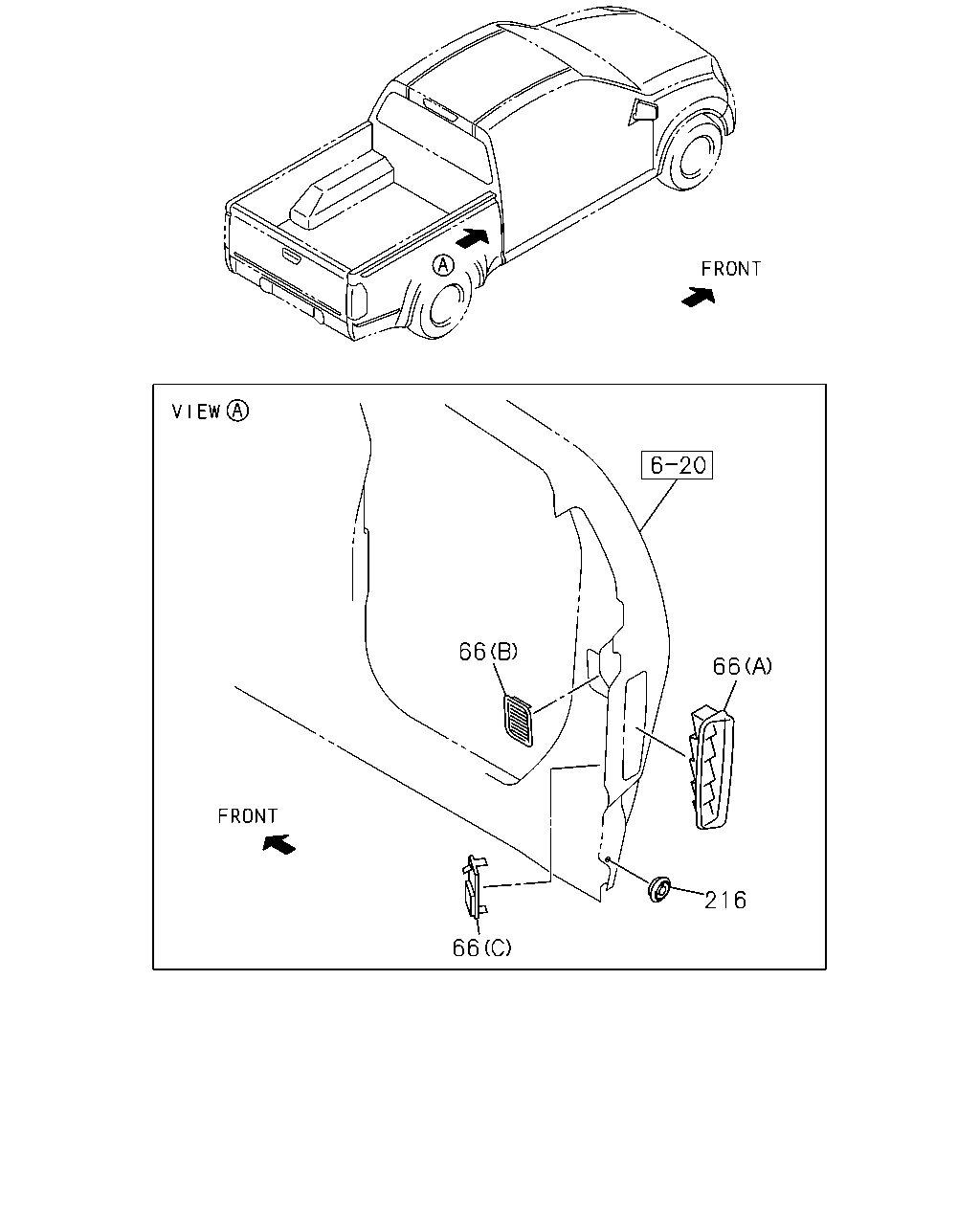

çizim 448531
66 66 216 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E
66 16.576 GRILLE; AIR OUTLET
(A) 		8-98164-822-2 01 1 1409- ● ● ● ● ●
66 16.576 GRILLE; AIR OUTLET
(A) 		8-98164-823-2 01 1 1409- ● ● ● ● ●
66 16.576 GRILLE; AIR OUTLET
(C) 		8-97251-682-1 02 1 1409- ● ●
66 16.576 GRILLE; AIR OUTLET
(B) 		8-97365-208-0 02 1 1409- ● ●
216 16.576 GROMMET; HOLE
16.549 OD=30 		8-94107-655-0 02 1 1409-1505 ● ●
216 16.576 GROMMET; HOLE
16.549 OD=30 		8-94107-655-0 02 1 1506- ● ●
216 16.576 GROMMET; HOLE
4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) 16.575 OD=19 		8-97365-823-0 10 1 1409-1411 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. LAOS EQUIPMENT(CF0),ROOF RADIO ANTENNA<U71> 16.575 OD=19 		8-97365-823-0 10 1 1412-1503 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) ROOF RADIO ANTENNA<U71> 16.575 OD=19 		8-97365-823-0 10 1 1412-1503 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. LAOS EQUIPMENT(CF0),ROOF RADIO ANTENNA<U71> 16.575 OD=19 		8-97365-823-0 10 1 1504-1505 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> 16.575 OD=19 		8-97365-823-0 10 1 1504-1505 ●
216 16.576 GROMMET; HOLE
16.575 OD=19 		8-97365-823-0 12 1 1506- ● ●
216 16.576 GROMMET; HOLE
16.575 OD=19 		8-97365-823-0 12 1 1409-1505 ● ●
216 16.576 GROMMET; HOLE
16.575 OD=19 		8-97365-823-0 10 1 1506- ●
çizim 451348
1 7 1 220 7 1 220 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY 		8-97417-113-3 01 1 1409- ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) GRAY 		8-97419-375-2 01 1 1409- ● ●
1 16.742 LINING; HD
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> GRAY 		8-97416-957-5 01 1 1409- ● ●
1 16.742 LINING; HD
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-955-5 01 1 1409- ● ●
1 16.742 LINING; HD
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> GRAY 		8-97416-956-5 01 1 1409- ● ●
1 16.742 LINING; HD
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-953-5 01 1 1409- ● ●
1 16.742 LINING; HD
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> ,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-954-5 01 1 1409- ● ●
1 16.742 LINING; HD
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> GRAY 		8-97419-385-4 01 1 1409- ● ●
1 16.742 LINING; HD
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-384-4 01 1 1409- ● ●
1 16.742 LINING; HD
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> GRAY 		8-97419-382-4 01 1 1409- ● ●
1 16.742 LINING; HD
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-381-4 01 1 1409- ● ●
1 16.742 LINING; HD
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> GRAY 		8-97429-708-0 01 1 1409- ● ●
1 16.742 LINING; HD
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> ,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-383-4 01 1 1409- ● ●
1 16.742 LINING; HD
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> BLACK 		8-97429-475-5 01 1 1409- ● ●
1 16.742 LINING; HD
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> BLACK 		8-97429-474-5 01 1 1409- ● ●
1 16.742 LINING; HD
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> BLACK 		8-97423-930-5 01 1 1409- ● ●
1 16.742 LINING; HD
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> BLACK 		8-97429-473-5 01 1 1409- ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> GRAY 		8-97416-695-5 01 1 1409- ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-693-5 01 1 1409- ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> GRAY 		8-97416-694-5 01 1 1409- ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-691-5 01 1 1409- ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> ,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-692-5 01 1 1409- ●
7 16.742 RETAINER; HEADLINING RAIL
GRAY 		8-97416-696-0 02 1 1409- ● ● ●
7 16.742 RETAINER; HEADLINING RAIL
INTERIOR COLOR DARK GRAY(117) GRAY 		8-97416-696-0 02 1 1409- ● ●
7 16.742 RETAINER; HEADLINING RAIL
INTERIOR COLOR UPR & LWR DARK GRAY(154) 16.870 BLACK 		8-97416-667-0 02 1 1409- ● ●
220 16.165 BRACKET; SPEAKER
6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98128-570-0 02 1 1409- ● ● ●
