6-50 — REAR DOOR AND HINGE (#151843) — 51 parça

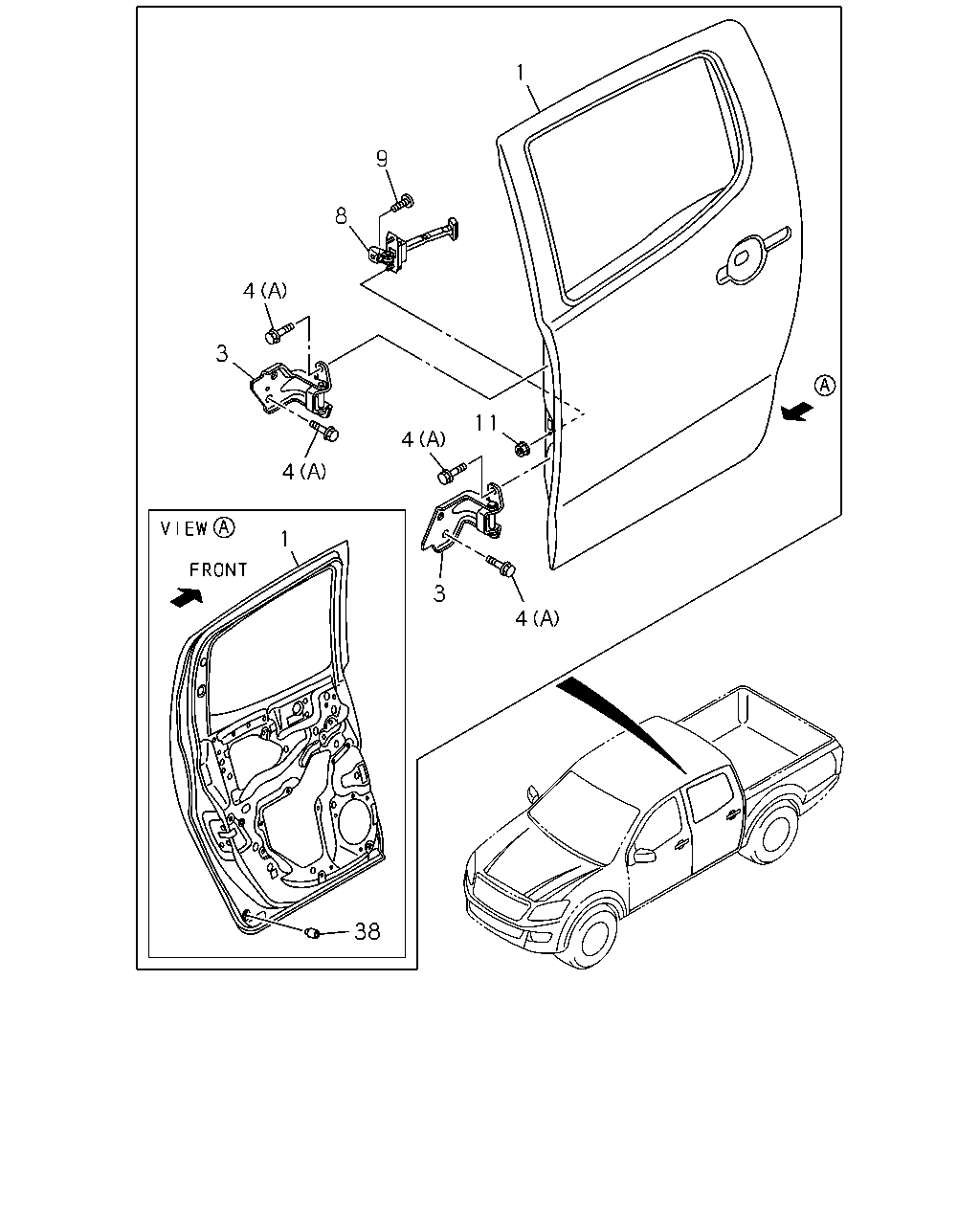

çizim 450935
1 9 8 4 3 4 4 11 3 4 38 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.150 DOOR ASM; REAR
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CH ILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98108-218-3 01 1 1409-1409 ● ●
1 16.150 DOOR ASM; REAR
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),MOROCCO EQUIPMENT(CGA),EC UADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98108-218-3 01 1 1410-1412 ● ●
1 16.150 DOOR ASM; REAR
TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),C HILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98108-218-4 01 1 1501- ● ●
1 16.150 DOOR ASM; REAR
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CH ILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98108-219-3 01 1 1409-1409 ● ●
1 16.150 DOOR ASM; REAR
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),MOROCCO EQUIPMENT(CGA),EC UADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98108-219-3 01 1 1410-1412 ● ●
1 16.150 DOOR ASM; REAR
TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),C HILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98108-219-4 01 1 1501- ● ●
1 16.150 DOOR ASM; REAR
EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-044-1 01 1 1409-1409 ● ●
1 16.150 DOOR ASM; REAR
EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), CONGO EQUIPMENT(CDF),MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-044-1 01 1 1410-1412 ● ●
1 16.150 DOOR ASM; REAR
EXC. TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-044-2 01 1 1501- ● ●
1 16.150 DOOR ASM; REAR
EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-045-1 01 1 1409-1409 ● ●
1 16.150 DOOR ASM; REAR
EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), CONGO EQUIPMENT(CDF),MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-045-1 01 1 1410-1412 ● ●
1 16.150 DOOR ASM; REAR
EXC. TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-045-2 01 1 1501- ● ●
1 16.150 DOOR ASM; REAR 8-98108-260-8 01 1 1409- ●
1 16.150 DOOR ASM; REAR 8-98108-261-8 01 1 1409- ●
3 16.335 HINGE; RR DOOR
UPR RH & LWR LH 		8-98105-280-1 02 1 1409- ● ●
3 16.335 HINGE; RR DOOR
LWR RH & UPR LH 		8-98105-281-1 02 1 1409- ● ●
3 16.335 HINGE; RR DOOR
UPR RH & LWR LH 		8-98105-282-3 02 1 1409- ●
3 16.335 HINGE; RR DOOR
LWR RH & UPR LH 		8-98105-283-3 02 1 1409- ●
4 16.335 BOLT; HINGE
09.171 (A) M8X23 FLANGE 		8-98005-842-0 08 1 1409- ● ●
4 16.335 BOLT; HINGE
09.171 (A) M8X23 FLANGE 		8-98005-842-0 16 1 1409- ●
4 16.335 BOLT; HINGE
16.320 (B) M8X23 FLANGE 		8-98029-440-0 04 1 1409- ●
8 16.320 ARM; CHECK,RR DOOR 8-98103-031-3 02 1 1409- ● ●
8 16.320 ARM; CHECK,RR DOOR 8-98103-032-4 02 1 1409- ●
9 16.323 BOLT; CHECK ARM
16.320 M8X23 		8-98166-694-0 02 1 1409- ● ● ●
11 16.320 NUT
M6 FLANGE 		8-98049-362-0 04 1 1409- ● ● ●
38 16.152 PROTECTOR; RR DOOR
16.165 		8-98202-864-0 02 1 1409- ● ●
çizim 450936
1 4 3 4 4 4 4 3 9 4 8 11
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.150 DOOR ASM; REAR
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CH ILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98108-218-3 01 1 1409-1409 ● ●
1 16.150 DOOR ASM; REAR
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),MOROCCO EQUIPMENT(CGA),EC UADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98108-218-3 01 1 1410-1412 ● ●
1 16.150 DOOR ASM; REAR
TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),C HILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98108-218-4 01 1 1501- ● ●
1 16.150 DOOR ASM; REAR
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CH ILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98108-219-3 01 1 1409-1409 ● ●
1 16.150 DOOR ASM; REAR
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),MOROCCO EQUIPMENT(CGA),EC UADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98108-219-3 01 1 1410-1412 ● ●
1 16.150 DOOR ASM; REAR
TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),C HILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98108-219-4 01 1 1501- ● ●
1 16.150 DOOR ASM; REAR
EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-044-1 01 1 1409-1409 ● ●
1 16.150 DOOR ASM; REAR
EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), CONGO EQUIPMENT(CDF),MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-044-1 01 1 1410-1412 ● ●
1 16.150 DOOR ASM; REAR
EXC. TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-044-2 01 1 1501- ● ●
1 16.150 DOOR ASM; REAR
EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-045-1 01 1 1409-1409 ● ●
1 16.150 DOOR ASM; REAR
EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), CONGO EQUIPMENT(CDF),MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-045-1 01 1 1410-1412 ● ●
1 16.150 DOOR ASM; REAR
EXC. TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98161-045-2 01 1 1501- ● ●
1 16.150 DOOR ASM; REAR 8-98108-260-8 01 1 1409- ●
1 16.150 DOOR ASM; REAR 8-98108-261-8 01 1 1409- ●
3 16.335 HINGE; RR DOOR
UPR RH & LWR LH 		8-98105-280-1 02 1 1409- ● ●
3 16.335 HINGE; RR DOOR
LWR RH & UPR LH 		8-98105-281-1 02 1 1409- ● ●
3 16.335 HINGE; RR DOOR
UPR RH & LWR LH 		8-98105-282-3 02 1 1409- ●
3 16.335 HINGE; RR DOOR
LWR RH & UPR LH 		8-98105-283-3 02 1 1409- ●
4 16.335 BOLT; HINGE
09.171 (A) M8X23 FLANGE 		8-98005-842-0 08 1 1409- ● ●
4 16.335 BOLT; HINGE
09.171 (A) M8X23 FLANGE 		8-98005-842-0 16 1 1409- ●
4 16.335 BOLT; HINGE
16.320 (B) M8X23 FLANGE 		8-98029-440-0 04 1 1409- ●
8 16.320 ARM; CHECK,RR DOOR 8-98103-031-3 02 1 1409- ● ●
8 16.320 ARM; CHECK,RR DOOR 8-98103-032-4 02 1 1409- ●
9 16.323 BOLT; CHECK ARM
16.320 M8X23 		8-98166-694-0 02 1 1409- ● ● ●
11 16.320 NUT
M6 FLANGE 		8-98049-362-0 04 1 1409- ● ● ●
