◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#151840) — 243 parça

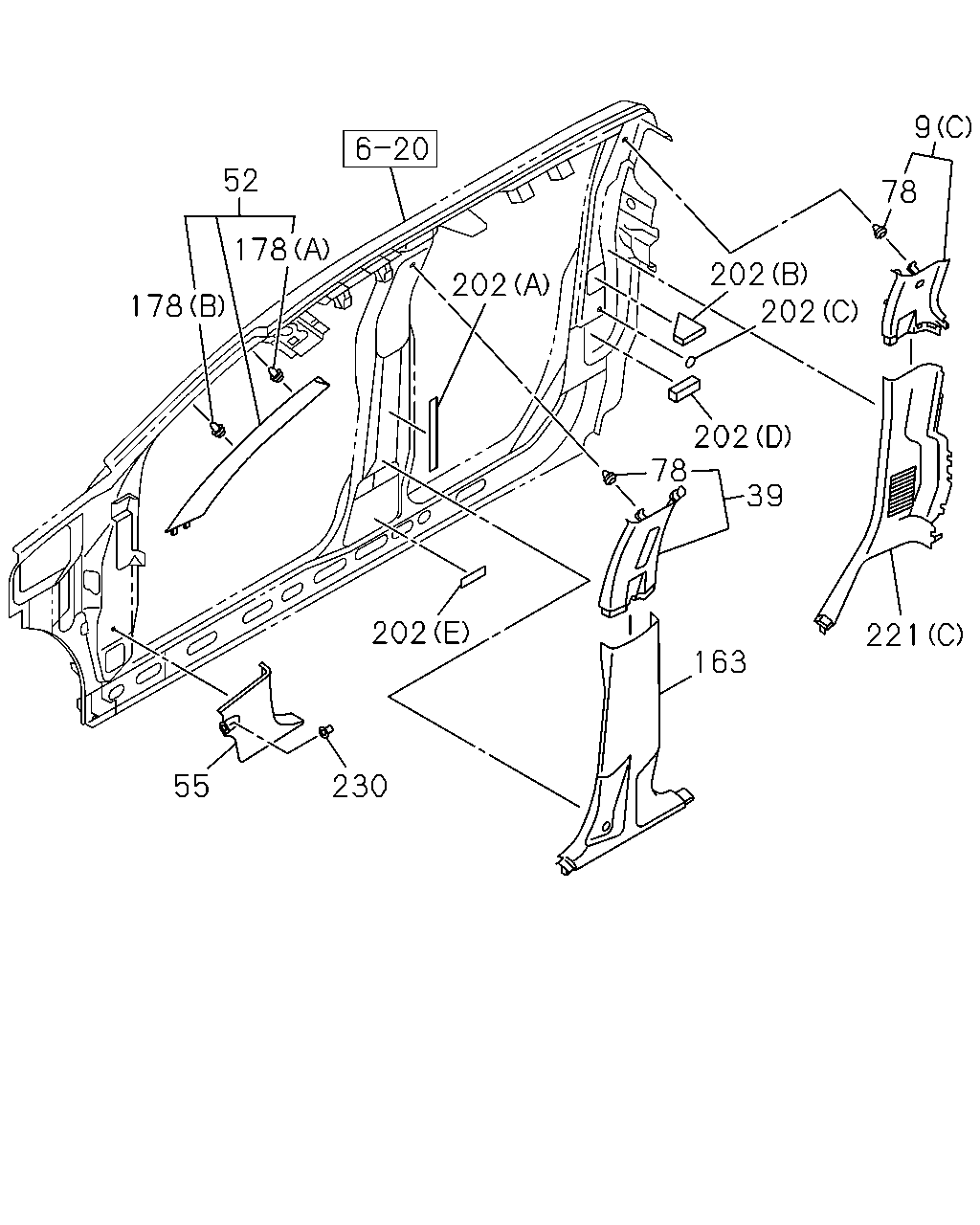

çizim 448749
221 39 202 202 9 78 202 78 202 52 178 55 230 202 178 163
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 16.575 TRIM; SIDE PANEL,UPR
(B) BLACK 		8-97417-118-1 01 1 1409- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) BLACK 		8-97417-120-1 01 1 1409- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) BLACK 		8-97416-969-0 01 1 1409- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) BLACK 		8-97416-971-0 01 1 1409- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
JUMP SEAT<AJ2> (A) BLACK 		8-97416-707-2 01 1 1409- ●
9 16.575 TRIM; SIDE PANEL,UPR
JUMP SEAT<AJ2> (A) BLACK 		8-97416-709-2 01 1 1409- ●
9 16.575 TRIM; SIDE PANEL,UPR
EXC. JUMP SEAT<AJ2> (A) BLACK 		8-97416-711-2 01 1 1409- ●
9 16.575 TRIM; SIDE PANEL,UPR
EXC. JUMP SEAT<AJ2> (A) BLACK 		8-97416-713-2 01 1 1409- ●
39 16.575 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR DARK GRAY(117) GRAY 		8-97416-959-2 01 1 1409- ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR DARK GRAY(117) GRAY 		8-97416-960-2 01 1 1409- ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) BLACK 		8-97423-935-2 01 1 1409- ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) BLACK 		8-97423-936-2 01 1 1409- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-679-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-679-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY 		8-97416-679-2 01 1 1409- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY 		8-97416-679-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-680-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-680-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY 		8-97416-680-2 01 1 1409- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY 		8-97416-680-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-677-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-677-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-678-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-678-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-331-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-331-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) GRAY 		8-97419-331-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) GRAY 		8-97419-331-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-333-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-333-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) GRAY 		8-97419-333-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) GRAY 		8-97419-333-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-330-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-330-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-332-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-332-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-925-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97423-925-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-945-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97423-945-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-923-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-924-2 01 1 1409- ●
55 16.166 PAD; TRIM,DASH SIDE
BLACK 		8-97416-675-3 01 1 1409- ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
BLACK 		8-97424-003-0 01 1 1409- ● ● ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 08 1 1409- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 04 1 1409- ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 06 1 1409- ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
BLACK 		8-97416-961-4 01 1 1409- ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
BLACK 		8-97416-963-4 01 1 1409- ● ●
178 16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) (A) 		8-98166-326-0 02 1 1409- ● ● ● ● ●
178 16.165 CLIP; TRIM COVER
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) (B) 		8-98139-052-0 02 1 1409-1503 ● ● ● ● ●
178 16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98139-052-0 02 1 1409-1503 ● ●
178 16.165 CLIP; TRIM COVER
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) (B) 		8-98139-052-0 02 1 1504- ● ● ● ● ●
178 16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH RIDE SUSPENSION(7YC) (B) 		8-98139-052-0 02 1 1504- ● ●
178 16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98139-052-0 02 1 1504- ● ●
178 16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) (B) 		8-98139-052-0 02 1 1504- ● ● ●
178 16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98182-136-0 02 1 1409- ●
178 16.165 CLIP; TRIM COVER
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98182-136-0 02 1 1409- ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 02 1 1409-1505 ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 02 1 1506- ● ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1409-1411 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. LAOS EQUIPMENT(CF0),ROOF RADIO ANTENNA<U71> 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1412-1503 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) ROOF RADIO ANTENNA<U71> 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1412-1503 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. LAOS EQUIPMENT(CF0),ROOF RADIO ANTENNA<U71> 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1504-1505 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1504-1505 ●
202 16.575 SEAL; CENTER PILLAR
16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1506- ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) (D) 		8-97362-561-0 10 1 1409-1411 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. LAOS EQUIPMENT(CF0),ROOF RADIO ANTENNA<U71> (D) 		8-97362-561-0 10 1 1412-1503 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) ROOF RADIO ANTENNA<U71> (D) 		8-97362-561-0 10 1 1412-1503 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. LAOS EQUIPMENT(CF0),ROOF RADIO ANTENNA<U71> (D) 		8-97362-561-0 10 1 1504-1505 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> (D) 		8-97362-561-0 10 1 1504-1505 ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 06 1 1506- ● ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-98179-381-3 02 1 1409- ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(E) 		8-97350-306-0 02 1 1409- ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
16.165 (C) OD=25 BLACK 		1-76798-019-0 02 1 1409- ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 06 1 1409-1505 ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 10 1 1506- ●
202 16.575 SEAL; CENTER PILLAR
(B) 		8-98269-733-0 02 1 1409- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) BLACK 		8-97417-114-3 01 1 1409- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) BLACK 		8-97417-116-3 01 1 1409- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) BLACK 		8-97416-965-1 01 1 1409- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) BLACK 		8-97416-967-1 01 1 1409- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) BLACK 		8-97428-384-0 01 1 1409- ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) BLACK 		8-97428-386-0 01 1 1409- ●
230 16.578 RETAINER; TRIM
BLACK 		8-97416-808-0 02 1 1409- ● ● ● ● ●

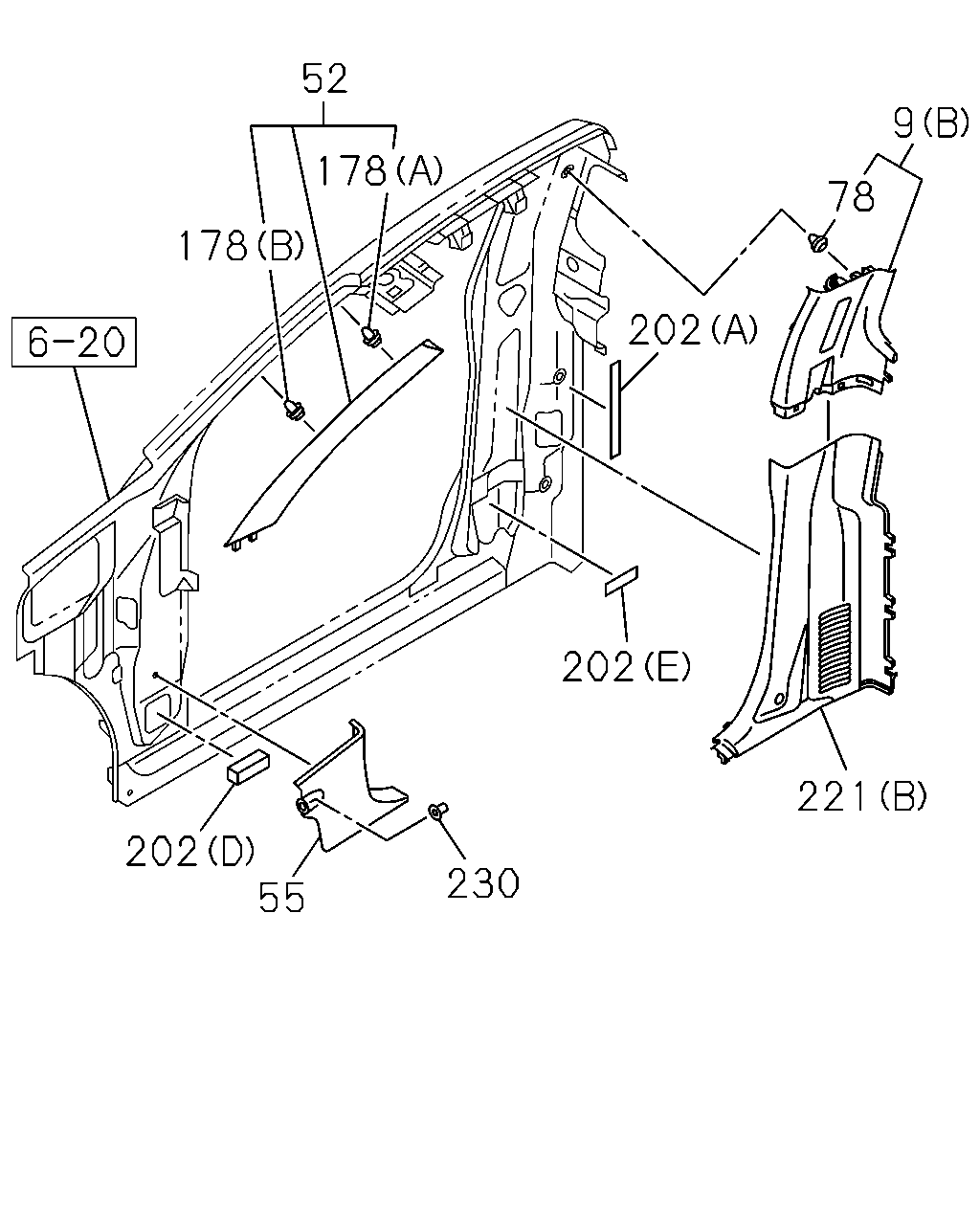

çizim 448908
9 78 202 221 202 230 55 202 178 52 178
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 16.575 TRIM; SIDE PANEL,UPR
(B) BLACK 		8-97417-118-1 01 1 1409- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) BLACK 		8-97417-120-1 01 1 1409- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) BLACK 		8-97416-969-0 01 1 1409- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) BLACK 		8-97416-971-0 01 1 1409- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
JUMP SEAT<AJ2> (A) BLACK 		8-97416-707-2 01 1 1409- ●
9 16.575 TRIM; SIDE PANEL,UPR
JUMP SEAT<AJ2> (A) BLACK 		8-97416-709-2 01 1 1409- ●
9 16.575 TRIM; SIDE PANEL,UPR
EXC. JUMP SEAT<AJ2> (A) BLACK 		8-97416-711-2 01 1 1409- ●
9 16.575 TRIM; SIDE PANEL,UPR
EXC. JUMP SEAT<AJ2> (A) BLACK 		8-97416-713-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-679-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-679-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY 		8-97416-679-2 01 1 1409- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY 		8-97416-679-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-680-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-680-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY 		8-97416-680-2 01 1 1409- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY 		8-97416-680-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-677-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-677-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-678-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-678-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-331-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-331-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) GRAY 		8-97419-331-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) GRAY 		8-97419-331-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-333-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-333-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) GRAY 		8-97419-333-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) GRAY 		8-97419-333-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-330-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-330-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-332-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-332-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-925-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97423-925-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-945-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97423-945-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-923-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-924-2 01 1 1409- ●
55 16.166 PAD; TRIM,DASH SIDE
BLACK 		8-97416-675-3 01 1 1409- ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
BLACK 		8-97424-003-0 01 1 1409- ● ● ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 08 1 1409- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 04 1 1409- ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 06 1 1409- ● ●
178 16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) (A) 		8-98166-326-0 02 1 1409- ● ● ● ● ●
178 16.165 CLIP; TRIM COVER
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) (B) 		8-98139-052-0 02 1 1409-1503 ● ● ● ● ●
178 16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98139-052-0 02 1 1409-1503 ● ●
178 16.165 CLIP; TRIM COVER
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) (B) 		8-98139-052-0 02 1 1504- ● ● ● ● ●
178 16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH RIDE SUSPENSION(7YC) (B) 		8-98139-052-0 02 1 1504- ● ●
178 16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98139-052-0 02 1 1504- ● ●
178 16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) (B) 		8-98139-052-0 02 1 1504- ● ● ●
178 16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98182-136-0 02 1 1409- ●
178 16.165 CLIP; TRIM COVER
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98182-136-0 02 1 1409- ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 02 1 1409-1505 ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 02 1 1506- ● ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1409-1411 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. LAOS EQUIPMENT(CF0),ROOF RADIO ANTENNA<U71> 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1412-1503 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) ROOF RADIO ANTENNA<U71> 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1412-1503 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. LAOS EQUIPMENT(CF0),ROOF RADIO ANTENNA<U71> 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1504-1505 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1504-1505 ●
202 16.575 SEAL; CENTER PILLAR
16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1506- ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) (D) 		8-97362-561-0 10 1 1409-1411 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. LAOS EQUIPMENT(CF0),ROOF RADIO ANTENNA<U71> (D) 		8-97362-561-0 10 1 1412-1503 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) ROOF RADIO ANTENNA<U71> (D) 		8-97362-561-0 10 1 1412-1503 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. LAOS EQUIPMENT(CF0),ROOF RADIO ANTENNA<U71> (D) 		8-97362-561-0 10 1 1504-1505 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> (D) 		8-97362-561-0 10 1 1504-1505 ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 06 1 1506- ● ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-98179-381-3 02 1 1409- ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(E) 		8-97350-306-0 02 1 1409- ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
16.165 (C) OD=25 BLACK 		1-76798-019-0 02 1 1409- ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 06 1 1409-1505 ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 10 1 1506- ●
202 16.575 SEAL; CENTER PILLAR
(B) 		8-98269-733-0 02 1 1409- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) BLACK 		8-97417-114-3 01 1 1409- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) BLACK 		8-97417-116-3 01 1 1409- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) BLACK 		8-97416-965-1 01 1 1409- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) BLACK 		8-97416-967-1 01 1 1409- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) BLACK 		8-97428-384-0 01 1 1409- ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) BLACK 		8-97428-386-0 01 1 1409- ●
230 16.578 RETAINER; TRIM
BLACK 		8-97416-808-0 02 1 1409- ● ● ● ● ●

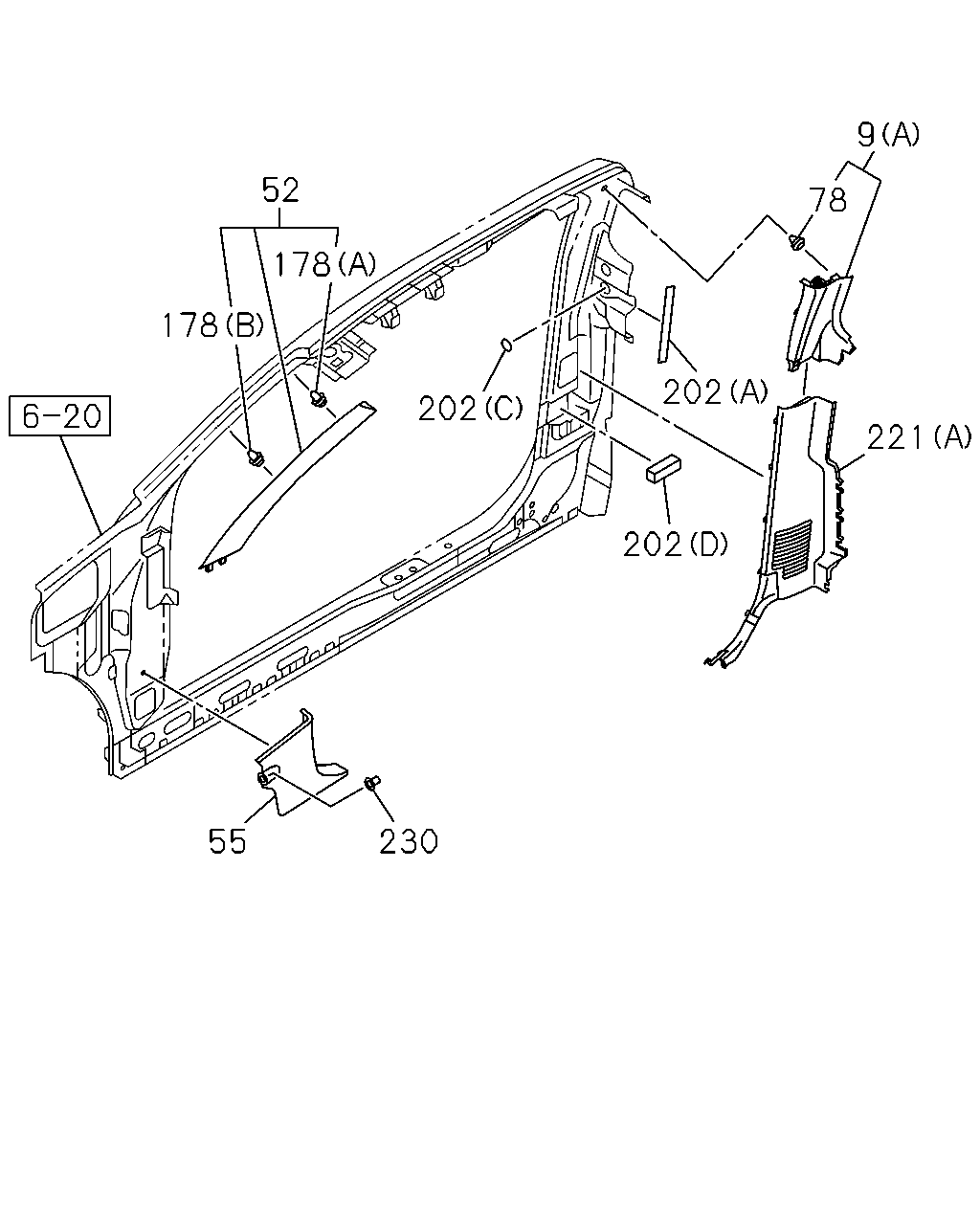

çizim 449485
221 202 202 202 178 52 178 55 230 78 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 16.575 TRIM; SIDE PANEL,UPR
(B) BLACK 		8-97417-118-1 01 1 1409- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) BLACK 		8-97417-120-1 01 1 1409- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) BLACK 		8-97416-969-0 01 1 1409- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) BLACK 		8-97416-971-0 01 1 1409- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
JUMP SEAT<AJ2> (A) BLACK 		8-97416-707-2 01 1 1409- ●
9 16.575 TRIM; SIDE PANEL,UPR
JUMP SEAT<AJ2> (A) BLACK 		8-97416-709-2 01 1 1409- ●
9 16.575 TRIM; SIDE PANEL,UPR
EXC. JUMP SEAT<AJ2> (A) BLACK 		8-97416-711-2 01 1 1409- ●
9 16.575 TRIM; SIDE PANEL,UPR
EXC. JUMP SEAT<AJ2> (A) BLACK 		8-97416-713-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-679-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-679-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY 		8-97416-679-2 01 1 1409- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY 		8-97416-679-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-680-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-680-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY 		8-97416-680-2 01 1 1409- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY 		8-97416-680-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-677-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-677-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-678-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97416-678-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-331-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-331-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) GRAY 		8-97419-331-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) GRAY 		8-97419-331-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-333-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-333-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) GRAY 		8-97419-333-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) GRAY 		8-97419-333-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-330-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-330-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-332-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. HIGH RIDE SUSPENSION(7YC) GRAY 		8-97419-332-3 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-925-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97423-925-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-945-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97423-945-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-923-2 01 1 1409- ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR UPR & LWR DARK GRAY(154) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) BLACK 		8-97423-924-2 01 1 1409- ●
55 16.166 PAD; TRIM,DASH SIDE
BLACK 		8-97416-675-3 01 1 1409- ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
BLACK 		8-97424-003-0 01 1 1409- ● ● ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 08 1 1409- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 04 1 1409- ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97351-983-0 06 1 1409- ● ●
178 16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) (A) 		8-98166-326-0 02 1 1409- ● ● ● ● ●
178 16.165 CLIP; TRIM COVER
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) (B) 		8-98139-052-0 02 1 1409-1503 ● ● ● ● ●
178 16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98139-052-0 02 1 1409-1503 ● ●
178 16.165 CLIP; TRIM COVER
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) (B) 		8-98139-052-0 02 1 1504- ● ● ● ● ●
178 16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH RIDE SUSPENSION(7YC) (B) 		8-98139-052-0 02 1 1504- ● ●
178 16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98139-052-0 02 1 1504- ● ●
178 16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) (B) 		8-98139-052-0 02 1 1504- ● ● ●
178 16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98182-136-0 02 1 1409- ●
178 16.165 CLIP; TRIM COVER
INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98182-136-0 02 1 1409- ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 02 1 1409-1505 ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 02 1 1506- ● ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1409-1411 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. LAOS EQUIPMENT(CF0),ROOF RADIO ANTENNA<U71> 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1412-1503 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) ROOF RADIO ANTENNA<U71> 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1412-1503 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. LAOS EQUIPMENT(CF0),ROOF RADIO ANTENNA<U71> 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1504-1505 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> 16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1504-1505 ●
202 16.575 SEAL; CENTER PILLAR
16.332 (C) OD=52 BLACK 		1-76798-041-0 02 1 1506- ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) (D) 		8-97362-561-0 10 1 1409-1411 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) EXC. LAOS EQUIPMENT(CF0),ROOF RADIO ANTENNA<U71> (D) 		8-97362-561-0 10 1 1412-1503 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ), RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO (7QL) ROOF RADIO ANTENNA<U71> (D) 		8-97362-561-0 10 1 1412-1503 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. LAOS EQUIPMENT(CF0),ROOF RADIO ANTENNA<U71> (D) 		8-97362-561-0 10 1 1504-1505 ●
202 16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ROOF RADIO ANTENNA<U71> (D) 		8-97362-561-0 10 1 1504-1505 ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 06 1 1506- ● ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-98179-381-3 02 1 1409- ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(E) 		8-97350-306-0 02 1 1409- ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
16.165 (C) OD=25 BLACK 		1-76798-019-0 02 1 1409- ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 06 1 1409-1505 ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 10 1 1506- ●
202 16.575 SEAL; CENTER PILLAR
(B) 		8-98269-733-0 02 1 1409- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) BLACK 		8-97417-114-3 01 1 1409- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) BLACK 		8-97417-116-3 01 1 1409- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) BLACK 		8-97416-965-1 01 1 1409- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) BLACK 		8-97416-967-1 01 1 1409- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) BLACK 		8-97428-384-0 01 1 1409- ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) BLACK 		8-97428-386-0 01 1 1409- ●
230 16.578 RETAINER; TRIM
BLACK 		8-97416-808-0 02 1 1409- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
