◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-14 - DASH PANEL AND FENDER SKIRT ▶
6-14 — DASH PANEL AND FENDER SKIRT (#151834) — 24 parça

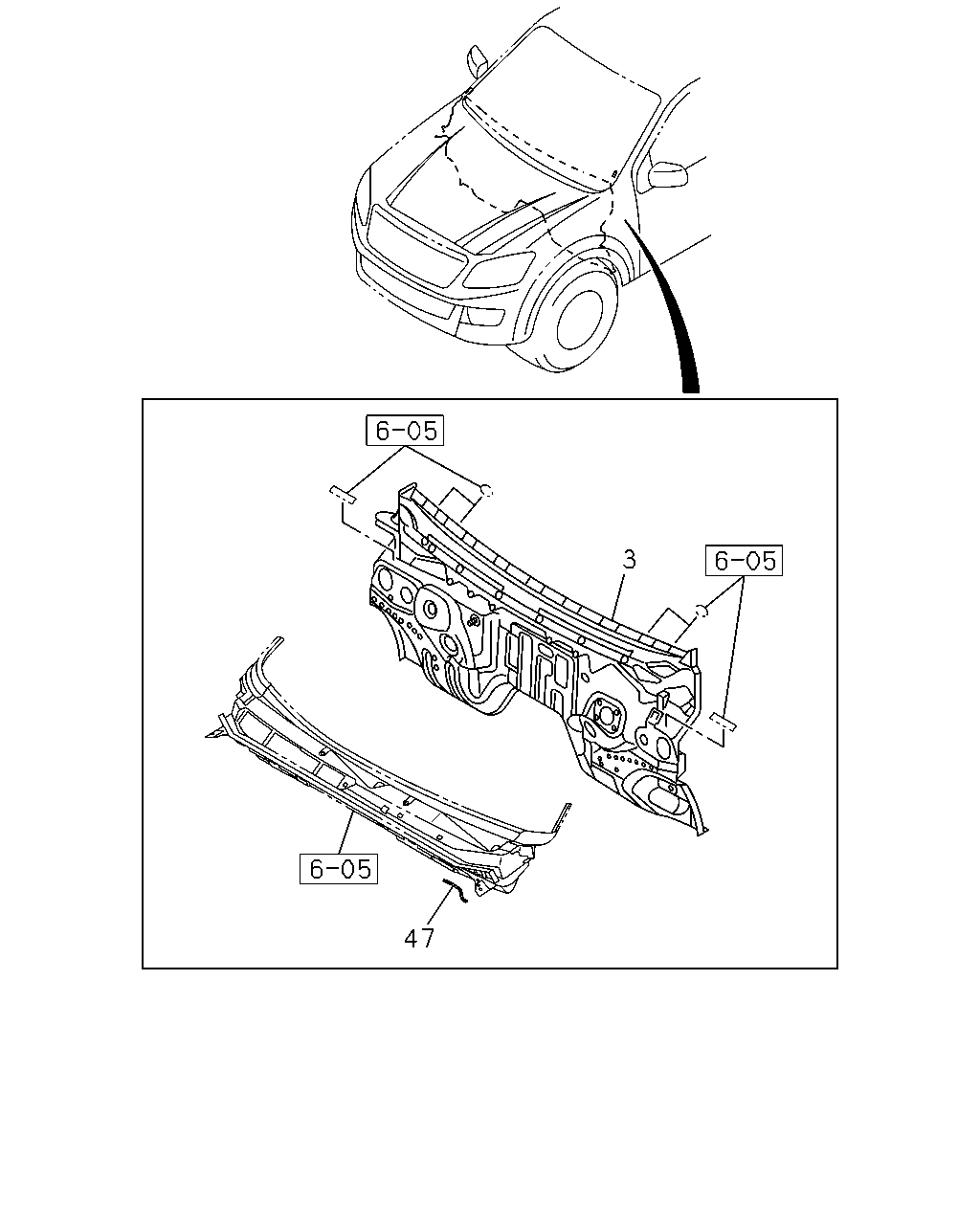

çizim 451170
3 47
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF) 		8-98103-214-1 01 1 1409-1411 ●
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 		8-98103-214-1 01 1 1409-1411 ●
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF) 		8-98103-214-1 01 1 1412-1412 ●
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) 		8-98103-214-1 01 1 1412-1412 ●
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF) 		8-98103-214-2 01 1 1501- ● ●
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) EXC. TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF) 		8-98127-770-1 01 1 1409-1411 ●
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 		8-98127-770-1 01 1 1409-1411 ●
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) EXC. TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF) 		8-98127-770-1 01 1 1412-1412 ●
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) 		8-98127-770-1 01 1 1412-1412 ●
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) EXC. TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF) 		8-98127-770-2 01 1 1501- ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) 		8-98103-212-1 01 1 1409-1411 ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) 		8-98103-212-1 01 1 1412-1412 ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF) 		8-98103-212-1 01 1 1501-1508 ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF) 		8-98103-212-2 01 1 1509- ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) 		8-98127-766-1 01 1 1409-1411 ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) 		8-98127-766-1 01 1 1412-1412 ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EXC. TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF) 		8-98127-766-1 01 1 1501-1508 ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) EXC. TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF) 		8-98127-766-2 01 1 1509- ● ● ● ● ●
47 16.550 TAPE; DASH PANEL
4JA1-T ENG(LP0) 		8-98151-273-0 02 1 1409- ● ●
47 16.550 TAPE; DASH PANEL
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 		8-98151-273-0 01 1 1409-1411 ●
47 16.550 TAPE; DASH PANEL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 		8-98151-273-0 01 1 1409-1411 ● ● ●
47 16.550 TAPE; DASH PANEL
4JK1-TCX ENG(LR0) 		8-98151-273-0 01 1 1409-1411 ●
47 16.550 TAPE; DASH PANEL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 		8-98151-273-0 01 1 1412-1508 ● ● ● ● ●
47 16.550 TAPE; DASH PANEL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 		8-98151-273-0 01 1 1509- ● ● ● ● ●
