◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#151832) — 21 parça

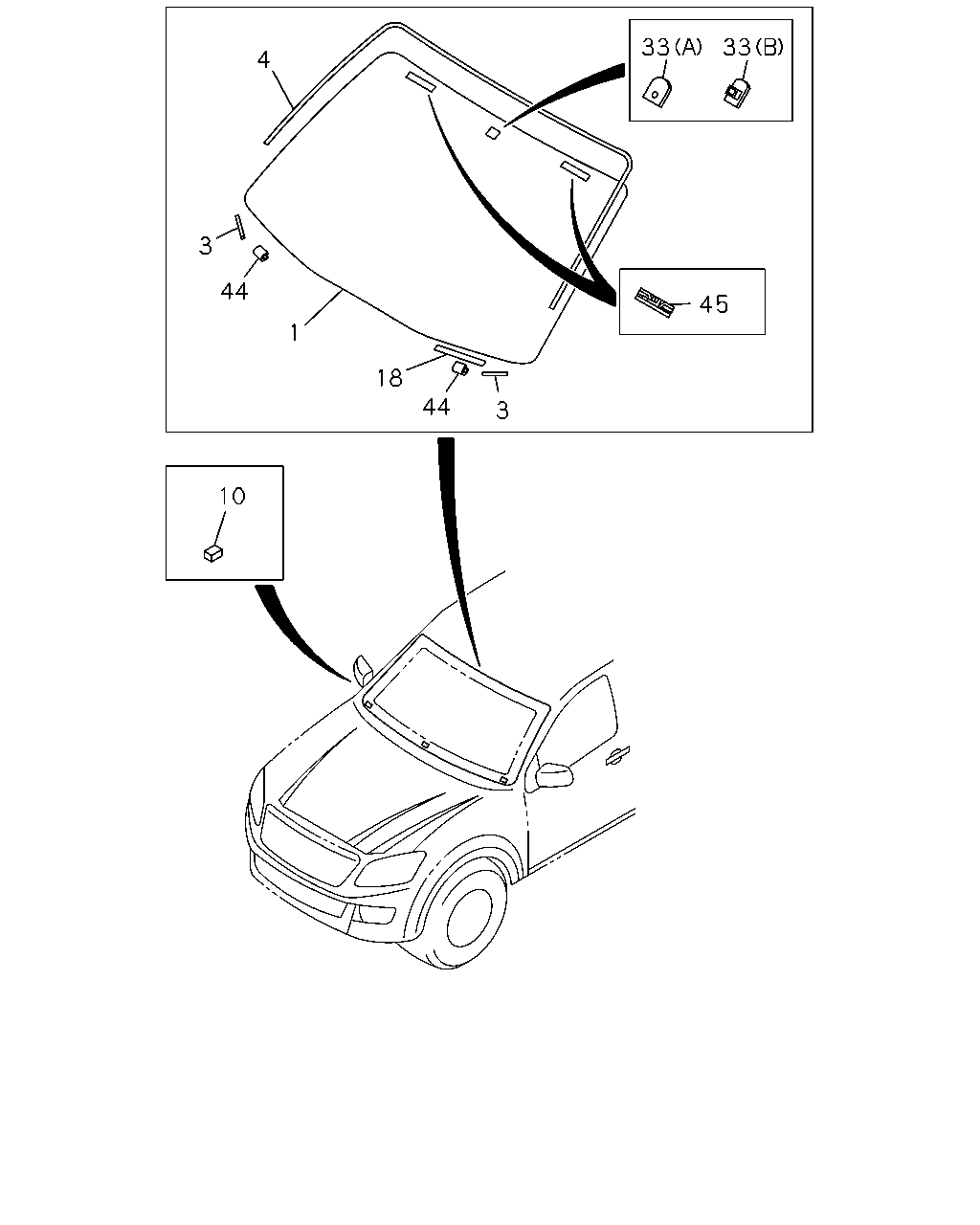

çizim 451046
45 33 33 3 44 18 1 4 3 44 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.005 GLASS; WINDSHIELD
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) RR VIEW MIRROR TILT DAY & NIGHT<D31> 		8-98140-683-3 01 1 1409-1411 ● ● ●
1 16.005 GLASS; WINDSHIELD
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) RR VIEW MIRROR TILT DAY & NIGHT<D31> 		8-98140-683-3 01 1 1412-1412 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF) RR VIEW MIRROR TILT DAY & NIGHT<D31> 		8-98140-683-3 01 1 1501- ● ● ● ●
1 16.005 GLASS; WINDSHIELD
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) EXC. RR VIEW MIRROR TILT DAY & NIGHT<D31> 		8-98140-684-3 01 1 1409-1411 ● ● ●
1 16.005 GLASS; WINDSHIELD
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) EXC. RR VIEW MIRROR TILT DAY & NIGHT<D31> 		8-98140-684-3 01 1 1412-1412 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF) EXC. RR VIEW MIRROR TILT DAY & NIGHT<D31> 		8-98140-684-3 01 1 1501- ● ● ● ●
1 16.005 GLASS; WINDSHIELD
RR VIEW MIRROR TILT DAY & NIGHT<D31> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) 		8-98140-681-3 01 1 1409-1412 ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
RR VIEW MIRROR TILT DAY & NIGHT<D31> EXC. TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF) 		8-98140-681-3 01 1 1501- ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF),RR VIEW MIRROR TILT DAY & NIGHT<D31> 		8-98140-682-3 01 1 1409-1412 ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF),RR VIEW MIRROR TILT DAY & NIGHT<D31> 		8-98140-682-3 01 1 1501- ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD 8-98194-205-0 01 1 1409- ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD 8-98194-206-0 01 1 1409- ● ● ● ● ●
4 16.475 MOLDING; WINDSHIELD,UPR 8-98140-685-0 01 1 1409- ● ● ● ● ●
10 08.160 SPACER; WINDSHIELD GLASS
12.180 		8-94434-770-0 03 1 1409- ● ● ● ● ●
18 16.041 SEAL; WINDSHIELD
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) 		8-98140-686-0 01 1 1409-1411 ● ● ●
18 16.041 SEAL; WINDSHIELD
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CONGO EQUIPMENT(CDF) 		8-98140-686-0 01 1 1412-1412 ● ● ● ●
18 16.041 SEAL; WINDSHIELD
TURKEY EQUIPMENT(B11),CONGO EQUIPMENT(CDF) 		8-98140-686-0 01 1 1501- ● ● ● ●
33 08.133 SUPPORT; WINDSHIELD,LWR
RR VIEW MIRROR TILT DAY & NIGHT<D31> (A) 		8-15954-649-0 01 1 1409- ● ● ● ● ●
33 08.133 SUPPORT; WINDSHIELD,LWR
EXC. RR VIEW MIRROR TILT DAY & NIGHT<D31> (B) 		8-97331-592-0 01 1 1409- ● ● ● ● ●
44 16.041 SPONGE 8-98194-202-0 02 1 1409- ● ● ● ● ●
45 16.041 SUPPORT; WINDSHIELD 8-98140-687-0 02 1 1409- ● ● ● ● ●
