6-03 — RADIATOR GRILLE (#151830) — 53 parça

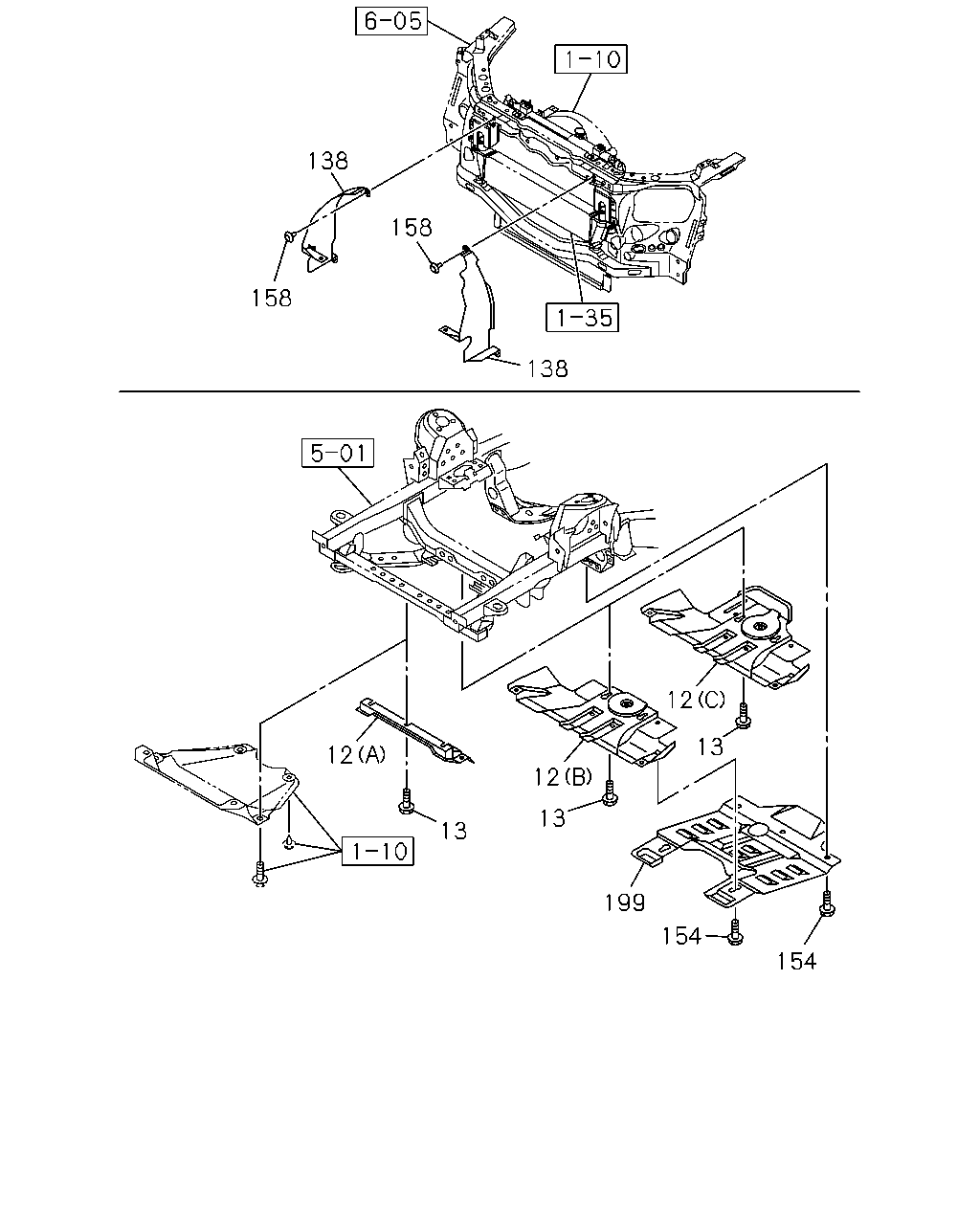

çizim 448952
12 13 199 154 154 13 12 13 12 138 158 138 158
BalonParca AdiParca NoAdetTipApplied Date A B C D E
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (A) 		8-98102-129-1 01 1 1409- ● ●
12 01.274 PLATE; SKID,RAD
(A) 		8-98102-129-1 01 1 1409- ● ● ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (B) 		8-98229-406-0 01 1 1409-1412 ● ●
12 01.274 PLATE; SKID,RAD
UNDER FRT GUARD<6RJ> (B) 		8-98229-406-0 01 1 1409-1412 ● ● ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (B) 		8-98229-406-0 01 1 1501- ● ●
12 01.274 PLATE; SKID,RAD
(B) 		8-98229-406-0 01 1 1501- ●
12 01.274 PLATE; SKID,RAD
UNDER FRT GUARD<6RJ> (B) 		8-98229-406-0 01 1 1501- ● ●
12 01.274 PLATE; SKID,RAD
EXC. UNDER FRT GUARD<6RJ> (C) 		8-98102-131-2 01 1 1409-1412 ● ● ●
12 01.274 PLATE; SKID,RAD
EXC. UNDER FRT GUARD<6RJ> (C) 		8-98102-131-2 01 1 1501- ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1409- ● ●
13 01.267 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1409- ● ● ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 		8-98137-586-1 01 1 1409-1411 ● ● ● ● ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 		8-98137-586-1 01 1 1412-1508 ● ● ● ● ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 		8-98137-586-1 01 1 1509- ● ● ● ● ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 		8-98137-587-1 01 1 1409-1411 ● ● ● ● ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 		8-98137-587-1 01 1 1412-1508 ● ● ● ● ●
138 01.266 GUIDE; AIR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 		8-98137-587-1 01 1 1509- ● ● ● ● ●
154 01.267 BOLT; COVER
UNDER FRT GUARD<6RJ> 01.428 M12X25 FLANGE 		8-98230-015-0 04 1 1409- ● ● ● ● ●
158 01.269 CLIP; PROTECTOR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 08.154 OD=22 L=10.7 		8-94215-211-0 06 1 1409-1411 ● ● ● ● ●
158 01.269 CLIP; PROTECTOR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 08.154 OD=22 L=10.7 		8-94215-211-0 06 1 1412-1508 ● ● ● ● ●
158 01.269 CLIP; PROTECTOR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 08.154 OD=22 L=10.7 		8-94215-211-0 06 1 1509- ● ● ● ● ●
199 01.274 PLATE; OIL PAN
UNDER FRT GUARD<6RJ> 01.426 		8-98229-404-0 01 1 1409- ● ● ● ● ●

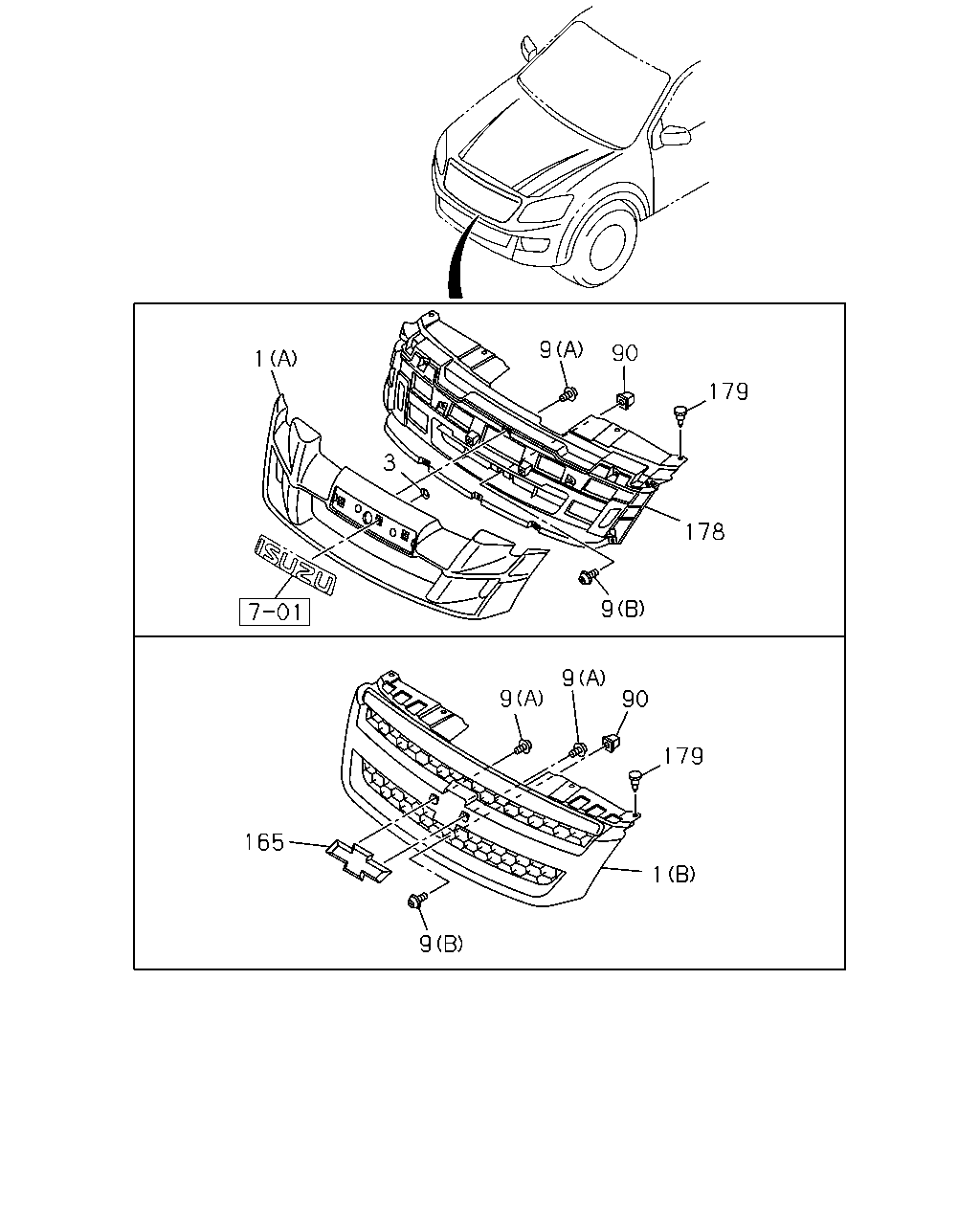

çizim 451610
1 3 9 90 179 178 9 9 9 90 179 1 9 165
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> (B) 		8-98211-894-0 01 1 1409- ● ●
1 01.266 GRILLE; RAD
CHEVROLET BRAND<RWE> EXC. BRIGHT RAD GRILLE<V22>,SALES PACKAGE SPORTY<XK0> (B) 		8-98211-894-0 01 1 1409- ● ●
1 01.266 GRILLE; RAD
ISUZU BRAND<7WL> (A) 		8-98193-867-0 01 1 1409-1505 ● ●
1 01.266 GRILLE; RAD
KD PAINT LESS SUPPLY<7TV> ISUZU BRAND<7WL> EXC. BRIGHT RAD GRILLE<V22>,SALES PACKAGE SPORTY<XK0> (A) 		8-98193-867-0 01 1 1409-1505 ● ●
1 01.266 GRILLE; RAD
ISUZU BRAND<7WL> EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22>,SALES PACKAGE SPORTY<XK0>,KD PAINT LESS SUPPLY<7TV> (A) 		8-98193-867-0 01 1 1409-1505 ● ●
1 01.266 GRILLE; RAD
EXC. BRIGHT RAD GRILLE<V22> (A) 		8-98193-867-0 01 1 1409-1505 ●
1 01.266 GRILLE; RAD
KD PAINT LESS SUPPLY<7TV> ISUZU BRAND<7WL> EXC. BRIGHT RAD GRILLE<V22>,SALES PACKAGE SPORTY<XK0> (A) 		8-98193-867-0 01 1 1506-1506 ● ● ● ● ●
1 01.266 GRILLE; RAD
ISUZU BRAND<7WL> EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22>,SALES PACKAGE SPORTY<XK0>,KD PAINT LESS SUPPLY<7TV> (A) 		8-98193-867-0 01 1 1506-1506 ● ● ● ● ●
1 01.266 GRILLE; RAD
KD PAINT LESS SUPPLY<7TV> ISUZU BRAND<7WL> (A) 		8-98193-867-0 01 1 1507- ● ●
1 01.266 GRILLE; RAD
ISUZU BRAND<7WL> EXC. BODY COLOR KEYED RAD GRILLE<TL1>, KD PAINT LESS SUPPLY<7TV> (A) 		8-98193-867-0 01 1 1507- ● ●
1 01.266 GRILLE; RAD
ISUZU BRAND<7WL> EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22>,SALES PACKAGE SPORTY<XK0>,KD PAINT LESS SUPPLY<7TV> (A) 		8-98193-867-0 01 1 1507- ● ●
1 01.266 GRILLE; RAD
KD PAINT LESS SUPPLY<7TV> ISUZU BRAND<7WL> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-98193-867-0 01 1 1507- ● ●
1 01.266 GRILLE; RAD
KD PAINT LESS SUPPLY<7TV> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-98193-867-0 01 1 1507- ●
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22>,KD PAINT LESS SUPPLY<7TV> (A) 		8-98193-867-0 01 1 1507- ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. SALES PACKAGE SPORTY<XK0> (A) PLATED 		8-98193-869-0 01 1 1409- ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (A) PLATED 		8-98193-869-0 01 1 1409- ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> ISUZU BRAND<7WL> EXC. KD PAINT LESS SUPPLY<7TV> (A) PLEASE PAINT TO MATCH BODY COLOR 		8-98196-514-1 01 1 1409-1505 ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> ISUZU BRAND<7WL> EXC. SALES PACKAGE SPORTY<XK0>,KD PAINT LESS SUPPLY<7TV> (A) PLEASE PAINT TO MATCH BODY COLOR 		8-98196-514-1 01 1 1506- ● ● ● ● ●
3 01.269 CLIP; GRILLE
ISUZU BRAND<7WL> 		8-98211-687-0 03 1 1409- ● ● ● ●
3 01.269 CLIP; GRILLE 8-98211-687-0 03 1 1409- ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET BRAND<RWE> (A) M5X16 TAPPING W/PL WASHER 		8-98193-872-0 02 1 1409- ● ●
9 01.269 SCREW; RAD GRILLE
CHEVROLET BRAND<RWE> EXC. BRIGHT RAD GRILLE<V22>,SALES PACKAGE SPORTY<XK0> (A) M5X16 TAPPING W/PL WASHER 		8-98193-872-0 02 1 1409- ● ●
9 01.269 SCREW; RAD GRILLE
(B) M5X16 		8-98167-352-0 01 1 1409- ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
ISUZU BRAND<7WL> (A) M5X16 TAPPING W/PL WASHER 		8-98193-872-0 12 1 1409- ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 TAPPING W/PL WASHER 		8-98193-872-0 12 1 1409- ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 1409- ● ● ● ● ●
165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> 		8-98211-893-0 01 1 1409- ● ●
165 01.269 PLATE; RAD GRILLE
CHEVROLET BRAND<RWE> EXC. BRIGHT RAD GRILLE<V22>,SALES PACKAGE SPORTY<XK0> 		8-98211-893-0 01 1 1409- ● ●
178 01.269 GRILLE; INNER,RAD
ISUZU BRAND<7WL> 		8-98193-871-0 01 1 1409- ● ● ● ●
178 01.269 GRILLE; INNER,RAD 8-98193-871-0 01 1 1409- ●
179 01.269 RETAINER; GRILLE,RAD
07.832 		8-97301-188-0 04 1 1409- ● ● ● ● ●
