6-01 — FRONT BUMPER (#151829) — 137 parça

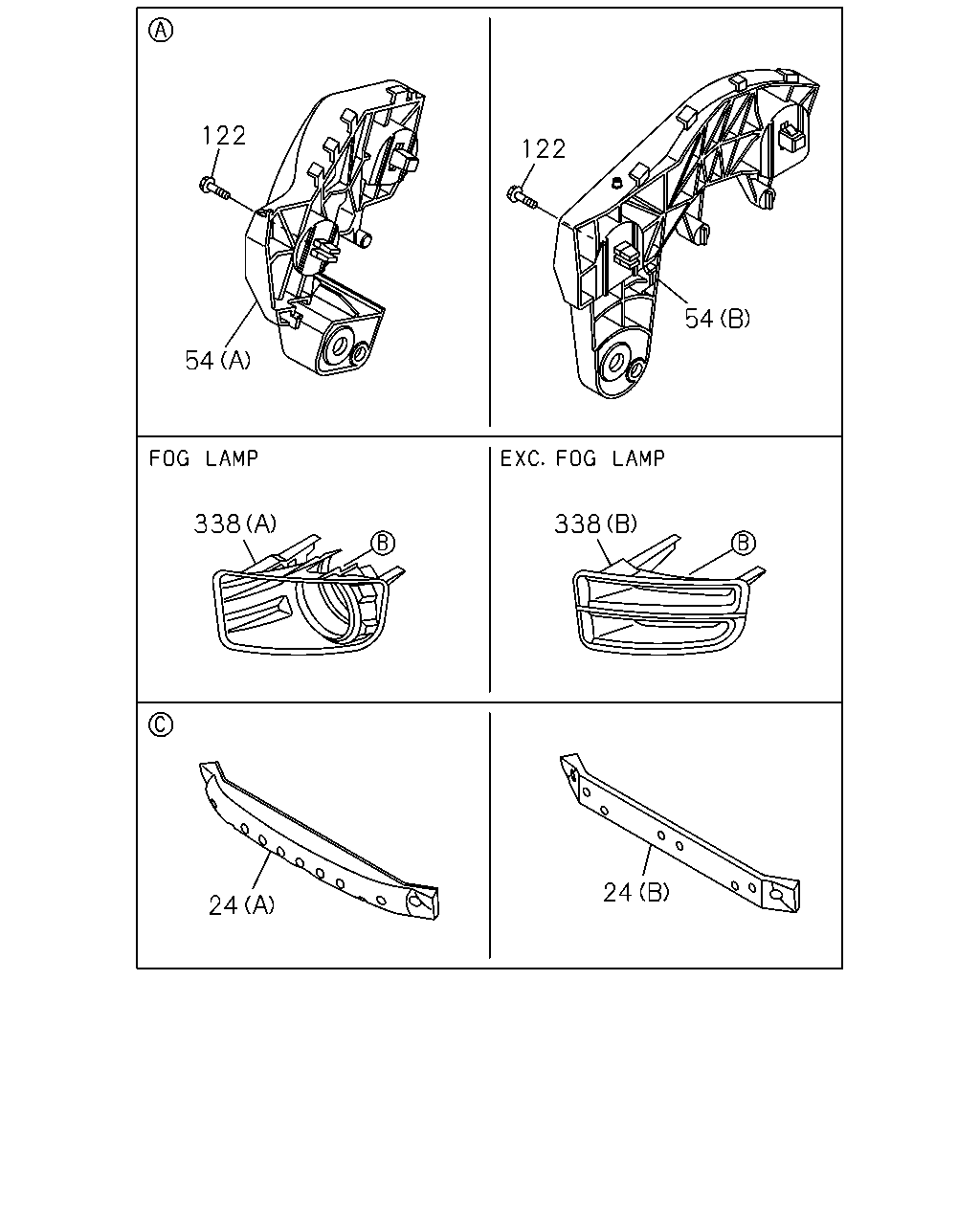

çizim 449620
24 24 338 338 122 54 122 54
BalonParca AdiParca NoAdetTipApplied Date A B C D E
24 07.869 BAR; FRT BUMPER
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CH ILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) (A) 		8-98165-113-1 01 1 1409-1411 ● ● ● ●
24 07.869 BAR; FRT BUMPER
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),MOROCCO EQUIPMENT(CGA),EC UADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) (A) 		8-98165-113-1 01 1 1412-1412 ● ● ● ●
24 07.869 BAR; FRT BUMPER
TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),C HILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) (A) 		8-98165-113-1 01 1 1501- ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) (B) 		8-98165-112-1 01 1 1409-1411 ● ● ● ●
24 07.869 BAR; FRT BUMPER
(B) 		8-98165-112-1 01 1 1409-1411 ●
24 07.869 BAR; FRT BUMPER
EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), CONGO EQUIPMENT(CDF),MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) (B) 		8-98165-112-1 01 1 1412-1412 ● ● ● ●
24 07.869 BAR; FRT BUMPER
(B) 		8-98165-112-1 01 1 1412-1412 ●
24 07.869 BAR; FRT BUMPER
EXC. TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), MOROCCO EQUIPMENT(CGA),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) (B) 		8-98165-112-1 01 1 1501- ● ● ● ●
24 07.869 BAR; FRT BUMPER
(B) 		8-98165-112-1 01 1 1501- ●
54 07.832 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-258-4 01 1 1409- ● ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98074-258-4 01 1 1409- ● ● ●
54 07.832 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-259-4 01 1 1409- ● ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98074-259-4 01 1 1409- ● ● ●
54 07.832 RETAINER; FRT BUMPER
(C) 		8-97301-188-0 10 1 1409- ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
08.155 (D) 		8-98050-462-0 06 1 1409- ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-256-3 01 1 1409- ● ●
54 07.832 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-257-3 01 1 1409- ● ●
122 07.874 BOLT; RET,FRT BUMPER
M6X16 TAPPING W/PL WASHER 		0-74160-616-0 02 1 1409- ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> EXC. TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) (A) 		8-98099-824-1 01 1 1409-1411 ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> EXC. TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAE L EQUIPMENT(2G1) (A) 		8-98099-824-1 01 1 1412- ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> EXC. TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) (A) 		8-98099-825-1 01 1 1409-1411 ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> EXC. TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAE L EQUIPMENT(2G1) (A) 		8-98099-825-1 01 1 1412- ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
EXC. TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1),FOG LAMP<T96>,ISRAEL EQUIPMENT(2G1) (B) 		8-98099-827-1 01 1 1409-1411 ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
EXC. TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),FOG LAMP<T96>,ISRAEL EQUIPMENT(2G1) (B) 		8-98099-827-1 01 1 1412- ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
EXC. TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1),FOG LAMP<T96>,ISRAEL EQUIPMENT(2G1) (B) 		8-98099-828-1 01 1 1409-1411 ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
EXC. TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),FOG LAMP<T96>,ISRAEL EQUIPMENT(2G1) (B) 		8-98099-828-1 01 1 1412- ● ● ● ● ●

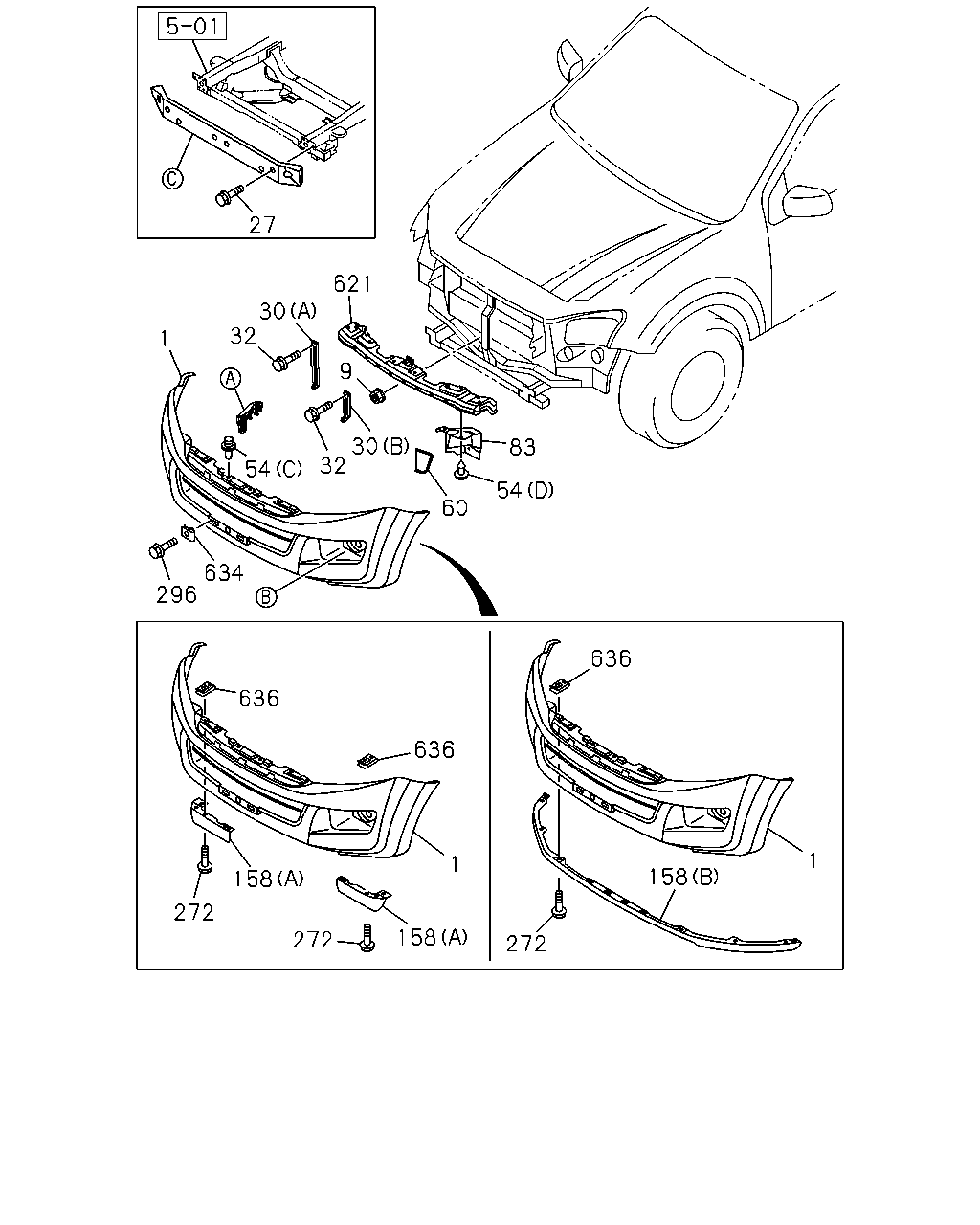

çizim 451263
27 1 32 30 621 9 54 32 30 60 54 83 634 296 636 636 158 272 272 158 272 158 1 636 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 07.831 BUMPER ASM; FRT
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1) COLOR KEYED BUMPER(VT4) EXC. KD PAINT LESS SUPPLY<7TV>,HIGH RIDE SUSPENSION(7YC) PRIMER 		8-98300-356-0 01 1 1412- ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMB IA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1),KD PAINT LESS SUPPLY<7TV> PRIMER 		8-98196-573-2 01 1 1409- ● ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) EXC. KD PAINT LESS SUPPLY<7TV> PRIMER 		8-98196-573-2 01 1 1409- ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMB IA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1),KD PAINT LESS SUPPLY<7TV> PRIMER 		8-98196-573-2 01 1 1409- ● ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMB IA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1),KD PAINT LESS SUPPLY<7TV>,HIGH RIDE SUSPENSION(7YC) PRIMER 		8-98196-570-2 01 1 1409- ● ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) EXC. KD PAINT LESS SUPPLY<7TV>,HIGH RIDE SUSPENSION(7YC) PRIMER 		8-98196-570-2 01 1 1409- ● ●
1 07.831 BUMPER ASM; FRT
TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) EXC. KD PAINT LESS SUPPLY<7TV> PRIMER 		8-98196-574-2 01 1 1409-1411 ● ●
1 07.831 BUMPER ASM; FRT
TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> COLOR KEYED BUMPER(VT4) EXC. KD PAINT LESS SUPPLY<7TV> PRIMER 		8-98196-574-2 01 1 1409-1411 ● ●
1 07.831 BUMPER ASM; FRT
TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) EURO5 SPECIFICATION<NT5> COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) EXC. KD PAINT LESS SUPPLY<7TV> PRIMER 		8-98196-574-2 01 1 1412- ● ●
1 07.831 BUMPER ASM; FRT
TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) COLOR KEYED BUMPER(VT4) EXC. KD PAINT LESS SUPPLY<7TV> PRIMER 		8-98196-574-2 01 1 1412- ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) EXC. KD PAINT LESS SUPPLY<7TV> PRIMER 		8-98196-575-2 01 1 1409- ● ●
1 07.831 BUMPER ASM; FRT
EURO5 SPECIFICATION<NT5> COLOR KEYED BUMPER(VT4) EXC. TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1),KD PAI NT LESS SUPPLY<7TV> PRIMER 		8-98196-575-2 01 1 1409- ● ●
1 07.831 BUMPER ASM; FRT
EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) EXC. KD PAINT LESS SUPPLY<7TV> PRIMER 		8-98196-575-2 01 1 1409- ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> COLOR KEYED BUMPER(VT4) EXC. KD PAINT LESS SUPPLY<7TV>,HIGH RIDE SUSPENSION(7YC) PRIMER 		8-98196-572-2 01 1 1409-1411 ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) COLOR KEYED BUMPER(VT4) EXC. KD PAINT LESS SUPPLY<7TV>,HIGH RIDE SUSPENSION(7YC) PRIMER 		8-98196-572-2 01 1 1412- ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMB IA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),COLOR KEYED BUMPER(VT4),ISRAEL EQUIPMENT(2G1),KD PAI NT LESS SUPPLY<7TV>,HIGH RIDE SUSPENSION(7YC) 		8-98193-444-2 01 1 1409-1411 ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) KD PAINT LESS SUPPLY<7TV> EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMB IA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) 		8-98193-444-2 01 1 1409-1411 ● ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV>,HIGH RIDE SUSPENSION(7YC) 		8-98193-444-2 01 1 1409-1411 ● ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) KD PAINT LESS SUPPLY<7TV> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-444-2 01 1 1409-1411 ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),MORO CCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),COLOR KEYED BUMPER(VT4),ISRAEL EQUIPMENT(2G1),KD PAINT LESS SUPPLY<7TV>,HI GH RIDE SUSPENSION(7YC) 		8-98193-444-2 01 1 1412- ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) KD PAINT LESS SUPPLY<7TV> EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),MORO CCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) 		8-98193-444-2 01 1 1412- ● ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7) EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV>,HIGH RIDE SUSPENSION(7YC) 		8-98193-444-2 01 1 1412- ● ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7) KD PAINT LESS SUPPLY<7TV> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-444-2 01 1 1412- ● ●
1 07.831 BUMPER ASM; FRT
4JK1-TCY ENG(RDX) TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) KD PAINT LESS SUPPLY<7TV> HIGH RIDE SUSPENSION(7YC) 		8-98193-448-2 01 1 1409-1411 ● ●
1 07.831 BUMPER ASM; FRT
4JK1-TCY ENG(RDX) TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) HIGH RIDE SUSPENSION(7YC) EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV> 		8-98193-448-2 01 1 1409-1411 ● ●
1 07.831 BUMPER ASM; FRT
4JK1-TCY ENG(RDX) TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV> 		8-98193-448-2 01 1 1409-1411 ● ●
1 07.831 BUMPER ASM; FRT
4JK1-TCY ENG(RDX) TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) KD PAINT LESS SUPPLY<7TV> 		8-98193-448-2 01 1 1409-1411 ● ●
1 07.831 BUMPER ASM; FRT
4JK1-TCY ENG(RDX) TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQU IPMENT(2G1) KD PAINT LESS SUPPLY<7TV> HIGH RIDE SUSPENSION(7YC) 		8-98193-448-2 01 1 1412-1508 ● ●
1 07.831 BUMPER ASM; FRT
4JK1-TCY ENG(RDX) TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQU IPMENT(2G1) HIGH RIDE SUSPENSION(7YC) EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV> 		8-98193-448-2 01 1 1412-1508 ● ●
1 07.831 BUMPER ASM; FRT
4JK1-TCY ENG(RDX) TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQU IPMENT(2G1) EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV> 		8-98193-448-2 01 1 1412-1508 ● ●
1 07.831 BUMPER ASM; FRT
4JK1-TCY ENG(RDX) TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQU IPMENT(2G1) KD PAINT LESS SUPPLY<7TV> 		8-98193-448-2 01 1 1412-1508 ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1) EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV> 		8-98193-448-2 01 1 1412-1508 ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1) KD PAINT LESS SUPPLY<7TV> 		8-98193-448-2 01 1 1412-1508 ● ●
1 07.831 BUMPER ASM; FRT
4JK1-TCY ENG(RDX) TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQU IPMENT(2G1) KD PAINT LESS SUPPLY<7TV> HIGH RIDE SUSPENSION(7YC) 		8-98193-448-2 01 1 1509- ● ●
1 07.831 BUMPER ASM; FRT
4JK1-TCY ENG(RDX) TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQU IPMENT(2G1) HIGH RIDE SUSPENSION(7YC) EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV> 		8-98193-448-2 01 1 1509- ● ●
1 07.831 BUMPER ASM; FRT
4JK1-TCY ENG(RDX) TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQU IPMENT(2G1) EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV> 		8-98193-448-2 01 1 1509- ● ●
1 07.831 BUMPER ASM; FRT
4JK1-TCY ENG(RDX) TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQU IPMENT(2G1) KD PAINT LESS SUPPLY<7TV> 		8-98193-448-2 01 1 1509- ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1) EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV> 		8-98193-448-2 01 1 1509- ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1) KD PAINT LESS SUPPLY<7TV> 		8-98193-448-2 01 1 1509- ● ●
1 07.831 BUMPER ASM; FRT
4JK1-TCY ENG(RDX) TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV>,HIGH RIDE SUSPENSION(7YC) 		8-98193-445-2 01 1 1409-1411 ● ●
1 07.831 BUMPER ASM; FRT
4JK1-TCY ENG(RDX) TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) KD PAINT LESS SUPPLY<7TV> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-445-2 01 1 1409-1411 ● ●
1 07.831 BUMPER ASM; FRT
TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV>,HIGH RIDE SUSPENSION(7YC) 		8-98193-445-2 01 1 1412- ● ●
1 07.831 BUMPER ASM; FRT
TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) KD PAINT LESS SUPPLY<7TV> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-445-2 01 1 1412- ● ●
1 07.831 BUMPER ASM; FRT
4JK1-TCY ENG(RDX) EXC. TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1),COLOR KEYED BUMPER(VT4),ISRA EL EQUIPMENT(2G1),KD PAINT LESS SUPPLY<7TV>,HIGH RIDE SUSPENSION(7YC) 		8-98193-446-2 01 1 1409-1411 ● ●
1 07.831 BUMPER ASM; FRT
4JK1-TCY ENG(RDX) KD PAINT LESS SUPPLY<7TV> EXC. TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1),HIGH R IDE SUSPENSION(7YC) 		8-98193-446-2 01 1 1409-1411 ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV>,HIGH RIDE SUSPENSION(7YC) 		8-98193-446-2 01 1 1409-1411 ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) KD PAINT LESS SUPPLY<7TV> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-446-2 01 1 1409-1411 ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7) KD PAINT LESS SUPPLY<7TV> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-446-2 01 1 1412-1508 ● ●
1 07.831 BUMPER ASM; FRT
4JK1-TCY ENG(RDX) KD PAINT LESS SUPPLY<7TV> EXC. TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAE L EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) 		8-98193-446-2 01 1 1412-1508 ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7) EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV>,HIGH RIDE SUSPENSION(7YC) 		8-98193-446-2 01 1 1412-1508 ● ●
1 07.831 BUMPER ASM; FRT
4JK1-TCY ENG(RDX) EXC. TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),COLOR KEYED BUMPER(VT4),ISRAEL EQUIPMENT(2G1),KD PAINT LESS SUPPLY<7TV>,HIGH RIDESUSPENSION(7YC) 		8-98193-446-2 01 1 1412-1508 ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7) KD PAINT LESS SUPPLY<7TV> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-446-2 01 1 1509- ● ●
1 07.831 BUMPER ASM; FRT
4JK1-TCY ENG(RDX) KD PAINT LESS SUPPLY<7TV> EXC. TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAE L EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) 		8-98193-446-2 01 1 1509- ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7) EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV>,HIGH RIDE SUSPENSION(7YC) 		8-98193-446-2 01 1 1509- ● ●
1 07.831 BUMPER ASM; FRT
4JK1-TCY ENG(RDX) EXC. TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),COLOR KEYED BUMPER(VT4),ISRAEL EQUIPMENT(2G1),KD PAINT LESS SUPPLY<7TV>,HIGH RIDESUSPENSION(7YC) 		8-98193-446-2 01 1 1509- ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD PAINT LESS SUPPLY<7TV> HIGH RIDE SUSPENSION(7YC) EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMB IA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98193-447-2 01 1 1409-1508 ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMB IA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),COLOR KEYED BUMPER(VT4),ISRAEL EQUIPMENT(2G1),KD PAI NT LESS SUPPLY<7TV> 		8-98193-447-2 01 1 1409-1508 ● ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD PAINT LESS SUPPLY<7TV> HIGH RIDE SUSPENSION(7YC) 		8-98193-447-2 01 1 1409-1508 ● ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV> 		8-98193-447-2 01 1 1409-1508 ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMB IA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),COLOR KEYED BUMPER(VT4),ISRAEL EQUIPMENT(2G1),KD PAI NT LESS SUPPLY<7TV> 		8-98193-447-2 01 1 1409-1508 ● ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD PAINT LESS SUPPLY<7TV> EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),COLOMB IA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98193-447-2 01 1 1409-1508 ● ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD PAINT LESS SUPPLY<7TV> HIGH RIDE SUSPENSION(7YC) EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),MORO CCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98193-447-2 01 1 1509- ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),MORO CCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),COLOR KEYED BUMPER(VT4),ISRAEL EQUIPMENT(2G1),KD PAINT LESS SUPPLY<7TV> 		8-98193-447-2 01 1 1509- ● ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD PAINT LESS SUPPLY<7TV> HIGH RIDE SUSPENSION(7YC) 		8-98193-447-2 01 1 1509- ● ●
1 07.831 BUMPER ASM; FRT
4JA1-T ENG(LP0) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV> 		8-98193-447-2 01 1 1509- ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),MORO CCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),COLOR KEYED BUMPER(VT4),ISRAEL EQUIPMENT(2G1),KD PAINT LESS SUPPLY<7TV> 		8-98193-447-2 01 1 1509- ● ● ●
1 07.831 BUMPER ASM; FRT
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD PAINT LESS SUPPLY<7TV> EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),MORO CCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98193-447-2 01 1 1509- ● ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD PAINT LESS SUPPLY<7TV> HIGH RIDE SUSPENSION(7YC) 		8-98193-449-2 01 1 1409-1508 ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV> 		8-98193-449-2 01 1 1409-1508 ● ●
1 07.831 BUMPER ASM; FRT
EURO5 SPECIFICATION<NT5> EXC. TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1),COLOR KEYED BUMPER(VT4),ISRA EL EQUIPMENT(2G1),KD PAINT LESS SUPPLY<7TV> 		8-98193-449-2 01 1 1409-1508 ● ●
1 07.831 BUMPER ASM; FRT
EURO5 SPECIFICATION<NT5> KD PAINT LESS SUPPLY<7TV> EXC. TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98193-449-2 01 1 1409-1508 ● ●
1 07.831 BUMPER ASM; FRT
EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV> 		8-98193-449-2 01 1 1409-1508 ● ●
1 07.831 BUMPER ASM; FRT
EGYPT EQUIPMENT(B09),RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD PAINT LESS SUPPLY<7TV> 		8-98193-449-2 01 1 1409-1508 ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD PAINT LESS SUPPLY<7TV> HIGH RIDE SUSPENSION(7YC) 		8-98193-449-2 01 1 1509- ● ●
1 07.831 BUMPER ASM; FRT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV> 		8-98193-449-2 01 1 1509- ● ●
1 07.831 BUMPER ASM; FRT
EURO5 SPECIFICATION<NT5> EXC. TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),COLOR KEYED BUMPER(VT4),ISRAEL EQUIPMENT(2G1),KD PAINT LESS SUPPLY<7TV> 		8-98193-449-2 01 1 1509- ● ●
1 07.831 BUMPER ASM; FRT
EURO5 SPECIFICATION<NT5> KD PAINT LESS SUPPLY<7TV> EXC. TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),CHILE EQUIPMENT(KE1),ISRAE L EQUIPMENT(2G1) 		8-98193-449-2 01 1 1509- ● ●
1 07.831 BUMPER ASM; FRT
EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV> 		8-98193-449-2 01 1 1509- ● ●
1 07.831 BUMPER ASM; FRT
EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> KD PAINT LESS SUPPLY<7TV> 		8-98193-449-2 01 1 1509- ● ●
9 07.840 NUT; REINF,FRT BUMPER
01.062 M6 FLANGE 		0-91180-106-0 06 1 1409- ● ● ● ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
M10X25 FLANGE 		0-28661-025-0 04 1 1409- ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
(A) 		8-98087-391-2 02 1 1409- ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
(B) 		8-98087-392-0 02 1 1409- ● ● ● ● ●
32 07.874 BOLT; BRKT,BUMPER
02.343 M6X16 FLANGE 		0-28650-616-0 06 1 1409- ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-258-4 01 1 1409- ● ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98074-258-4 01 1 1409- ● ● ●
54 07.832 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-259-4 01 1 1409- ● ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98074-259-4 01 1 1409- ● ● ●
54 07.832 RETAINER; FRT BUMPER
(C) 		8-97301-188-0 10 1 1409- ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
08.155 (D) 		8-98050-462-0 06 1 1409- ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-256-3 01 1 1409- ● ●
54 07.832 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-257-3 01 1 1409- ● ●
60 07.831 SPACER; FRT BUMPER 8-98140-340-1 01 1 1409- ● ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-98139-694-0 01 1 1409- ● ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-98139-695-0 01 1 1409- ● ● ● ● ●
158 07.833 EXTENSION; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98101-950-0 01 1 1409- ● ●
158 07.833 EXTENSION; FRT BUMPER
(A) 		8-98101-950-0 01 1 1409- ● ● ●
158 07.833 EXTENSION; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98101-951-0 01 1 1409- ● ●
158 07.833 EXTENSION; FRT BUMPER
(A) 		8-98101-951-0 01 1 1409- ● ● ●
158 07.833 EXTENSION; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-823-1 01 1 1409- ● ●
272 07.874 BOLT; BUMPER TO EXT
HIGH RIDE SUSPENSION(7YC) M6X15 TAPPING W/PL WASHER 		8-98164-799-0 04 1 1409- ● ●
272 07.874 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER 		8-98164-799-0 04 1 1409- ● ● ●
272 07.874 BOLT; BUMPER TO EXT
EXC. HIGH RIDE SUSPENSION(7YC) M6X15 TAPPING W/PL WASHER 		8-98164-799-0 10 1 1409- ● ●
296 07.800 BOLT; LICENSE PLATE,FRT
CONGO EQUIPMENT(CDF) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1409-1411 ● ●
296 07.800 BOLT; LICENSE PLATE,FRT
CONGO EQUIPMENT(CDF) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1412- ● ● ● ●
621 07.831 SUPPORT; FRT BUMPER 8-98087-390-1 01 1 1409- ● ● ● ● ●
634 07.831 NUT; LICENCE PLATE
CONGO EQUIPMENT(CDF) 		8-98054-813-0 02 1 1409-1411 ● ●
634 07.831 NUT; LICENCE PLATE
CONGO EQUIPMENT(CDF) 		8-98054-813-0 02 1 1412- ● ● ● ●
636 07.833 NUT; EXT,FRT BUMPER
HIGH RIDE SUSPENSION(7YC) 		8-98072-786-0 04 1 1409- ● ●
636 07.833 NUT; EXT,FRT BUMPER 8-98072-786-0 04 1 1409- ● ● ●
636 07.833 NUT; EXT,FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98072-786-0 10 1 1409- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
