◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 5 - Frame, Cab Mounting ▶ 5-40 - ENGINE ROOM INSULATOR ▶
5-40 — ENGINE ROOM INSULATOR (#151828) — 9 parça

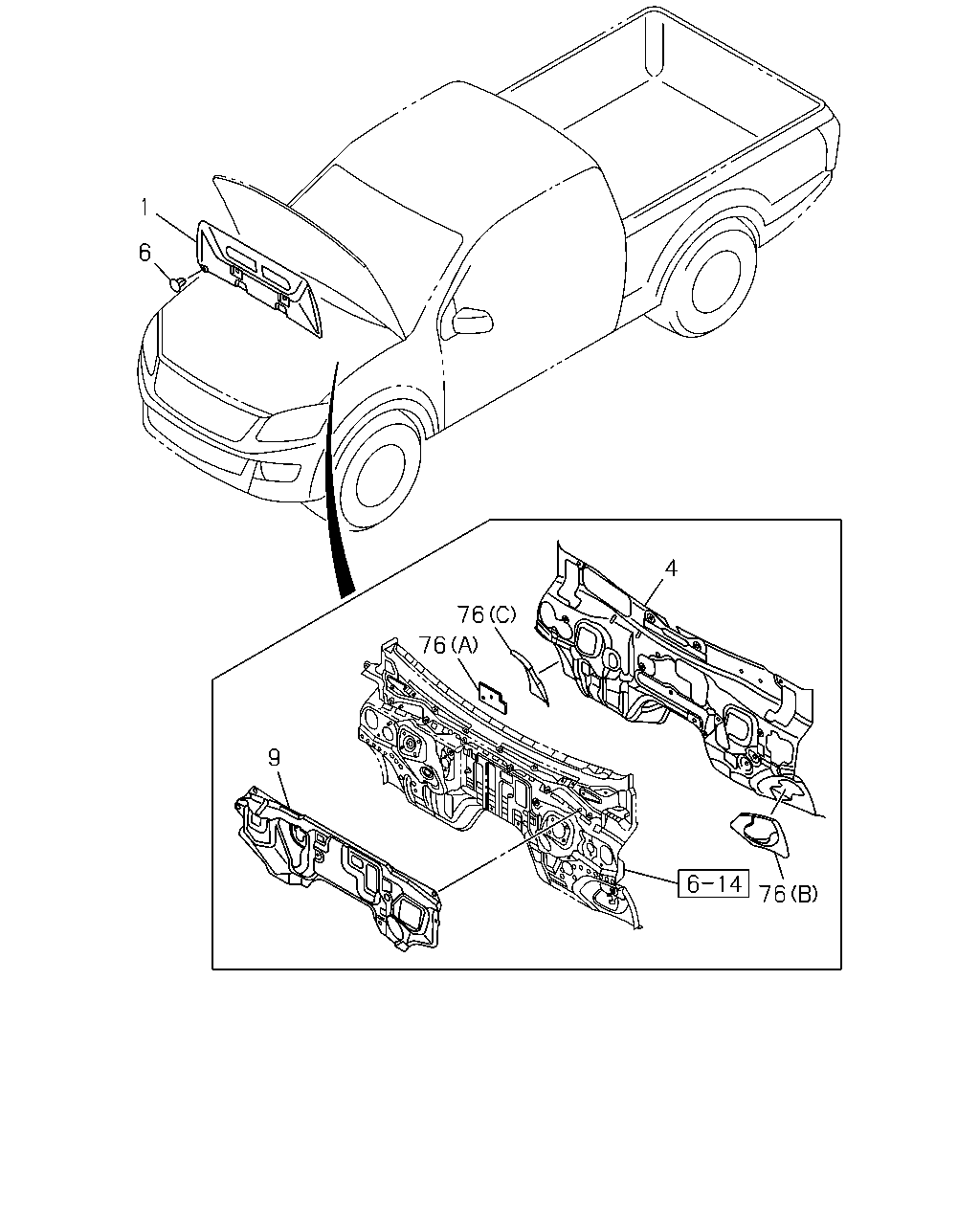

çizim 451197
1 6 76 76 9 4 76
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.021 INSULATION; ENG HOOD 8-98074-100-1 01 1 1409- ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) ,LAOS EQUIPMENT(CF0) 		8-98074-012-0 01 1 1409- ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
PHILIPPINE ISLANDS EQUIPMENT(B15), LAOSEQUIPMENT(CF0) 		8-98276-091-0 01 1 1409-1411 ● ●
4 08.021 INSULATION; DASH PNL,INNER
PHILIPPINE ISLANDS EQUIPMENT(B15), LAOSEQUIPMENT(CF0) 		8-98276-091-0 01 1 1412- ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 		8-97808-623-0 09 1 1409- ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM 8-98074-007-0 01 1 1409- ● ● ● ● ●
76 15.280 DEADENER; DASH ENG ROOM
(A) 		8-98104-577-1 01 1 1409- ● ● ● ● ●
76 15.280 DEADENER; DASH ENG ROOM
(B) 		8-98161-052-0 01 1 1409- ● ● ● ● ●
76 15.280 DEADENER; DASH ENG ROOM
(C) 		8-98161-053-0 01 1 1409- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
