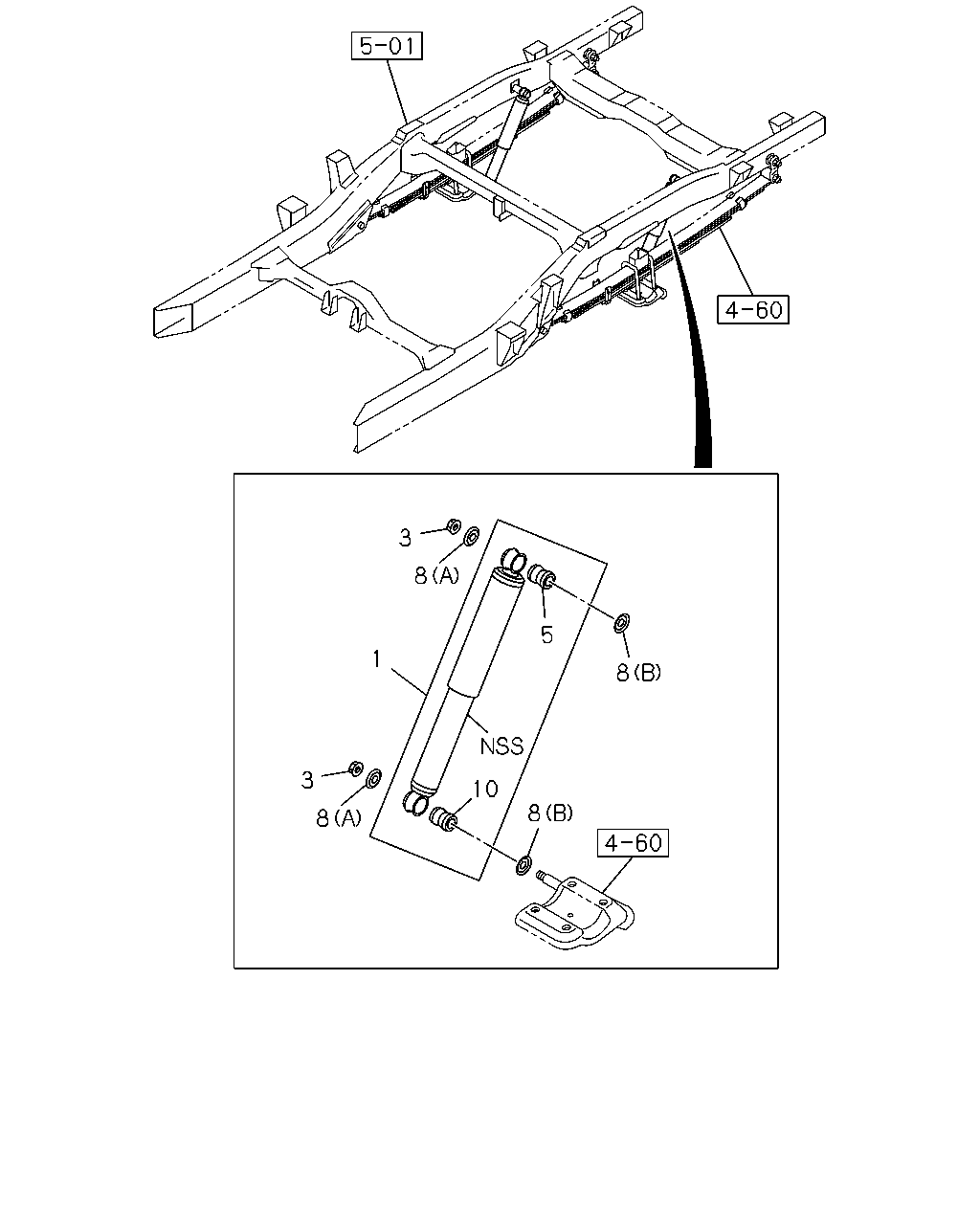

4-61 — SHOCK ABSORBER; REAR SUSPENSION (#151820) — 14 parça

8 8 5 8 3 1 3 8 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	07.395 ABSORBER ASM; SHOCK,RR REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC)	8-97947-017-2	02	1	1409-	●	●
1	07.395 ABSORBER ASM; SHOCK,RR REAR SPRING HEAVY DUTY(G50)	8-97947-017-2	02	1	1409-			●	●	●
1	07.395 ABSORBER ASM; SHOCK,RR REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC)	8-98211-979-0	02	1	1409-	●	●
1	07.395 ABSORBER ASM; SHOCK,RR HIGH RIDE SUSPENSION(7YC) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, REAR SPRING HEAVY DUTY(G50)	8-97947-016-2	02	1	1409-	●	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, REAR SPRING HEAVY DUTY(G50)	8-97947-016-2	02	1	1409-			●	●	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC)	8-97947-013-2	02	1	1409-	●	●
1	07.395 ABSORBER ASM; SHOCK,RR SOFT RIDE SUSPENSION SYSTEM<FE1> HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50)	8-97947-018-2	02	1	1409-		●
1	07.395 ABSORBER ASM; SHOCK,RR SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. REAR SPRING HEAVY DUTY(G50)	8-97947-018-2	02	1	1409-					●
1	07.395 ABSORBER ASM; SHOCK,RR SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC)	8-98214-030-0	02	1	1409-		●
3	07.347 NUT; S/ABS M12 FLANGE	8-97256-670-0	04	1	1409-	●	●	●	●	●
5	07.388 BUSHING; RUBBER,S/ABS,UPR	8-97302-810-0	02	1	1409-	●	●	●	●	●
8	07.347 WASHER; S/ABS (A) ID=12.5	8-98005-969-0	04	1	1409-	●	●	●	●	●
8	07.347 WASHER; S/ABS (B) ID=16.5	8-98005-970-0	04	1	1409-	●	●	●	●	●
10	07.388 BUSHING; RUBBER,S/ABS	8-97302-810-0	02	1	1409-	●	●	●	●	●
