◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#151819) — 94 parça

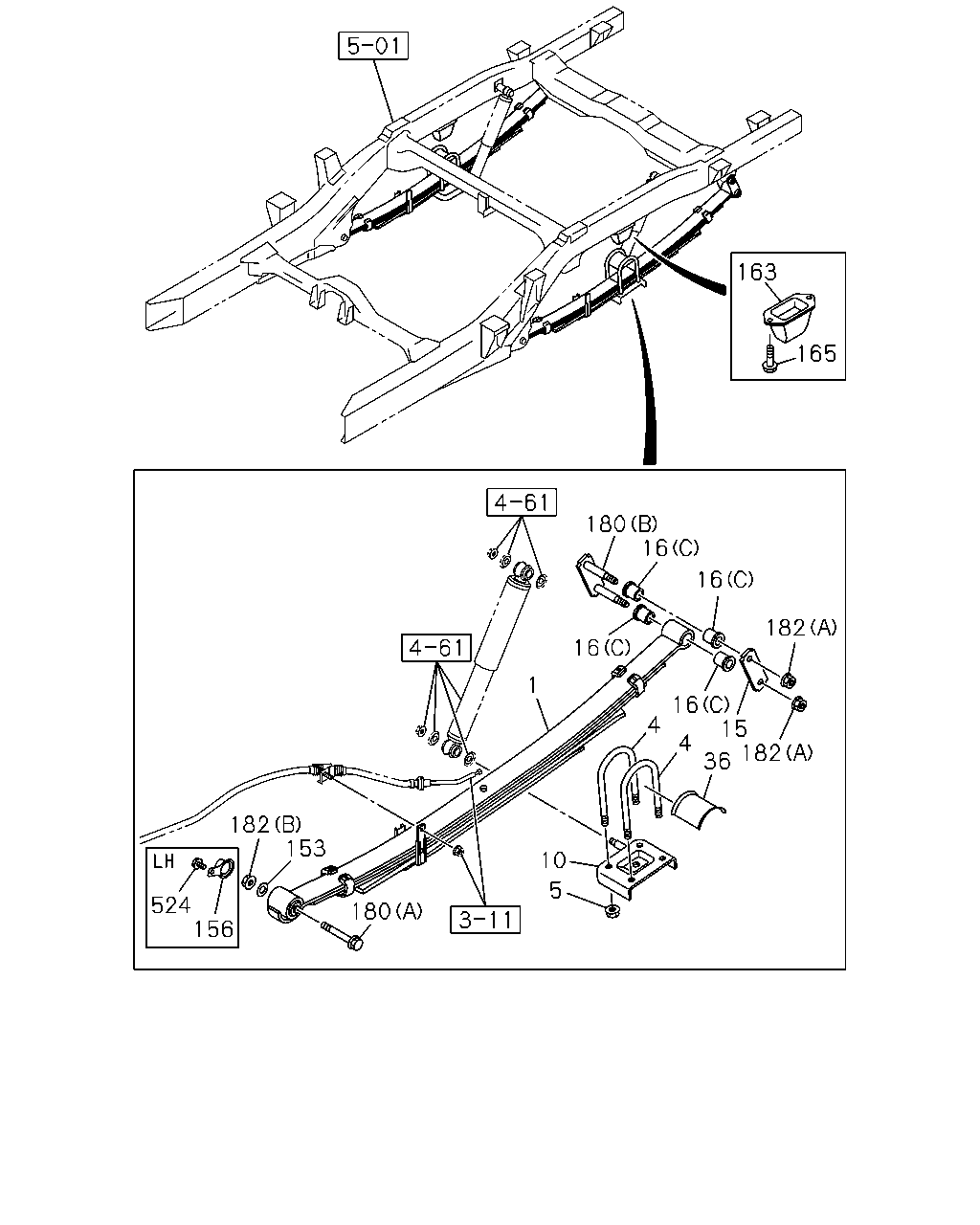

çizim 450664
163 165 180 16 16 182 182 36 15 16 4 4 16 1 10 5 180 156 524 182 153
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 5-LEAF 		8-98282-590-1 02 1 1409-1508 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) REAR SPRING HEAVY DUTY(G50) 5-LEAF 		8-98282-590-1 02 1 1409-1508 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 5-LEAF 		8-98282-590-1 02 1 1509- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) REAR SPRING HEAVY DUTY(G50) 5-LEAF 		8-98282-590-1 02 1 1509- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 6-LEAF 		8-98201-544-2 02 1 1409- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION(7YC) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, REAR SPRING HEAVY DUTY(G50) 5-LEAF 		8-98282-594-1 02 1 1409-1508 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, REAR SPRING HEAVY DUTY(G50) 5-LEAF 		8-98282-594-1 02 1 1409-1508 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION(7YC) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, REAR SPRING HEAVY DUTY(G50) 5-LEAF 		8-98282-594-1 02 1 1509- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, REAR SPRING HEAVY DUTY(G50) 5-LEAF 		8-98282-594-1 02 1 1509- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC) 5-LEAF 		8-98201-543-3 02 1 1409- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 4-LEAF 		8-98282-595-1 02 1 1409- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. REAR SPRING HEAVY DUTY(G50) 4-LEAF 		8-98282-595-1 02 1 1409- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC) 5-LEAF 		8-98201-545-2 02 1 1409- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1) REAR SPRING HEAVY DUTY(G50) 5-LEAF 		8-98282-589-1 02 1 1409- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, REAR SPRING HEAVY DUTY(G50) 5-LEAF 		8-98282-593-1 02 1 1409- ● ●
4 07.516 U-BOLT; RR SPR
REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) L=187 		8-97248-621-1 04 1 1409- ● ●
4 07.516 U-BOLT; RR SPR
HIGH RIDE SUSPENSION(7YC) L=170 		8-97946-550-0 04 1 1409- ● ●
4 07.516 U-BOLT; RR SPR
L=170 		8-97946-550-0 04 1 1409- ● ● ●
4 07.516 U-BOLT; RR SPR
EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC) L=175 		8-97947-045-0 04 1 1409- ● ●
5 07.529 NUT; U-BOLT,RR SPR
M14 FLANGE 		8-97245-635-0 08 1 1409- ● ● ● ● ●
10 07.529 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION(7YC) 		8-98165-850-1 01 1 1409- ● ●
10 07.529 CLAMP; LWR,RR SPR 8-98165-850-1 01 1 1409- ● ● ●
10 07.529 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION(7YC) 		8-98165-851-1 01 1 1409- ● ●
10 07.529 CLAMP; LWR,RR SPR 8-98165-851-1 01 1 1409- ● ● ●
10 07.529 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98160-070-0 01 1 1409- ● ●
10 07.529 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98160-083-0 01 1 1409- ● ●
15 07.523 SHACKLE; RR SPR
HIGH RIDE SUSPENSION(7YC) 		8-97946-551-1 02 1 1409- ● ●
15 07.523 SHACKLE; RR SPR 8-97946-551-1 02 1 1409- ● ● ●
15 07.523 SHACKLE; RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-815-0 02 1 1409- ● ●
16 07.524 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION(7YC) (A) 		8-97357-492-0 04 1 1409- ● ●
16 07.524 BUSHING; SHACKLE,RR SPR
(A) 		8-97357-492-0 04 1 1409- ● ● ●
16 07.524 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-545-0 04 1 1409- ● ●
16 07.524 BUSHING; SHACKLE,RR SPR
(B) 		8-97946-545-0 04 1 1409- ● ● ●
16 07.524 BUSHING; SHACKLE,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97357-492-0 08 1 1409- ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-878-0 02 1 1409- ● ●
153 07.529 WASHER; PL,SPRING PIN
ID=14.5 OD=30 		8-98005-921-0 02 1 1409- ● ● ● ● ●
156 07.526 PROTECTOR; LEAF SPRING,RR SUSP 8-97947-363-0 01 1 1409- ● ● ● ● ●
163 07.529 RUBBER; HELPER,RR SPR
HIGH RIDE SUSPENSION(7YC) 		8-97946-549-3 02 1 1409- ● ●
163 07.529 RUBBER; HELPER,RR SPR 8-97946-549-3 02 1 1409- ● ● ●
163 07.529 RUBBER; HELPER,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97946-803-1 02 1 1409- ● ●
165 07.529 BOLT; HELPER RUBBER
EXC. HIGH RIDE SUSPENSION(7YC) 07.068 M10X30 FLANGE 		0-28661-030-0 04 1 1409- ● ●
180 07.529 PIN; RR SPR
HIGH RIDE SUSPENSION(7YC) (C) 		8-97946-547-1 02 1 1409- ● ●
180 07.529 PIN; RR SPR
(C) 		8-97946-547-1 02 1 1409- ● ● ●
180 07.529 PIN; RR SPR
(A) 		8-97947-078-0 02 1 1409- ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98005-814-0 02 1 1409- ● ●
182 07.529 NUT; PIN,RR SPR
(A) M14 FLANGE 		0-91180-114-0 04 1 1409- ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
(B) M14 FLANGE 		8-97245-651-0 02 1 1409- ● ● ● ● ●
524 07.516 BOLT; RR SPR
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1409- ● ● ● ● ●

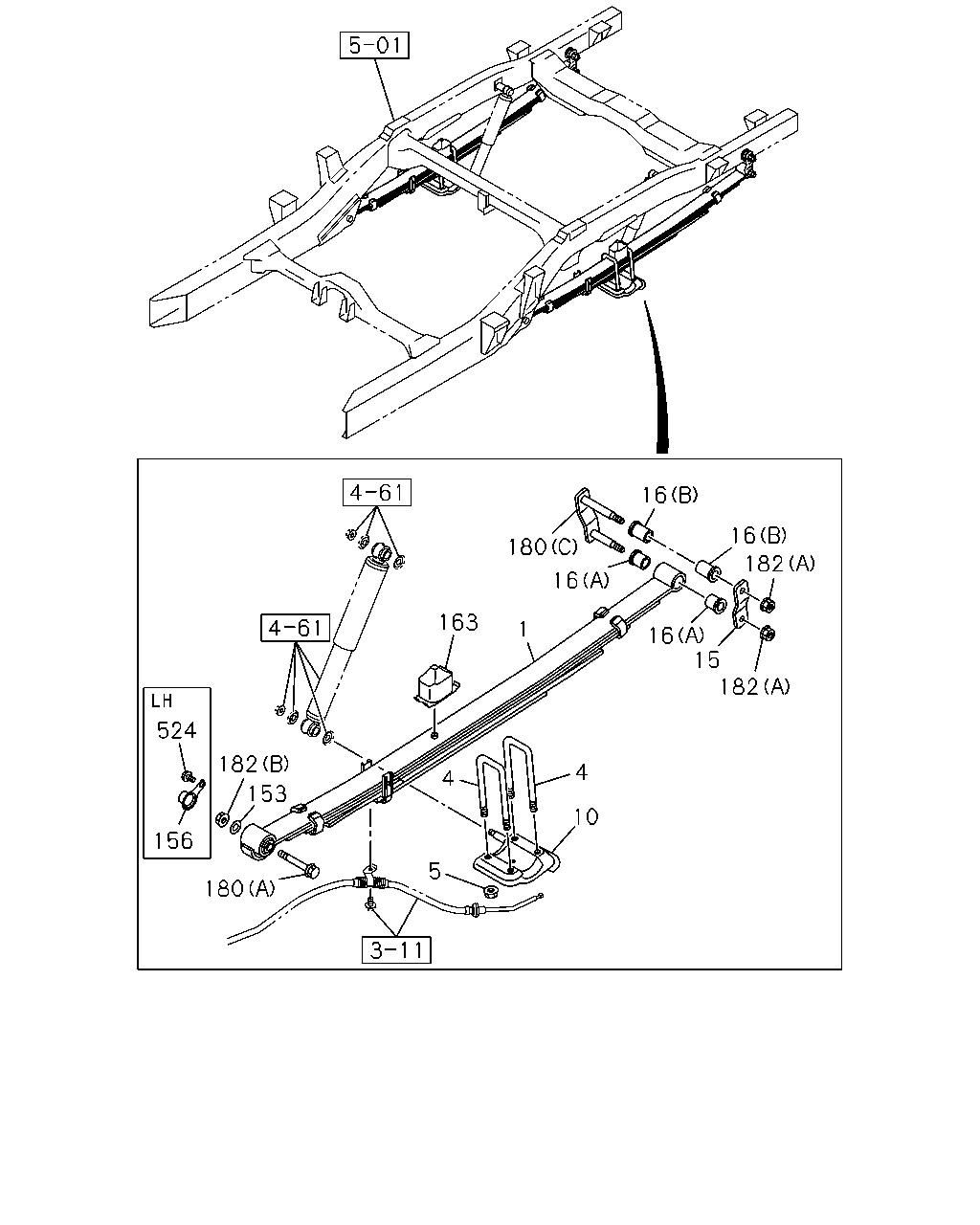

çizim 450732
10 4 1 4 5 153 182 524 156 180 163 182 15 16 16 180 182 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 5-LEAF 		8-98282-590-1 02 1 1409-1508 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) REAR SPRING HEAVY DUTY(G50) 5-LEAF 		8-98282-590-1 02 1 1409-1508 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 5-LEAF 		8-98282-590-1 02 1 1509- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) REAR SPRING HEAVY DUTY(G50) 5-LEAF 		8-98282-590-1 02 1 1509- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 6-LEAF 		8-98201-544-2 02 1 1409- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION(7YC) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, REAR SPRING HEAVY DUTY(G50) 5-LEAF 		8-98282-594-1 02 1 1409-1508 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, REAR SPRING HEAVY DUTY(G50) 5-LEAF 		8-98282-594-1 02 1 1409-1508 ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION(7YC) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, REAR SPRING HEAVY DUTY(G50) 5-LEAF 		8-98282-594-1 02 1 1509- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, REAR SPRING HEAVY DUTY(G50) 5-LEAF 		8-98282-594-1 02 1 1509- ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC) 5-LEAF 		8-98201-543-3 02 1 1409- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 4-LEAF 		8-98282-595-1 02 1 1409- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. REAR SPRING HEAVY DUTY(G50) 4-LEAF 		8-98282-595-1 02 1 1409- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC) 5-LEAF 		8-98201-545-2 02 1 1409- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1) REAR SPRING HEAVY DUTY(G50) 5-LEAF 		8-98282-589-1 02 1 1409- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, REAR SPRING HEAVY DUTY(G50) 5-LEAF 		8-98282-593-1 02 1 1409- ● ●
4 07.516 U-BOLT; RR SPR
REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) L=187 		8-97248-621-1 04 1 1409- ● ●
4 07.516 U-BOLT; RR SPR
HIGH RIDE SUSPENSION(7YC) L=170 		8-97946-550-0 04 1 1409- ● ●
4 07.516 U-BOLT; RR SPR
L=170 		8-97946-550-0 04 1 1409- ● ● ●
4 07.516 U-BOLT; RR SPR
EXC. REAR SPRING HEAVY DUTY(G50),HIGH RIDE SUSPENSION(7YC) L=175 		8-97947-045-0 04 1 1409- ● ●
5 07.529 NUT; U-BOLT,RR SPR
M14 FLANGE 		8-97245-635-0 08 1 1409- ● ● ● ● ●
10 07.529 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION(7YC) 		8-98165-850-1 01 1 1409- ● ●
10 07.529 CLAMP; LWR,RR SPR 8-98165-850-1 01 1 1409- ● ● ●
10 07.529 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION(7YC) 		8-98165-851-1 01 1 1409- ● ●
10 07.529 CLAMP; LWR,RR SPR 8-98165-851-1 01 1 1409- ● ● ●
10 07.529 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98160-070-0 01 1 1409- ● ●
10 07.529 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98160-083-0 01 1 1409- ● ●
15 07.523 SHACKLE; RR SPR
HIGH RIDE SUSPENSION(7YC) 		8-97946-551-1 02 1 1409- ● ●
15 07.523 SHACKLE; RR SPR 8-97946-551-1 02 1 1409- ● ● ●
15 07.523 SHACKLE; RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-815-0 02 1 1409- ● ●
16 07.524 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION(7YC) (A) 		8-97357-492-0 04 1 1409- ● ●
16 07.524 BUSHING; SHACKLE,RR SPR
(A) 		8-97357-492-0 04 1 1409- ● ● ●
16 07.524 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-545-0 04 1 1409- ● ●
16 07.524 BUSHING; SHACKLE,RR SPR
(B) 		8-97946-545-0 04 1 1409- ● ● ●
16 07.524 BUSHING; SHACKLE,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97357-492-0 08 1 1409- ● ●
153 07.529 WASHER; PL,SPRING PIN
ID=14.5 OD=30 		8-98005-921-0 02 1 1409- ● ● ● ● ●
156 07.526 PROTECTOR; LEAF SPRING,RR SUSP 8-97947-363-0 01 1 1409- ● ● ● ● ●
163 07.529 RUBBER; HELPER,RR SPR
HIGH RIDE SUSPENSION(7YC) 		8-97946-549-3 02 1 1409- ● ●
163 07.529 RUBBER; HELPER,RR SPR 8-97946-549-3 02 1 1409- ● ● ●
163 07.529 RUBBER; HELPER,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97946-803-1 02 1 1409- ● ●
180 07.529 PIN; RR SPR
HIGH RIDE SUSPENSION(7YC) (C) 		8-97946-547-1 02 1 1409- ● ●
180 07.529 PIN; RR SPR
(C) 		8-97946-547-1 02 1 1409- ● ● ●
180 07.529 PIN; RR SPR
(A) 		8-97947-078-0 02 1 1409- ● ● ● ● ●
180 07.529 PIN; RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98005-814-0 02 1 1409- ● ●
182 07.529 NUT; PIN,RR SPR
(A) M14 FLANGE 		0-91180-114-0 04 1 1409- ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
(B) M14 FLANGE 		8-97245-651-0 02 1 1409- ● ● ● ● ●
524 07.516 BOLT; RR SPR
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1409- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
