4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#151814) — 168 parça

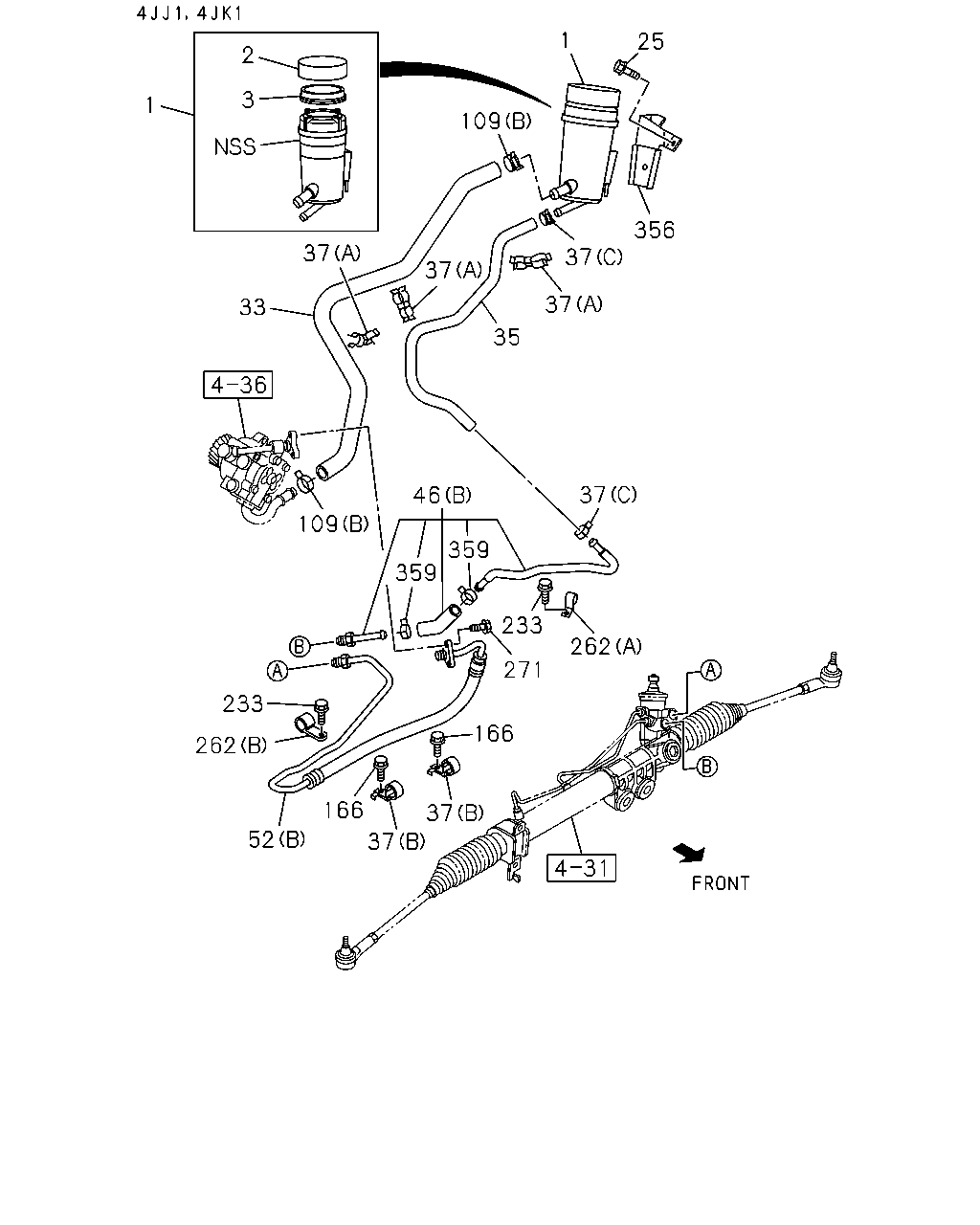

1 2 3 109 1 25 356 37 37 35 37 37 33 109 46 37 262 233 359 359 233 262 166 52 37 37 166 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	1409-	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	1409-	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1409-	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1409-	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1-T ENG(LP0)	8-97946-137-0	01	1	1409-	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX)	8-97946-138-2	01	1	1409-1411	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX)	8-97946-138-2	01	1	1412-1508	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX)	8-97946-138-2	01	1	1509-	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1409-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1409-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1409-1411	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1412-1508	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1509-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) (B) ID=21.5 L=21	8-98211-907-0	02	1	1409-1411	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) (B) ID=21.5 L=21	8-98211-907-0	02	1	1412-1508	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (B) ID=21.5 L=21	8-98211-907-0	02	1	1509-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1409-1411	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1412-1508	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1509-	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (C) L=1407	8-98179-942-0	01	1	1409-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) (A)	8-98231-298-1	01	1	1409-1411	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98231-298-1	01	1	1409-1411			●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) (A)	8-98231-298-1	01	1	1412-1508	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98231-298-1	01	1	1412-1508			●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) (A)	8-98231-298-1	01	1	1509-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98231-298-1	01	1	1509-			●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98187-282-1	01	1	1409-1411	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98187-282-1	01	1	1412-1508	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98187-282-1	01	1	1509-	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98203-618-0	01	1	1409-	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) (A)	8-97946-146-0	01	1	1409-1411	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV (A)	8-97946-146-0	01	1	1409-1411			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) (A)	8-97946-146-0	01	1	1412-1508	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV (A)	8-97946-146-0	01	1	1412-1508			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) (A)	8-97946-146-0	01	1	1509-	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV (A)	8-97946-146-0	01	1	1509-			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-144-0	01	1	1409-1411	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-144-0	01	1	1412-1508	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-144-0	01	1	1509-	●	●
109	06.672 CLIP; RUBBER HOSE 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98203-619-0	01	1	1409-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=20.8	8-97944-127-0	02	1	1409-	●	●	●	●	●
166	06.672 BOLT; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1409-1411	●	●	●	●	●
166	06.672 BOLT; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1412-1508	●	●	●	●	●
166	06.672 BOLT; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1509-	●	●	●	●	●
233	06.672 BOLT; PIPE CLIP,P/S 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1409-	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (C) ID=11X2 L=16	8-98177-573-0	01	1	1409-	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1409-1411	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1412-1508	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1509-	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1409-1411	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1412-1508	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1509-	●	●	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1409-1411	●	●	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1412-1508	●	●	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1509-	●	●	●	●	●
356	06.672 BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1409-	●	●	●	●	●
359	06.672 CLAMP; HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) 01.762 ID=16	8-98030-682-0	02	1	1409-1411	●	●
359	06.672 CLAMP; HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) 01.762 ID=16	8-98030-682-0	02	1	1412-1508	●	●
359	06.672 CLAMP; HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) 01.762 ID=16	8-98030-682-0	02	1	1509-	●	●

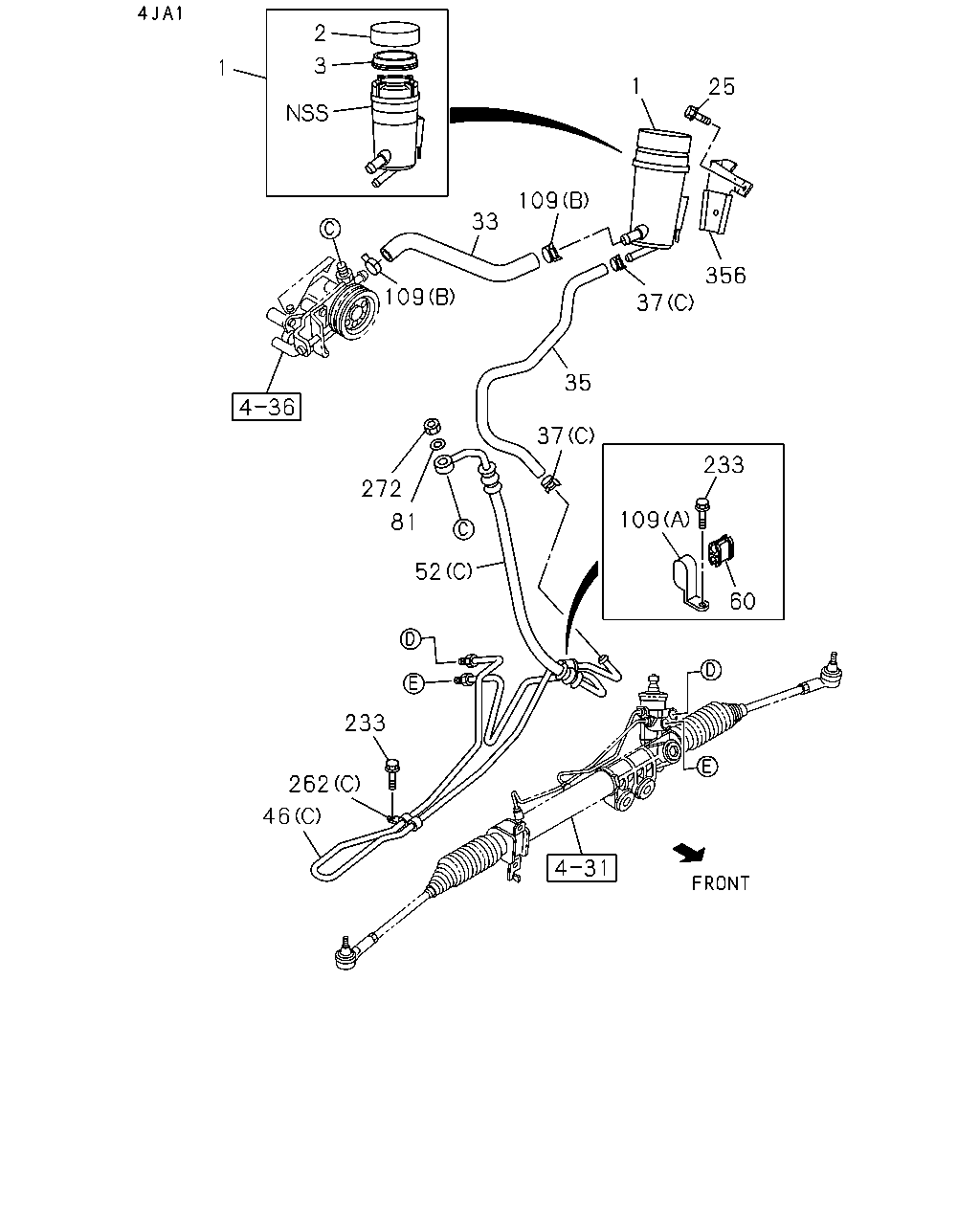

1 2 3 1 25 356 37 109 33 109 35 37 233 109 60 272 81 52 233 262 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	1409-	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	1409-	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1409-	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1409-	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1-T ENG(LP0)	8-97946-137-0	01	1	1409-	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX)	8-97946-138-2	01	1	1409-1411	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX)	8-97946-138-2	01	1	1412-1508	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX)	8-97946-138-2	01	1	1509-	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1409-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1409-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1409-1411	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1412-1508	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1509-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) (B) ID=21.5 L=21	8-98211-907-0	02	1	1409-1411	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) (B) ID=21.5 L=21	8-98211-907-0	02	1	1412-1508	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (B) ID=21.5 L=21	8-98211-907-0	02	1	1509-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1409-1411	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1412-1508	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1509-	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (C) L=1407	8-98179-942-0	01	1	1409-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) (A)	8-98231-298-1	01	1	1409-1411	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98231-298-1	01	1	1409-1411			●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) (A)	8-98231-298-1	01	1	1412-1508	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98231-298-1	01	1	1412-1508			●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) (A)	8-98231-298-1	01	1	1509-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98231-298-1	01	1	1509-			●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98187-282-1	01	1	1409-1411	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98187-282-1	01	1	1412-1508	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98187-282-1	01	1	1509-	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98203-618-0	01	1	1409-	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) (A)	8-97946-146-0	01	1	1409-1411	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV (A)	8-97946-146-0	01	1	1409-1411			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) (A)	8-97946-146-0	01	1	1412-1508	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV (A)	8-97946-146-0	01	1	1412-1508			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) (A)	8-97946-146-0	01	1	1509-	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV (A)	8-97946-146-0	01	1	1509-			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-144-0	01	1	1409-1411	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-144-0	01	1	1412-1508	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-144-0	01	1	1509-	●	●
60	06.672 CLAMP; PIPE,RETURN 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) ID=10X2 H=22	8-94252-455-2	01	1	1409-	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) 07.347 ID=12.2	0-91510-812-0	01	1	1409-	●	●
109	06.672 CLIP; RUBBER HOSE 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98203-619-0	01	1	1409-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=20.8	8-97944-127-0	02	1	1409-	●	●	●	●	●
233	06.672 BOLT; PIPE CLIP,P/S 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1409-	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (C) ID=11X2 L=16	8-98177-573-0	01	1	1409-	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1409-1411	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1412-1508	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1509-	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1409-1411	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1412-1508	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1509-	●	●	●	●	●
272	06.672 NUT; P/S OIL PIPE FIX 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) 04.439 M12	0-91111-512-0	01	1	1409-	●	●
356	06.672 BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1409-	●	●	●	●	●

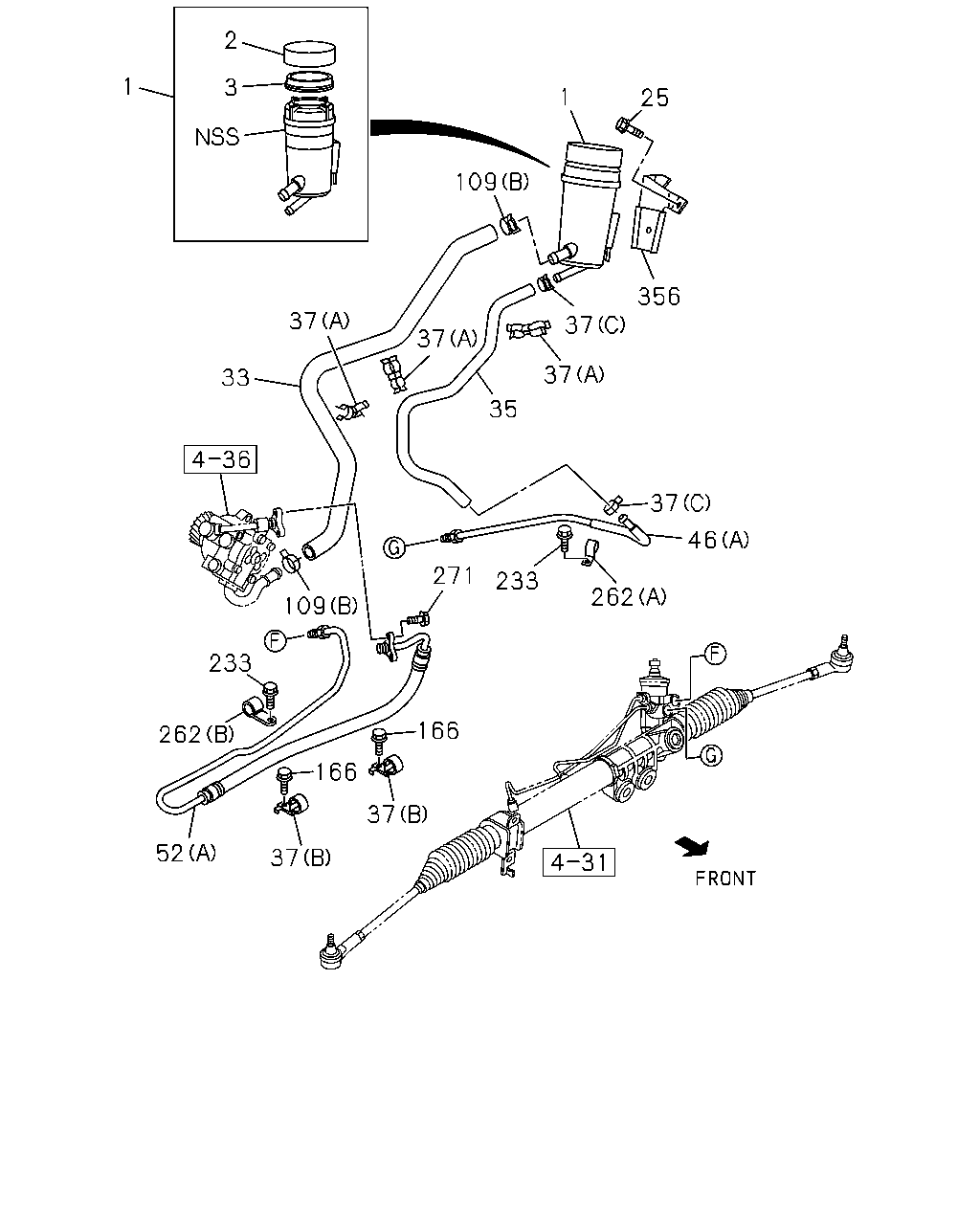

1 25 356 37 37 35 37 109 2 3 1 33 37 271 233 46 37 262 109 166 166 37 262 233 52 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	1409-	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	1409-	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1409-	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1409-	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1-T ENG(LP0)	8-97946-137-0	01	1	1409-	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX)	8-97946-138-2	01	1	1409-1411	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX)	8-97946-138-2	01	1	1412-1508	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX)	8-97946-138-2	01	1	1509-	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1409-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1409-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1409-1411	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1412-1508	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1509-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) (B) ID=21.5 L=21	8-98211-907-0	02	1	1409-1411	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) (B) ID=21.5 L=21	8-98211-907-0	02	1	1412-1508	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (B) ID=21.5 L=21	8-98211-907-0	02	1	1509-	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1409-1411	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1412-1508	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1509-	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (C) L=1407	8-98179-942-0	01	1	1409-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) (A)	8-98231-298-1	01	1	1409-1411	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98231-298-1	01	1	1409-1411			●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) (A)	8-98231-298-1	01	1	1412-1508	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98231-298-1	01	1	1412-1508			●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) (A)	8-98231-298-1	01	1	1509-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-98231-298-1	01	1	1509-			●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98187-282-1	01	1	1409-1411	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98187-282-1	01	1	1412-1508	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98187-282-1	01	1	1509-	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98203-618-0	01	1	1409-	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) (A)	8-97946-146-0	01	1	1409-1411	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV (A)	8-97946-146-0	01	1	1409-1411			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) (A)	8-97946-146-0	01	1	1412-1508	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV (A)	8-97946-146-0	01	1	1412-1508			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) (A)	8-97946-146-0	01	1	1509-	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV (A)	8-97946-146-0	01	1	1509-			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-144-0	01	1	1409-1411	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-144-0	01	1	1412-1508	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-144-0	01	1	1509-	●	●
109	06.672 CLIP; RUBBER HOSE 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98203-619-0	01	1	1409-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=20.8	8-97944-127-0	02	1	1409-	●	●	●	●	●
166	06.672 BOLT; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1409-1411	●	●	●	●	●
166	06.672 BOLT; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1412-1508	●	●	●	●	●
166	06.672 BOLT; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1509-	●	●	●	●	●
233	06.672 BOLT; PIPE CLIP,P/S 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1409-	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (C) ID=11X2 L=16	8-98177-573-0	01	1	1409-	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1409-1411	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1412-1508	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1509-	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1409-1411	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1412-1508	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1509-	●	●	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1409-1411	●	●	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1412-1508	●	●	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1509-	●	●	●	●	●
356	06.672 BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1409-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
