4-31 — STEERING COLUMN AND SHAFT (#151812) — 61 parça

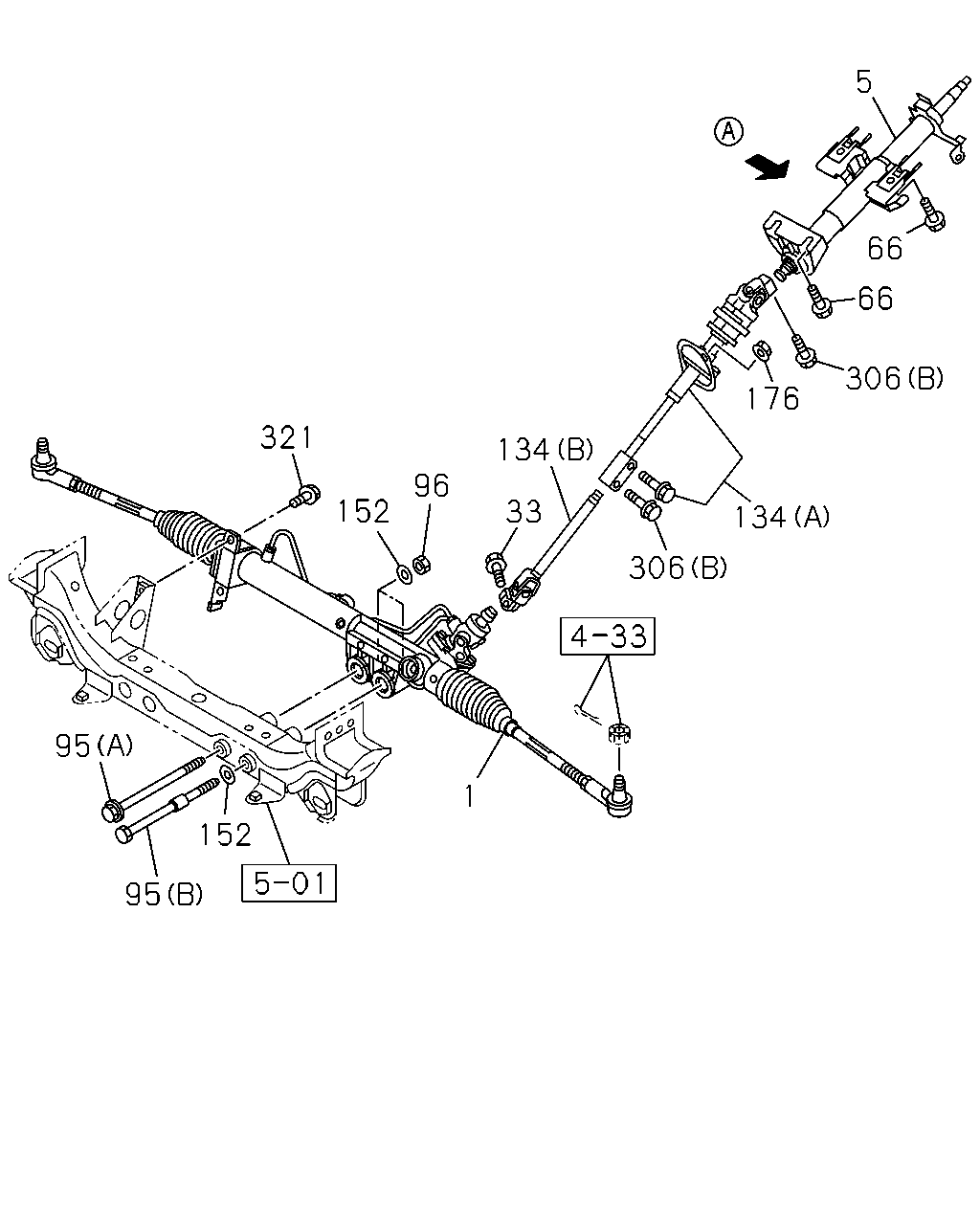

çizim 450621
321 152 33 96 134 5 66 66 306 176 134 306 152 95 95 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. HIGH RIDE SUSPENSION(7YC) 		8-97946-132-0 01 1 1409- ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97946-132-0 01 1 1409- ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. HIGH RIDE SUSPENSION(7YC) 		8-97946-130-1 01 1 1409- ● ●
5 06.518 COLUMN; STRG
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) TILT STEERING<N33> 		8-98273-325-0 01 1 1409-1412 ● ● ● ●
5 06.518 COLUMN; STRG
TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) TILT STEERING<N33> 		8-98273-325-0 01 1 1501- ● ● ● ●
5 06.518 COLUMN; STRG
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) EXC. TILT STEERING<N33> 		8-98273-326-0 01 1 1409-1412 ● ● ● ●
5 06.518 COLUMN; STRG
TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) EXC. TILT STEERING<N33> 		8-98273-326-0 01 1 1501- ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) 		8-98273-328-0 01 1 1409-1412 ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) 		8-98273-328-0 01 1 1501- ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),TILT STEERING<N33>,ISRAEL EQUIPMENT(2G1) 		8-98273-327-0 01 1 1409-1412 ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TURKEY EQUIPMENT(B11),TILT STEERING<N33>,ISRAEL EQUIPMENT(2G1) 		8-98273-327-0 01 1 1501- ● ● ● ● ●
5 06.518 COLUMN; STRG
PASSIVE ENTRY AND START SYSTEM<AP3> TILT STEERING<N33> EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),PHILIP PINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),COSTA RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),MOROCCO EQUIPMENT(CGA),ARGENTINA EQUIPMENT(E06),ECUAD OR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98245-257-1 01 1 1409-1412 ● ● ●
5 06.518 COLUMN; STRG
PASSIVE ENTRY AND START SYSTEM<AP3> TILT STEERING<N33> EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),PHILIPPINE ISLANDS EQUIPMENT (B15),COLOMBIA EQUIPMENT(CB7),COSTA RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF) ,MOROCCO EQUIPMENT(CGA),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),ISRA EL EQUIPMENT(2G1) 		8-98245-257-1 01 1 1501- ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
M8X35 FLANGE 		8-97249-320-0 01 1 1409- ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1409- ● ● ● ● ●
95 06.509 BOLT; STRG UNIT
HIGH RIDE SUSPENSION(7YC) (B) M16X186.5 		8-97947-503-0 01 1 1409- ● ●
95 06.509 BOLT; STRG UNIT
(B) M16X186.5 		8-97947-503-0 01 1 1409- ● ● ●
95 06.509 BOLT; STRG UNIT
HIGH RIDE SUSPENSION(7YC) (A) M16X186.5 W/PL WASHER 		8-98162-884-1 01 1 1409- ● ●
95 06.509 BOLT; STRG UNIT
(A) M16X186.5 W/PL WASHER 		8-98162-884-1 01 1 1409- ● ● ●
95 06.509 BOLT; STRG UNIT
EXC. HIGH RIDE SUSPENSION(7YC) (A) M16X214 W/PL WASHER 		8-97947-128-2 01 1 1409- ● ●
95 06.509 BOLT; STRG UNIT
EXC. HIGH RIDE SUSPENSION(7YC) (B) M16X214 		8-97947-502-0 01 1 1409- ● ●
96 06.509 NUT; STRG UNIT
M16 		0-91110-516-0 02 1 1409- ● ● ● ● ●
134 06.524 SHAFT; STRG,2ND
HIGH RIDE SUSPENSION(7YC) (A) 		8-97946-128-1 01 1 1409- ● ●
134 06.524 SHAFT; STRG,2ND
(A) 		8-97946-128-1 01 1 1409- ● ● ●
134 06.524 SHAFT; STRG,2ND
HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-136-0 01 1 1409- ● ●
134 06.524 SHAFT; STRG,2ND
(B) 		8-97946-136-0 01 1 1409- ● ● ●
134 06.524 SHAFT; STRG,2ND
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97946-126-1 01 1 1409- ● ●
134 06.524 SHAFT; STRG,2ND
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-135-0 01 1 1409- ● ●
152 00.796 WASHER; LK,STRG UNIT
ID=17 		8-97947-501-0 03 1 1409-1504 ● ● ● ● ●
152 00.796 WASHER; LK,STRG UNIT
ID=17 		8-98296-670-0 03 1 1505- ● ● ● ● ●
176 06.509 NUT; STRG
01.062 M6 FLANGE 		0-91180-106-0 02 1 1409- ● ● ● ● ●
306 06.525 BOLT; STRG SHAFT
(B) M8X35 FLANGE 		8-97249-320-0 02 1 1409- ● ● ● ● ●
306 06.525 BOLT; STRG SHAFT
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 06.500 (A) M8X18.5 TWISTED OFF 		8-97945-749-0 02 1 1409- ● ● ● ● ●
306 06.525 BOLT; STRG SHAFT
PASSIVE ENTRY AND START SYSTEM<AP3> KEY REMINDER BUZZER<T48> 06.500 (A) M8X18.5 TWISTED OFF 		8-97945-749-0 01 1 1409-1505 ● ● ●
306 06.525 BOLT; STRG SHAFT
PASSIVE ENTRY AND START SYSTEM<AP3> 06.500 (A) M8X18.5 TWISTED OFF 		8-97945-749-0 01 1 1506- ● ● ●
321 06.514 BOLT; BRKT,STRG
06.509 M12X30 FLANGE 		0-28661-230-0 02 1 1409- ● ● ● ● ●

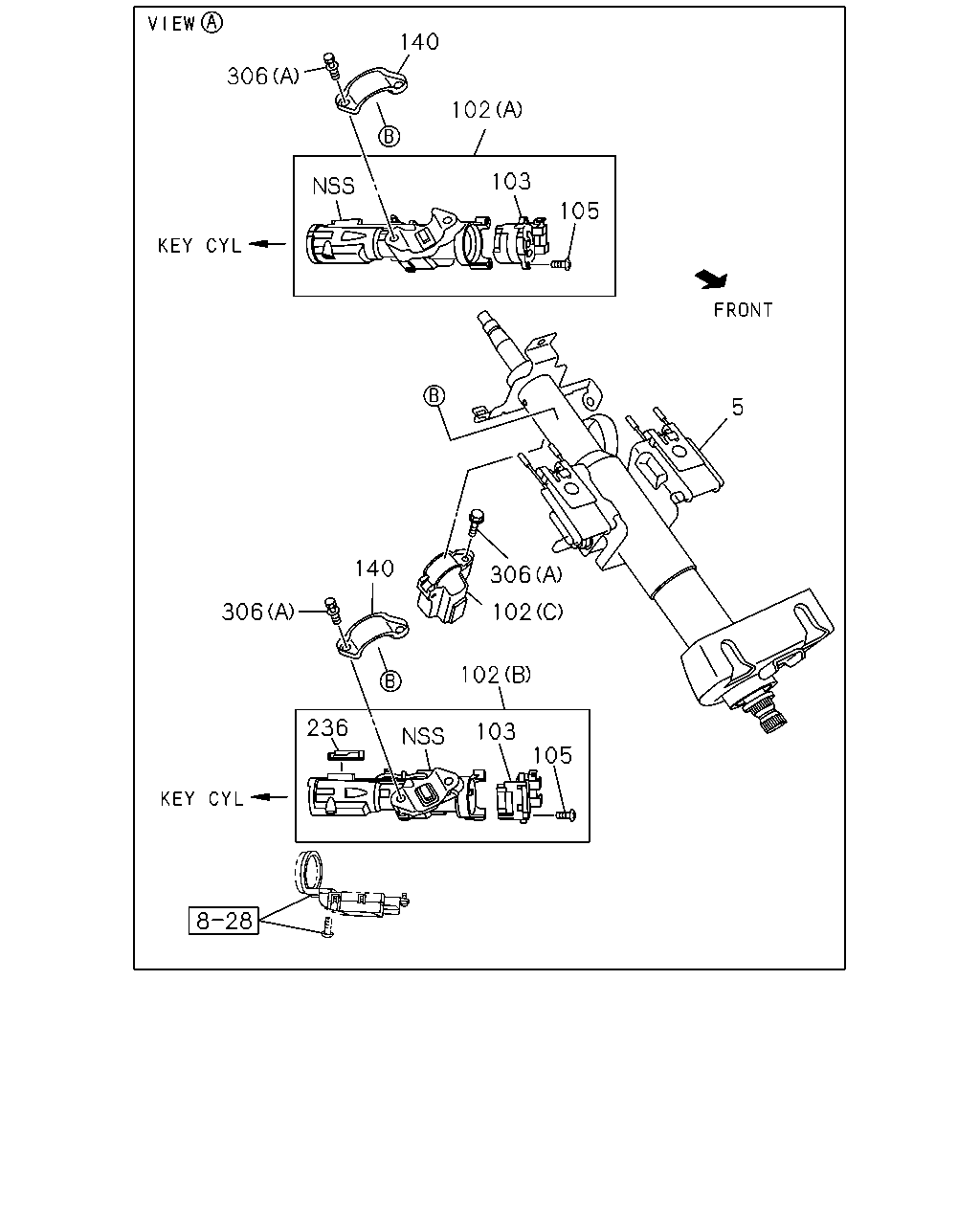

çizim 450623
140 102 103 105 5 306 102 102 140 306 306 103 236 105
BalonParca AdiParca NoAdetTipApplied Date A B C D E
5 06.518 COLUMN; STRG
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) TILT STEERING<N33> 		8-98273-325-0 01 1 1409-1412 ● ● ● ●
5 06.518 COLUMN; STRG
TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) TILT STEERING<N33> 		8-98273-325-0 01 1 1501- ● ● ● ●
5 06.518 COLUMN; STRG
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) EXC. TILT STEERING<N33> 		8-98273-326-0 01 1 1409-1412 ● ● ● ●
5 06.518 COLUMN; STRG
TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) EXC. TILT STEERING<N33> 		8-98273-326-0 01 1 1501- ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) 		8-98273-328-0 01 1 1409-1412 ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,TURKEY EQUIPMENT(B11),ISRAEL EQUIPMENT(2G1) 		8-98273-328-0 01 1 1501- ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),TILT STEERING<N33>,ISRAEL EQUIPMENT(2G1) 		8-98273-327-0 01 1 1409-1412 ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TURKEY EQUIPMENT(B11),TILT STEERING<N33>,ISRAEL EQUIPMENT(2G1) 		8-98273-327-0 01 1 1501- ● ● ● ● ●
5 06.518 COLUMN; STRG
PASSIVE ENTRY AND START SYSTEM<AP3> TILT STEERING<N33> EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),PHILIP PINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),COSTA RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF),MOROCCO EQUIPMENT(CGA),ARGENTINA EQUIPMENT(E06),ECUAD OR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98245-257-1 01 1 1409-1412 ● ● ●
5 06.518 COLUMN; STRG
PASSIVE ENTRY AND START SYSTEM<AP3> TILT STEERING<N33> EXC. EGYPT EQUIPMENT(B09),TURKEY EQUIPMENT(B11),PHILIPPINE ISLANDS EQUIPMENT (B15),COLOMBIA EQUIPMENT(CB7),COSTA RICA EQUIPMENT(CB9),CONGO EQUIPMENT(CDF) ,MOROCCO EQUIPMENT(CGA),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),ISRA EL EQUIPMENT(2G1) 		8-98245-257-1 01 1 1501- ● ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) KEY REMINDER BUZZER<T48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98076-117-0 01 1 1409-1508 ● ● ● ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) KEY REMINDER BUZZER<T48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98076-117-0 01 1 1509- ● ● ● ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,KEY REMINDER BUZZER<T48> (A) 		8-98076-116-0 01 1 1409-1508 ● ● ● ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,KEY REMINDER BUZZER<T48> (A) 		8-98076-116-0 01 1 1509- ● ● ● ● ●
102 06.500 LOCK ASM; STRG
A/T 5 SPEED-AISIN(MA1) KEY REMINDER BUZZER<T48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98076-120-0 01 1 1409- ● ● ●
102 06.500 LOCK ASM; STRG
A/T 5 SPEED-AISIN(MA1) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,KEY REMINDER BUZZER<T48> (A) 		8-98076-119-0 01 1 1409- ● ● ●
102 06.500 LOCK ASM; STRG
PASSIVE ENTRY AND START SYSTEM<AP3> KEY REMINDER BUZZER<T48> (C) 		8-98226-269-0 01 1 1409- ● ● ●
103 02.188 SWITCH; IGNITION
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98132-719-0 01 1 1409- ● ● ● ● ●
105 06.500 SCREW; IGN SW
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98192-449-0 02 1 1409- ● ● ● ● ●
140 06.524 BRACKET; STRG COWL
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98134-652-0 01 1 1409- ● ● ● ● ●
236 02.195 SWITCH; DOOR WARNING,STRG LOCK
KEY REMINDER BUZZER<T48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98132-720-0 01 1 1409- ● ● ● ● ●
306 06.525 BOLT; STRG SHAFT
(B) M8X35 FLANGE 		8-97249-320-0 02 1 1409- ● ● ● ● ●
306 06.525 BOLT; STRG SHAFT
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 06.500 (A) M8X18.5 TWISTED OFF 		8-97945-749-0 02 1 1409- ● ● ● ● ●
306 06.525 BOLT; STRG SHAFT
PASSIVE ENTRY AND START SYSTEM<AP3> KEY REMINDER BUZZER<T48> 06.500 (A) M8X18.5 TWISTED OFF 		8-97945-749-0 01 1 1409-1505 ● ● ●
306 06.525 BOLT; STRG SHAFT
PASSIVE ENTRY AND START SYSTEM<AP3> 06.500 (A) M8X18.5 TWISTED OFF 		8-97945-749-0 01 1 1506- ● ● ●
