◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51583 - TFR/TFS LHD ▶ 3 - Brakes, Brake System ▶ 3-45 - LOAD SENSING PROPORTIONING VALVE ▶
3-45 — LOAD SENSING PROPORTIONING VALVE (#151798) — 29 parça

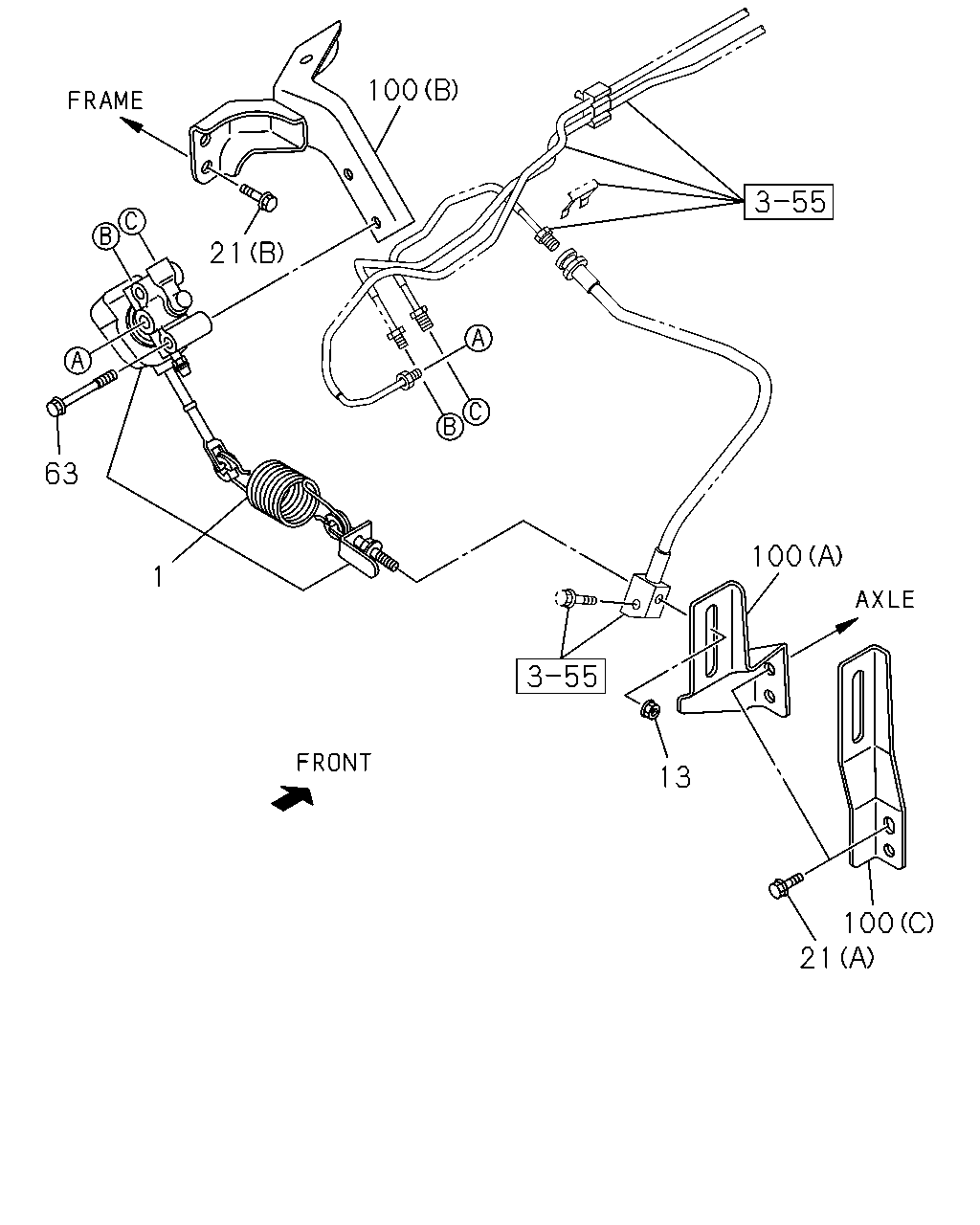

çizim 450412
100 21 63 1 13 21 100 100
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.730 VALVE ASM; LOAD SENSING PROPORTI
BRK WHL LK CONT LSPV<JR9> 		8-97947-813-0 01 1 1409-1411 ● ● ● ●
1 04.730 VALVE ASM; LOAD SENSING PROPORTI
BRK WHL LK CONT LSPV<JR9> 		8-97947-813-0 01 1 1412-1412 ● ● ● ● ●
1 04.730 VALVE ASM; LOAD SENSING PROPORTI
BRK WHL LK CONT LSPV<JR9> 		8-97947-813-0 01 1 1501- ● ● ● ●
13 04.730 NUT; LSPV TO BRKT
BRK WHL LK CONT LSPV<JR9> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1409-1411 ● ● ● ●
13 04.730 NUT; LSPV TO BRKT
BRK WHL LK CONT LSPV<JR9> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1412-1412 ● ● ● ● ●
13 04.730 NUT; LSPV TO BRKT
BRK WHL LK CONT LSPV<JR9> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1501- ● ● ● ●
21 04.730 BOLT; BRKT
BRK WHL LK CONT LSPV<JR9> 01.531 (A) M8X20 FLANGE 		0-28650-820-0 02 1 1409-1411 ● ● ● ●
21 04.730 BOLT; BRKT
BRK WHL LK CONT LSPV<JR9> 01.531 (A) M8X20 FLANGE 		0-28650-820-0 02 1 1412-1412 ● ● ● ● ●
21 04.730 BOLT; BRKT
BRK WHL LK CONT LSPV<JR9> 01.531 (A) M8X20 FLANGE 		0-28650-820-0 02 1 1501- ● ● ● ●
21 04.730 BOLT; BRKT
BRK WHL LK CONT LSPV<JR9> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 1409-1411 ● ● ● ●
21 04.730 BOLT; BRKT
BRK WHL LK CONT LSPV<JR9> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 1412-1412 ● ● ● ● ●
21 04.730 BOLT; BRKT
BRK WHL LK CONT LSPV<JR9> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 03 1 1501- ● ● ● ●
63 04.710 BOLT; LSPV
BRK WHL LK CONT LSPV<JR9> 04.686 M8X60 FLANGE 		0-28050-860-0 02 1 1409-1411 ● ● ● ●
63 04.710 BOLT; LSPV
BRK WHL LK CONT LSPV<JR9> 04.686 M8X60 FLANGE 		0-28050-860-0 02 1 1412-1412 ● ● ● ● ●
63 04.710 BOLT; LSPV
BRK WHL LK CONT LSPV<JR9> 04.686 M8X60 FLANGE 		0-28050-860-0 02 1 1501- ● ● ● ●
100 04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (C) 		8-97947-819-0 01 1 1409-1411 ● ●
100 04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> (C) 		8-97947-819-0 01 1 1409-1411 ● ●
100 04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (C) 		8-97947-819-0 01 1 1412-1412 ● ●
100 04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> (C) 		8-97947-819-0 01 1 1412-1412 ● ● ●
100 04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (C) 		8-97947-819-0 01 1 1501- ● ●
100 04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> (C) 		8-97947-819-0 01 1 1501- ● ●
100 04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (B) 		8-98192-003-0 01 1 1409-1411 ● ●
100 04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> (B) 		8-98192-003-0 01 1 1409-1411 ● ●
100 04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (B) 		8-98192-003-0 01 1 1412-1412 ● ●
100 04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> (B) 		8-98192-003-0 01 1 1412-1412 ● ● ●
100 04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (B) 		8-98192-003-0 01 1 1501- ● ●
100 04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> (B) 		8-98192-003-0 01 1 1501- ● ●
100 04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97947-818-0 01 1 1409- ● ●
100 04.730 BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98192-002-0 01 1 1409- ● ●
