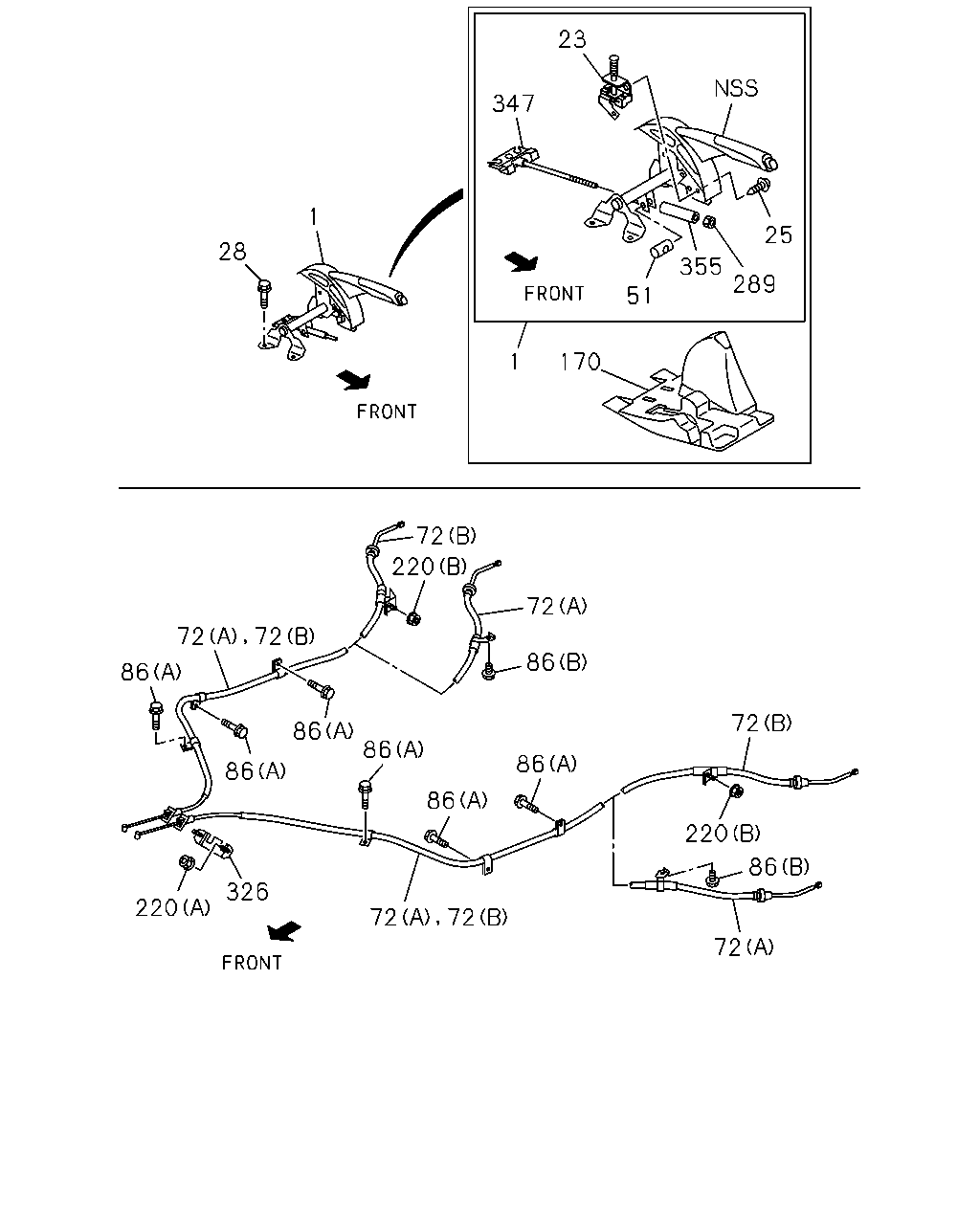

3-11 — PARKING BRAKE CONTROL (#151794) — 50 parça

220 72 72 86 86 72 86 72 72 326 220 86 86 72 220 72 72 170 1 1 28 347 23 355 51 289 25 86 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.592 STEM ASM; PARKING BRK FRONT SEAT SPLIT BENCH<AM6>	8-98160-176-1	01	1	1409-	●	●	●	●
1	04.592 STEM ASM; PARKING BRK FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98061-828-0	01	1	1409-	●	●	●	●	●
23	04.589 SWITCH; PARKING BRK	8-97947-498-0	01	1	1409-	●	●	●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-97103-556-0	01	1	1409-	●	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1409-	●	●	●	●	●
51	04.785 PIN; JOINT,RELAY LEVER	8-97947-496-0	01	1	1409-	●	●	●	●	●
72	04.779 CABLE; PARKING BRK TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, HIGH RIDE SUSPENSION(7YC) (B)	8-98102-140-1	01	1	1409-1411	●	●
72	04.779 CABLE; PARKING BRK TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),ISRAEL EQUIPMENT(2G1) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, HIGH RIDE SUSPENSION(7YC) (B)	8-98102-140-1	01	1	1412-1412	●	●
72	04.779 CABLE; PARKING BRK TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),ISRAEL EQUIPMENT(2G1) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, HIGH RIDE SUSPENSION(7YC) (B)	8-98102-140-1	01	1	1501-	●	●
72	04.779 CABLE; PARKING BRK TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, HIGH RIDE SUSPENSION(7YC) (B)	8-98102-141-1	01	1	1409-1411	●	●
72	04.779 CABLE; PARKING BRK TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),ISRAEL EQUIPMENT(2G1) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, HIGH RIDE SUSPENSION(7YC) (B)	8-98102-141-1	01	1	1412-1412	●	●
72	04.779 CABLE; PARKING BRK TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),ISRAEL EQUIPMENT(2G1) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, HIGH RIDE SUSPENSION(7YC) (B)	8-98102-141-1	01	1	1501-	●	●
72	04.779 CABLE; PARKING BRK REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) (A)	8-98102-148-1	01	1	1409-	●	●
72	04.779 CABLE; PARKING BRK SOFT RIDE SUSPENSION SYSTEM<FE1> HIGH RIDE SUSPENSION(7YC) (A)	8-98102-148-1	01	1	1409-		●
72	04.779 CABLE; PARKING BRK REAR SPRING HEAVY DUTY(G50) (A)	8-98102-148-1	01	1	1409-			●	●	●
72	04.779 CABLE; PARKING BRK SOFT RIDE SUSPENSION SYSTEM<FE1> (A)	8-98102-148-1	01	1	1409-				●
72	04.779 CABLE; PARKING BRK REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) (A)	8-98102-149-1	01	1	1409-	●	●
72	04.779 CABLE; PARKING BRK SOFT RIDE SUSPENSION SYSTEM<FE1> HIGH RIDE SUSPENSION(7YC) (A)	8-98102-149-1	01	1	1409-		●
72	04.779 CABLE; PARKING BRK REAR SPRING HEAVY DUTY(G50) (A)	8-98102-149-1	01	1	1409-			●	●	●
72	04.779 CABLE; PARKING BRK SOFT RIDE SUSPENSION SYSTEM<FE1> (A)	8-98102-149-1	01	1	1409-				●
72	04.779 CABLE; PARKING BRK HIGH RIDE SUSPENSION(7YC) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, REAR SPRING HEAVY DUTY(G50) (A)	8-98067-048-1	01	1	1409-	●	●
72	04.779 CABLE; PARKING BRK EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, REAR SPRING HEAVY DUTY(G50) (A)	8-98067-048-1	01	1	1409-			●	●	●
72	04.779 CABLE; PARKING BRK HIGH RIDE SUSPENSION(7YC) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, REAR SPRING HEAVY DUTY(G50) (A)	8-98067-049-1	01	1	1409-	●	●
72	04.779 CABLE; PARKING BRK EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>, REAR SPRING HEAVY DUTY(G50) (A)	8-98067-049-1	01	1	1409-			●	●	●
72	04.779 CABLE; PARKING BRK EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),SOFT RIDE SUSPENSION SYSTEM<FE1>,ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) (B)	8-98067-046-1	01	1	1409-1411	●	●
72	04.779 CABLE; PARKING BRK SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),REAR SPRING HEAVY DUTY(G50) ,ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) (B)	8-98067-046-1	01	1	1409-1411		●
72	04.779 CABLE; PARKING BRK EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), SOFTRIDE SUSPENSION SYSTEM<FE1>,ISRAEL EQ UIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) (B)	8-98067-046-1	01	1	1412-1412	●	●
72	04.779 CABLE; PARKING BRK SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),REAR SPRING HEAVY DUTY(G50),ISRAEL EQUIPME NT(2G1),HIGH RIDE SUSPENSION(7YC) (B)	8-98067-046-1	01	1	1412-1412		●
72	04.779 CABLE; PARKING BRK EXC. TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),SOFT RIDE SUSPENSION SYSTEM<FE1>,ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) (B)	8-98067-046-1	01	1	1501-1505	●	●
72	04.779 CABLE; PARKING BRK SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),REAR SPRING HEAVY DUTY(G50),ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSP ENSION(7YC) (B)	8-98067-046-1	01	1	1501-1505		●
72	04.779 CABLE; PARKING BRK EXC. TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),SOFT RIDE SUSPENSION SYSTEM<FE1>,ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) (B)	8-98067-046-1	01	1	1506-	●	●
72	04.779 CABLE; PARKING BRK SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98067-046-1	01	1	1506-		●
72	04.779 CABLE; PARKING BRK EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),SOFT RIDE SUSPENSION SYSTEM<FE1>,ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) (B)	8-98067-047-1	01	1	1409-1411	●	●
72	04.779 CABLE; PARKING BRK SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),REAR SPRING HEAVY DUTY(G50) ,ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) (B)	8-98067-047-1	01	1	1409-1411		●
72	04.779 CABLE; PARKING BRK EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), SOFTRIDE SUSPENSION SYSTEM<FE1>,ISRAEL EQ UIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) (B)	8-98067-047-1	01	1	1412-1412	●	●
72	04.779 CABLE; PARKING BRK SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA),REAR SPRING HEAVY DUTY(G50),ISRAEL EQUIPME NT(2G1),HIGH RIDE SUSPENSION(7YC) (B)	8-98067-047-1	01	1	1412-1412		●
72	04.779 CABLE; PARKING BRK EXC. TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),SOFT RIDE SUSPENSION SYSTEM<FE1>,ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) (B)	8-98067-047-1	01	1	1501-1505	●	●
72	04.779 CABLE; PARKING BRK SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),REAR SPRING HEAVY DUTY(G50),ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSP ENSION(7YC) (B)	8-98067-047-1	01	1	1501-1505		●
72	04.779 CABLE; PARKING BRK EXC. TURKEY EQUIPMENT(B11),MOROCCO EQUIPMENT(CGA),SOFT RIDE SUSPENSION SYSTEM<FE1>,ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) (B)	8-98067-047-1	01	1	1506-	●	●
72	04.779 CABLE; PARKING BRK SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98067-047-1	01	1	1506-		●
86	04.785 BOLT 03.162 (A) M6X20 FLANGE	0-28650-620-0	06	1	1409-	●	●	●	●	●
86	04.785 BOLT HIGH RIDE SUSPENSION(7YC) 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	1409-	●	●
86	04.785 BOLT 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	1409-			●	●	●
170	04.595 COVER; PARKING BRK LEVER FRONT SEAT SPLIT BENCH<AM6>	8-97948-803-0	01	1	1409-	●	●	●	●
220	04.785 NUT; CLIP,PARKING CONT CABLE 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1409-	●	●	●	●	●
220	04.785 NUT; CLIP,PARKING CONT CABLE EXC. HIGH RIDE SUSPENSION(7YC) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1409-	●	●
289	04.594 NUT; PARKING BRK 04.785	8-98017-654-0	01	1	1409-	●	●	●	●	●
326	04.785 RETAINER; PARK CABLE	8-98134-214-1	01	1	1409-	●	●	●	●	●
347	04.675 EQUALIZER; HAND BRK	8-97947-495-0	01	1	1409-	●	●	●	●	●
355	04.594 SPACER; HAND BRK LEVER	8-97947-497-0	01	1	1409-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
